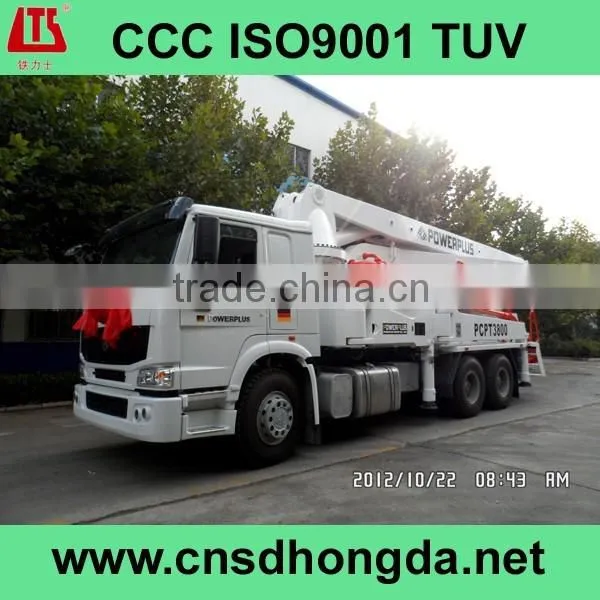

48m-Boom Concrete Pump Trucks on Sale
Tie Li Shi (Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001/TUV Cedrtified

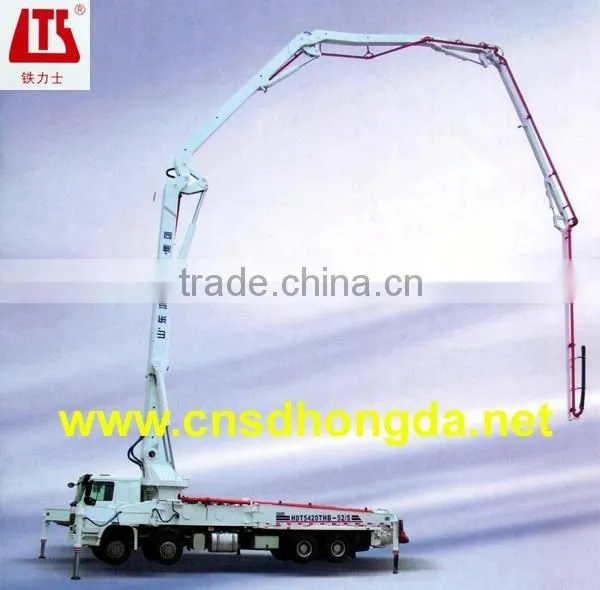

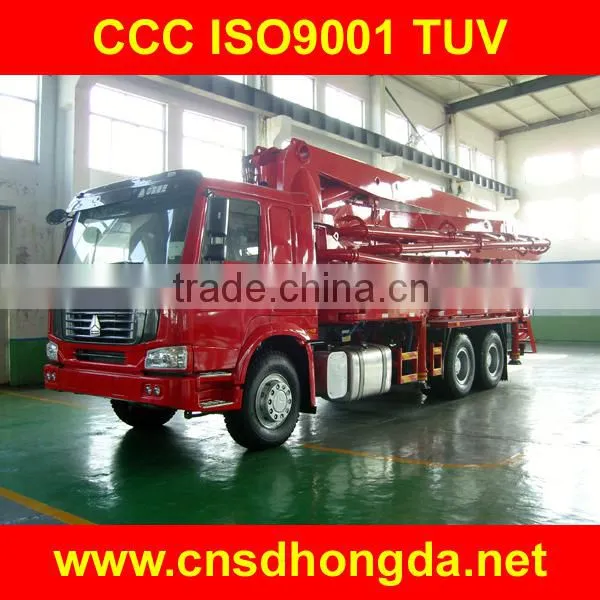

I.Introduction to Concrete Pmup Truck
The Hongda Boom-type Concrete Pump Truck (Truck-mounted Concrete Pump with Foldable Booms) is developed by Hongda Group on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life. Meantime, Hongda Group optimized the design of the hydraulic system, adopted the latest free fluid technique and greatly lessened the impact of pumping commutation on the distributing boom. In the boom structure optimization and the hydraulic system design, Hongda Group has obtained many patents. The consummate control of product quality, perfect techniques of product manufacturing and strict procedures of quality inspection make the HONGDA Pump Truck a leading product in China and an advanced product in the world. All the steel plates for the boom system are high-strength cold rolling steel plates made by the Swedish company SSAB. The yield strength of the plates exceeds 900Mpa, which ensures that the boom system has high strength and light weight. The boom system’s distributing pipe, landing legs, oil tank and so on have all received 100% stress-removing treatment after welding. Every welding seam has passed the 100% undamage and crack detection or X-ray radial check to avoid any tiny defects and to make the machine more enduring.
The slewing bearing for the boom system is made by ROTHE ERDE Company from Germany or Larry Olisa Company from Italy. The 42CrMo texture of the slewing bearing ensures its higher strength and longer service life.
Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of HONGDA Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:
The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.
The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.
The pumping capacity can be regulated through the stepless control device.
The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.
The slewing speed of the boom can be regulated through the stepless control device.
It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.
Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging;
Equipped with slewing reducers and motors imported with original packaging;
Equipped with HAWE proportional multi-way valves imported with original German packaging;
Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies;
It is equipped with an electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.
II.Technical Parameters of Concrete Pump Truck
Items |
Unit |
Parameters |
||
HDT5380THB-48/5 |
HDT5401THB-48/5 |
|||
Main Technical Parameters in |
Theoretical Pumping Capacity |
m3/h |
125 |
125 |
Pumping Capacity Index |
Mpa.m3/h |
586 |
586 |
|
Theoretical Pumping Pressure |
Mpa |
8.5 |
8.5 |
|
Hopper Capacity |
L |
700 |
700 |
|
Feeding Height |
mm |
1400 |
1400 |
|
Distributing Valve Form |
|
S-pipe valve |
S-pipe valve |
|
Max. Distributing Radius |
m |
43.7 |
43.7 |
|
Max. Distributing Height |
m |
47.7 |
47.7 |
|
Max. Distributing Depth |
m |
34.3 |
34.3 |
|
Height of Distributing Boom When Stretched |
mm |
9065 |
9065 |
|
Distance between Front Landing Legs |
mm |
9780 |
9780 |
|
Distance between Rear Landing Legs |
mm |
9860 |
9860 |
|
Distance between Front and Rear Landing Legs |
mm |
9470 |
9470 |
|
Diameter of Conveying Pipe |
mm |
125 |
125 |
|
Length of Tail Hose |
m |
3 |
3 |
|
Rotary Range of Distributing Boom |
|
365° |
365° |
|
Number of Boom Sections |
|
5 |
5 |
|
Rotary Angle of Each Boom Section |
° |
91/180/180/180/270 |
91/180/180/180/270 |
|
Close-control Distance |
m |
33 |
33 |
|
Remote-control Distance |
m |
200 |
200 |
|
Main Technical Parameters in |
Max. Traveling Speed |
km/h |
89 |
85 |
Min. Turning Radius |
mm |
11900 |
12000 |
|
Brake Distance |
m |
10 |
10 |
|
Approach Angle |
° |
16 |
16 |
|
Departure Angle |
° |
11 |
11 |
|
Chassis Model |
|
ISUZU CYH51Y |
HOWO ZZ5437S4667C SINOTRUCK Engine |
|
Wheel Base between the First and the Second Axle |
mm |
1850 |
1800 |
|
Wheel Base between the Second and the Third Axle |
mm |
4605 |
4600 |
|
Wheel Base between the Third and the Fourth Axle |
mm |
1310 |
1350 |
|
Front Tread |
mm |
2065 |
2022 |
|
Rear Tread |
mm |
1850 |
1830 |
|
Max. Engine Power |
kw |
287(2200r/min) |
275(2200r/min) |
|
Max Engine Torque |
n.m |
1863(1100r/min) |
1500 /(1100~1600 r/min) |
|
Max. Grade Ability |
% |
37 |
37 |
|
Fuel Consumption Limit |
L/100km |
38 |
40 |
|
Overall Dimension (L ×W× H) |
mm |
13300×2500×4000 |
13300×2500×4000 |
|
Full-load Total Weight |
kg |
38000 |
40000 |
|
III.Brief Introduction to Our Company
Our main products cover 12 series with more than 80 varieties, such as:

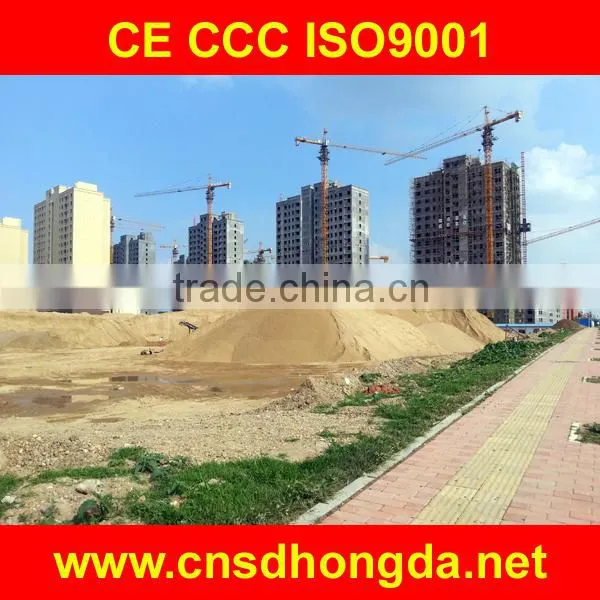

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
https://img13.fr-trading.com/product-detail/QTZ31-5-QTZ63-Tower-Cranes_497995309.html
https://img13.fr-trading.com/product-detail/Variable-frequency-Tower-Crane_520864171.html
2. Construction Elevators (multi-speed, stepless-speed);
https://img13.fr-trading.com/product-detail/2014-New-Designed-SC200-200-Building_227792893.html
https://img13.fr-trading.com/product-detail/Construction-Elevator_223957860.html

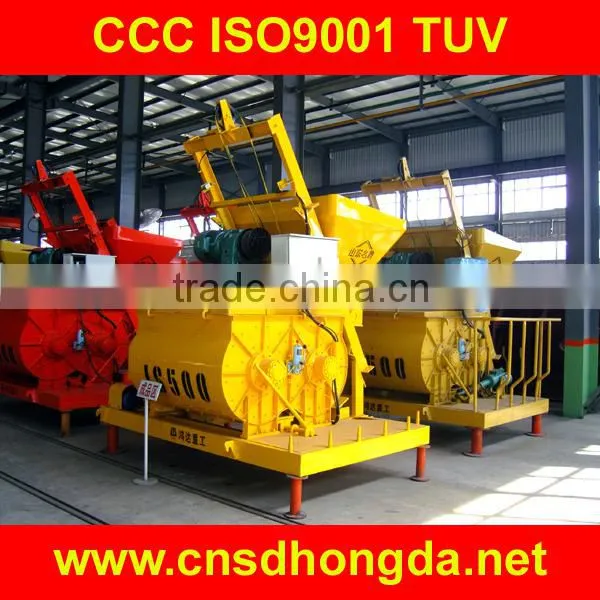

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
https://img13.fr-trading.com/product-detail/Excellent-Performance-Professional-JS500-Concrete-Mixer_60009721150.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-CCC-ISO9001-Certified-Concrete_60009637413.html

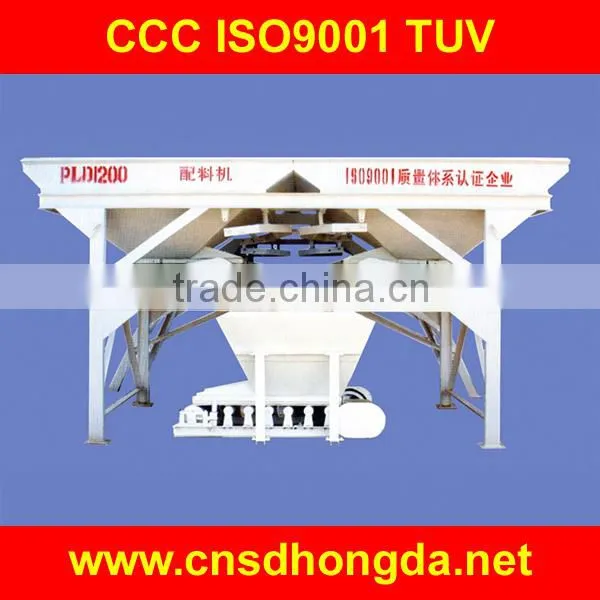

4. Concrete Batchers;
https://img13.fr-trading.com/product-detail/PLD1200C-Concrete-Batcher-with-CCC-ISO9001_1991130583.html
https://img13.fr-trading.com/product-detail/PLD1600C-Concrete-Batcher-on-Sale-concrete_1990878829.html

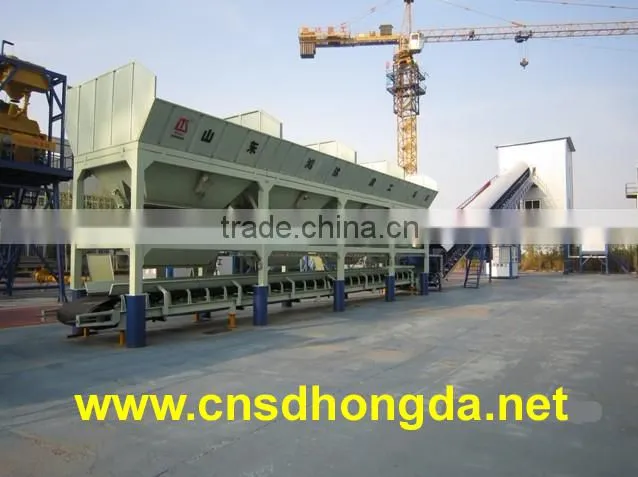

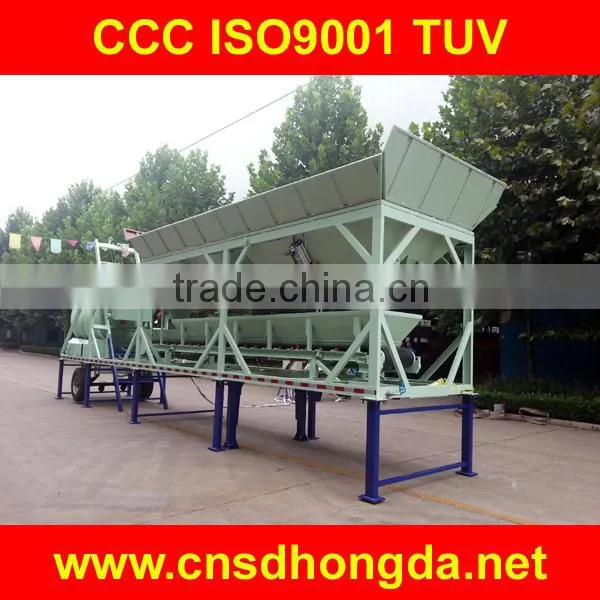

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
https://img13.fr-trading.com/product-detail/Professional-China-Made-HZSX120-Concrete-Mixing_2003279891.html
https://img13.fr-trading.com/product-detail/YHZS60-Mobile-Concrete-Mixing-Plant-for_2003191776.html

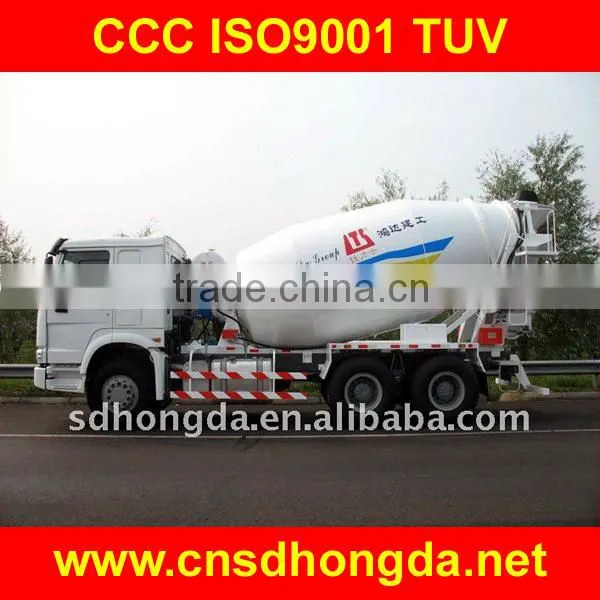

6. Concrete Truck Mixers (6-16m3);
https://img13.fr-trading.com/product-detail/2014-New-Designed-8m3-Transit-Mixer_2022164965.html
https://img13.fr-trading.com/product-detail/High-Efficiency-Widely-Used-14m3-Transit_2022161590.html
7. Truck-mounted Concrete Pumps (diesel, electric);
https://img13.fr-trading.com/product-detail/2014-New-Designed-Hot-Selling-HDT5120THB_2023059018.html
https://img13.fr-trading.com/product-detail/HDT5120THB-Truck-mounted-Concrete-Pump-for_1977254016.html
8. Trailer-mounted Concrete Pumps (diesel, electric);
https://img13.fr-trading.com/product-detail/Famous-Trademark-of-China-TLS-Brand_224575231.html
https://img13.fr-trading.com/product-detail/High-Efficiency-Low-Energy-Competitive-HBT60S1816_2023358330.html
9. Concrete Pump Trucks (with 24-52m booms);
https://img13.fr-trading.com/product-detail/2014-Hot-Selling-Professional-125m3-h_223309052.html
https://img13.fr-trading.com/product-detail/Concrete-Pump-Trucks-37m-52m_224654454.html

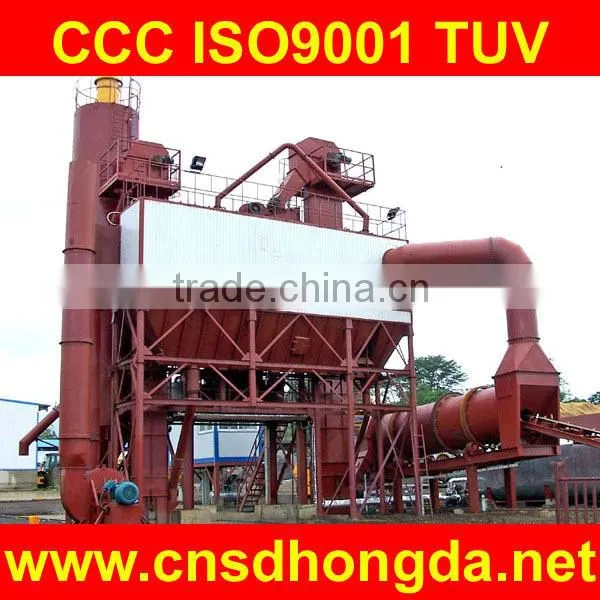

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
https://img13.fr-trading.com/product-detail/-40t-h-320t-h-Asphalt_960651858.html
https://img13.fr-trading.com/product-detail/2014-new-Hot-Selling-Professional-40t_223309995.html
11. Stabilized Soil Mixing Plants;
https://img13.fr-trading.com/product-detail/High-Efficiency-Professional-WCB300-Soilcement-Mixing_60006572932.html
https://img13.fr-trading.com/product-detail/2014-New-Modular-Designed-Hot-Selling_60006558617.html
12. Rotary Drilling Rigs...
https://img13.fr-trading.com/product-detail/Famous-Trademark-of-China-TLS-Brand_222218838.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-HDR230-Rotary-Drilling-Rig_1977742719.html
