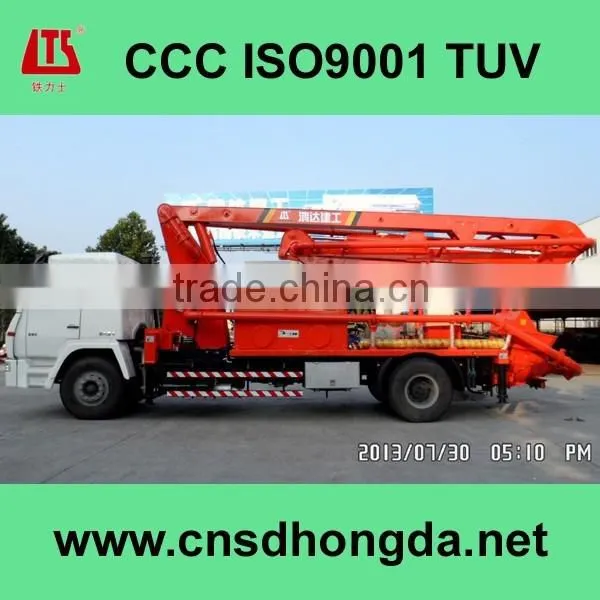

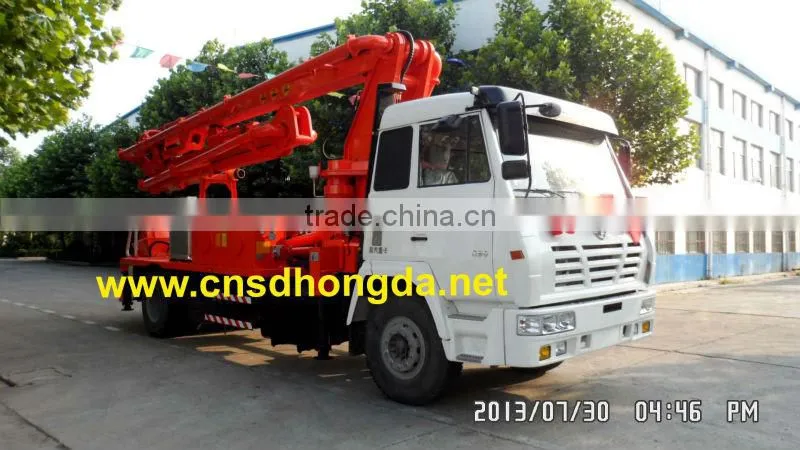

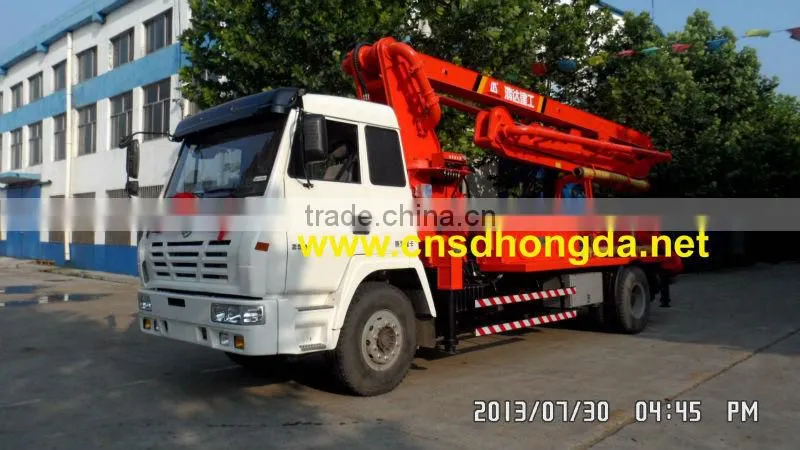

24m Truck-mounted Concrete Pump
with CCC,ISO9001 Certificate
Technical Parameters
Whole Truck |
Model |
HDT5180THB-24/3 |
||
Vehicle Classification |
N3 |
|||
Max Vehicle Speed (km/h) |
92 |
|||
|
Front Axle |
Manufacturer |
Dandong 518 Internal-combustion Accessories Factory |
||
Type |
H-section, Fist-type |
|||
Rear Axle |
Manufacturer |
Shaanxi Automobile Group Co., Ltd. |
||
Type |
2-stage Reduction, Middle Single Reduction, 10-wheel-side Planetary Reduction |
|||
Final Ratio |
4.800 |
|||
Braking System |
Travelling Braking System |
Type |
Pneumatic, 2-cuicuit Air Brake |
|
Drive Mode |
Pneumatic Drive |
|||
Power Type |
Pneumatic Power Boosting |
|||
Brake Type |
Drum-type |
|||
Breaking Force Regulating Mode |
Manual Control |
|||
Parking Braking Type |
Spring actuated and air cut-off parking brake |
|||
Emergency Braking Type |
Combined with Travelling Braking System |
|||
Suspension |
Front |
Type |
Plate Spring |
|
Plate Spring Number |
10 |
|||
Rear |
Type |
Plate spring |
||
Plate Spring Number |
9+6 |
|||
Special Equipment |
Boom |
Manufacturer |
Shandong Hongda Construction Machinery Group |
|
Type |
3-sectionStretchable Boom |
|||
Model |
BC24 |
|||
Special Equipment |
Rotary Table |
Manufacturer |
Shandong Hongda Construction Machinery Group |
|
Model |
BC24 |
|||
Overall Dimension (mm ) |
Length |
10950 |
||
Width |
2500 |
|||
Height |
4000 |
|||
Wheel Base |
AxlesⅠto Ⅱ |
5600 |
||
Wheel Tread |
Front Tread |
1939 |
||
Rear Tread |
1860 |
|||
Overhang Length |
Front Overhang |
1576 |
||
Rear Overhang |
3334 |
|||
Rear Extension |
440 |
|||
Trafficability Characteristic |
Min Ground Clearance ( mm ) |
314 |
||
Approach Angle (°) |
18 |
|||
Departure Angle (°) |
11 |
|||
Min Turing Diameter ( m ) |
21 |
|||
Mass Parameters |
Curb Weight ( kg ) |
Axle Ⅰ |
6450 |
|
Axle Ⅱ |
11880 |
|||
Total Mass |
18330 |
|||
|
Full Load Weight ( kg ) |
Axle Ⅰ |
6500 |
||
Axle Ⅱ |
11960 |
|||
Total Mass |
18460 |
|||
Power Performance |
Max Traveling Speed (km/h) |
89.5 |
||
Top-gear Full-speed Surpass Acceleration Time 60km/h-85km/h (s) |
28.5 |
|||
Secondary Top-gear Full-speed Surpass Acceleration Time 60km/h-85km/h (s) |
25.4 |
|||
Time from Full-speed Starting to 85km/h (s) |
32.1 |
|||
Time from Full-speed Starting to Passing 400m (s) |
28.3 |
|||
Climbing Ability (Grade Ability %) |
30.8 |
|||
Coasting Distance at Initial Speed 50km/h(m) |
823.8 |
|||
Braking Performance |
Cold Braking (30km/h) |
Distance(m) |
7.7 |
|
MFDD(m/s2) |
5.5 |
|||
Braking Stability |
Within 3.0m |
|||
Parking Braking(Ramp Test) |
Fully Stop 5min |
|||
Special Equipment |
Basic Jib Length(mm) |
8220 |
||
Full Stretched Jib(mm) |
19115 |
|||
Max Working Height(mm) |
23.1 |
|||
Max Working Radius(mm) |
19.1 |
|||
Work Efficiency |
Theoretical Pumping Ability (m3/h) |
125 |
||
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
To know more of our products, please browse our webpage /english/product1.asp.
Steven Liu
Sales Manager
International Business Department
Shandong Hongda Construction Machinery Group Co., Ltd.
ADD: No.26 East Longmen Road, Laiyang, Shandong, China
Business Email: salesat
Alternate Email:
Business MSN: sdhongdaat
Skype ID: steven69888
Yahoo Msnger: steven69888
QQ ID: 609866558
Mobile Phone: +86 15192261858
Tel: +86 535 7287987
Fax: +86 535 7287987
Website:
Send Inquiry to This Supplier
