ridge cap forming machine

Name: ridge cap forming machine
Brand: JCX
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port XINGANG TIANJIN
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Tile Forming Machine	Tile Type:	Glazed
Use:	Roof	Production Capacity:	8-11m/min	Place of Origin:	Hebei, China
Brand Name:	JCX	Model Number:	jcx-688	Power(W):	3KW
Voltage:	380V	Dimension(LWH):	7.50.651	Weight:	3.5T
Certification:	TUV	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

save space
easy control
work automatically;
hydraulic cutting;
knife material CR 12 ; rollers: 45# steel with chromium.

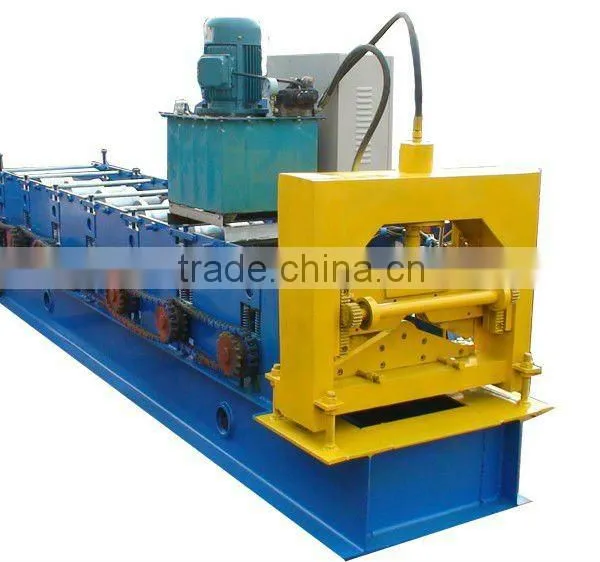

ridge cap forming machine
work automatically; hydraulic cutting; knife material CR 12 ; rollers: 45# steel with chromium.

Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.

Technical Parameters:

Material Spec: colored steel sheet; galvanized steel sheet

Thickness of coil sheet: 0.3-0.8mm

Main Motor Power:3 kw

Forming Speed: 10-12m/min

Hydraulic station power: 3kw

Quantity of stand:about 14

Hydraulic pressure:10-12mpa

controlling system: PLC

Index error of length:10m+2mm

Appearance sizes: 7.5x0.65x1 (L x W x H)

Total weight: about 3.5 tons

Voltage: 380V 3phase 60 HZ or at buyer's requirement

Contact Us

Botou Golden Integrity Roll Forming Machine Co., Ltd.: Contact nameJie Yang; Phone86-317-8269160; AddressDevelopment Area, Botou
