Look Here Stand Seam Forming Machine

Look Here Stand Seam Forming Machine thumbnail-1
Look Here Stand Seam Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Glazed
Contact Supplier Request Quote Chat Now
Botou Golden Integrity Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Glazed
Use Roof
Production Capacity 8-11m/min
Place of Origin Hebei, China
Brand Name JCX
Model Number jcx-688
Power(W) 3KW
Voltage 380V
Dimension(L*W*H) 7.5*0.65*1
Weight 3.5T
Certification TUV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

high speed and cheap price,look here Stand seam Forming Machine

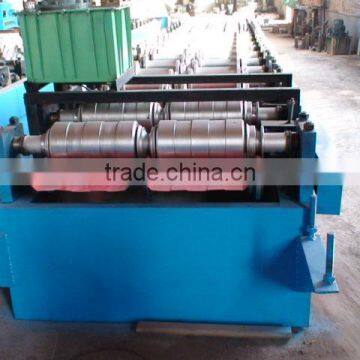

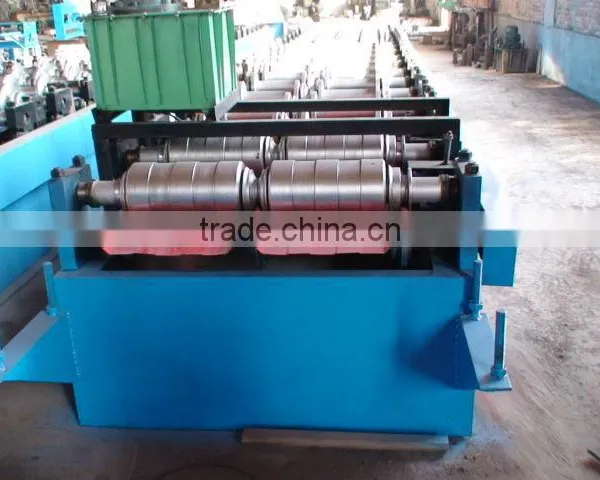

look here Stand seam Forming Machine

Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter









1.Leak frame load-bearing:4T



2. Rack: welding with 300H steel



3. The form of forming machine guiding filling: side skip



4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.



5. Diameter of Shaft is: 72mm



6.Chain: 0.6 inch single row



7. Main motor power:3kw double pole reduction box



8. Forming Speed: 8m/min



9. Number of tracks: 11 tracks



10. Roller material: high grade 45#steel



11 Hydraulic station power: 3kw



12 Hydraulic station oil pump: gearpump



13 Cutting type: hydraulic cut



14 Forming Cutting blade: Cr12



15 Heat treatment on cutting blade: HRC58°-60°



16 Thickness of coil sheet: 0.3-0.8mm



17 Coil width of material: 1000mm



18 Index error of length: ±2mm



19 Controlling system: PLC



Material of main equipment:

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

Cutting blade: Cr12 mould steel with quenched treatment.

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
