Hydraulic Cutting Roof Ridge Cap Roll Forming Machine With PLC Control System

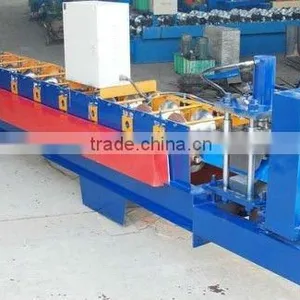

Hydraulic Cutting Roof Ridge Cap Roll Forming Machine With PLC Control System thumbnail-1
Hydraulic Cutting Roof Ridge Cap Roll Forming Machine With PLC Control System photo-1
US$ 11,500 - 19,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Botou Golden Integrity Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Roof
Production Capacity 2-4m/min
Place of Origin Hebei, China
Brand Name JCX
Model Number 312
Power(W) 4+3kw
Voltage 380V 50hz three-phase
Dimension(L*W*H) 7.2m*1.4m*1.5m
Weight 3.2t
Certification CE ISO9001
Warranty 1 year, one year
After-sales Service Provided Engineers available to service machinery overseas

 Specifications of Ridge Cap Roll Forming Machine - metal roof ridge cap making machine



  • Material thickness: 0.3-0.7mm
  • Material width: depend on customer’s requirement
  • Main Motor Power: 7.5 Kw
  • Hydraulic Motor Power: 5.5 Kw
  • Forming Station: 15 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45# Steel, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton



  metal roof ridge cap making machine  Main Components



  • Decoiler --------------------------------------------- 1 Unit
  • Feeding guide --------------------------------------- 1 Unit
  • main roll forming machine --------------------------- 1 Unit
  • Hydraulic Press & cutting device --------------------- 1 Unit
  • Hydraulic Station ------------------------------------ 1 Unit
  • PLC computer control ------------------------------- 1 Unit
  • Output table ---------------------------------------- 1 Unit





  Reference Drawings



  metal roof ridge cap making machine  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

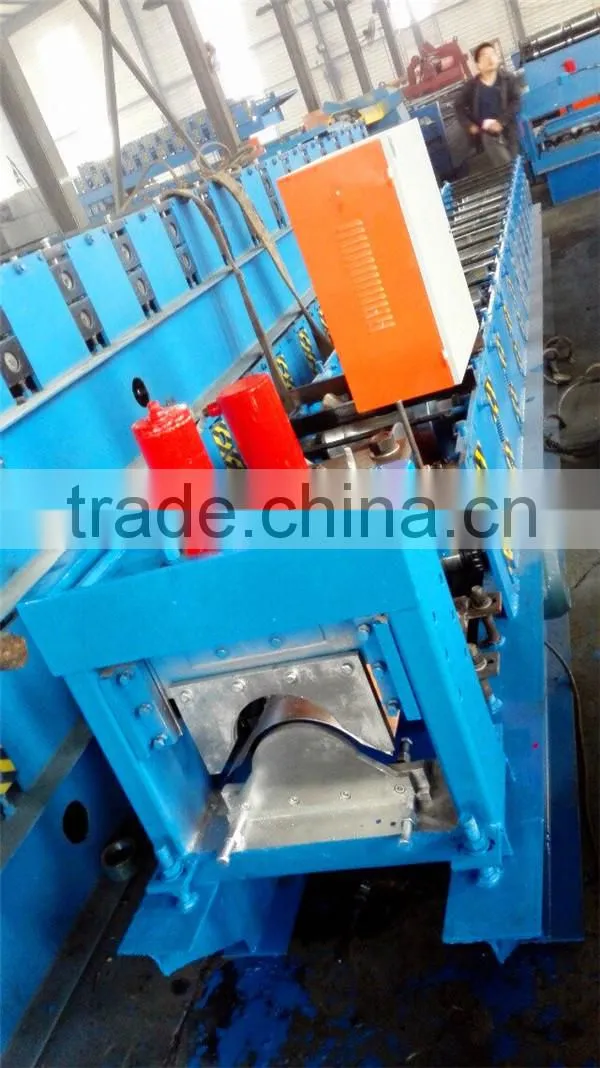

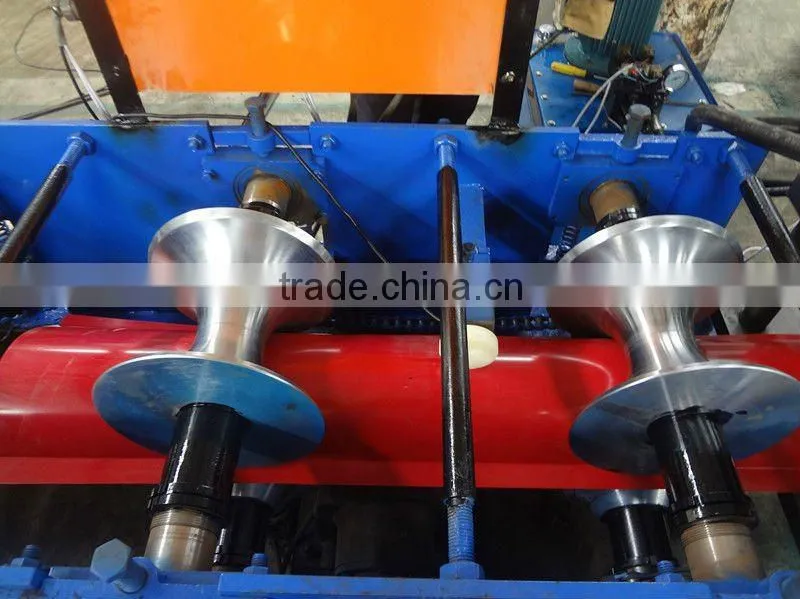

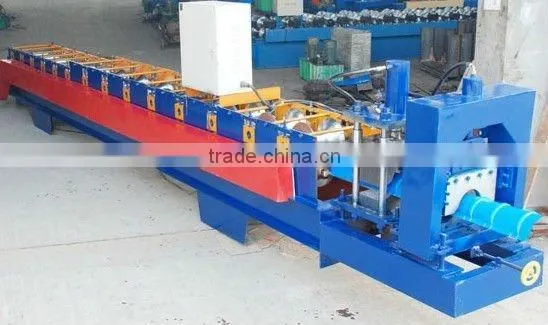

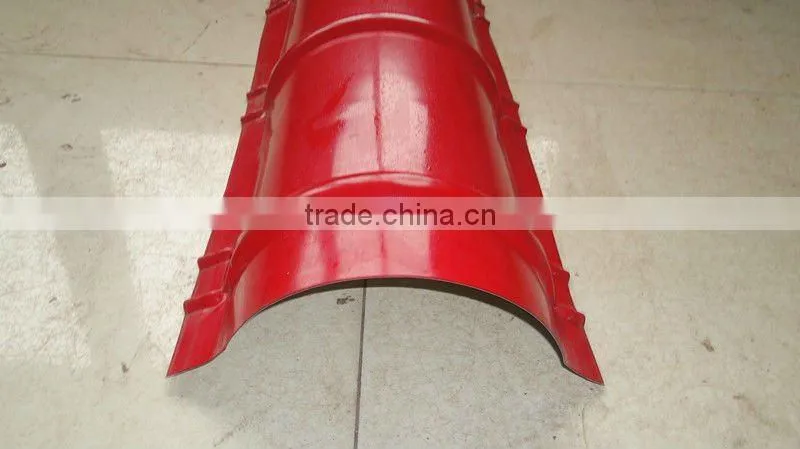

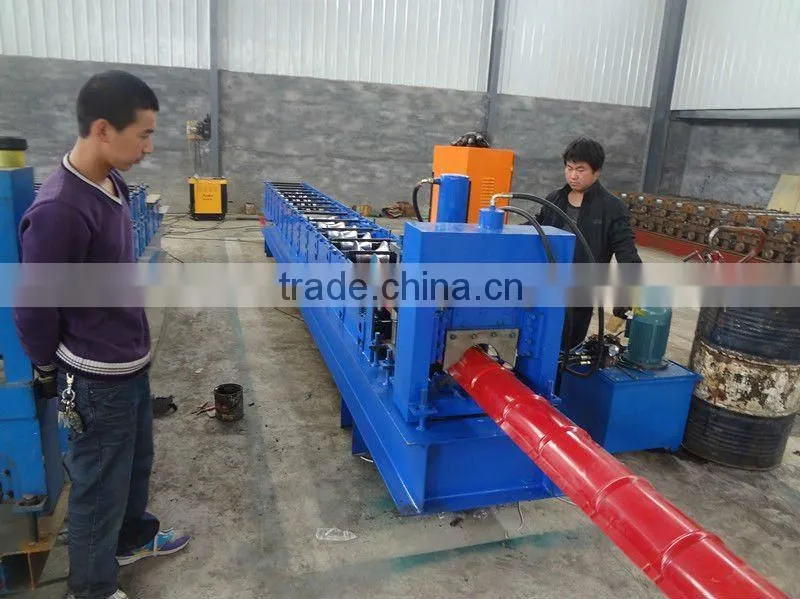

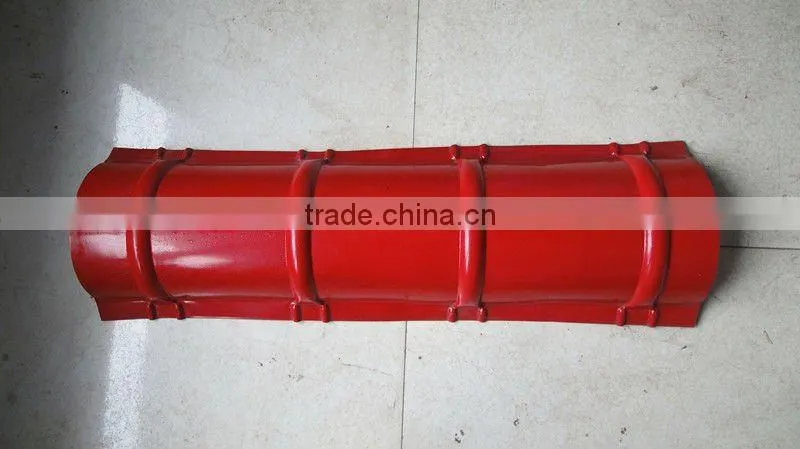

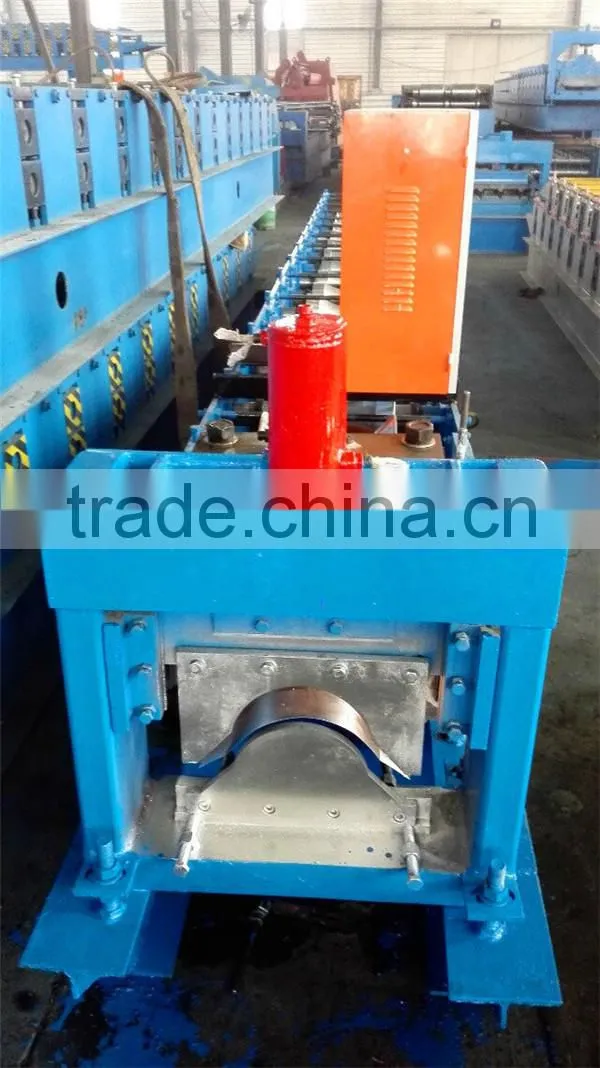

   metal roof ridge cap making machine  Machine Pictures





Contract Person: Presley Xu

Mob:+86 18732755439

Skype:Presley.xu

Email:presley(at)
