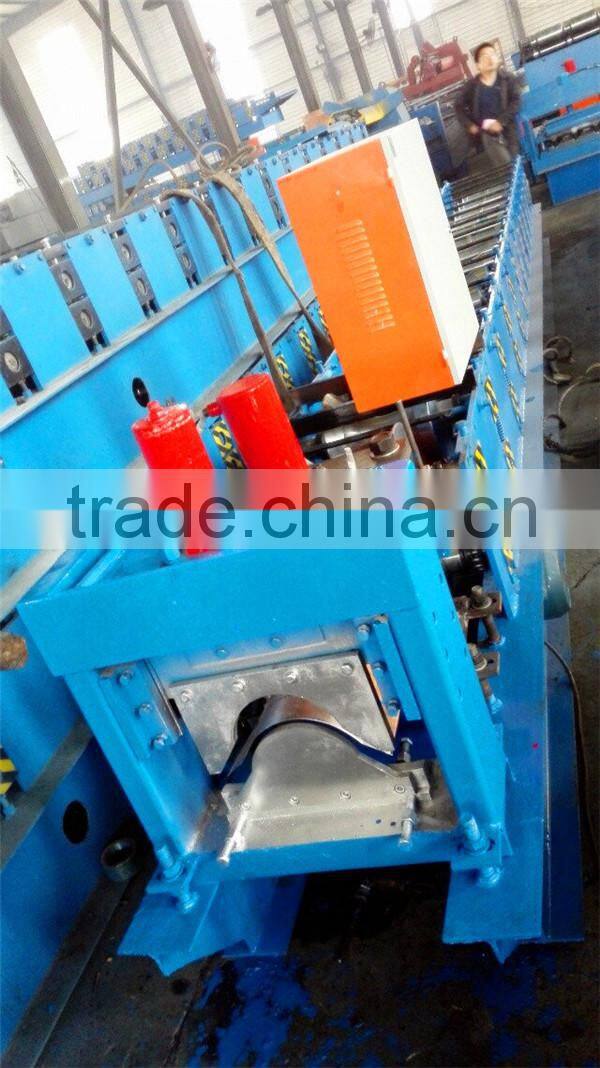

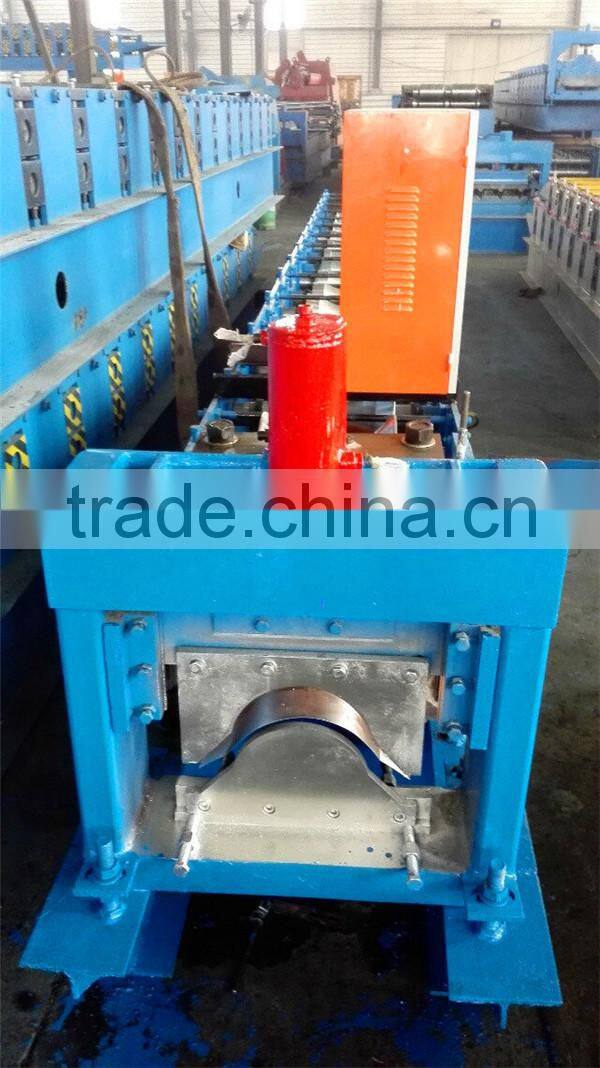

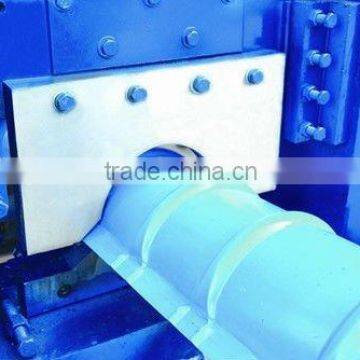

High Grade 45# Hydraulic Cutting Ridge Tile Roll Forming Machine With PLC Control

 Specifications of Ridge Cap Roll Forming Machine - metal roof ridge cap making machine

• Material thickness: 0.3-0.7mm
• Material width: depend on customer’s requirement
• Main Motor Power: 7.5 Kw
• Hydraulic Motor Power: 5.5 Kw
• Forming Station: 15 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45# Steel, quenched and heat treatment.
• Axis Diameter: ¢ 76mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

  metal roof ridge cap making machine  Main Components

• Decoiler --------------------------------------------- 1 Unit
• Feeding guide --------------------------------------- 1 Unit
• main roll forming machine --------------------------- 1 Unit
• Hydraulic Press & cutting device --------------------- 1 Unit
• Hydraulic Station ------------------------------------ 1 Unit
• PLC computer control ------------------------------- 1 Unit
• Output table ---------------------------------------- 1 Unit

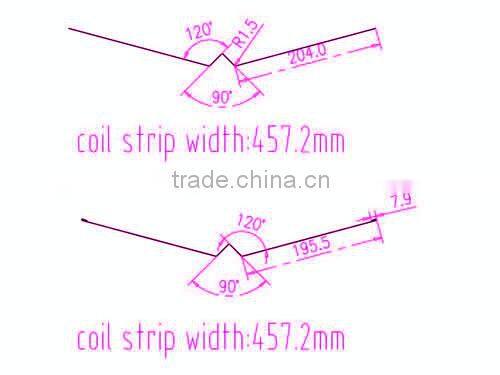

  Reference Drawings

  metal roof ridge cap making machine  Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
