Double Colored Steel Roll Forming Machine

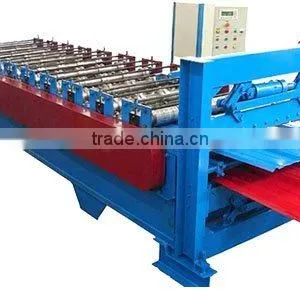

Double Colored Steel Roll Forming Machine thumbnail-1
Double Colored Steel Roll Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
jinchengxi, jinchengxin
Model Number:
JCX2, JCX-840/1050
Contact Supplier Request Quote Chat Now
Botou Golden Integrity Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name jinchengxi, jinchengxin
Model Number JCX2, JCX-840/1050

Specifications

Our double roll forming machine:
reasonable,
ntinuous innovation and progres
3.best after sales service

Cover width

Coil width

Wave height

Wave length

usage

840/900(mm)

1000(mm)

25/15(mm)

210/225(mm)

Roof and wall

(I) Main technical parameters:

1. Passive leak: manual up tight, passive leak

2. Leak rack load: 4T

3. Rack: Using 300H steel welding

4. Forming Machine-driven feeding frame Type: Side roller

5. Forming Machine Type: wall-type chain drive

6. Shaft Diameter: 72 mm

7. Chain: 0.6-inch single-row

8. Forming Motor Power: 3K reducer

9. Forming Machine speed: 10m/min

10. Forming Machine Road Number: 840 11-axis, 900 9 shaft.

11. Roll Material: high quality steel Duan playing pieces

12. Hydraulic station motor: 3kw

13. Hydraulic Pump Station: Gear pump

14. Cutting method: hydraulic shear

15. Scissors film forming material: Cr12

16. Shearing blade Heat treatment: HRC58 ° -60 °

17. Rolling thickness: 0.3-0 .8 mm

18. Material Expand Width: 1000mm

19. Length Accuracy: ± 2mm

20. The computer use of PLC, Taiwan Delta.

21. Computer Operator



(II).Device configuration:



Passive leak rack (4T), forming the host, hydraulic forming shears, hydraulic station, PLC computer control cabinet.



(III).Equipment manufacturing cycle: 14 days
