Specifications
rock wood sandwich panel production linewe are manufacture
latest technology
excellent quality
complete service
Welcome to view rock wood&eps sandwich panel production line
according to customers requirements ,costom roll forming machine.

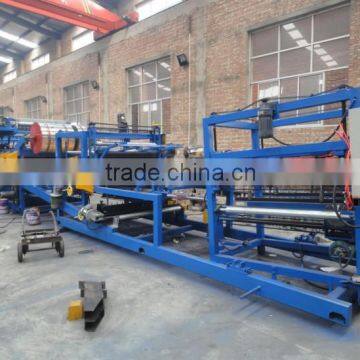

1. Colored Steel Sandwich Panel production line mainly consists of the IBR Roll Forming Machine and the Colored Steel Sandwich Panel Laminator. With this machine, colored steel wall panels or colored steel roof panels can be produced in just one-time, and the Corrugated Roll Forming Machine and the Sandwich Panel Laminator can work independently. The whole production line of the Corrugated Roll Forming Machine consists of the un-coiler, cold-bending roll forming machine, cutting device, whereas the Sandwich Panel Laminator consists of the un-coiler for colored steel, EPS block, or mineral wool panel, shallow wave for wall panels pressing device, extruding system, mixed-glue spraying, heating and pressurizing system, sandwich, flat curling, edge rolling, edge-turnover, grooving, edge-trimming device, pneumatic clamping device, automatic plastic film coating device, automatic cutting and product stacker.
2. The transmission of the sandwich panel laminator uses worm-worm gear transmission system, ensuring that lamination speed is stable and lamination is uniform;
3. The sandwich panel laminator uses the frequency regulator to automatically cut according to the pre-set sandwich panel length;

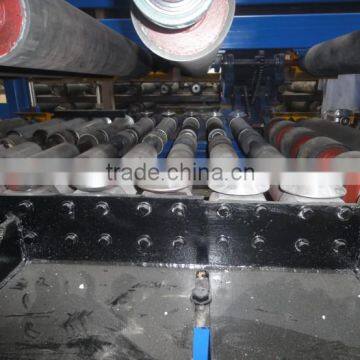

4. The sandwich panel laminator uses rubber-coated roller type laminator to protect the color paint on the colored steel as well as during the pressurizing of the sandwich panel;
5. The sandwich panel laminator has a high quality and thick wall rectangular steel welding method and has the polishing, smoothing and aging treatment to get rid of the rust;
6. The appropriate colored steel sheet: width=1000-1200mm (the length of panel is without imitation), thickness= 0.2-0.8mm;
7. The recommended core materials for Sandwich Panel: EPS Panels and Mineral Wool Panels;
1.Parameters of the production line:
1)Product thickness: 40-250mm
2)Raw material thickness: 0.27-0.8mm
3)Raw material: (under side) color steel, pvc, aluminized paper
4)Voltage:380v/50~60HZ,3phases
5)Production capacity(according to your glue )
4-4.5m/min (the fastest) ,2-2.5m/min(the slowest)
6) Total power: about 30KW
7) Weight: 40ton
8)PLC control system, easy to operate, high precision and work stably.
9) Dimensions of whole production line:
about Length45000mm × Width2500mm × Height2600mm
3.Different types of the panels:
Each production line can produce 5 types’ panel, including 2 types H inlay wall panel, 2 types butt joint wall panel, and 1 screw panel .
1) Screw panel with EPS: 960, 970, 980,choose one type from them for each line.
Raw material Width of Upper layer:1200mm
Raw material Width of down layer: 1000mm
EPS/rock wool sandwich wall panel production line
4.Advantages of theEPS sandwich wall panel:
1)lower price and best quality
2)waterproof and Fireproof
3) 3.The advantage of the rock wool sandwich wall panel:
4)high strength
5)Durable
6)Heat insulation and Sound insulation
7) Energy-saving and Most area-saving
8) Environmental protection
5.Application:
it is widly used as roofing material for steel structure plant, gym, Supermatet ,commercial and civilian facilities.
Service
Delivery time:within 30 days
Productivity:50 sets per year in stock
Payment:T/T,30% after signed the contract,70% after checking and accepting before delivery
Product warranty:12 months,we provide technical support for whole life
Welcome to contact and visit us.Waiting for your cooperation sincerely.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
