Help CenterAutomatic Precast EPS Concrete Sandwich Wall Panel Making Machine/ Production Line
Related Products
-
Panel Sandwich Manufacturer in ChinaUS$ 35,000 - 40,000MOQ: 1 Set -
Eps Sandwich Panel Machine Product Line ManufactureUS$ 35,000 - 40,000MOQ: 1 Set
-
EPS/Mineral Wool Sandwich Panel Production LineUS$ 35,000 - 40,000MOQ: 1 Set
-
HOT!!! EPS Sandwich Wall Panel Production LineUS$ 35,000 - 40,000MOQ: 1 Set
-
Structural Insulated Panel Machine /EPS Sandwich Panel Production LineUS$ 35,000 - 40,000MOQ: 1 Set
Specifications
polyurethane sandwich panel production linewe are manufacture
latest technology
excellent quality
complete service
Welcome to view Quality polyurethane sandwich panel production line
according to customers requirements ,costom roll forming machine.
1)Product thickness: 40-250mm
2)Raw material thickness: 0.27-0.8mm
3)Raw material: (under side) color steel, pvc, aluminized paper
4)Voltage:380v/50~60HZ,3phases
5)Production capacity(according to your glue )
4-4.5m/min (the fastest) ,2-2.5m/min(the slowest)
6) Total power: about 30KW
7) Weight: 40ton
8)PLC control system, easy to operate, high precision and work stably.
9) Dimensions of whole production line:
about Length45000mm × Width2500mm × Height2600mm

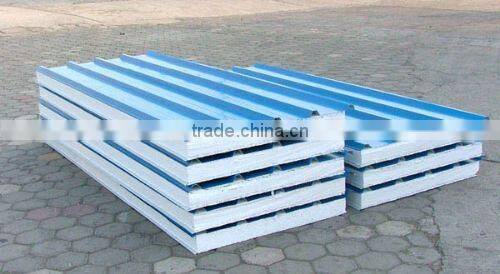

3.Different types of the panels:
Each production line can produce 5 types’ panel, including 2 types H inlay wall panel, 2 types butt joint wall panel, and 1 screw panel .

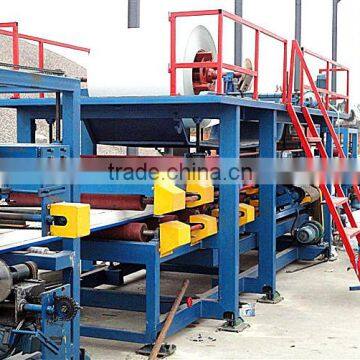

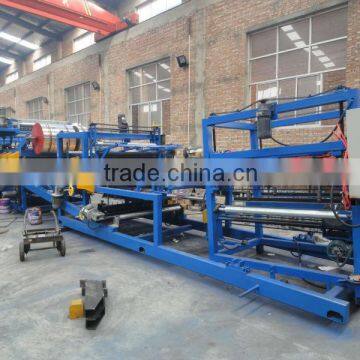

Panel Line Staging
COIL HOLDERS– Options for coil handling range from basic mandrel type systems to fully cantilevered driven
coil holders with coil cars.
JOINT ROLL FORMING– The Full Spec Line roll forming system is forming joints for wall, secret fix and roof
profiles in a compact side transfer unit. This full line roll-forming system is superior due to extra forming length
and all forming being done prior to any core introduction. Also available are very economical systems in the
Modular and Classic ranges as well as the heavy duty “Euroline”.
CORE LOADING– Options include a variety of cores such as EPS and Mineral Wool which is loading from
stacks of sheets or prepared lamellas. The special features include complete flexible setup ability with unique
core in-feed systems.
FAMWOLF– Incorporates a fully automatic Mineral Wool handling and preparation system for cutting, turning
and feeding Mineral Wool without the need for pre-cutting of Mineral Wool into lamellas.
CORE SANDING– we have a range of core preparation systems which include diamond coated roller-sanding,
planing and linishing.
CORE TRIMMING– Systems include TCT cutting as well as the new Multi Type cutting systems for ultimate in
speed and flexibility. The system utilises several cutting heads to ensure optimal cutting finishing especially on
Mineral Wool and composite cored panel systems.
GLUE APPLICATION– we offer a variety of solutions including wiping and spraying systems. The standalone glue
system allows interchanging the system to suit the needs of every production line. This system can even be made
interchangeable with an injection system for PUR and PIR foams.
LAMINATING PRESS– Various length Roller Presses are available for different line speed requirements or
Caterpillar Presses for ultimate laminating experience. The Caterpillar System can also be configured or
retrofitted to allow the production of injected foamed panels on a Laminating System.
PANEL CUTTING– A range of panel cutting systems including the proven Universal Bandsaw. Cutting
Systems can include overlap rebate saws for roof panels as well as several other options and combinations.
CONVEYORS– Several options are available for run out conveyors to take panels from the saw to further processing
including free rolling, motorised systems as well as reject tipping conveyors.
PANEL STACKING– The Panel Stacking Systems can be fitted with the latest designed Panel Flipper and Conveyor Systems as required. The Panel Stacking System can be configured in various lengths and typesincluding options such as positioning systems, in-feed and exit conveyors, board and pallet loading systems for below the stack to exit conveyor types, etc.
PANEL PACKAGE CONVEYORS– After stacking, panels are transported to other processing
EXTRACTION SYSTEM – we offer several types of extraction systems to suite each production line including standard bag houses to full reverse pulse-jet systems as required for the correct Mineral Wool dust extraction.
PANEL WRAPPING– The Spiral Wrapper is an Automatic Wrapper which wraps the pack in stretch film. The machine as standard includes automatic film cut off and starting, internal driven conveyor to assist in wrapping shorter packs and gear set pre-stretching of the film. Various options include items such as automatic EPS le loading under panel stacks and automatic end film wrapping.
Other Options
Other options – available are: overlap removal system, overlap film insertion system, automatic leg insertion under panel packs, core cutting with automatic coldwire or hotwire, reject panel transfer conveyors, board loading and laminating systems, GFK/GRP laminating systems, side tape application, protective foil application. return to top
4.Advantages of theEPS sandwich wall panel:
1)lower price and best quality
2)waterproof and Fireproof
3) 3.The advantage of the rock wool sandwich wall panel:
4)high strength
5)Durable
6)Heat insulation and Sound insulation
7) Energy-saving and Most area-saving
8) Environmental protection
5.Application:

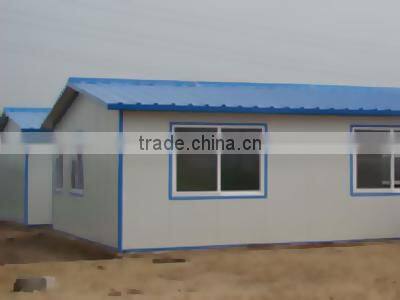

it is widly used as roofing material for steel structure plant, gym, Supermatet ,commercial and civilian facilities.
Service
Delivery time:within 30 days
Productivity:50 sets per year in stock
Payment:T/T,30% after signed the contract,70% after checking and accepting before delivery
Product warranty:12 months,we provide technical support for whole life
Welcome to contact and visit us.Waiting for your cooperation sincerely.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
