Specifications
1)easy operation2)good price with after service
3)high efficiency
4)steady running
C shape tile rolling machinery

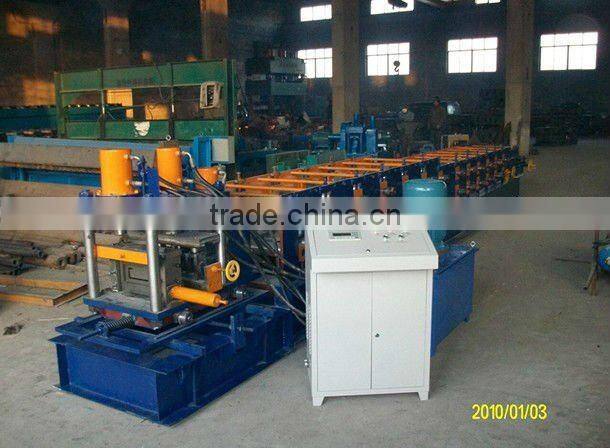

Cshaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on. It consists of strip steel supporting frame, feeding platform, shearing mechanism, hydraulic station, steel strip unfolding system, computer control cabinet, high precision counter, punching system, panel receiveing frame and so on.
Technical parameters:
1.
No. |
main parameter of C/Z/U shape purline Roll Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
175/465mm |
3 |
Rollers |
13 rows |
4 |
Dimensions |
7.6*1.45*1.51m |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
1.5-3mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ80mm |
9 |
Weight |
About 5.5T |
10 |
Voltage |
380V 50Hz 3 phases |
11 |
Material of the cutting plate |
Cr12 |
12 |
Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |
Control system |
PLC control |
2.Components

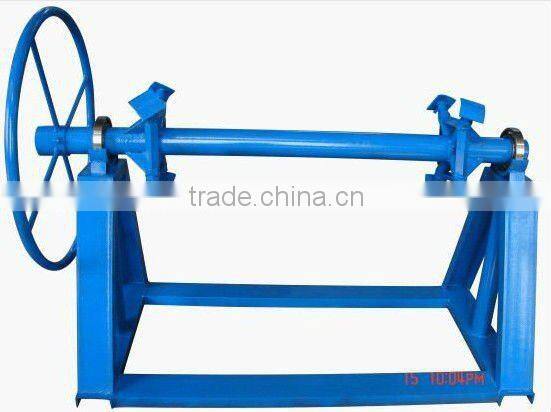

manual uncoiler-leveling-forming-hydraulic system-computer control system
punching-cutting
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
specialized manufacturer of roll forming machine,any requests just mail me.
