Specifications
1. Nice appearence.2. Low noise.
3. High efficiency.
4. Good quality.
5. Esay control.

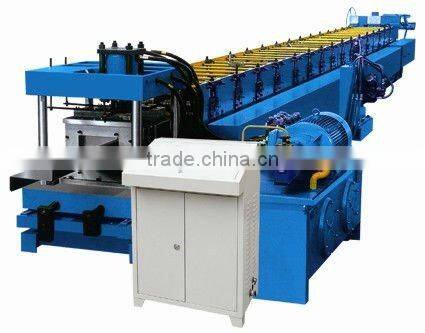

roll forming machine
1.Leak fame load-bearing:4T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6.Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11 Hydraulic station power: 3kw
12 Hydraulic station oil pump: gearpump
13 Cutting type: hydraulic cut
14 Forming Cutting blade: Cr12
15 Heat treatment on cutting blade: HRC58°-60°
16 Thickness of coil sheet: 0.3-0.8mm
17 Coil width of material: 1000mm
18 Index error of length: ±2mm
19 Controlling system: PLC
20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement
Additional info
Material of forming rollers: GCr15 bearing steel with quenched treatment
Material of cutter blade: Cr 12 mould steel with quenched treatment
Machine Type | Strip thickness | Strip width | Main motor power | Forming Speed |
RSHY120 | 0.5-1.5mm | 200-230mm | 7.5KW | 10-50m/min. |
RSHY150 | 0.5-2.0mm | 220-250mm | 11KW-15KW | 8-15m/min. |
RSHY160 | 0.5-2.5mm | 200-300mm | 15KW-22KW | 8-15m/min. |
RSHY180 | 0.8-3.5mm | 250-400mm | 37KW-45KW | 8-15m/min. |
RSHY250 | 1.0-4.5mm | 250-500mm | 55KW-75KW | 8-10m/min. |
RSHY300 | 1.0-6.0mm | 250-500mm | 75KW-90KW | 8-10m/min. |
