Product Introduction
DYCC2-800 series round electro permanent magnet chuck
DYCC2 series Electro permanent magnetic chuck for vertical lathe. Precision CNC five-axis indexing unit and integrated five-axis CNC cutting machine tool used in conjunction.
DYCC3 series circular electro permanent magnet chuck for lathes,uses the unique variable cross-section magnetic pole structural design,The outer diameter increase clamping strength gradually,Dual magnetic circuit design,T-slot design of the magnetic field superimposed, Mobile pole extensions ensure perfect clamping or irregular work pieces and machining it flat and parallel
Main Parameter
Type&Data |
Magnetic pole number |
Total magnetic force(≤KN) |
Overall dimension(mm) |
weight(kg) |
||
|
|
|
D |
d |
H |
|
DYCC2-500 |
12(rectangle)/ 4(F50 square) |
70 |
500 |
-- |
70 |
100 |
DYCC2-600 |
12(rectangle)/ 4(F50 square) |
100 |
600 |
-- |
70 |
140 |
DYCC2-800 |
16 |
160 |
800 |
250 |
80 |
270 |
DYCC2-1200 |
16 |
200 |
1010 |
250 |
80 |
440 |
DYCC2-1250 |
24 |
360 |
1260 |
500 |
90 |
710 |
DYCC2-1500 |
24 |
480 |
1520 |
500 |
100 |
1220 |
DYCC2-1600 |
40 |
600 |
1620 |
800 |
125 |
1530 |
DYCC2-1800 |
40 |
800 |
1820 |
800 |
125 |
2020 |

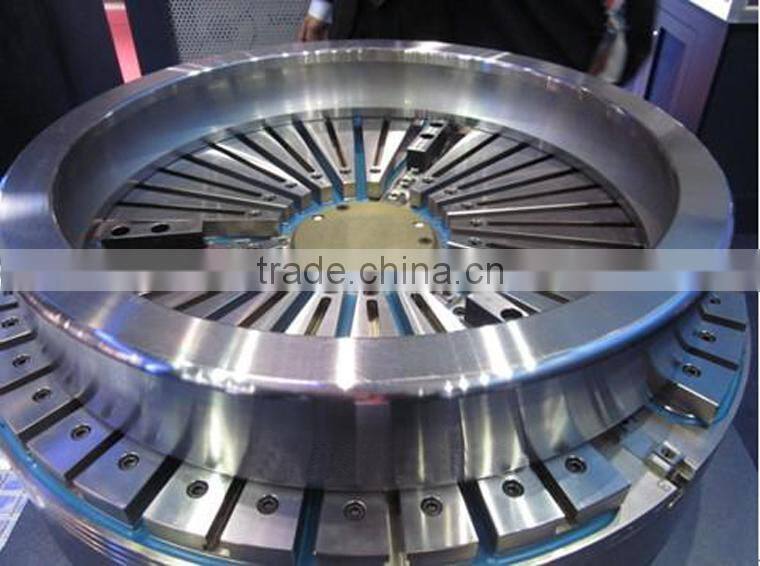

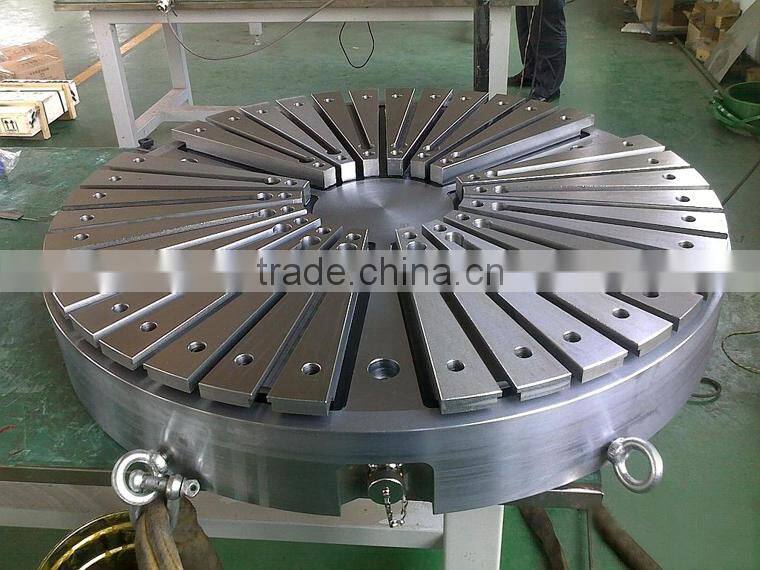

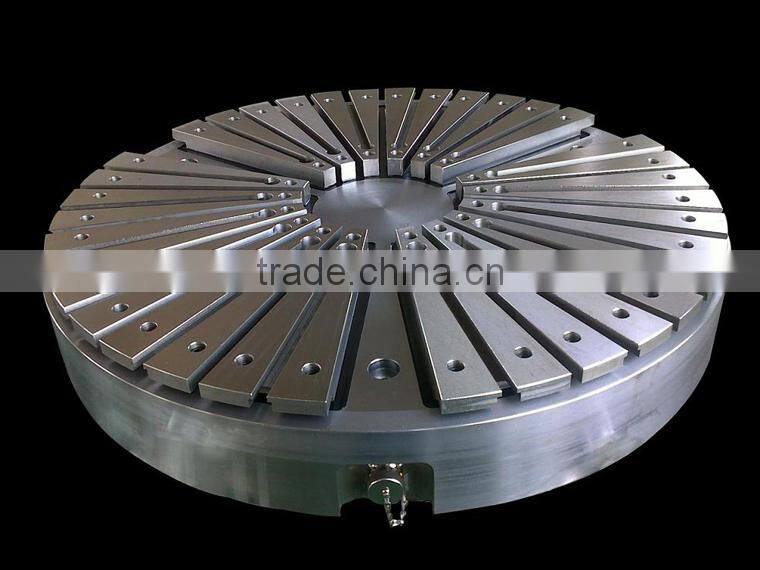

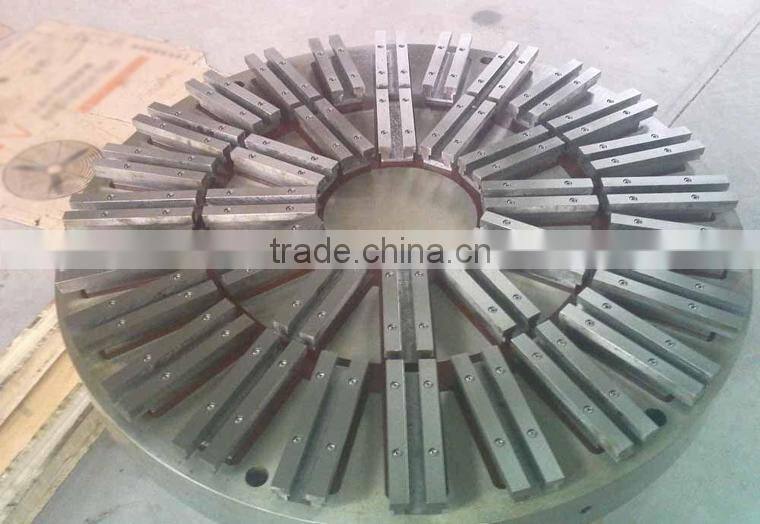

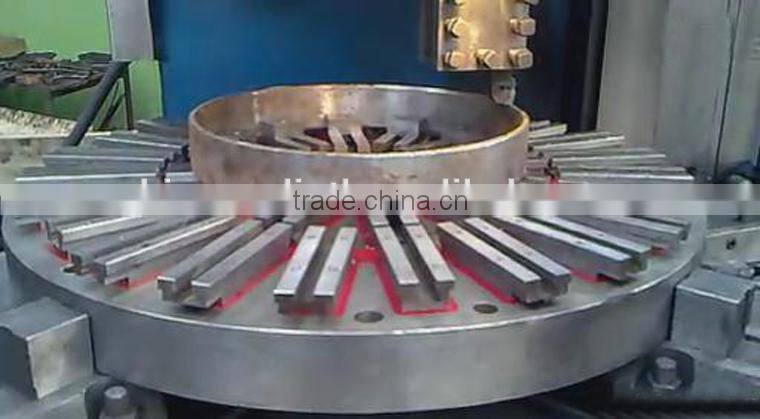

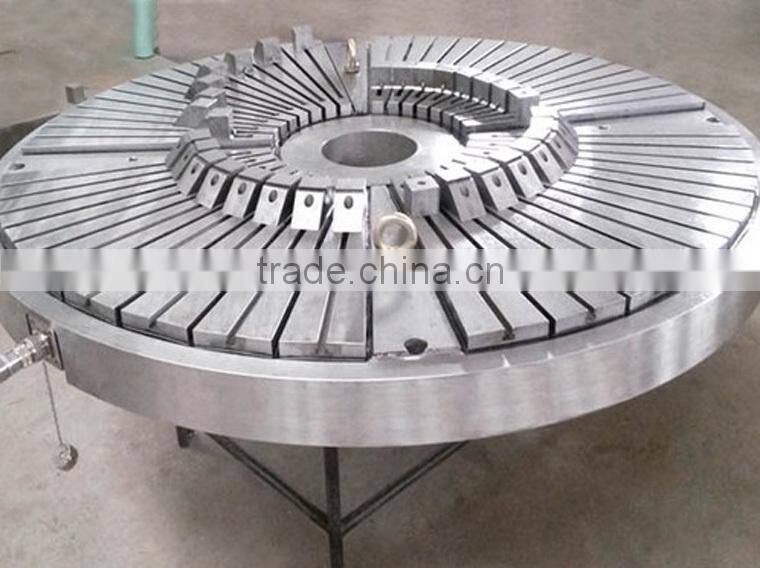

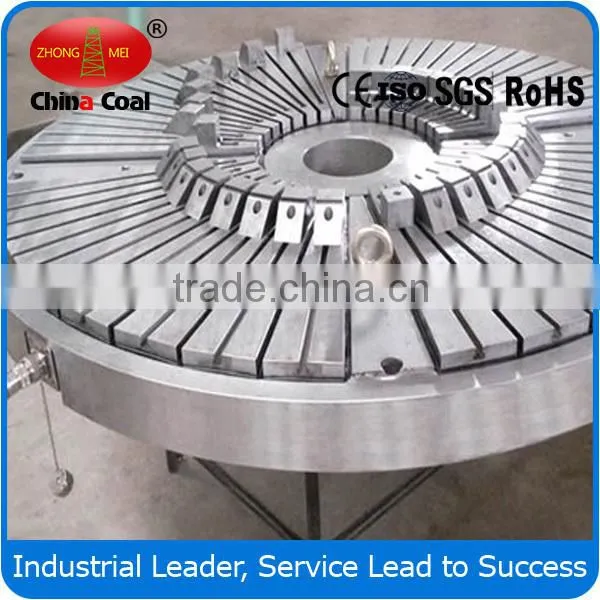

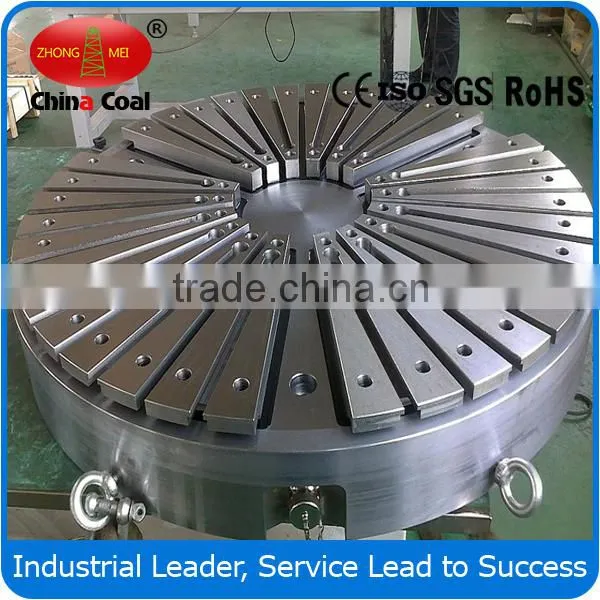

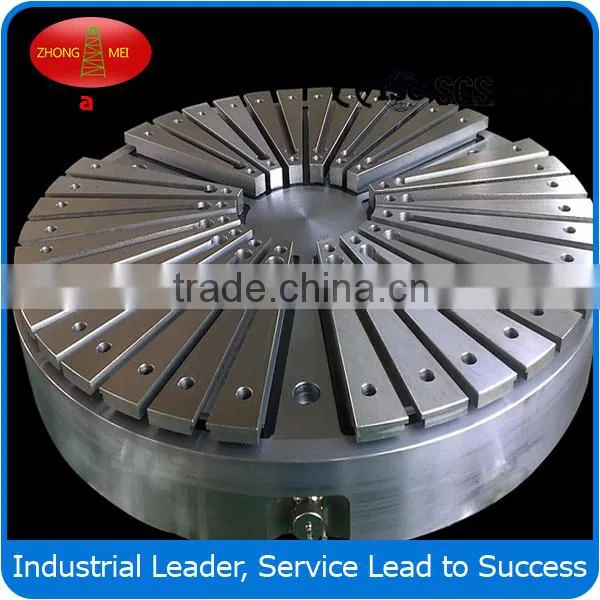

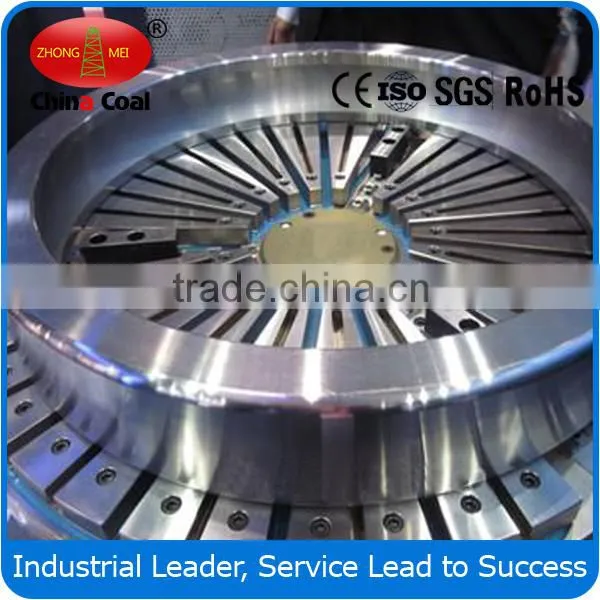

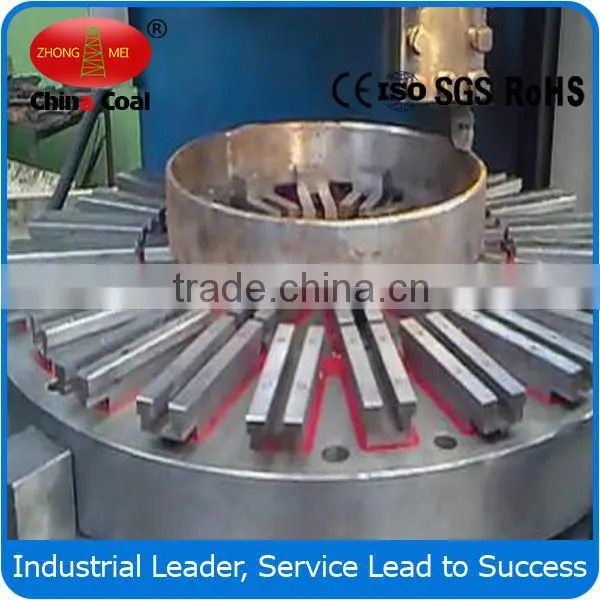

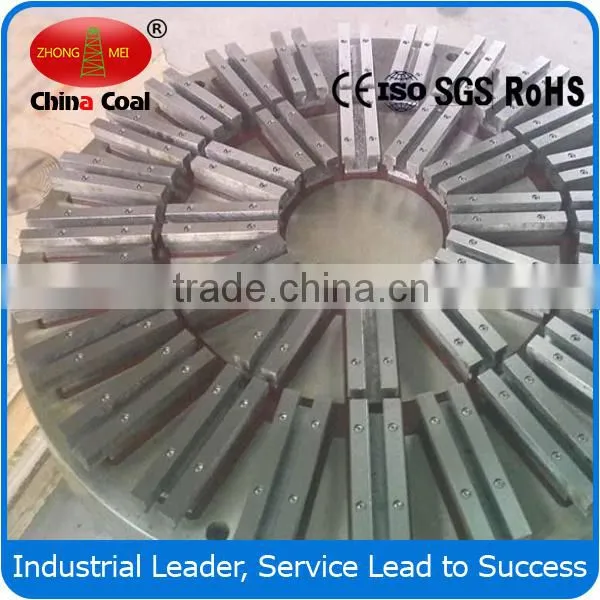

Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in 1994. Since established, thousands of our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, and other more than 120 countries and regions. Shandong China Coal Group is to establish long-term, broader economic and trade cooperation and strategic partnership with a number of large state-owned enterprises and customers, and win the unanimous approval of them.
Customers Visit

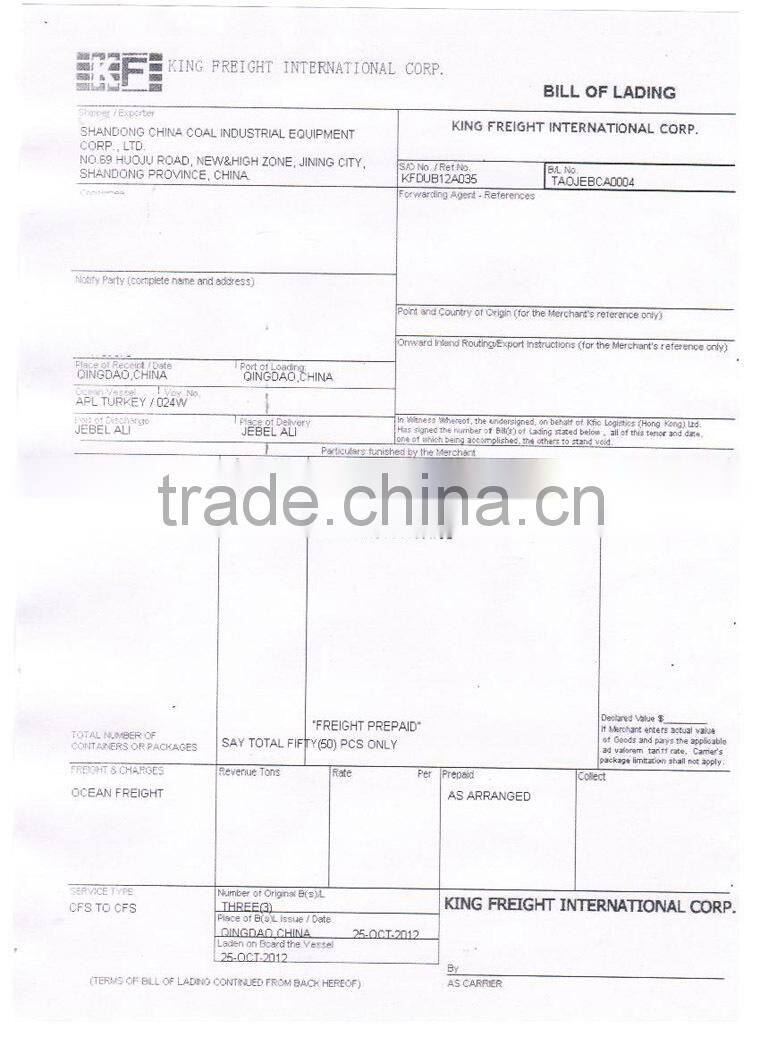

B/L of The History Trading
