Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Magnet > RMC300Circular Dense Permanent Magnetic Chuck

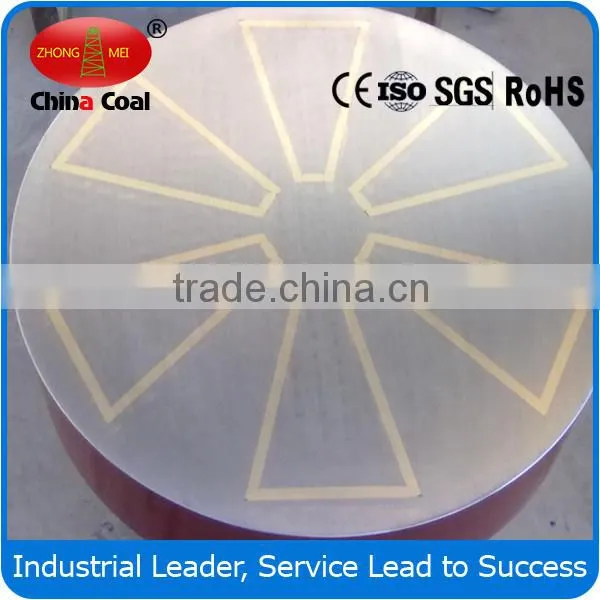

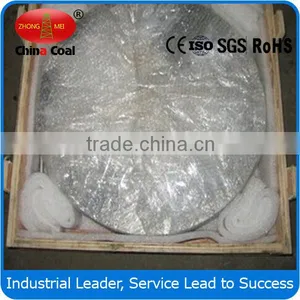

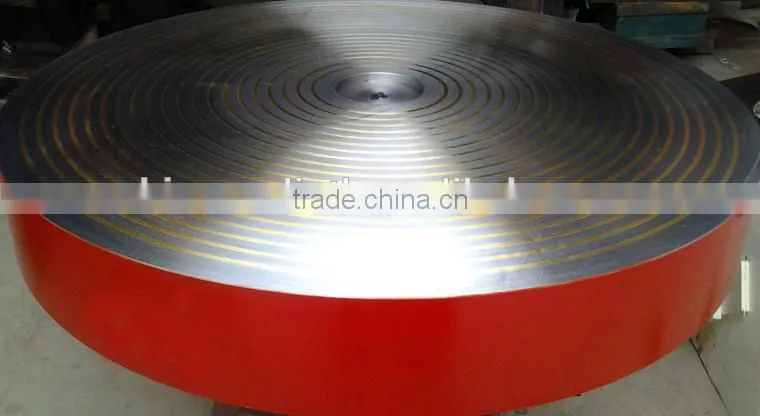

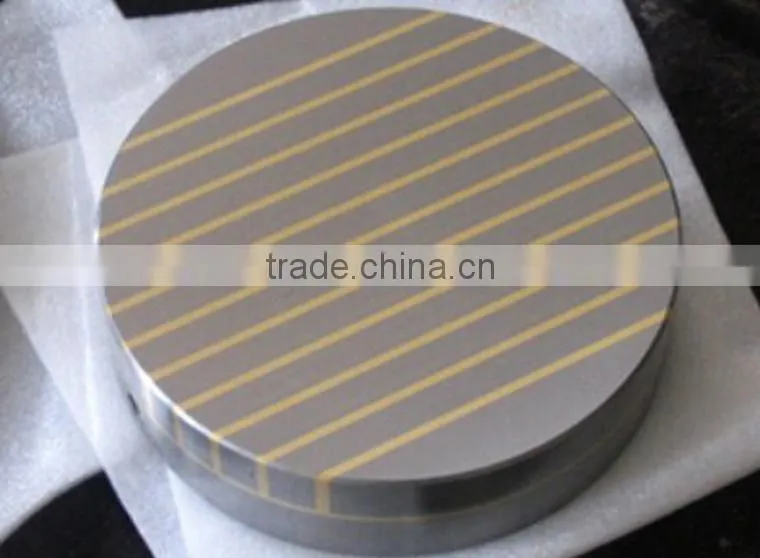

RMC300Circular Dense Permanent Magnetic Chuck

Name: RMC300Circular Dense Permanent Magnetic Chuck
Brand: China Coal
SKU: 125673185

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-1

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-2

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-3

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-4

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-5

RMC300Circular Dense Permanent Magnetic Chuck thumbnail-6

RMC300Circular Dense Permanent Magnetic Chuck photo-1

RMC300Circular Dense Permanent Magnetic Chuck photo-2

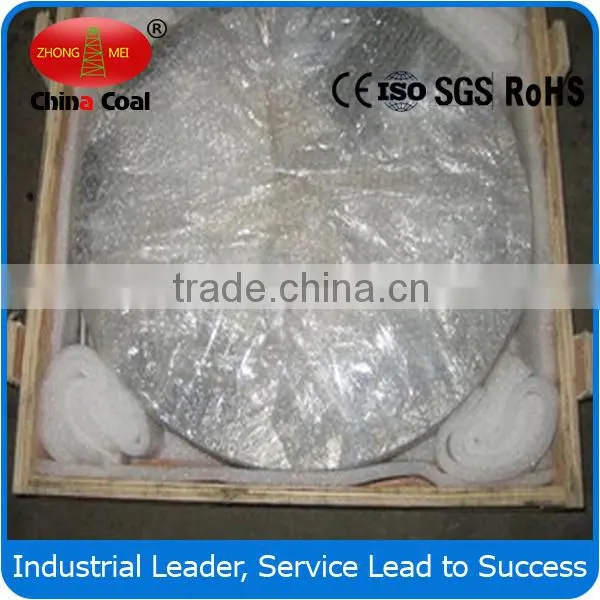

RMC300Circular Dense Permanent Magnetic Chuck photo-3

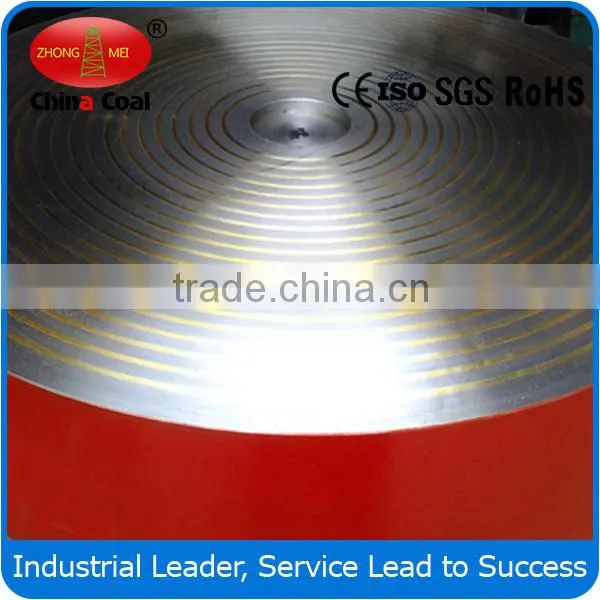

RMC300Circular Dense Permanent Magnetic Chuck photo-4

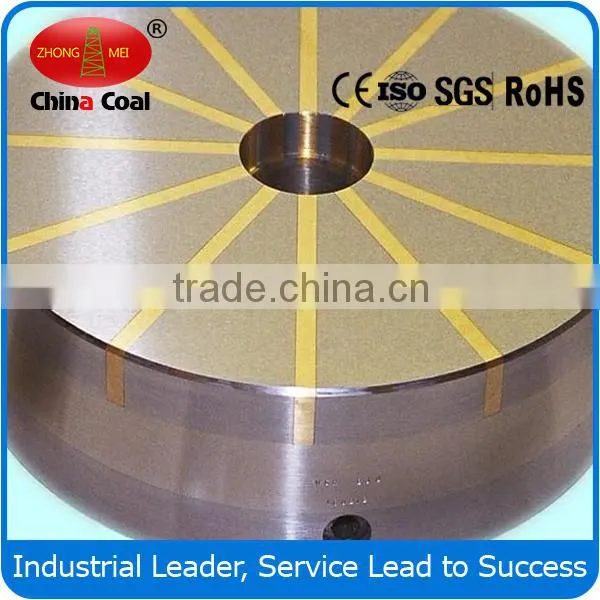

RMC300Circular Dense Permanent Magnetic Chuck photo-5

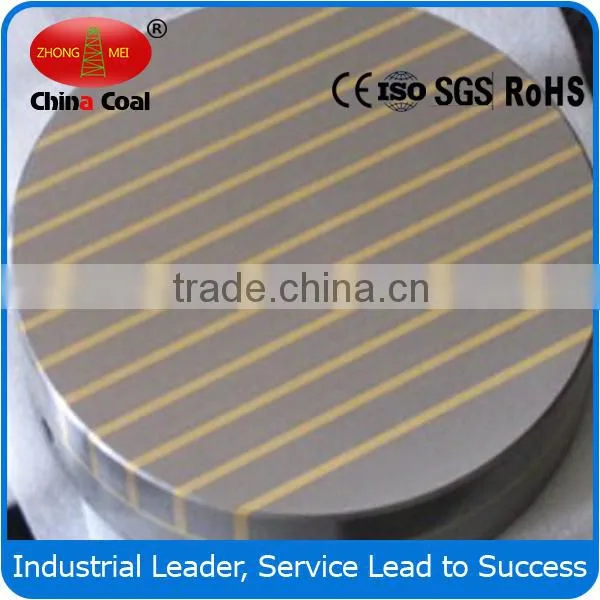

RMC300Circular Dense Permanent Magnetic Chuck photo-6

US$ 1 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

China Coal

Contact Supplier Request Quote Chat Now

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Ningbo Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name China Coal

Model Number RMC250

Dimension(L*W*H) Customised

Certification ISO9001

Warranty 1 Year

After-sales Service Provided No overseas service provided

Product Introduction

Application

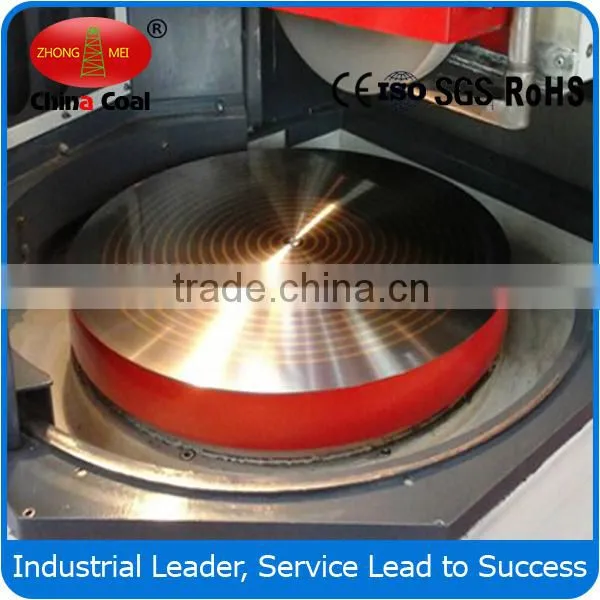

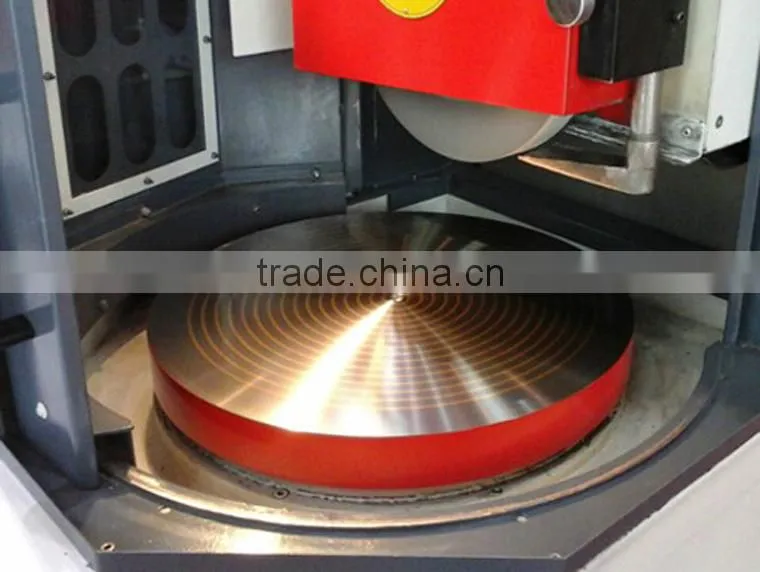

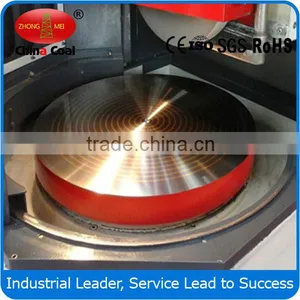

It is suitable for holding workpieces for turning on lathe machines and for internal cylindrical grinding machines, and milling machine, etc.
Features

1, All metal top plates-hard wearing brass and steel
2, Extra strong magnetic force and less remaining magnetism
3, While turning magnetic for ON/OFF, the face's accuracy of magnetic force surface doesn't change and can keep high precision processing surface;
4, Coolant and water proof structure
5, Easy to operate handle
6, High performance at a competitive price
The permanent-magnetic chuck doesn't need power supply and wil not cause any unexpected accident because of fallure of power supply, therefore, it is being widely used.

Main Parameter

	Dimension(mm)					Weight (kgs)		Pole Pitch (mm)	Package
	Diamter	High	Mount Diameter	Mount Screw	Mount Depth	Net	Gross		Size(mm)	Material
RMC250	250	50	200	4xM10	3	18	21	0.5+1.5	320x320x120	Plywood
RMC300	300	50	230	4xM10	3	28	33	0.5+1.5	370x370x120	Plywood
RMC320	320	55	230	4xM10	3	35	42	0.5+1.5	390x390x120	Plywood
RMC350	350	55	300	4xM10	3	43	51	0.5+1.5	420x420x120	Plywood
RMC400	400	55	300	4xM10	3	52	62	0.5+1.5	470x470x120	Plywood

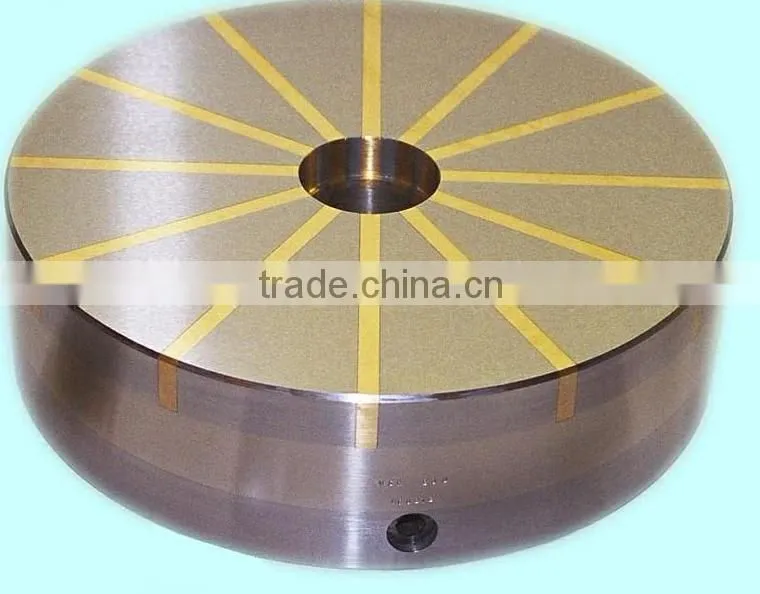

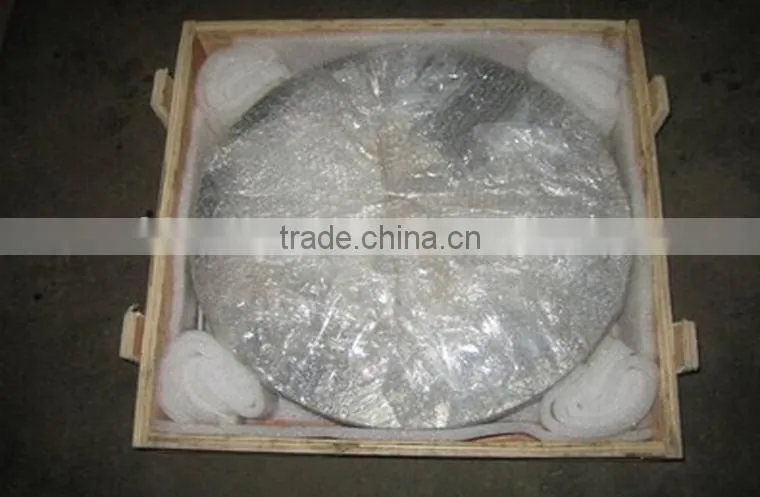

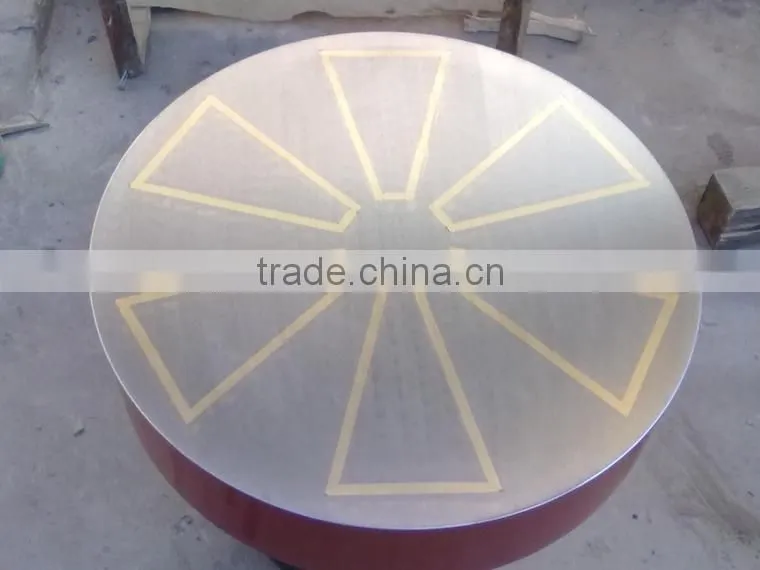

Figure Photos
