Product Introduction
It is suitable for holding workpieces for turning on lathe machines and for internal cylindrical grinding machines, and milling machine, etc.
Features
1, All metal top plates-hard wearing brass and steel
2, Extra strong magnetic force and less remaining magnetism
3, While turning magnetic for ON/OFF, the face's accuracy of magnetic force surface doesn't change and can keep high precision processing surface;
4, Coolant and water proof structure
5, Easy to operate handle
Main Parameter
Model |
B |
L1 |
H |
P=P1+P2 |
Net weight |
Packing size |
GW |
Angle adjustment range |
Remarks |
|
(mm) |
(mm) |
(mm) |
(mm) |
N. (kg) |
M. (cm) |
W. (kg) |
|
|
|
MCSI 1018 |
104 |
180 |
85 |
0.5+1.5~2+4 |
10.2 |
15x25x13.5 |
12.5 |
0°- 60° |
Suction: 12kgf/cm2 Can also be customized to your request |
|
MCSI 1030 |
104 |
300 |
85 |
0.5+1.5~2+4 |
17 |
15x36x13.5 |
20 |
|
|
|
MCSI 1225 |
120 |
250 |
85 |
0.5+1.5~2+4 |
16.3 |
17x32x13.5 |
20 |
|
|
|
MCSI 1235 |
120 |
350 |
85 |
0.5+1.5~2+4 |
23 |
17x42x13.5 |
28 |
|
|
|
MCSI 1530 |
150 |
300 |
93 |
0.5+1.5~2+4 |
29 |
20x36x13.5 |
35 |
|
|
|
MCSI 1540 |
150 |
400 |
93 |
0.5+1.5~2+4 |
38 |
20x46x13.5 |
44 |
|
|
|
MCSI 2035 |
200 |
350 |
106 |
0.5+1.5~2+4 |
49 |
25x42x15 |
56 |
0°- 50° |
|
|
MSCI 2050 |
200 |
500 |
106 |
0.5+1.5~2+4 |
70 |
25x56x15 |
78 |
|

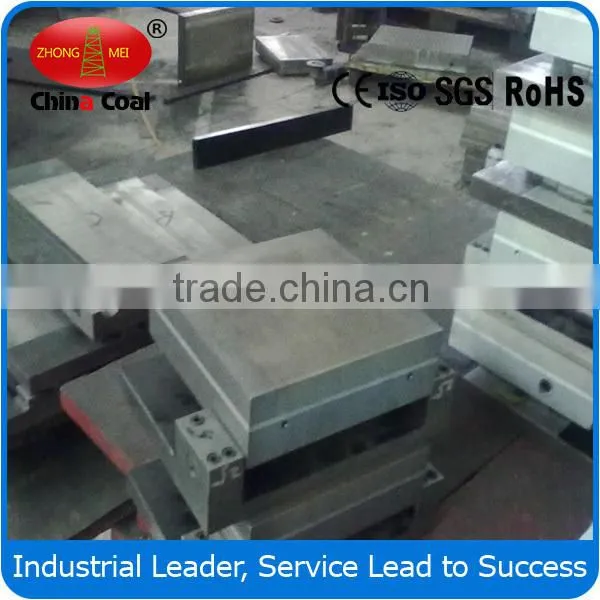

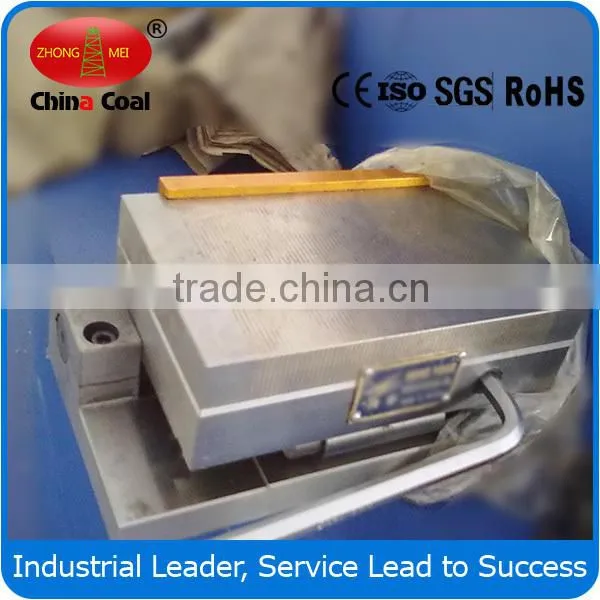

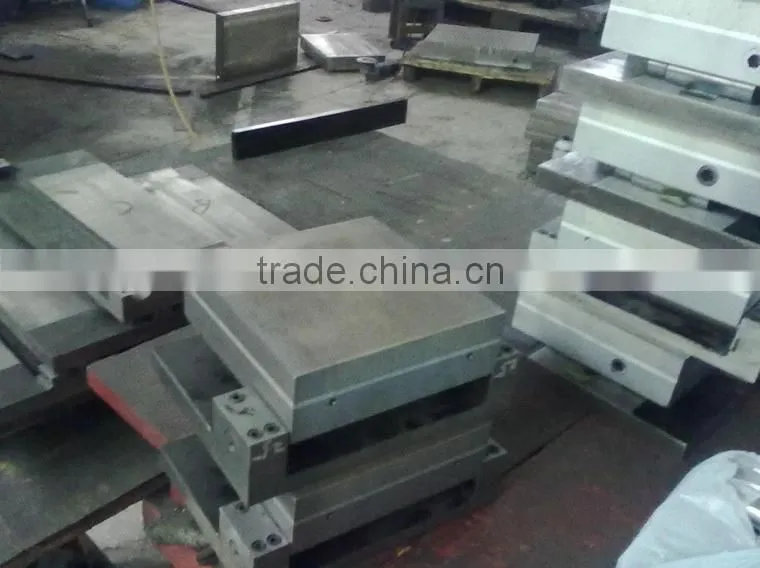

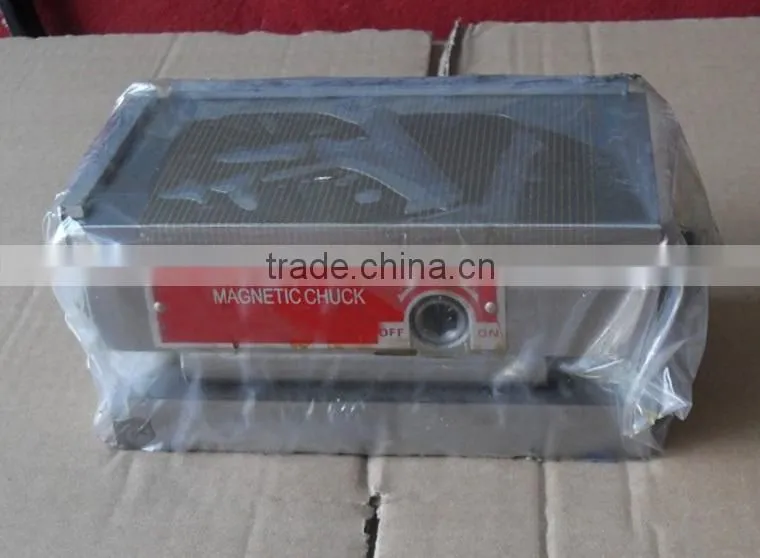

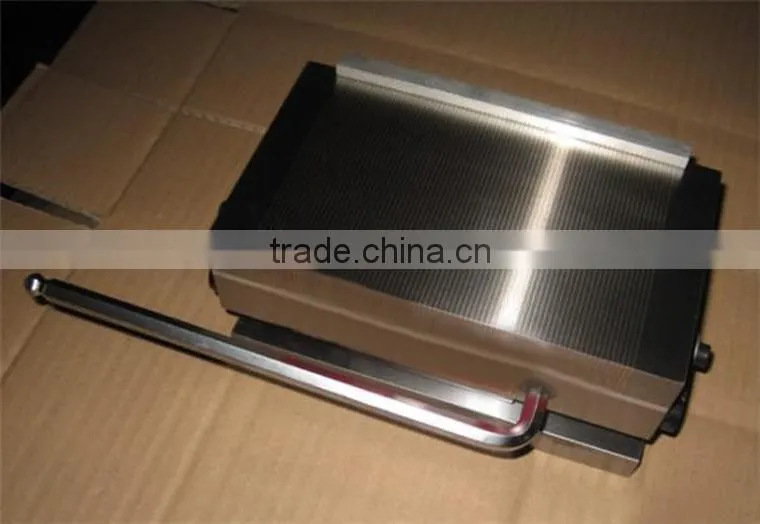

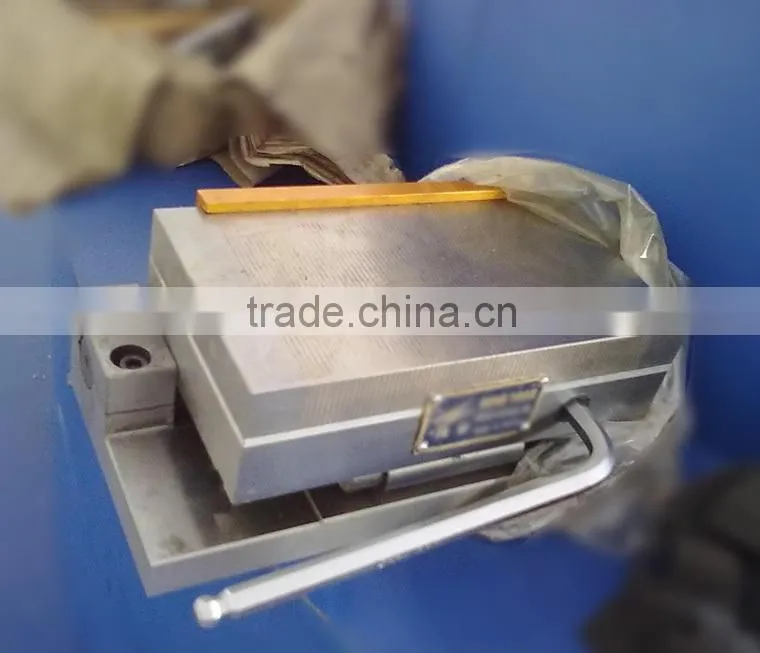

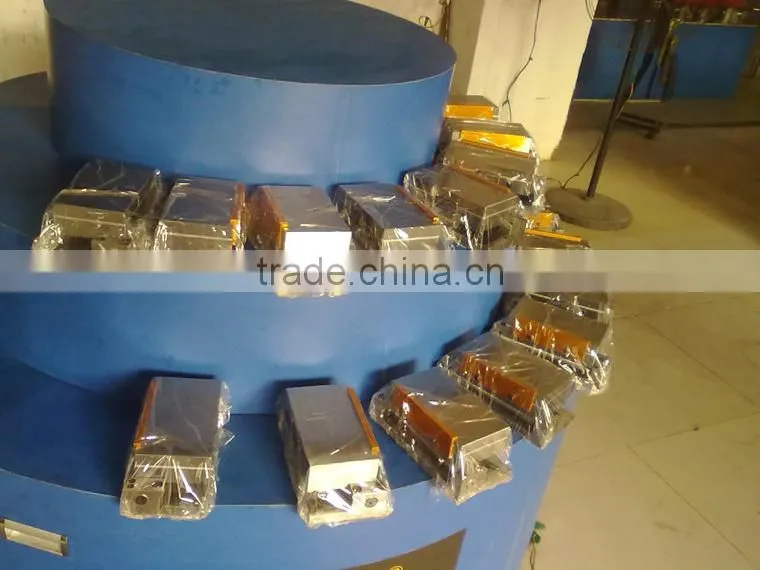

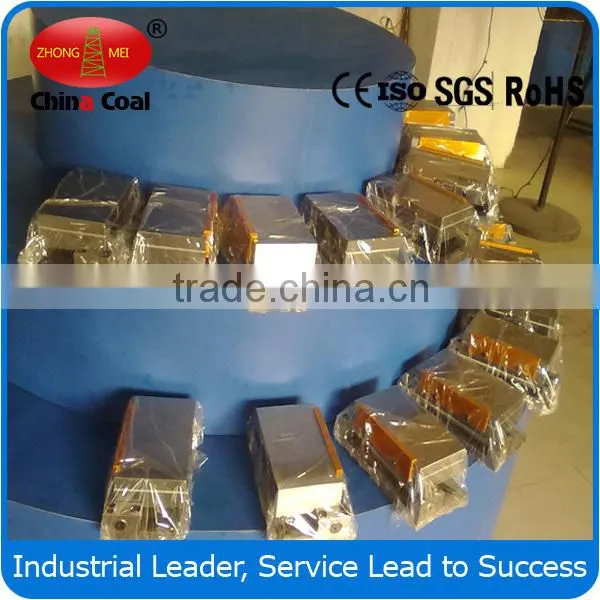

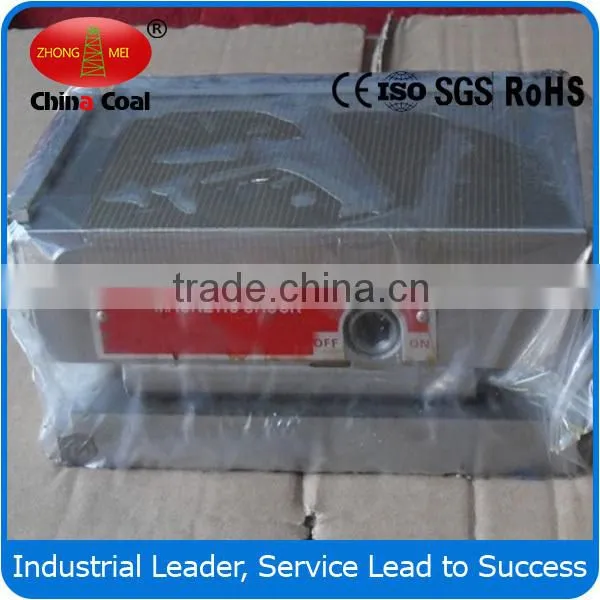

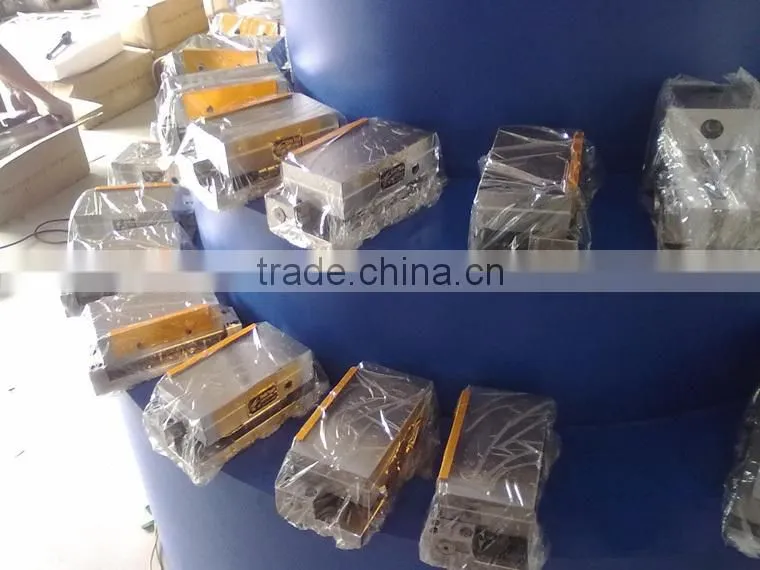

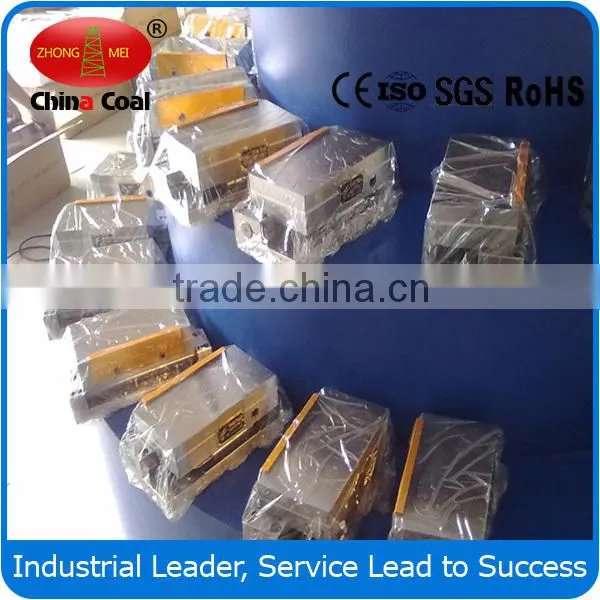

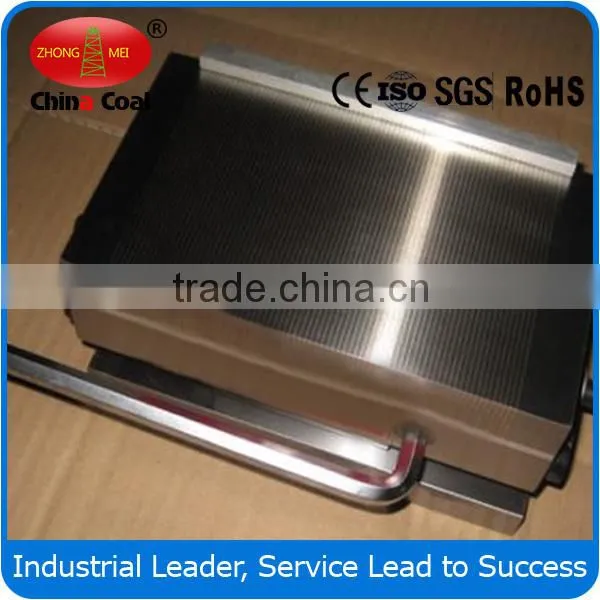

Figure Photos
