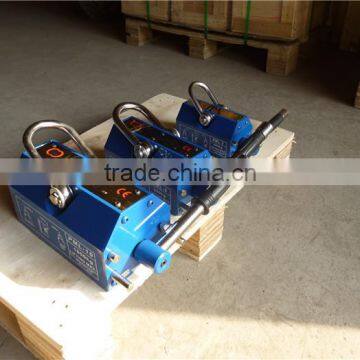

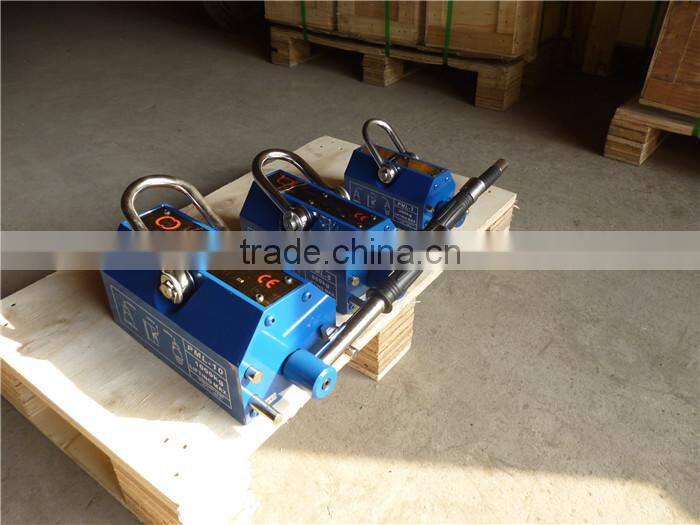

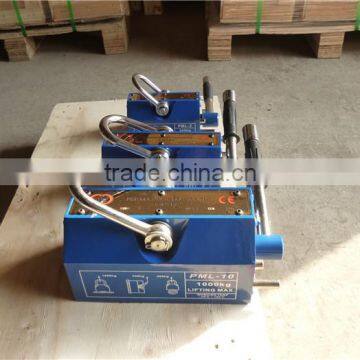

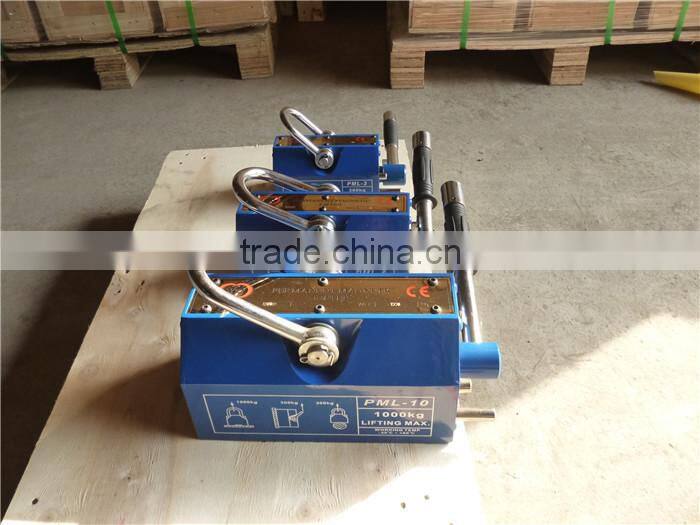

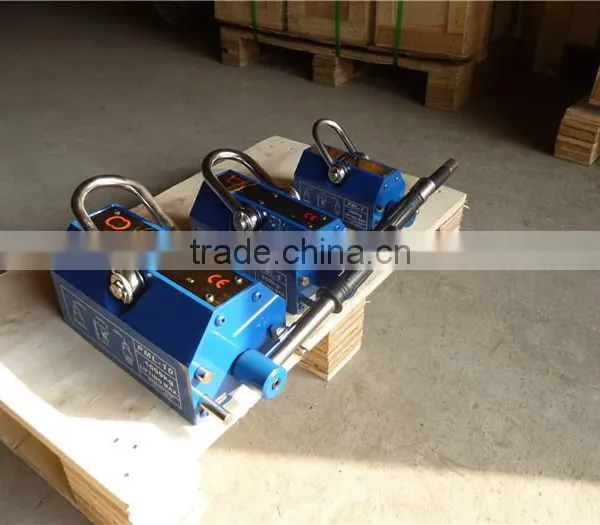

MASTER Hot Sell Permanent Magnetic Lifter (PML1000/600/300 3time and 3.5time)
A GRAD TOP QUALITY MAGNETIC LIFTER
BEST MADE IN CHINA
INTRODUCTION:
For magnetic lifter, we are on the leading position in China both in quality and production capacity. We have the model from 100kgf to 10ton and 70% were exported mainly for EU and US markets. We developed double circuit magnetic lifter and new magnet workholding with patent. It is more effective and laborsaving for operation that can improve your efficiency greatly.
DESCRIPTION:

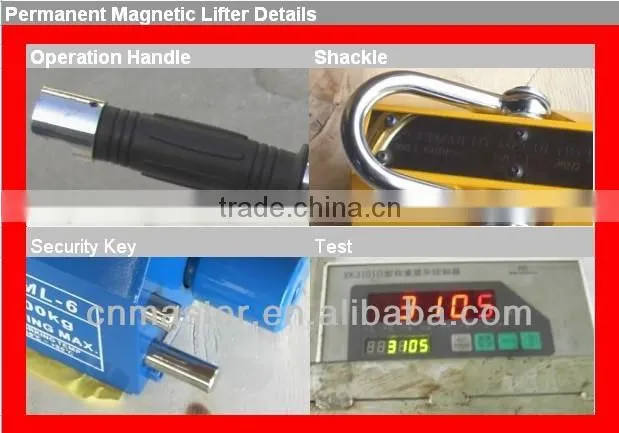

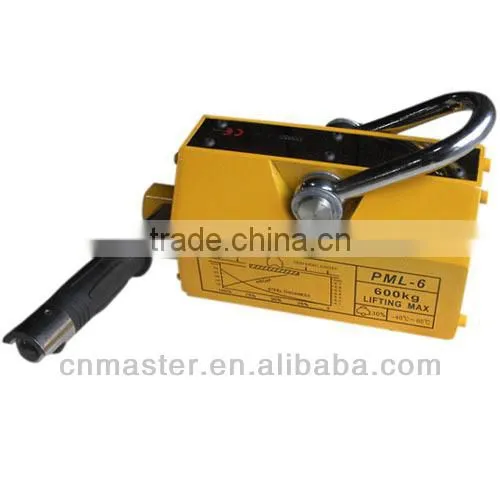

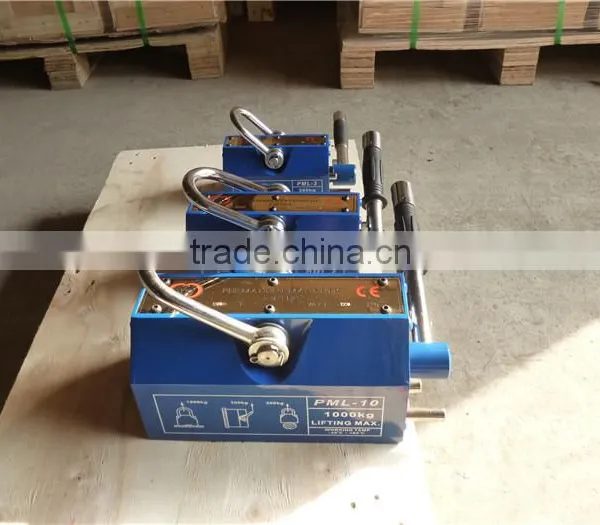

Permanent Magnetic Lifter( permanent lifting magnet) used to hold/release steel plate or iron block for lifting or handling operation. It has strong magnetic path produced by NdFeB permanent magnet. On and off is controlled by turning the handle without extra power.
APPLY:
They are easy, safe for operation and handling, which are widely used as hoisting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working conditions and efficiency greatly.
LABEL:
We can use your label on the product.
Trade Term:
Our company accept all kinds of trade methods,e,g.EXW,FOB,CIF,CFR,DDU,DDP,etc.
We accept all kinds of payment terms,e.g. T/T,L/C,D/P,O/A,etc.

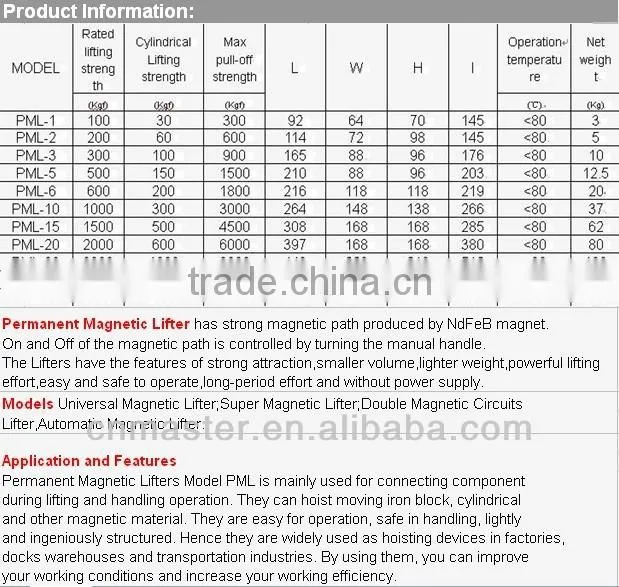

SPECIFICATION:
| Model | Rated Capacity | Cylindrical Capacity | Max Tear-off strength | Width mm | Length mm | Height mm | Handle mm | N.W |
| (Kg) | (Kg) | (Kgf) | (Kg) | |||||
| PML-1 | 100 | 30 | 350 | 64 | 92 | 70 | 145 | 3 |
| PML-3 | 300 | 100 | 1050 | 88 | 165 | 96 | 176 | 10 |
| PML-5 | 500 | 150 | 1750 | 118 | 216 | 118 | 219 | 20 |
| PML-6 | 600 | 200 | 2100 | 118 | 236 | 120 | 219 | 24 |
| PML-10 | 1000 | 300 | 3500 | 168 | 264 | 168 | 285 | 50 |
| PML-15 | 1500 | 500 | 5200 | 168 | 352 | 168 | 380 | 70 |
| PML-20 | 2000 | 600 | 7000 | 226 | 378 | 216 | 462 | 125 |
| PML-30 | 3000 | 1000 | 10500 | 290 | 453 | 265 | 567 | 220 |
| PML-50 | 5000 | 1500 | 17500 | 290 | 647 | 265 | 707 | 355 |
| PML-60 | 6000 | 2000 | 19200 | 290 | 713 | 266 | 707 | 398 |
| New Magnetic lifter | ||||||||
| PML-10 | 1000 | 300 | 3500 | 148 | 286 | 140 | 266 | 40 |
| PML-20 | 2000 | 600 | 7000 | 188 | 397 | 185 | 400 | 95 |
| PML-30 | 3000 | 1000 | 10500 | 226 | 453 | 265 | 567 | 180 |

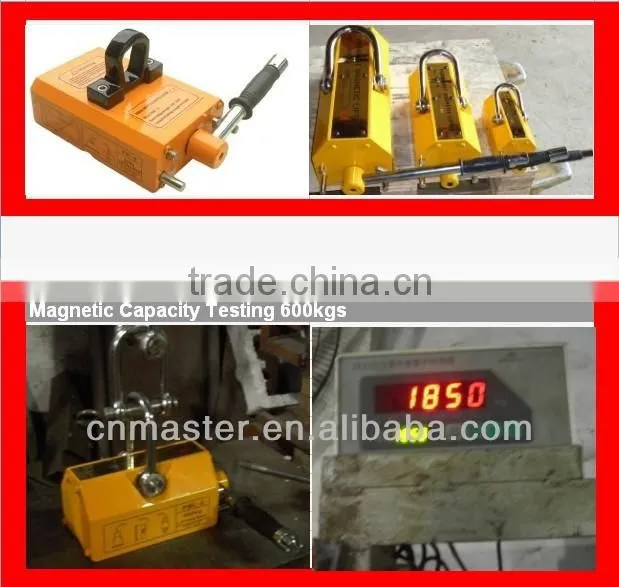

NOTE:Below is the test information for 3times magnetic lifters.
We have pull-off strength of 3.5times. Pls contact for details.
