Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | China Coal |
Model Number: | ZM | Dimension(L*W*H): | 350*106*49MM | Certification: | ISO9001,CE SGS etc . |
Warranty: | 1 Year |
Product Description
Product Introduction

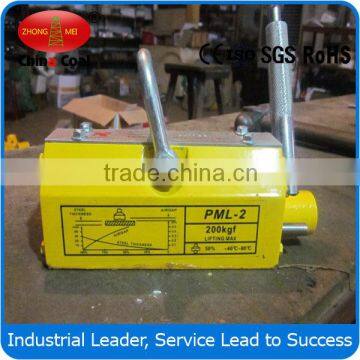

High performance Strong suction Powerful permanent magnetic lifter for steel plate
The main uses and characteristics
Widely used on machining ,mould producing industry.
Using high-performance permanent magnetic materials ,Strong in magnetic suction,patent circuit design .
High safety factor,maximal breakaway Force is 3.5 times rated lifting power .
Handle switches with safety twist,easy for Single-hand operation ,more safety and convenience .
“V” style design at the bottom of lifter,can lift opposite round steel or steel board
Without electricity,magnetic tasting popularity,more safety on using ,aside may operated at open country .
Main Parameter
Technical Parameters : Powerful permanent magnetic lifter for steel plate round steel
Model | Rated lifting capacity(kg) | Shape size (mm) | Test Max Pull Off Force(kgs) | Weight (kg) | ||||
Steel plate | Round steel | L | B | H | R | |||
ZM-0.1 | 100 | 50 | 92 | 64 | 72 | 148 | 300 | 160 |
ZM-0.2 | 200 | 100 | 127 | 64 | 108 | 223 | 600 | 320 |
ZM-0.4B | 400 | 200 | 166 | 99 | 110 | 223 | 1200 | 13 |
ZM-0.6B | 600 | 300 | 198 | 110 | 116 | 257 | 1800 | 18 |
ZM-1B | 1000 | 500 | 246 | 146 | 154 | 303 | 3000 | 38 |
ZM-2B | 2000 | 1000 | 354 | 168 | 172 | 465 | 5000 | 65 |
Figure Photos
