Help CenterZhirui Factory Price QT6-15 Hydraulic Automatic Brick Making Machine
Related Products
-
2015 Fantastic QT6-15 Hydraulic Automatic Brick Making MachineUS$ 25,000 - 40,000MOQ: 1 Set -
2015 Good Productivity QT6-15 Hydraulic Automatic Brick Making MachineUS$ 25,000 - 40,000MOQ: 1 Set
-
Brick Production Line MachineUS$ 6,800 - 108,000MOQ: 1 Set
-
Hot Sale High Quality Hydraulic Stone Power Cement BrickUS$ 6,800 - 108,000MOQ: 1 Set
-
Brick and Block Machine for SaleUS$ 6,800 - 108,000MOQ: 1 Set
(1) product specification of brick making machine
This concrete block making machine with PLC intelligent control.Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
It produces various bricks/blocks including color-face road curb bricks,solid bricks, hydraulic blockshollow blocks, perforated bricks, and hollow bricks etc.
(2) parameter
model |
QT6-15 |
|
|
Molding blocks
|
390*190*190mm
|
6 block/plates |
|
240*115*90mm
|
15 block/plates |
|
240*115*53mm |
30 block/plates |
|
Frequency(r/min) |
2800-4500 |
|
Main hydraulic motor power(kw) |
26 |
|
Auxiliary hydraulic station motor power(kw) |
5.5 |
|
head power(kw) |
2.2 |
|
Arch breaking power of motor(kw) |
2.2 |
|
Tank belt power(kw) |
1.5 |
|
Send motor power(kw) |
1.5 |
|
Motor power(kw) |
1.5 |
|
Cycle time(s) |
12-15 |
|
Pallet transfer speed(m/s) |
0.36 |
|
Transmission speed(m/s) |
0.37 |
|
Hopper speed(m/s) |
0.45 |
|
Main hydraulic pressure(Mpa) |
12-16 |
|
Auxiliary hydraulic station(Mpa) |
6-10 |
|
Pallet dimensions |
780*890*35mm |
|
Complete machine weight(kg) |
9800 |
|
Over dimensions |
7050*2305*2745mm |
|
(3) Advantages of QT6-15 block making machine
1. Automatic weighing system
2. Twin shaft compulsory mixer
3. Mitsubishi PLC, Touch screen control unit
4. Hydraulic proportional relief valve automatically adjust the oil flow and speed
5. Heave duty frame of steel structure for heave working
6. Mould heat treatment with wire cutting
7. One production line can make all kinds block, just only change the mould
(4) production capacity of QT6-15 biock making machine
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Remark |
Hollow Brick (390x190x190mm) |
06 |
1,920 |
15,360 |
|
|
Porous Brick (240x115x90mm) |
15 |
7,200 |
43,200 |
|
|
Solid Brick
(240x115x53mm)
|
30 |
10,800 |
86,400 |
|

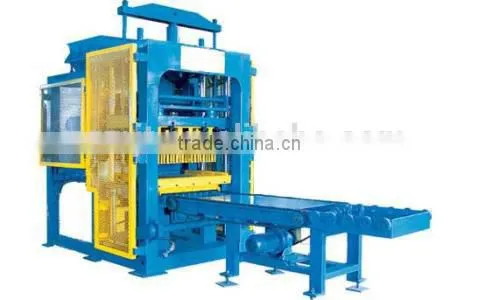

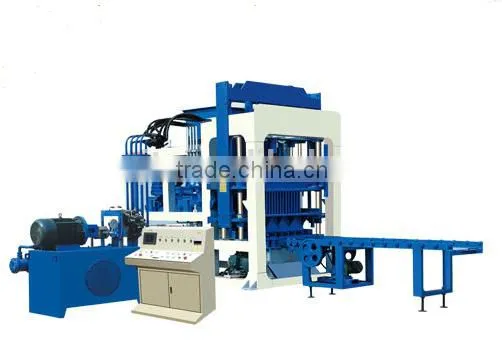

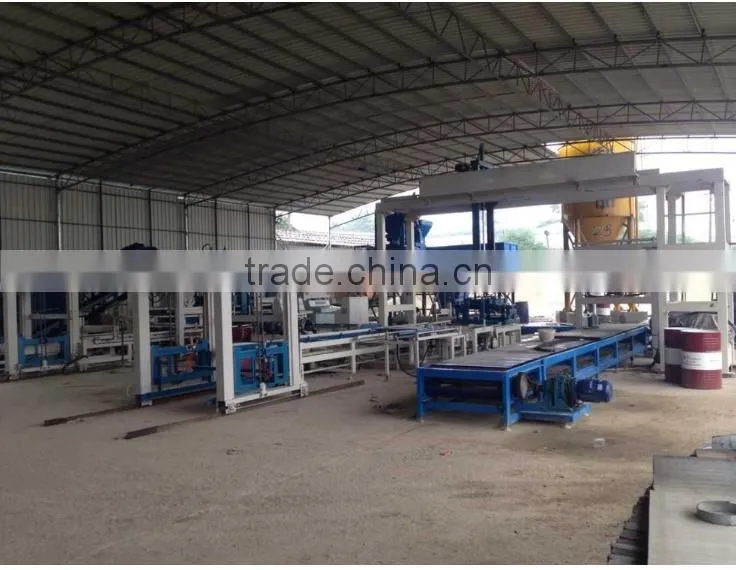

(5) photos of this block machine and bricks

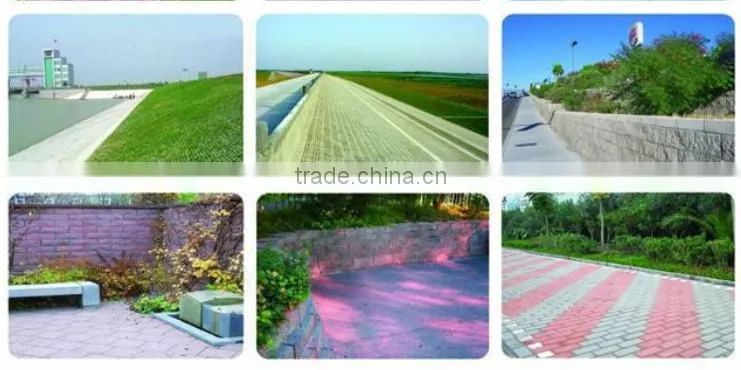

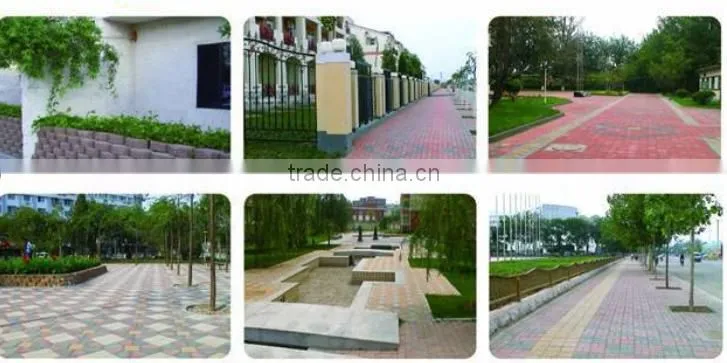

(5) Products Application
Packaging Details: export standard packing
Delivery Detail: 15-25 days after receive the deposit payment
