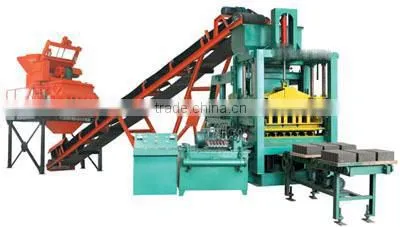

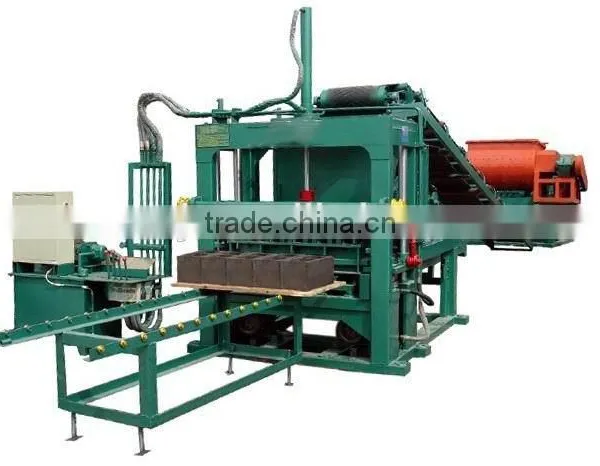

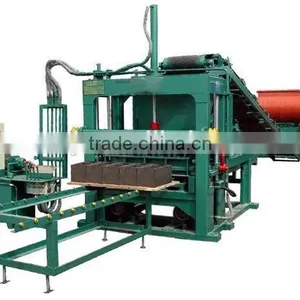

Hot Sale High Quality Hydraulic Stone Power Cement Brick
US$ 6,800 - 108,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Curbstone Block Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brick and Block Machine for SaleUS$ 6,800 - 108,000MOQ: 1 Set -
Latest Technology Super Concrete Brick Making MachineUS$ 6,800 - 108,000MOQ: 1 Set
-
Zhirui Low Price QT10-15 Hydraulic Automatic Brick Making MachineUS$ 53,000 - 73,000MOQ: 1 Set
-
Concrete Manual Mobile Brick MachineUS$ 6,800 - 108,000MOQ: 1 Set
-
The Cheapest Price Block Making MachineUS$ 6,800 - 108,000MOQ: 1 Set
Condition
New
Type
Curbstone Block Machine
Brick Raw Material
Concrete
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Place of Origin
Henan, China
Brand Name
Zhirui
Model Number
QT12-15
Power
40lw
Dimension(L*W*H)
880*1320*40mm
Certification
ISO9001/CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
.Characteristics of blockforming machine

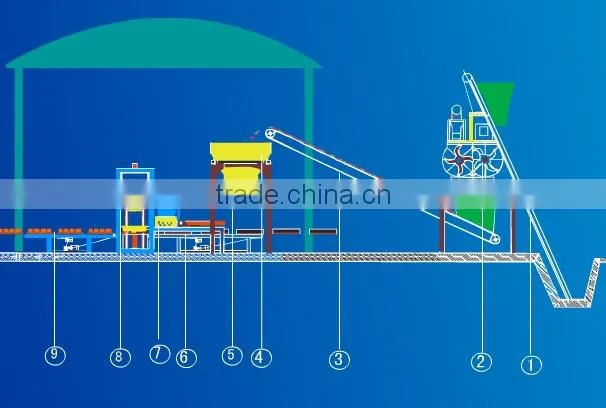

1. this machine by cloth car, and to material box, and Taiwan Board advance system, and Adobe output system, and stack Board system, and hydraulic station, and host, and computer electric control box, parts composition, hydraulic mainly, mechanical supplement, both tie completed vibration Taiwan vertical directed vibration, pressure head vibration and the II times cloth, and broken arch, and sent Board, and out brick, series action, used PLC (industrial computer), and interface touch screen intelligent control, can achieved interactive. Withconvenientfeeding,suitablematerial is stronganduniformproductdense,highstrength,easyoperationandshortcycle time and so on.
ctionality,advancedelectroniccontroltechnology-PLC program
Canrealizeautomaticfeeding,automaticfeed,automaticmolding,autobrickandfeaturessuch asAutomaticpalletizing.
Paralleldevice(man-machinecontrol)fordifferentlevelusers.
3.oilmotordrivetoovercomedue to meetintermittentstartformingtechnologyofheatingproblemcausedtomotor.
plete machinehydraulicdrive,effectivelyimprove the reliability,reducednoiseandenergy consumption.Linkedwith the PLC automaticcycle.
5. the vibratingforce,pressurevaluescan beused in the production of hollowblocks,blindholebrick,brick,brickStreet, andotherspecificationsofstandardbricks,non-standardblocksandall kinds ofspecial-shapedblockproducts.

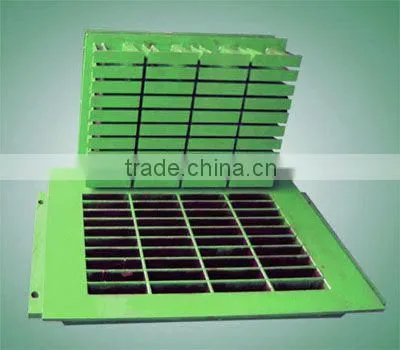

6.headmoldingFlash is easy todisassemble to replace.
lepallet,mobilefeeding,elimination of artificialfeedqualityimpact of stableblock,whilesignificantlyimprovingproductivity.
8.thevibratorvibrationmotordrive,adjust the systempressurecanbe a differentforce,tomeettheneeds of differentblockproducts.
9.Autocountcanshowtotalproductionandtotalproduction of the day.
Nativestructure is novel,handsome in appearance,advancedtechnicalperformance,blockmakingmachinein the country,has a strongpractical,economicalandcompetitive,isamechanical,electrical,fluidinoneof the advancedproduction line
type |
Specifications
|
Each Board number
|
Molding cycle(s)
|
Capacity(
Piece)/8 hours
|
|
Hollow blocks
|
390*190*190mm | 12 | 15 | 23040 |
|
Perforated brick
|
240*115*90mm | 30 | 15 | 57600 |
|
Standard bricks
|
240*115*53mm | 60 | 15 | 115200 |
| Type |
|
Frequency(r/min)
|
280-4500 |
Main hydraulic motor power(KW)
|
26 |
Auxiliary hydrauli cstation motor power(KW)
|
5.5 |
| Head power(KW) | 2.2 |
| Arch-breaking power of motor(KW) | 2.2 |
|
Tank belt power(KW)
|
1.5 |
|
Send motor power(KW)
|
1.5 |
|
Motor power(KW)
|
1.5 |
|
Cycle time (s)
|
12-15 |
|
Pallet transfer speed(m/s)
|
0.36 |
|
Transmission speed(m/s)
|
0.37 |
|
Hopper speed(m/s)
|
0.45 |
|
Main hydraulic pressure(Mpa)
|
12-16 |
|
Auxiliary hydraulic station(Mpa)
|
6-10 |
|
Pallet dimensions(lengthxwidthxheight)mm
|
780*890*35 |
|
Complete machineweight(Kg)
|
9800 |
|
Overall dimensions(lengthxwidthxheight)
|
7050×2305×2745 |
