1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
2 In 1 Thermal Shrink Packaging Machine |
||
Model |
BFS-5540A |
BFS-5540 |
FM3028 |
Voltage |
110/220/240V/50-60HZ |
110/220/240V/50-60HZ |
110/220/240V/50-60HZ |
Power |
4kw |
4kw |
3kw |
Max.Packing Size |
L550*W400*H300mm |
L550*W400*H300mm |
L300*W280*H250mm |
Max.Sealing Size |
L550*W400mm |
L550*W400mm |
L300*W280mm |
Working Efficiency |
500-800pcs/h |
500-800pcs/h |
500-800pcs/h |
Loading |
5kg |
5kg |
5kg |
Machine Size |
1985*720*1080mm |
1370*690*1100mm |
950*550*1000mm |
Machine Weight |
125kg |
120kg |
70kg |
Shrink Film |
POF/PVC/PP |
POF/PVC/PP |
POF/PVC/PP |
Note: Due to the escalating changes 2 in 1 thermal shrink packaging machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Function

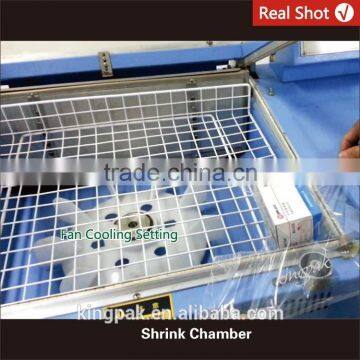

>The 2 in 1 thermal shrink packaging machine means the sealing and shrink done in a chamber, shrink film generally use relatively large intensity of POF shrink film. Chamber temperature is generally less than 200 degrees, so often used transparent lid, easy to observe.

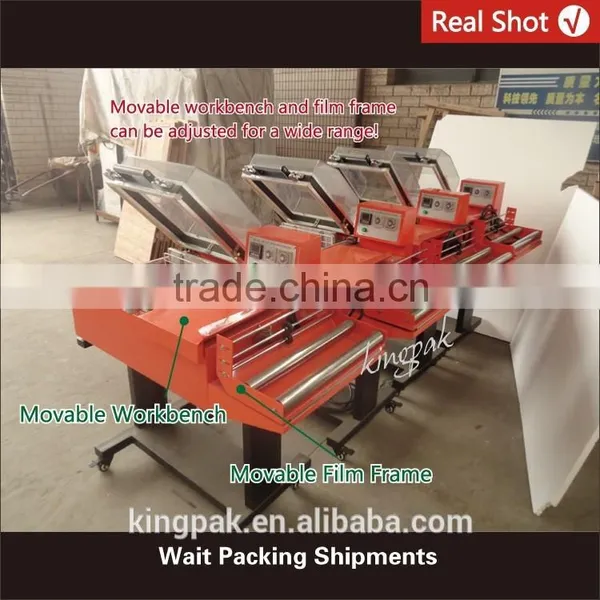

>Configuring transparent acrylic cover, you can clearly see the sealing and shrinking the whole process. Workbench and film frame can be adjusted to move for a variety of shrink film.
>Special nickel-chromium alloy cutter, sealing tidy, no cracking no coking. With a rolling pin hole means can be discharged after sealing membrane air.
- Scope
>This 2 in 1 thermal shrink packaging machine machine for food, beverage, pharmaceutical, audio-visual products, hardware, cosmetics, books, toys, plastic, electronic and other products packaging.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

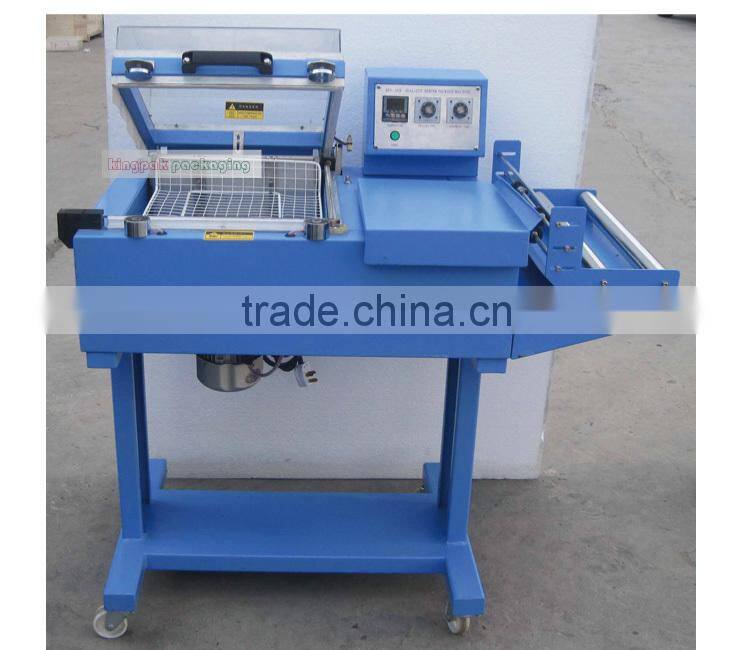

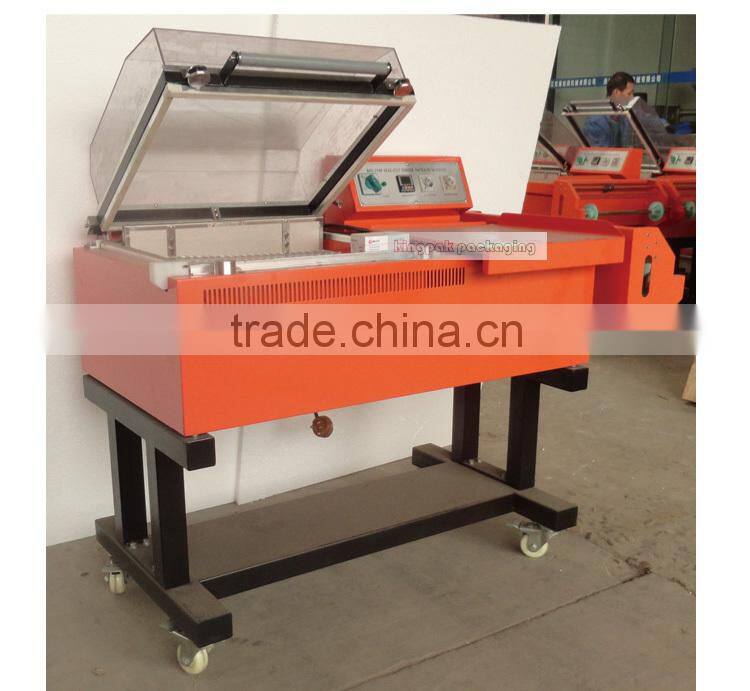

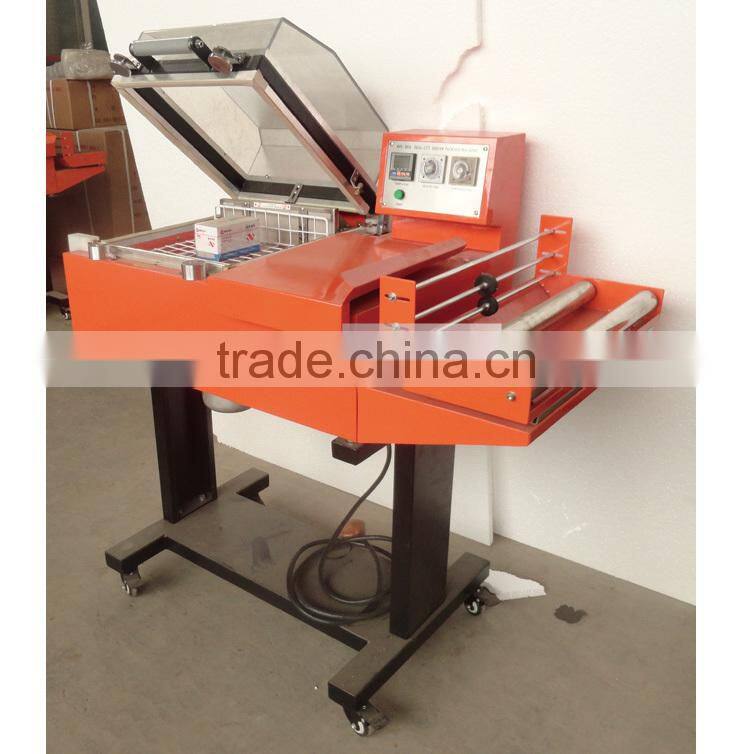

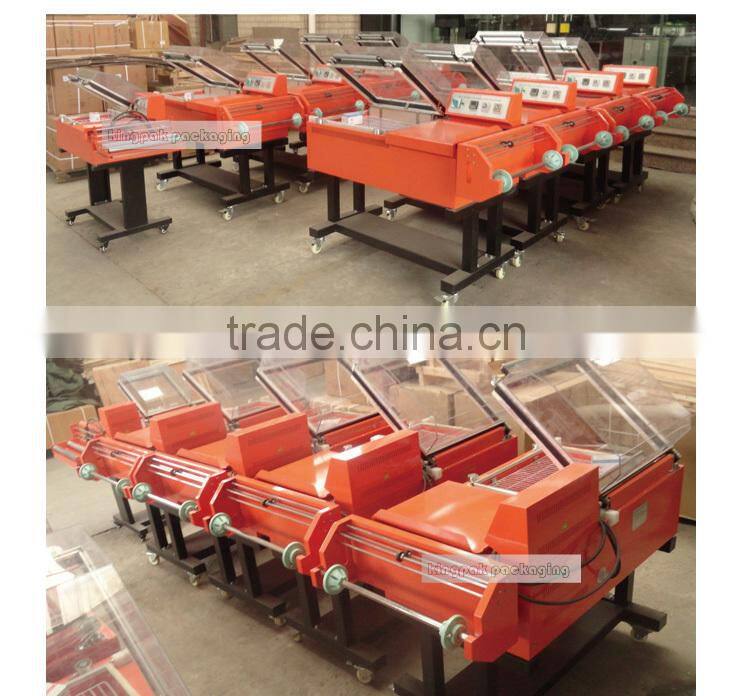

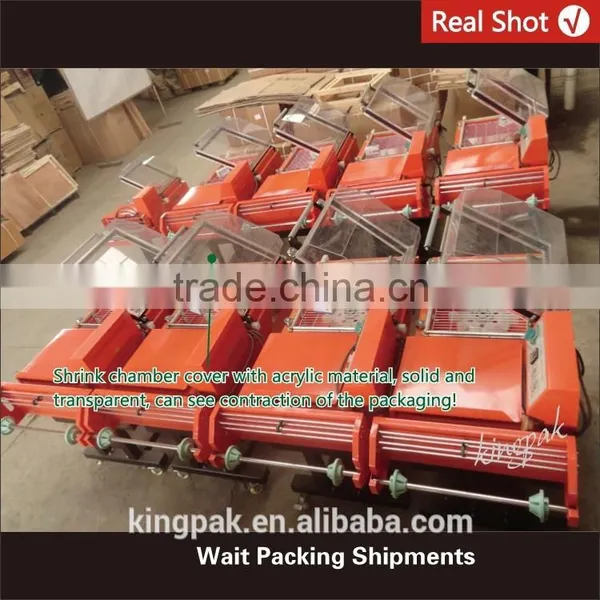

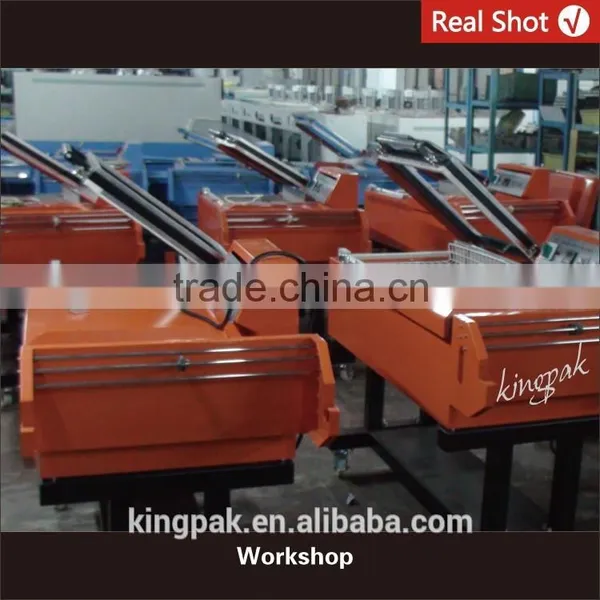

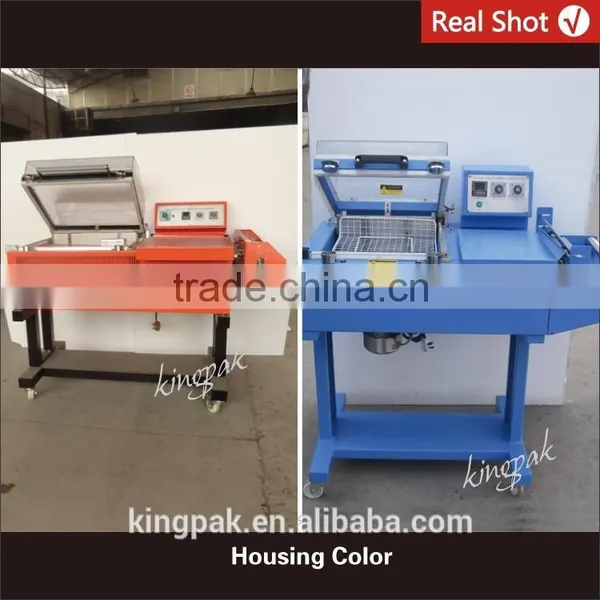

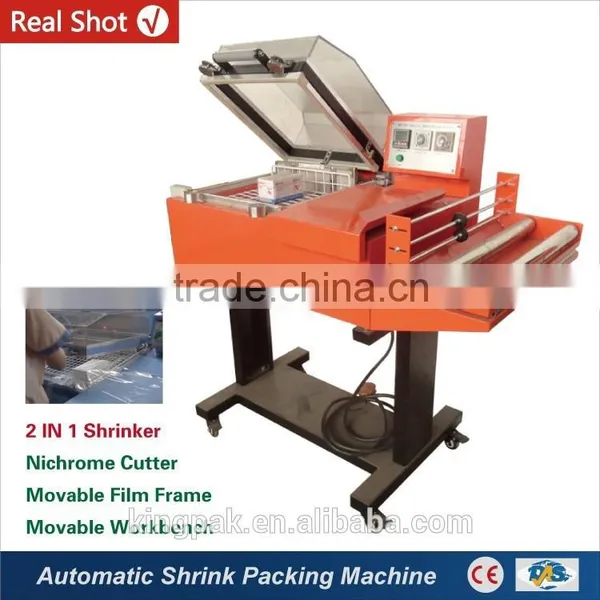

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

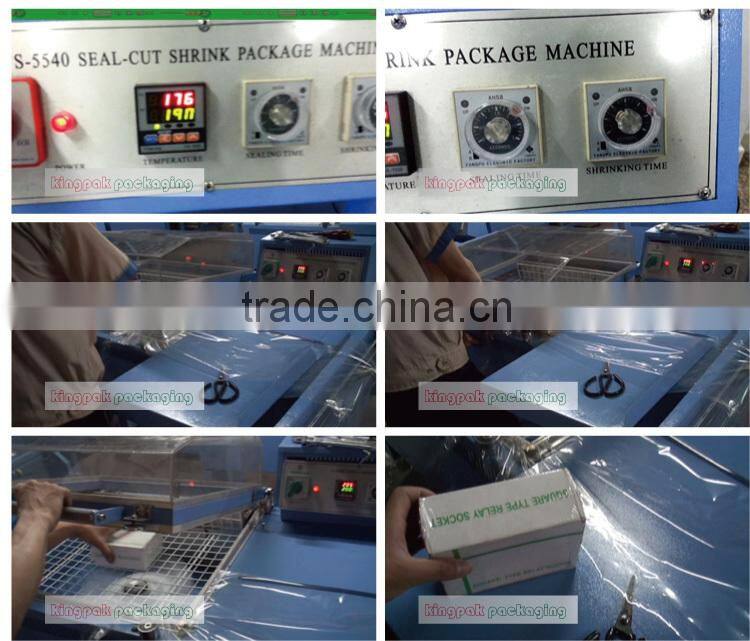

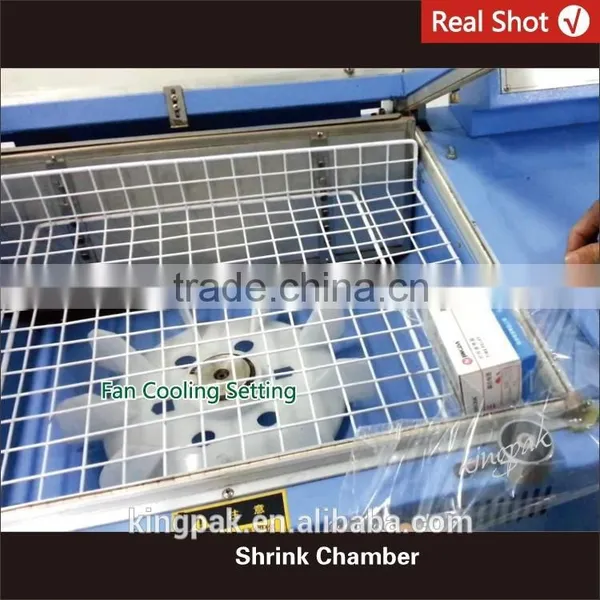

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
