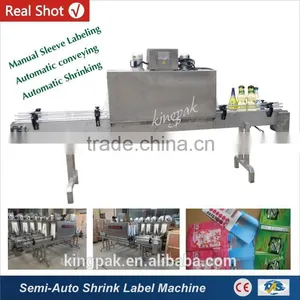

Help CenterGP403 Semi-Auto Heat Shrink Sleeve Label Machine
Related Products
-
BSL2015 Shrink Wrapping Machine For Books Carton Box Sealing Cutting MachineNegotiableMOQ: 1 Piece -
BS4525 Bottle Pallet Heat Shrink Wrap Packing MachineNegotiableMOQ: 1 Piece
-
BFS5540 2 In 1 Thermal Shrink Packaging MachineNegotiableMOQ: 1 Set
-
KW450 Small Food Tray Cling Film Wrapping MachineNegotiableMOQ: 1 Piece
-
XT4503 Automatic Stretch Pallet Wrapping MachineNegotiableMOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Heat Shrink Sleeve Label Machine |
Model |
GP403 |
Voltage |
220V/380V 50Hz |
Power |
9kw |
Tunnel Size |
1200*140*350mm |
Tunnel Temp. |
Max.300 oC |
Packaging Size |
100*300mm |
Conveying Speed |
0-10m/min |
Conveyor Loading |
10kg |
Workbench Height |
900mm |
Dimensions |
3500*340*1630mm |
Weight |
150kg |
Note: Due to the escalating changes heat shrink sleeve label machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Principle
>Heat shrink sleeve label machine principle: will shrink film wrapped around the bottle or the bottle, after heating, the shrink film in the collapsed bottle or bottle.
- Function
>Work order: Manual sleeve labeling - automatic conveying - automatic shrink.
>Heat shrink sleeve label machine is suitable label bottles, cans, buckets, cups and other products of contraction, can shrink the bottle, the bottle or the bottle. Conveying width can be adjusted, it can be applied to different specifications of the bottle.
>Can be used alone, it can also be supporting the use of various filling lines. Further pre-positioning device can be installed label, the label location more accurate.
- Scope
>This heat shrink sleeve label machine applies to food, beverage, pharmaceutical, cosmetics and pesticide industries glass bottles, plastic bottles, paper cups and other containers, bottle or cup body sleeve labeling after label shrinkage.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

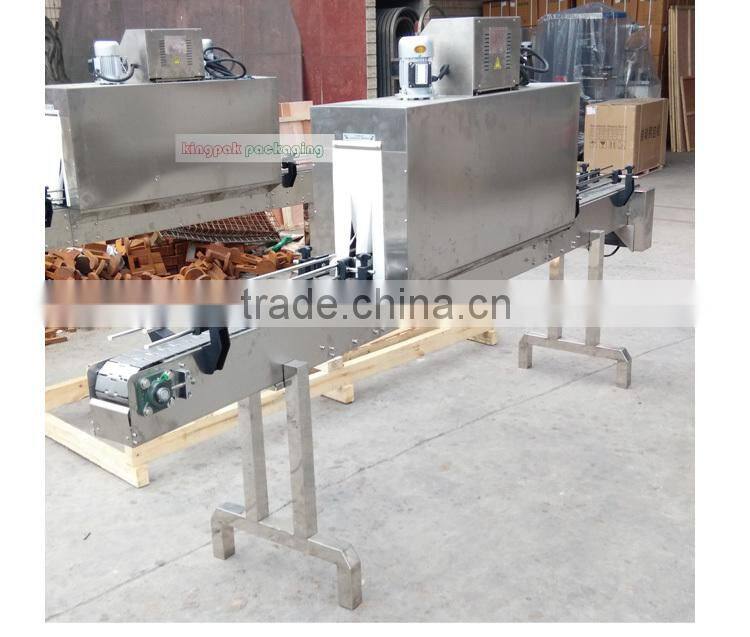

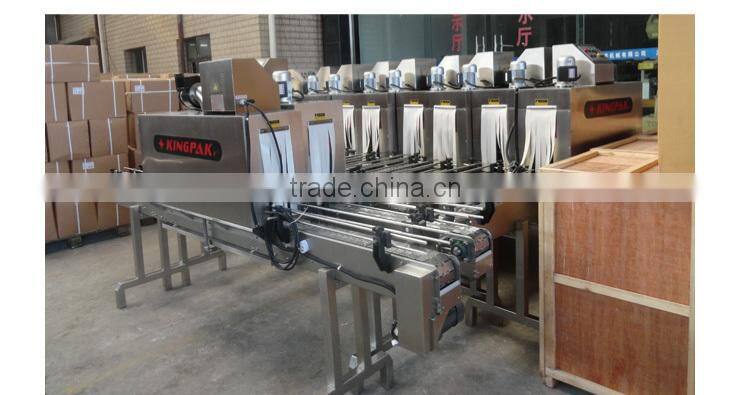

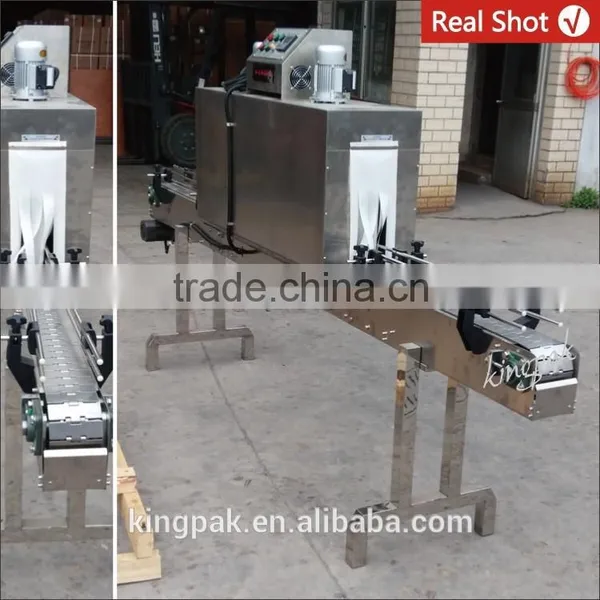

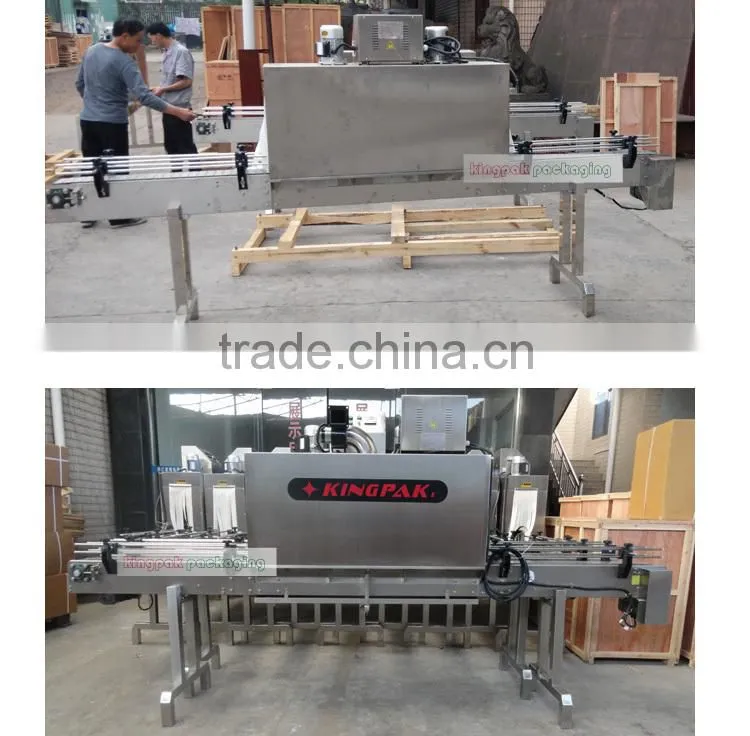

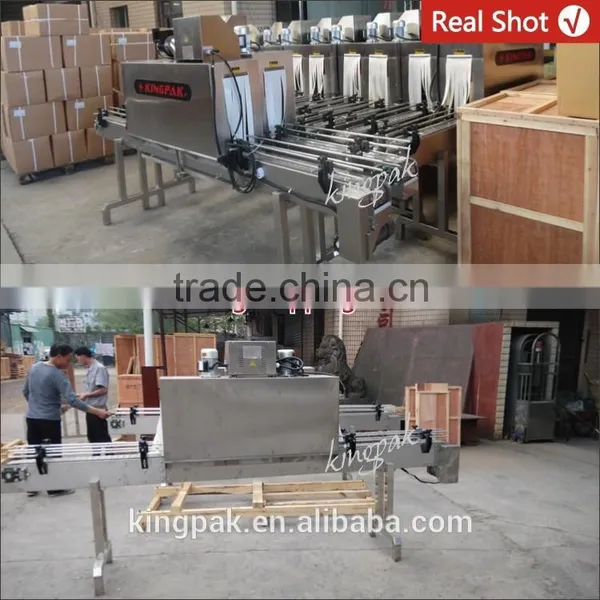

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

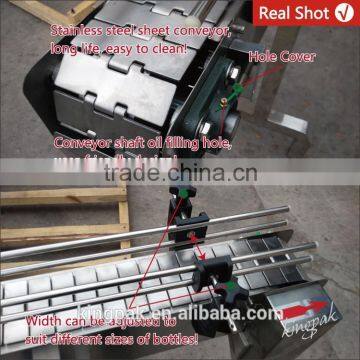

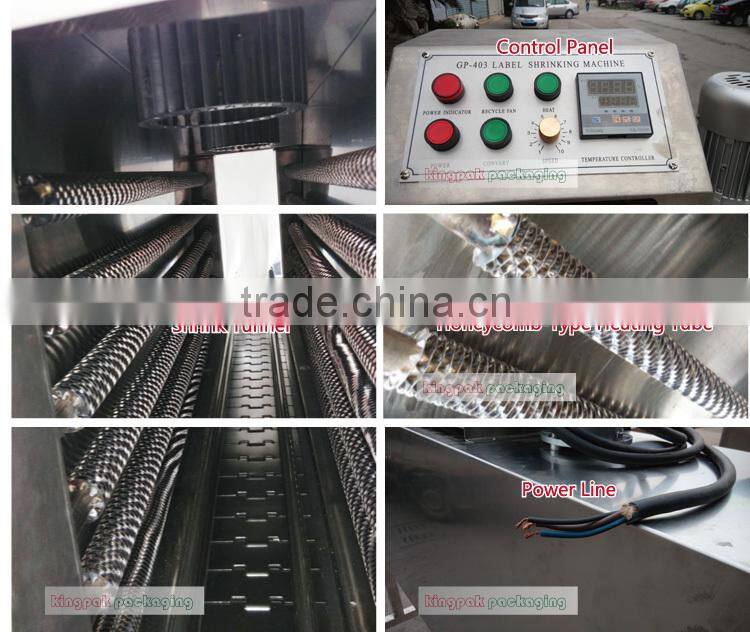

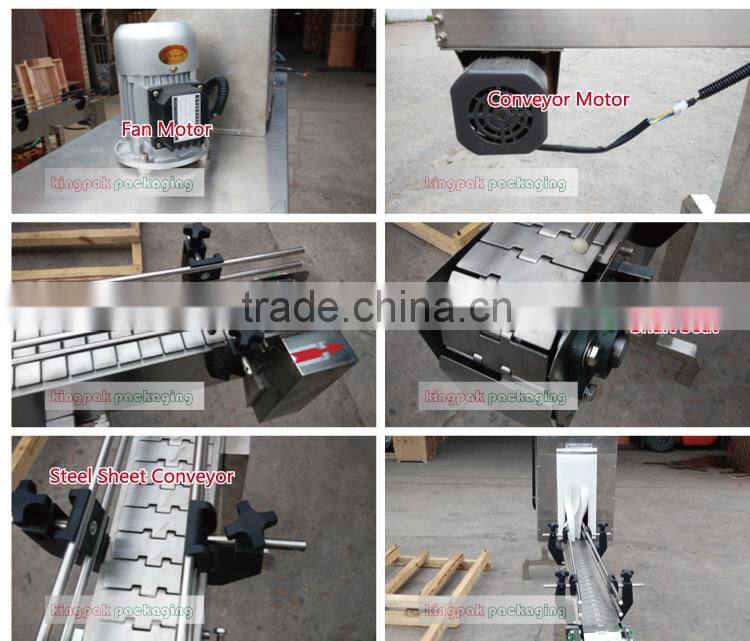

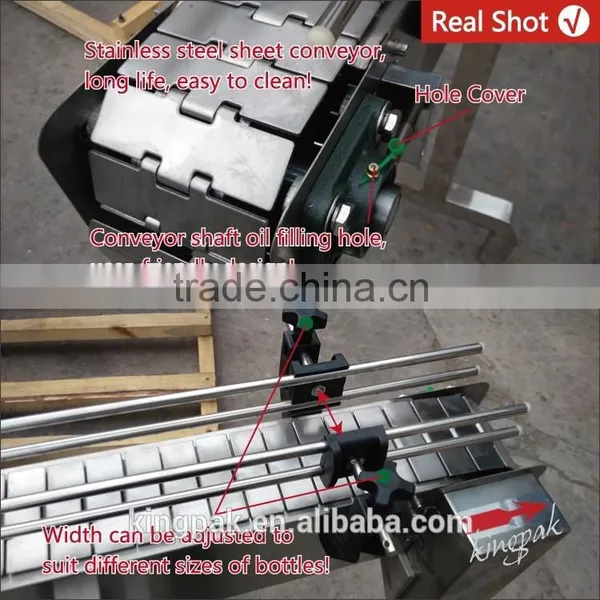

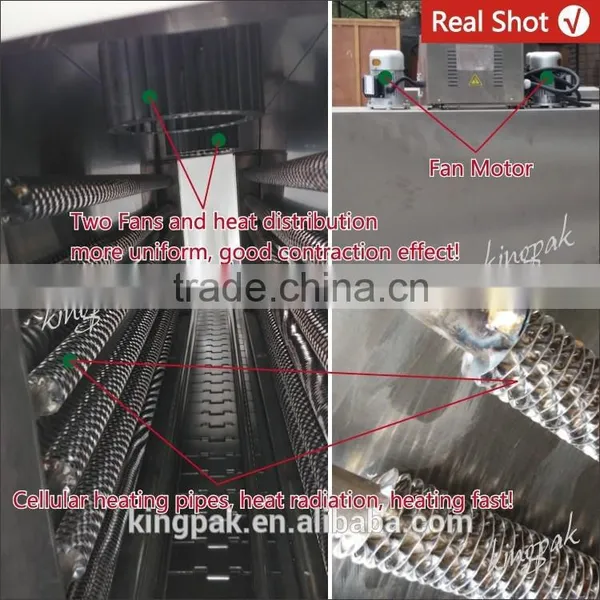

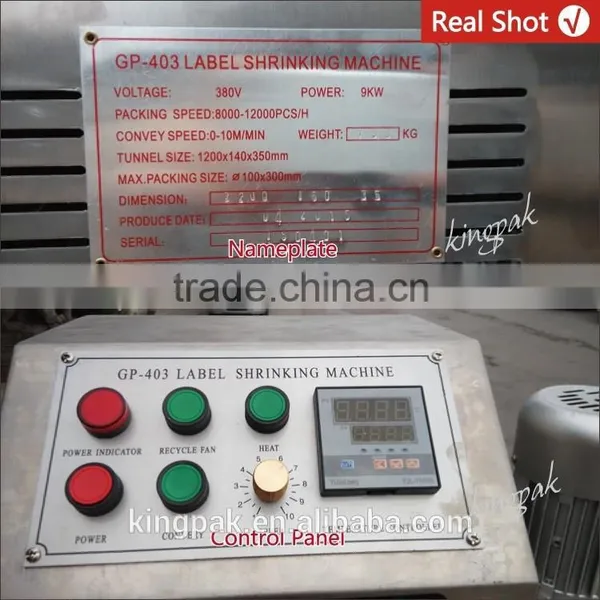

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
