Name: Oil Packing Machine, Cooking Oil Packing Machine, Oil Pouch Packing Machine
Overview
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• The automatic pasta sauce packaging machine can automatically complete bag making, measuring, filling, coding, cutting, counting the whole packaging process.
• Machine by PLC, servo motors, touch screen to form the core of the drive control to maximize the machine's control precision, speed range, reliability and intelligence to simplify the mechanical transmission, and significantly reduce mechanical noise and failure rate, while making the machine easier to use.
• The use of advanced gear chain drive system continuous sealing, ensure the machine running smoothly, reducing the noise and extend the life and improve the overall efficiency.
Scope
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Automatic pasta sauce packaging machine for shampoo, disinfectant, honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce, chili oil, caviar, shrimp paste, salad dressing, beef sauce, seasoning sauce, cream, shower gel, cosmetics, washing Jie Jing, lubricants and other sauce materials packaging.

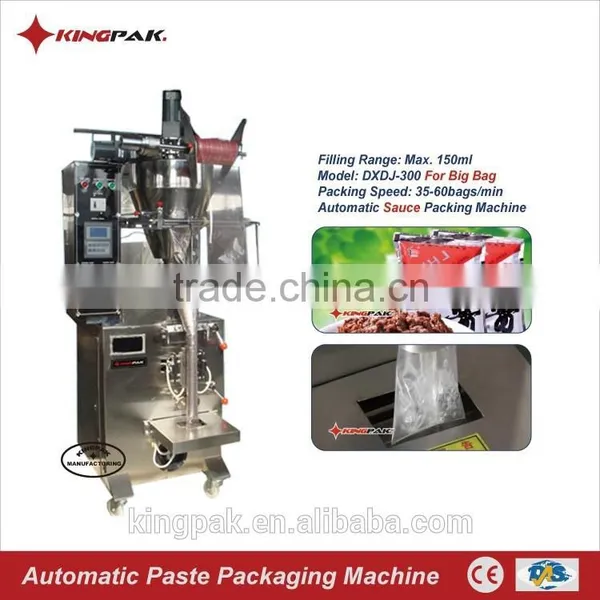

Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Pasta Sauce Packaging Machine |
Model |
DXDJ-300 |
Packing Speed |
35-60bags/min |
Filling Range |
Max.150ml |
Filling Accuracy |
±1% |
Bag Size |
L70-180mm W70-115mm |
Power |
1.9kw 220V AC |
Dimensions |
820*695*1740mm |
Weight |
300kg |
Features
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Role Of Common Parts
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Film Feeding Motor: Mainly used to pull send packaging film.
♦ Main motor: active force source the components of the drive.
♦ Optical Head: cursor identifying packaging film, to ensure complete type bag pattern.
♦ Sensor Switch: Control Triggering and transmission time for the film of the film feeding motor.
♦ Thermocouple: feedback of the actual temperature of heating tubes, and a set temperature and compares the transistor by the feedback circuit to regulate the output voltage, to regulate temperature.
♦ Heater: for sealing the mold is heated.
♦ Bag Former: the packaging film directed molded to the desired shape of the bag.
♦ Sealing Molds: for sealing and cutting packaging film, complete the bag.
♦ Temperature Controller: sealing temperature regulation, are generally used for horizontal and vertical sealing.
♦ PLC: Control sequence mutual cooperation between the various components, complete packaging operations.
