Help CenterDXDJ-40II Automatic Sauce Ketchup And Honey Packaging Machine
Related Products
-
HP100L-II Automatic Jam Ketchup And Juice Packing MachineNegotiableMOQ: 1 Set -
HP100L Automatic Ketchup Sachet And Honey Packing MachineUS$ 2,500 - 4,000MOQ: 1 Piece
-
HP100L Automatic Sauce Paste And Honey Packing MachineUS$ 2,200 - 3,200MOQ: 1 Set
-
HP200L Automatic Packing Machine PriceNegotiableMOQ: 1 Set
-
DXDY-300 Automatic Milk And Fruit Juice Packaging MachineNegotiableMOQ: 1 Set
Overview
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• The automatic sauce packaging machine can automatically complete bag making, measuring, filling, coding, cutting, counting the whole packaging process.
• Machine by PLC, servo motors, touch screen to form the core of the drive control to maximize the machine's control precision, speed range, reliability and intelligence to simplify the mechanical transmission, and significantly reduce mechanical noise and failure rate, while making the machine easier to use.
• The sauce liquid metering pump specially designed to avoid the phenomenon of the sauce in the packaging material sandwiched sealing process, and improves the rate of bags, but also the sealing of the cleaner more aesthetically pleasing.
• The use of advanced gear chain drive system continuous sealing, ensure the machine running smoothly, reducing the noise and extend the life and improve the overall efficiency.
Scope
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

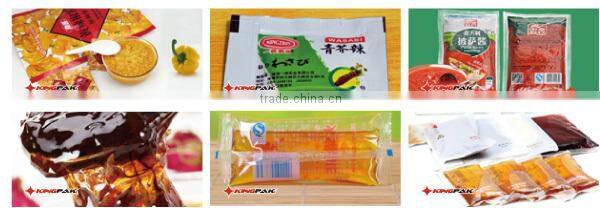

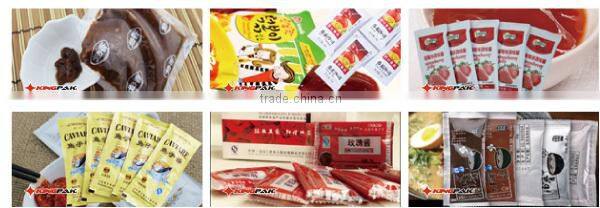

• Automatic sauce packaging machine for honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce, chili oil, caviar, shrimp paste, salad dressing, beef sauce, seasoning sauce, cream, shower gel, cosmetics, washing Jie Jing, shampoo, lubricants and other sauce materials packaging.
Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Sauce Packaging Machine For Jam, Ketchup |
|
Model |
DXDJ-40II |
DXDJ-150II |
Packing Speed |
40-100bags/min |
30-80bags/min |
Filling Range |
Max.40ml |
Max.150ml |
Filling Accuracy |
±1% |
±1% |
Bag Size |
L55-110mm W30-80mm |
L70-150mm W70-115mm |
Power |
1.5kw 220V AC |
1.9kw 220V AC |
Dimensions |
600*790*1780mm |
700*800*1900mm |
Weight |
340kg |
360kg |
Features
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

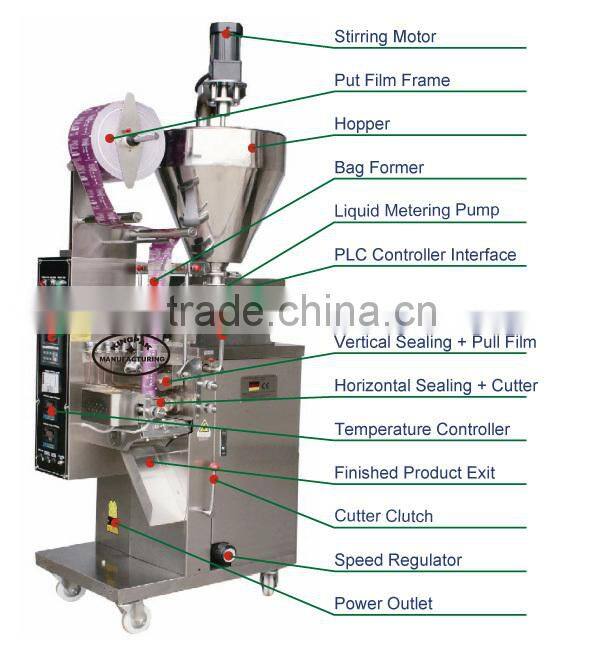

Name Of Common Parts
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Role Of Common Parts
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Film Feeding Motor: Mainly used to pull send packaging film.
♦ Main motor: active force source the components of the drive.
♦ Optical Head: cursor identifying packaging film, to ensure complete type bag pattern.
♦ Sensor Switch: Control Triggering and transmission time for the film of the film feeding motor.
♦ Thermocouple: feedback of the actual temperature of heating tubes, and a set temperature and compares the transistor by the feedback circuit to regulate the output voltage, to regulate temperature.
♦ Heater: for sealing the mold is heated.
♦ Bag Former: the packaging film directed molded to the desired shape of the bag.
♦ Sealing Molds: for sealing and cutting packaging film, complete the bag.
♦ Temperature Controller: sealing temperature regulation, are generally used for horizontal and vertical sealing.
♦ PLC: Control sequence mutual cooperation between the various components, complete packaging operations.
