1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Paste Packing Machine |
Model |
HP200L |
Control System |
PLC / MCU |
Metering Methods |
Piston metering, Metering Pumps, Special |
Packing Speed |
15-50bags/min |
Filling Range |
150-500ml (Depending on the material may be) |
Bag Size |
L40-250mm W30-180mm |
Power |
2.3kw 220V AC |
Dimensions |
830*1060*2090mm |
Weight |
340kg |
Note: Due to the escalating changes automatic packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Functions
>This automatic packing machine has bag making, metering,filling, sealing, cutting in one of the function, automatically complete all packaging procedures, reducing labor costs, compact, small footprint. We can also customize various forms of automatic packing machine.
- Overview

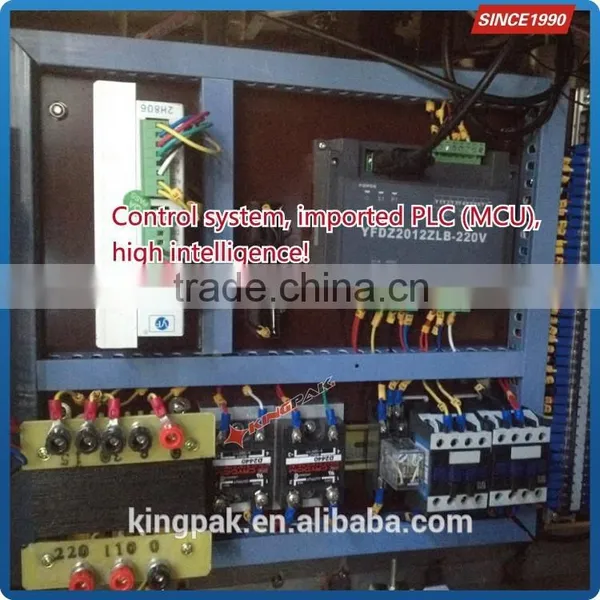

>Control Systems: this automatic packing machine adopts imported PLC controller, automatic processing is complete: bag length adjustment, cursor positioning, fault diagnosis, horizontal correction.
>Security: perfect automatic alarm protection, the losses to a minimum, while ensuring that the machinery and personnel safety.
>Bag Making: sealing is controlled by a servo motor, pressure and opening stroke can be adjusted at any time, for a variety of packaging styles.

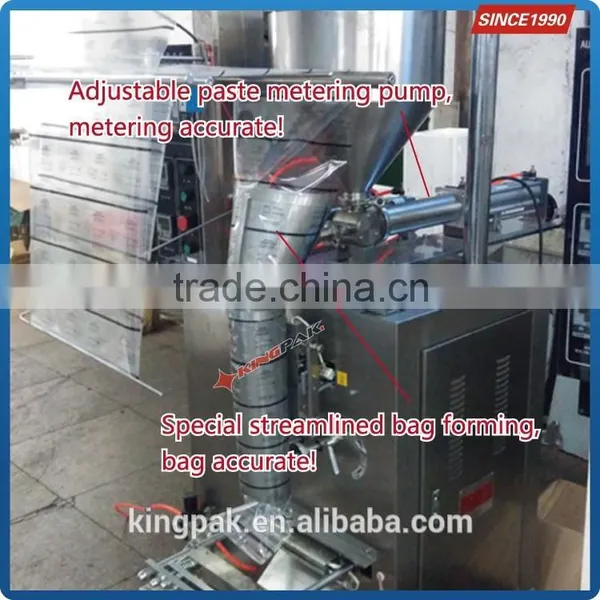

>Metering Filling: the machine is equipped with an adjustable metering pumps, please select the appropriate metering pump according to package volume. Bags depends on the former, one can only do a molding specifications can be customized according to customer requirements.
- Expansion
>Expansion device: coding device, counting device, fill gas device, exhaust device, punching device, n-bag without cutting device, gusset bag device, feeding device, Etc.
- Scope
>This automatic packing machine for honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce, chili oil, caviar, shrimp paste, salad dressing, beef sauce, seasoning sauce, cream, shower gel, cosmetics, washing Jie Jing, shampoo, lubricants and other paste materials packaging.

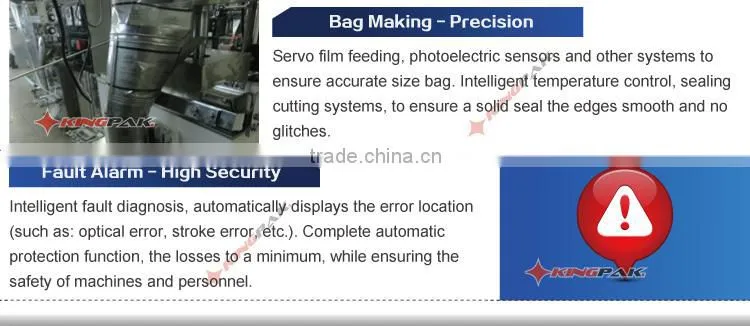

3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

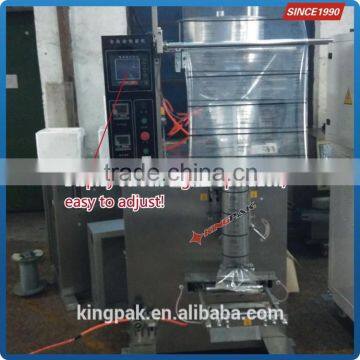

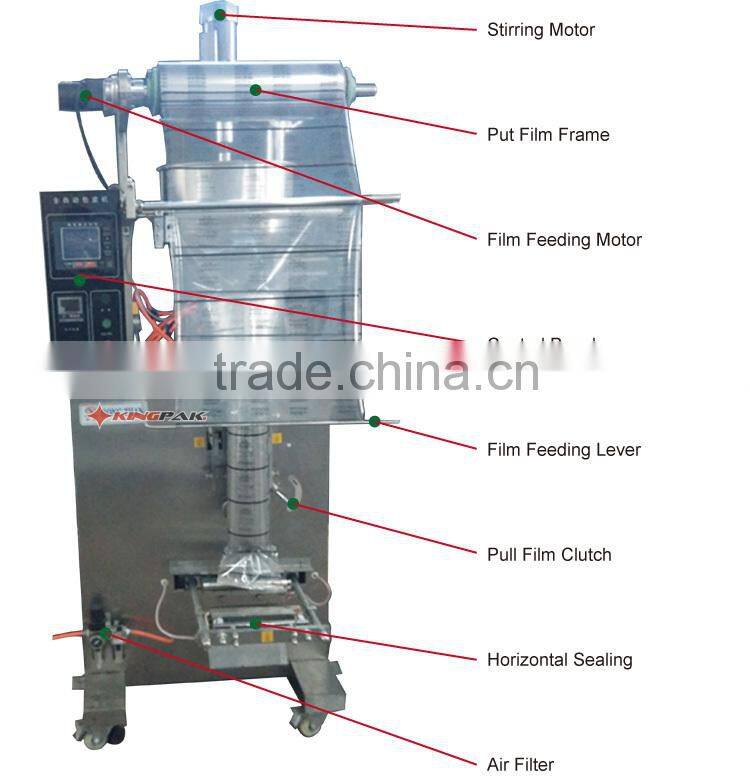

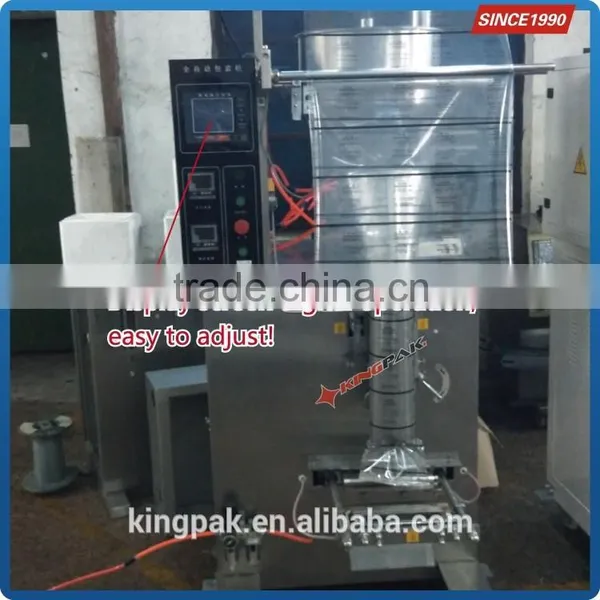

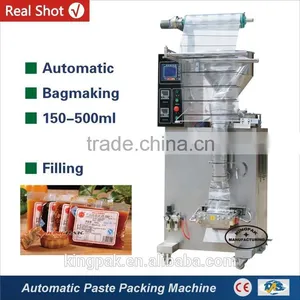

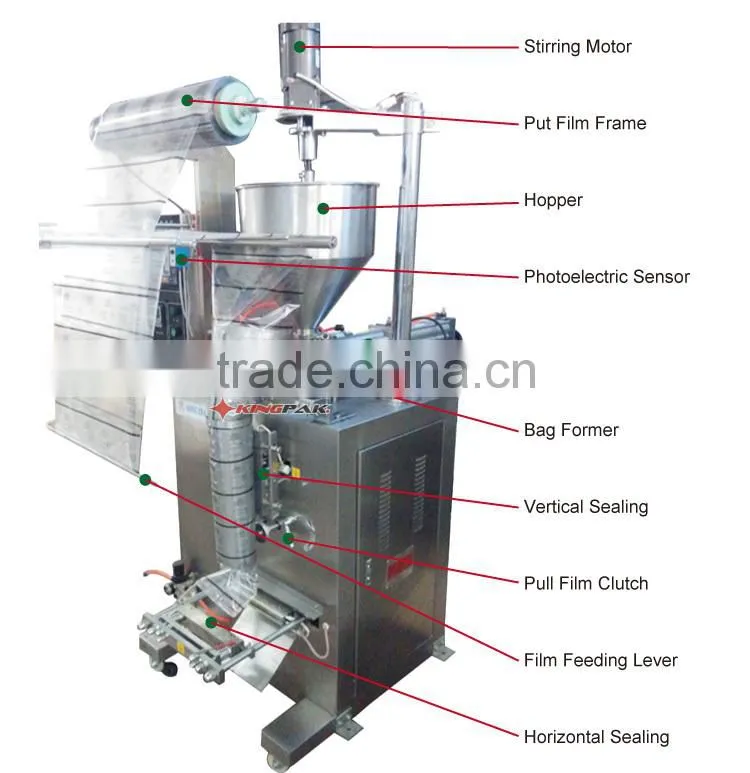

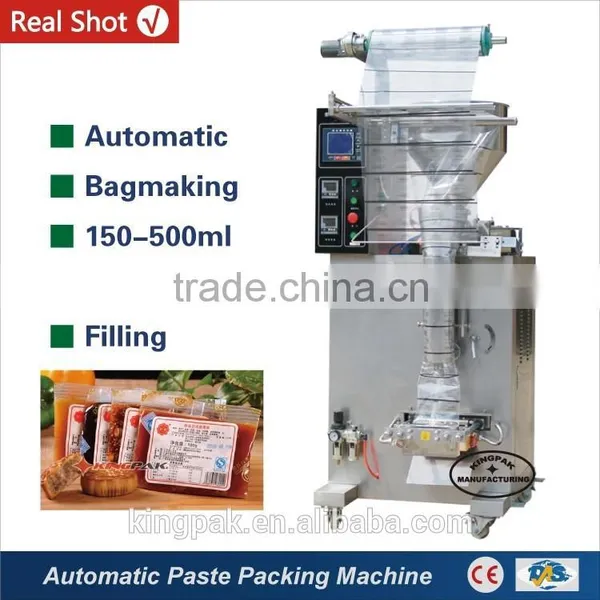

4. Whole Show - Round Display Overall Product
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

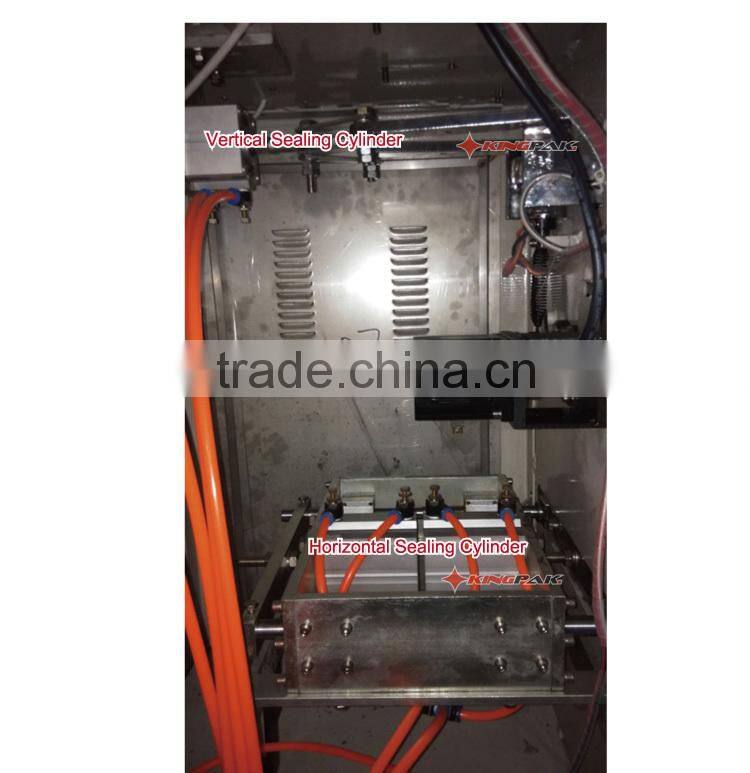

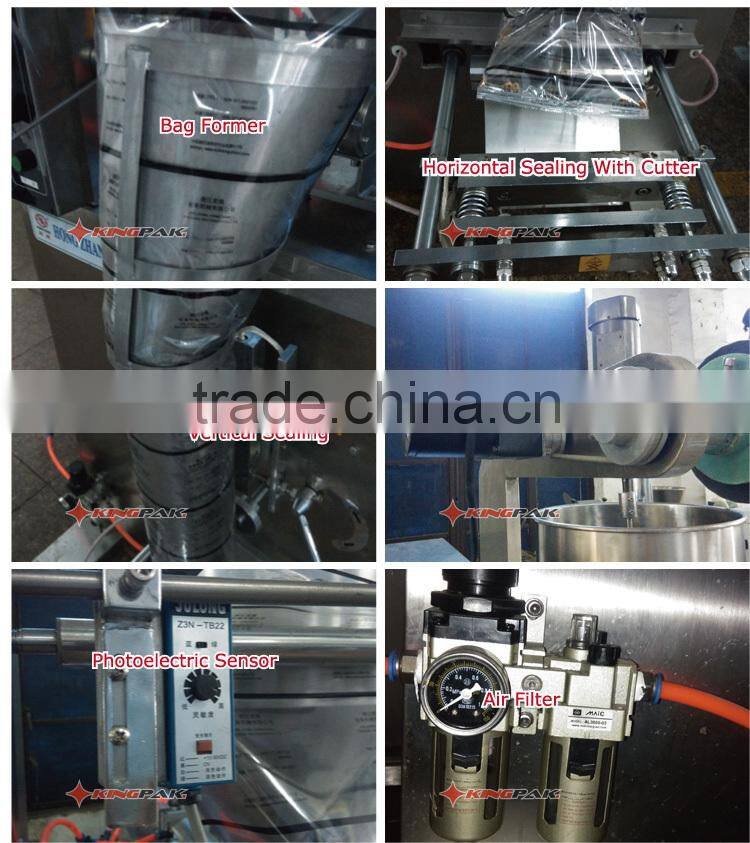

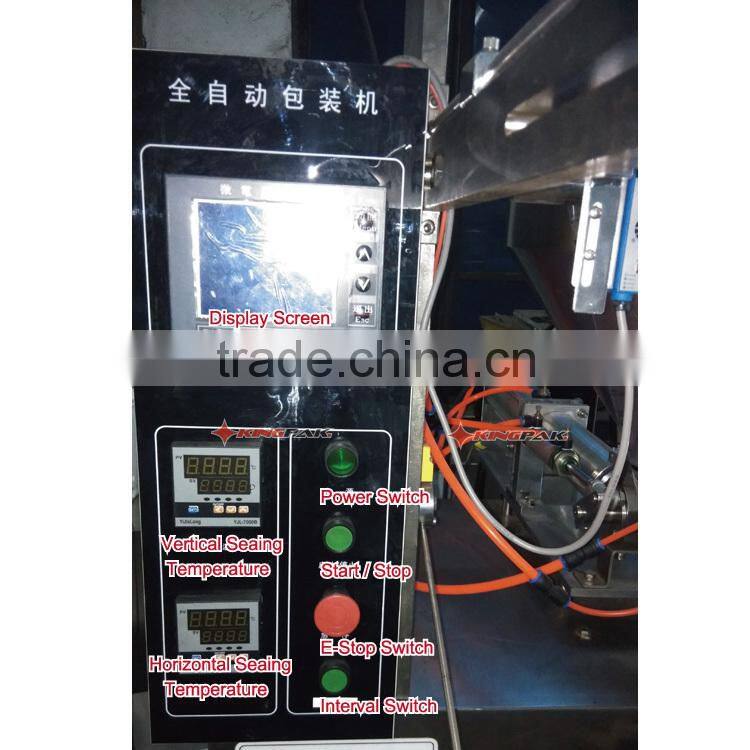

5. Details Show - Humanized Design Refinement Process
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
7. Bag Way
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
8. Before Buying
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Propose before buying the automatic packing machine:
1) What’s packaging material?
(In order to select the appropriate metering device)
2) What’s the per bag packaging capacity?
(In order to select the appropriate metering device)
3) What’s the capacity for the machine (per minute)?
(In order to select the appropriate transmission device)
4) Packaging film width or packing bag size?
(In order to select the appropriate former)
5) Sealing form?
(In order to choose the suitable sealing device)
6) Whether you need additional device or if there are special requirements?
(In order to calculate the right price)
7) If there are special requirements for the power?
(The default configuration: 200V 50Hz / 380V 50Hz)
