Help CenterHP100L Automatic Sauce Paste And Honey Packing Machine
Related Products
-
HP200L Automatic Packing Machine PriceNegotiableMOQ: 1 Set -
DXDY-300 Automatic Milk And Fruit Juice Packaging MachineNegotiableMOQ: 1 Set
-
DXDJ-800 Jam Palm Oil And Tomato Paste Packaging MachineNegotiableMOQ: 1 Set
-
DXDL-Y2 Automatic Ketchup Small Sachet Packing MachineNegotiableMOQ: 1 Set
-
DXDL-40 Automatic Tomato Paste And Honey Sachet Packing MachineNegotiableMOQ: 1 Set
Technical Parameters
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Sauce Paste And Honey Packing Machine |
Model |
HP100L |
Control System |
PLC / MCU |
Metering Methods |
Piston metering, Metering Pumps |
Packing Speed |
30-80bags/min |
Filling Range |
5-100ml (Depending on the material may be) |
Filling Accuracy |
±2% |
Bag Size |
L50-150mm W30-100mm |
Power |
1.7kw 220V AC |
Dimensions |
700*770*1650mm |
Weight |
260kg |
Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Functions
• The automatic sauce paste and honey packing machine has bag making, measuring, filling, sealing, cutting in one of the function, auto-complete all the packaging process, without artificial, saving labor costs.
- Overview
• The machine is compact structure, small footprint, packaging speed, high yield, especially suitable for mass production of sauce paste packaging use.

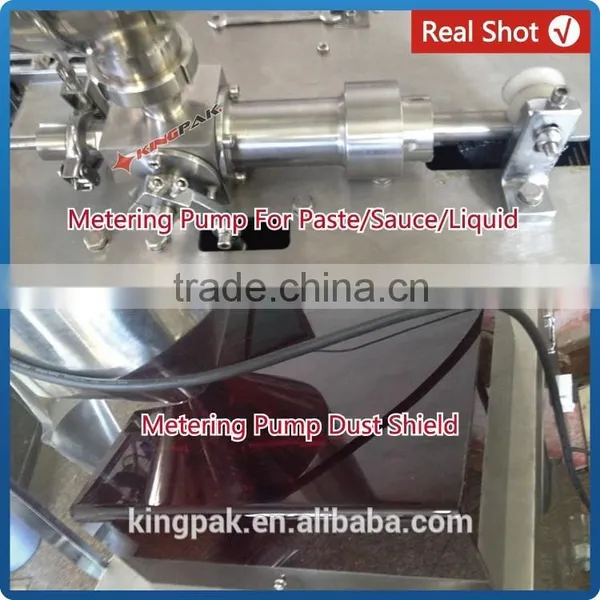

• The machine is equipped with an adjustable metering pumps, please select the appropriate metering pump according to package volume. Bags depends on the former, one can only do a molding specifications can be customized according to customer requirements.

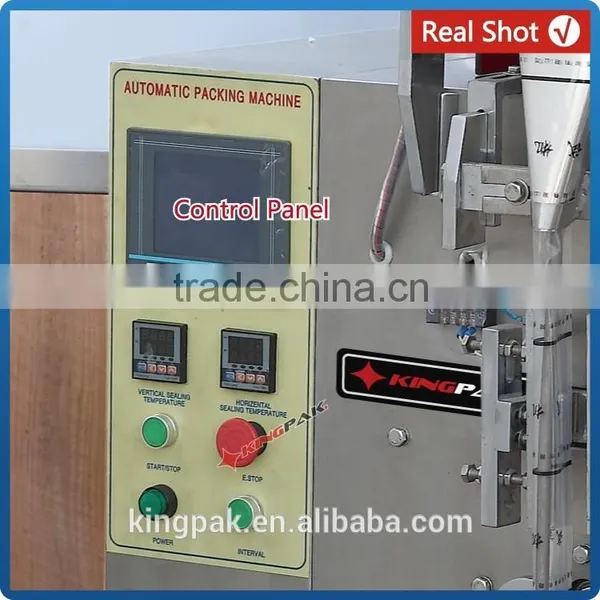

• The control system consists of PLC, frequency converter and other components, high integration, control ability, reliable operation. Touch screen digitizing operation, more reliable and convenient. Photoelectric sensors, encoders, proximity switches, are using imported components, mechanical and electrical integration of the machine has been perfect.
- Expansion
• Expansion device: coding device, counting device, fill gas device, exhaust device, punching device, n-bag without cutting device, gusset bag device, feeding device, Etc.
- Material
• Packaging Material: PET/PE, PET/BOPP/PE, PET/AL/PE, PAPER/PE, PA/PE, etc, composite material can be heat sealed.
- Scope
• Automatic sauce paste and honey packing machine for honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce, chili oil, caviar, shrimp paste, salad dressing, beef sauce, seasoning sauce, cream, shower gel, cosmetics, washing Jie Jing, shampoo, lubricants and other paste materials packaging.
Performance Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

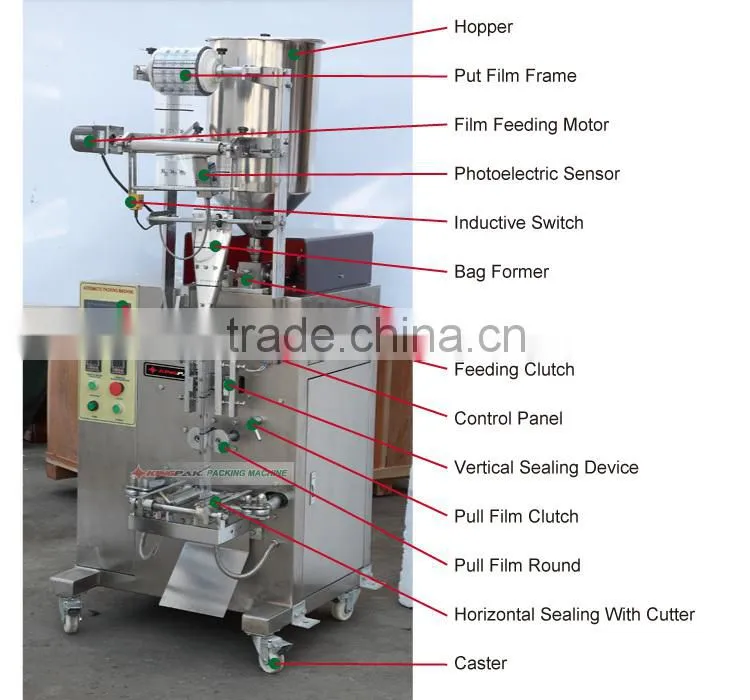

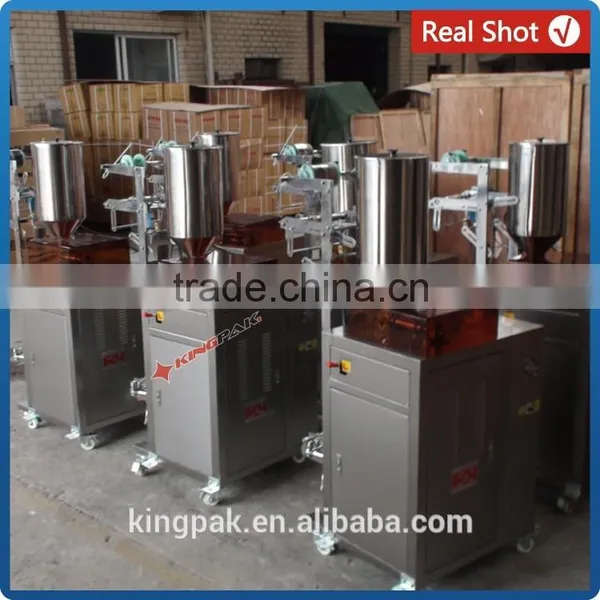

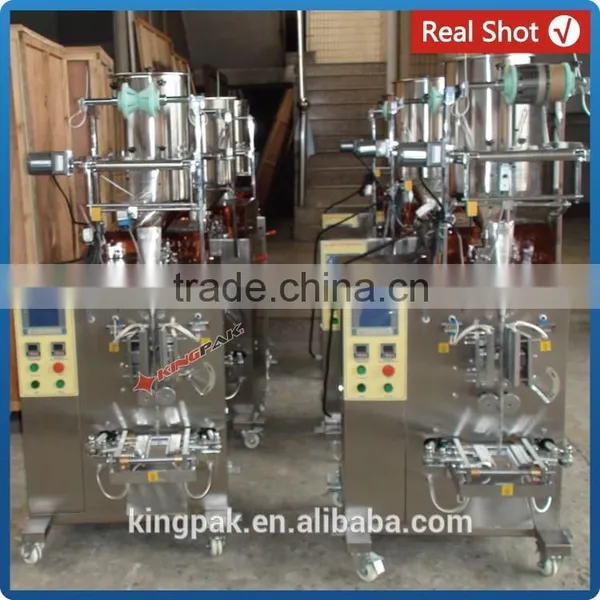

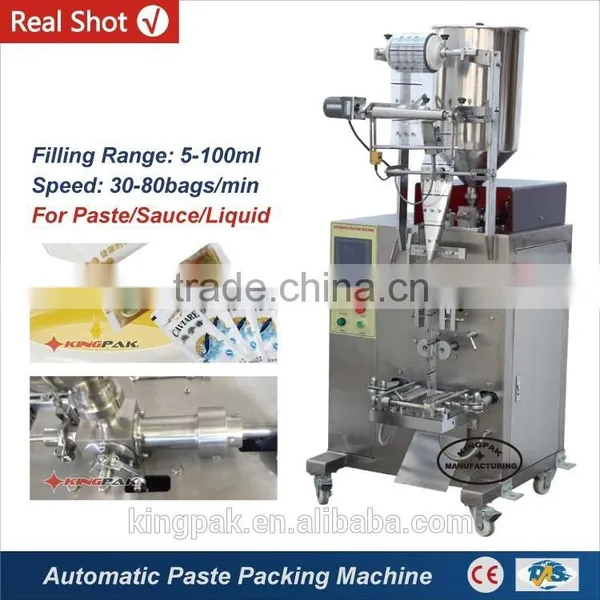

Whole Show - Round Display Overall Product
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

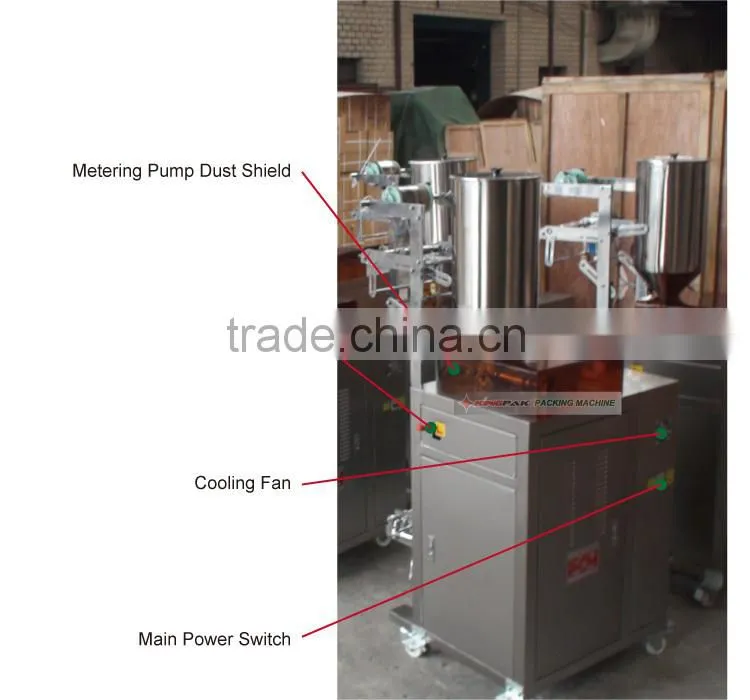

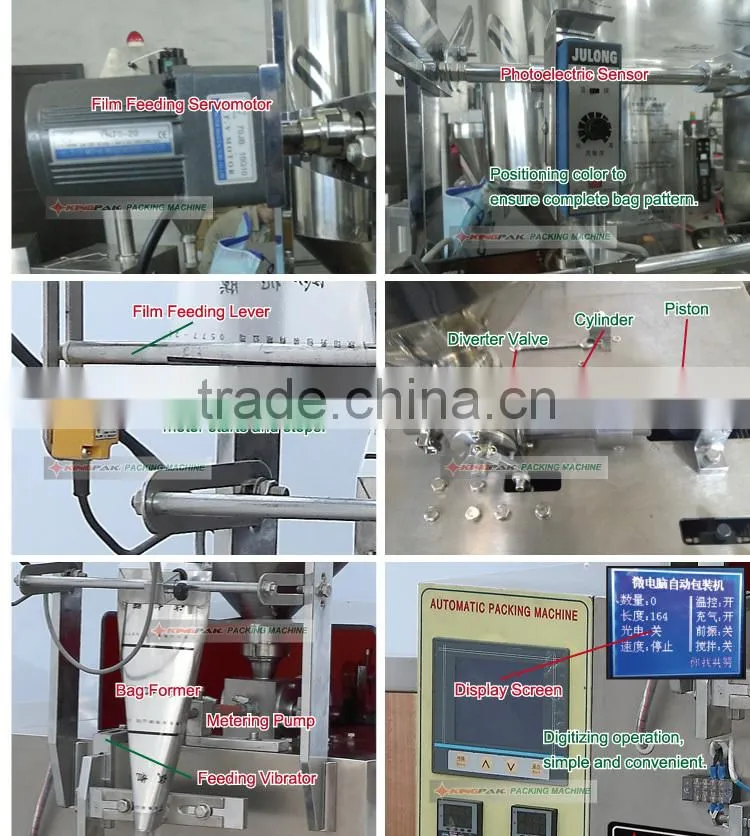

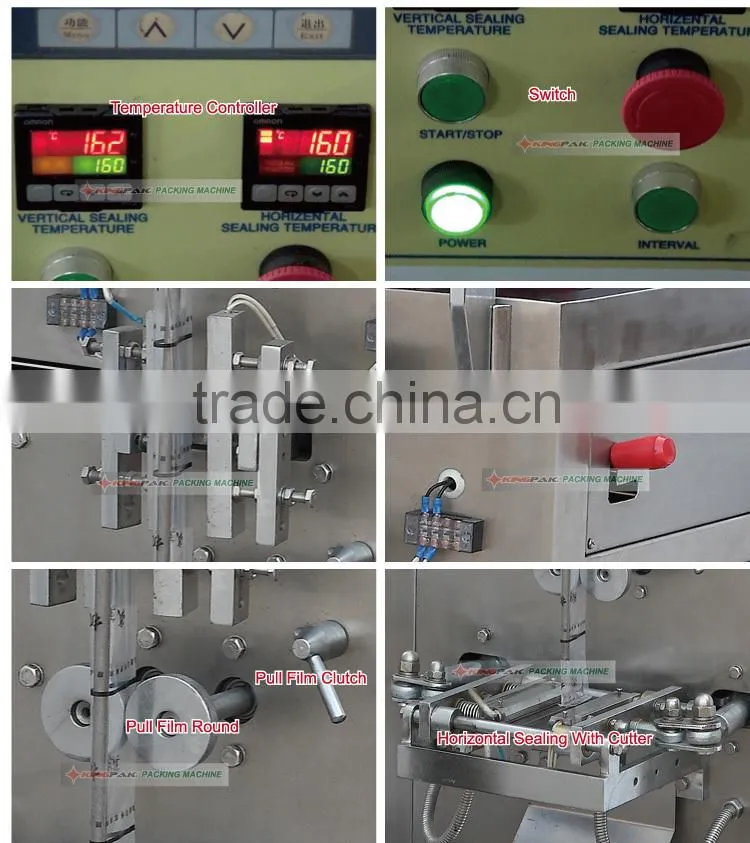

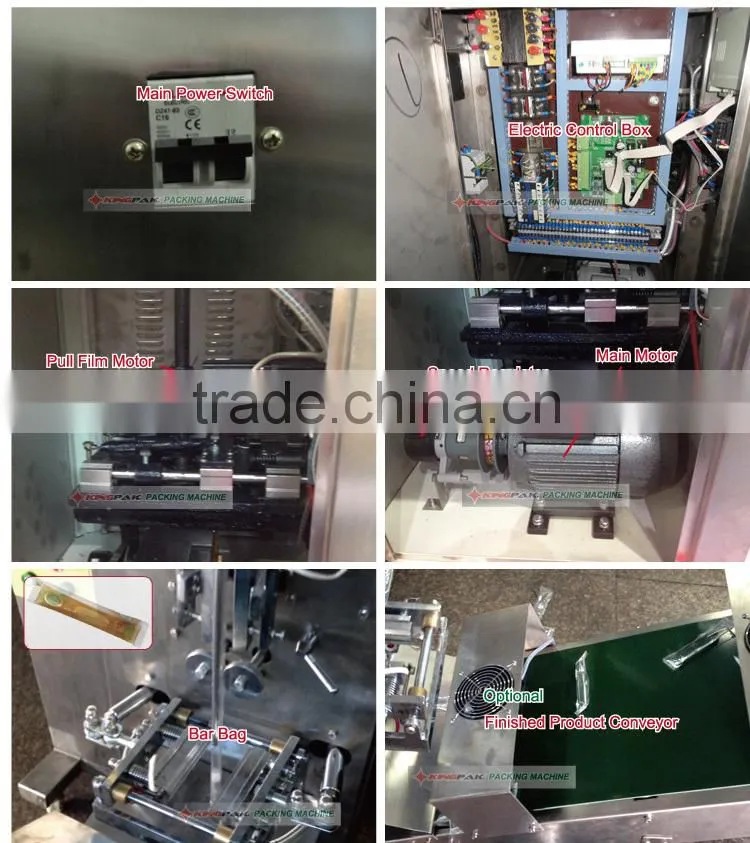

Details Show - Humanized Design Refinement Process
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Bag Way
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Before Buying
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Propose before buying the sauce paste and honey packing machine:
1) What’s packaging material?
(In order to select the appropriate metering device)
2) What’s the per bag packaging capacity?
(In order to select the appropriate metering device)
3) What’s the capacity for the machine (per minute)?
(In order to select the appropriate transmission device)
4) Packaging film width or packing bag size?
(In order to select the appropriate former)
5) Sealing form?
(In order to choose the suitable sealing device)
6) Whether you need additional device or if there are special requirements?
(In order to calculate the right price)
7) If there are special requirements for the power?
(The default configuration: 200V 50Hz / 380V 50Hz)
