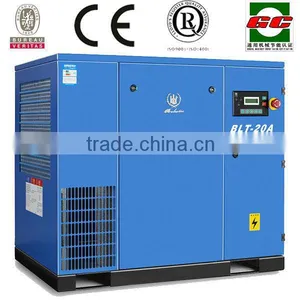

Atlas Copco (Bolaite) 20hp Air Compressor with new design
Air end- Atlas Copco (Bolaite)20hp Air Compressor with new design
Core components air end supplied by the group company, using the world's most advanced rotor
technology.
Patented line, the best line speed, always in the most efficient running, energy efficiency
significantly ahead of the market similar products;
High stiffness design of the rotor, to prevent leakage, ensure long life and reliable operation.
Transmission System- Atlas Copco (Bolaite)20hp Air Compressor with new design
Transmission System well-designed and after a long endurance test, good stability, reliable operation and long service life.
Core components imported brands, high transmission accuracy and efficiency.
High quality Motor- Atlas Copco (Bolaite)20hp Air Compressor with new design
High quality and efficient design, F class insulation;
IP54 dust-proof closed motor , it can be safely running in a relatively poor working conditions.
High efficient Cooler- Atlas Copco (Bolaite)20hp Air Compressor with new design
Large oil cooling design: even at high temperature, dust environment, also to ensure that the
lubricating oil temperature in the normal range, to ensure the safety of the compressor in summer.
Technical Parameter- Atlas Copco (Bolaite)20hp Air Compressor with new design
| Model | BLT-20A | |
| Air delivery | m3/min | 2.25/2.15/1.95/1.60 |
| Working Pressure | bar | 7/8/10/13 |
| Compression stage | Single stage compression | |
| Cooling model | Air cooling | |
| Discharge temperature | °C | ≤The environment temperature +15°C |
| Noise Level | dB(A) | 63±2 |
| Transmission mode | Belt transmission | |
| Voltage | V/Ph/Hz | 380V/3Ph/50Hz or as your demand |
| Motor power | KW/HP | 15/20 |
| Starting model | Y-* starting | |
| External dimensions | mm | 1390*750*1535mm(L*W*H) |
Weight |
kg | 315 |
| Exhaust Pipe diameter | inch | G1” |
Remarkable components supply chain- Atlas Copco (Bolaite)20hp Air Compressor with new design
| Item | Parts | Brand |
| 1 | Air End | Atlas Copco |
| 2 | Intake Valve | Hoerbiger (Austria) |
| 3 | Solenoid Valve | CEME (Italy) |
| 4 | Temperature Sensor | Hoerbiger (Austria) |
| 5 | Pressure Sensor | Huba Original (From Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Italy VMC |
| 9 | PLC | Schneider Electric (France), SIEMENS |
| 10 | Minimal Pressure Valve | Hoerbiger (Austria) |
| 11 | Air Filter Element | Germany MANN |
| 12 | Oil Filter Element | Germany MANN |
| 13 | Oil Separator Element | Germany MANN |
| 14 | Bearing | Sweden SKF |
Pressure Valve,Oil filter- Atlas Copco (Bolaite)20hp Air Compressor with new design
Air end and Bearing - Atlas Copco (Bolaite)20hp Air Compressor with new design
Factory and Workshop- Atlas Copco (Bolaite)20hp Air Compressor with new design

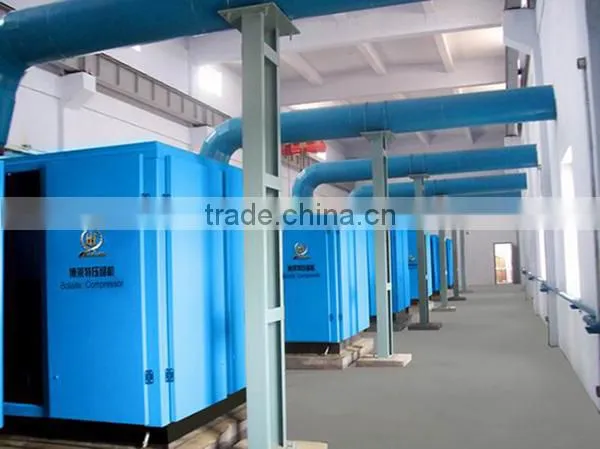

Used Site Show- Atlas Copco (Bolaite)20hp Air Compressor with new design
Packing and Installed on the Container
