Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
-----------------------Better life together------------------------
BLT series air compressors are designed and manufactured for domestic conditions and operating environment with superior performance, easy installation, flexible and highly productive handling characteristics; Being able to meet the functional needs of users, and escorting for the production process users; while ensuring high production efficiency and productivity, and reducing costs.
Durable- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
Each BLT Series air compressors are designed, produced and tested according to strict standards. And adopting the injected screw rotor which is supplied by unified Group, ensure that the air compressor can operates at the lowest operating cost and long-term stable situation.
High competitive price- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
The energy consumption of producing compressed air may exceed 40% of the enterprise's total energy consumption. BLT series air compressor adopts high-effective rotors, which can significantly reduce energy consumption, to help customers save cost. BLT-VFC air compressor can be adjusted gas production according to actual gas consumption, the air compressor energy consumption proportionally reduced, so the average energy savings of 30% or more.
Perfect after-sales service- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
Bolaite has a sound localization service and spare parts supply system all over the country, supported by a strong dealer network, can provide the most attentive, efficient service and first-class original spare parts for customers.
Bolaite(shang hai) Compressor Co.,Ltd.was established in 1998.
It is mainly engaged in designing,producing,and selling double screw air compressors.
Bolaite(shang hai) Compressor Co.,Ltd.is wolly-owned by Atlas copco,
belong to Atlas copco Group Compressor Technology(CT).
Division new factory with total investment of $250,000,000.00
Lloyd’s certificates:ISO4001,OHSAS18001,ISO9001.

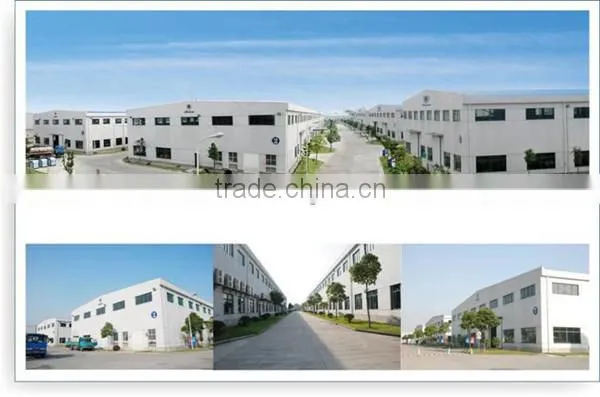

It is located in Jia Ding district, shang hai ,covering an area of 9,000 square meters.
Products has been sold all over the word,especially the global market,
Technical Parameter - Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
Model |
| BLT-75VFC | ||||
Free Air Delivery | M3/min | 4.2-10.5 | 3.92-9.8 | 3.52-8.8 | 3.04-7.60 | |
Working Pressure | bar | 7 | 8 | 10 | 13 | |
Compression stage |
| Single stage compression | ||||
Cooling model |
| Air cooling | ||||
Discharge temperature | ℃ | ≤The environment temperature +15℃ | ||||
Noise Level | dB(A) | 72±2 | ||||

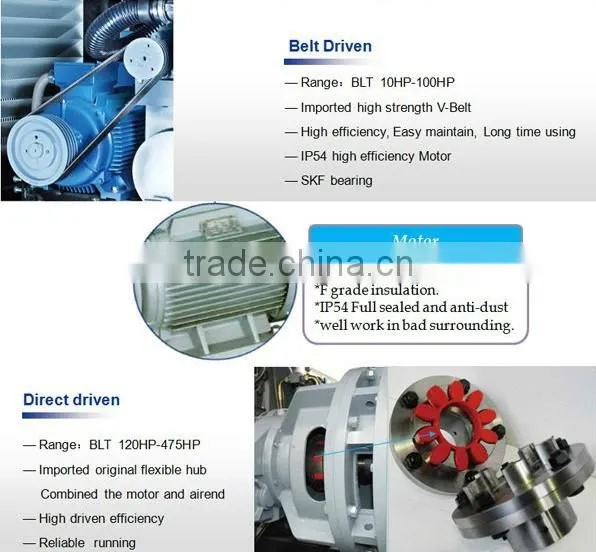

Transmission mode |
| Belt transmission | ||||
Voltage | V/Ph/Hz | 380V/3Ph/50Hz | ||||
Motor power | KW/HP | 75/100 | ||||
Starting model |
| Variable Frequency starting | ||||
External dimensions
| L | mm | 1935 | |||
W | mm | 1170 | ||||
H | mm | 1800 | ||||
Weight | Kg | 1560 | ||||
Exhaust Pipe diameter | inch | G 2” | ||||
Remarkable components supply chain
No. | Parts Name | Quantity | Brand |
1 | Air end | 1pc | Atlas Copco from Belgium |
2 | Bearing | 1pc | Sweden SKF |
3 | Air inlet valve | 1pc | Atlas Copco |
4 | Electric motor | 1pc | ZODA |
5 | Thermostat valve | 1pc | Atlas Copco |
6 | Pressure sensor | 1pc | Denmark Danfoss |
7 | Air filter | 1pc | Atlas Copco |
8 | Oil filter | 1pc | Atlas Copco |
9 | Oil and gas separator | 1pc | Atlas Copco |
10 | Minimum pressure valve | 1pc | Atlas Copco |
11 | Electric system | 1pc | Siemens |
12 | High pressure hose assembly | 1pc | Italy MANULI |

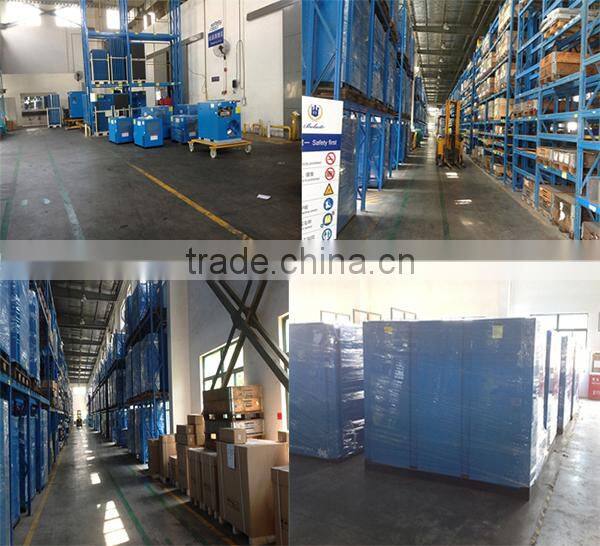

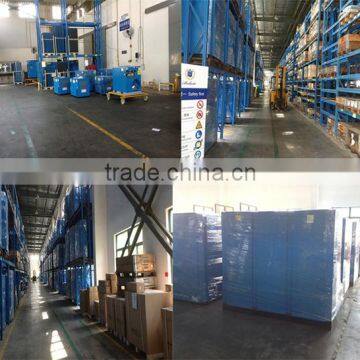

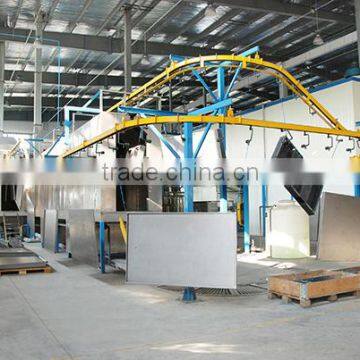

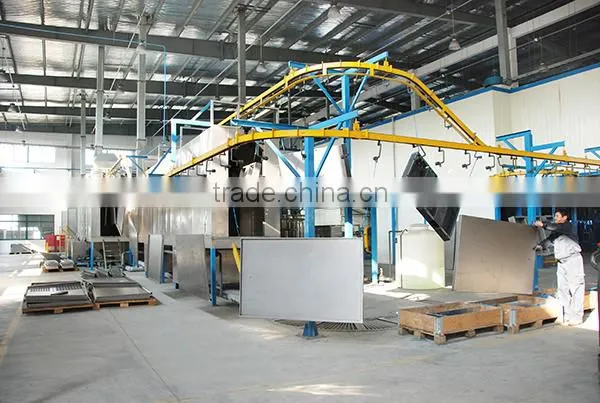

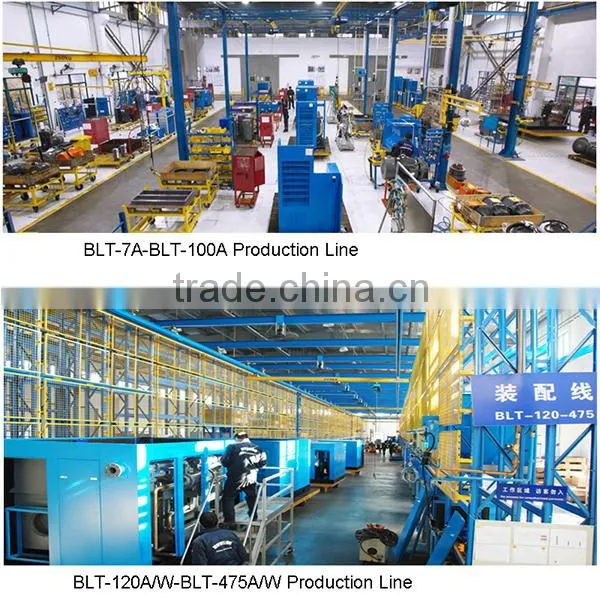

European Production Line- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor

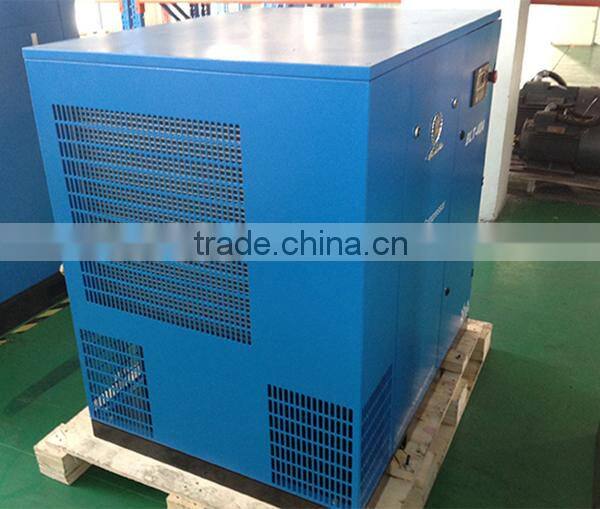

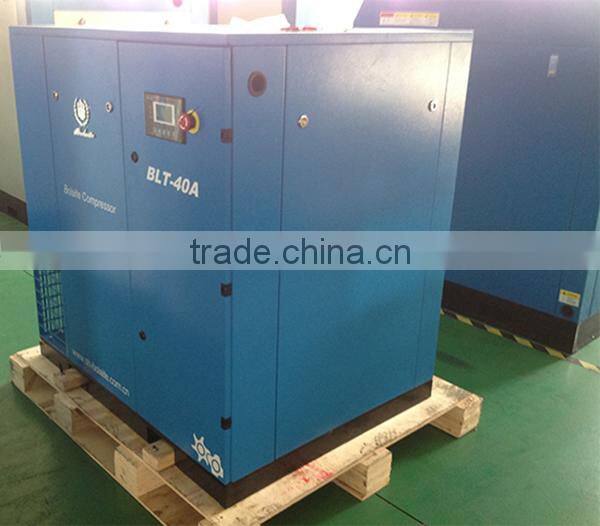

Finished Air Compressor for your reference

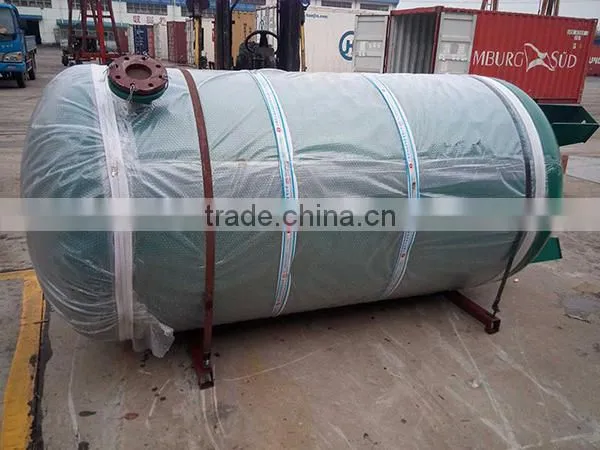

Standard export packing- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
Film+Carton+wooden case standard export package. we will install and test the machine for you before shipping, you just need to connect power supply.

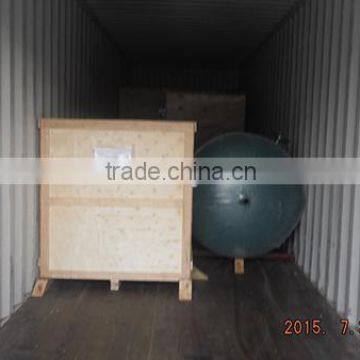

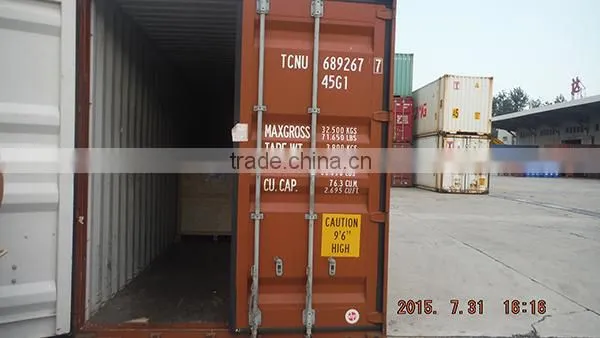

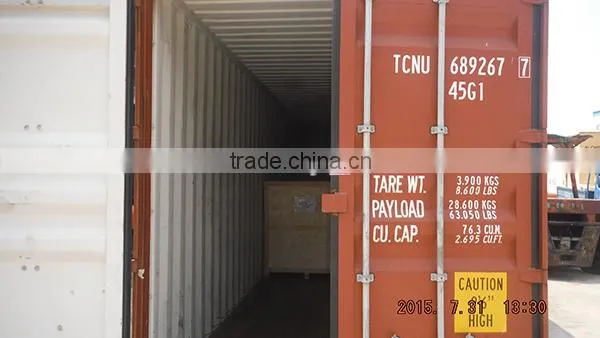

Compressor on the Container- Atlas Copco (Bolaite) Variable Frequency 55kW Air Compressor
FAQ for your reference
1.Payment terms
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.Delivery date
Based on order quantity, generally it takes 3 days for production.
3.Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4.Quality control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5.After-sales
A. Our sales team will response for your question within 24 hours (Holidays Excluded)
B. Technical Support will be available at any time.
