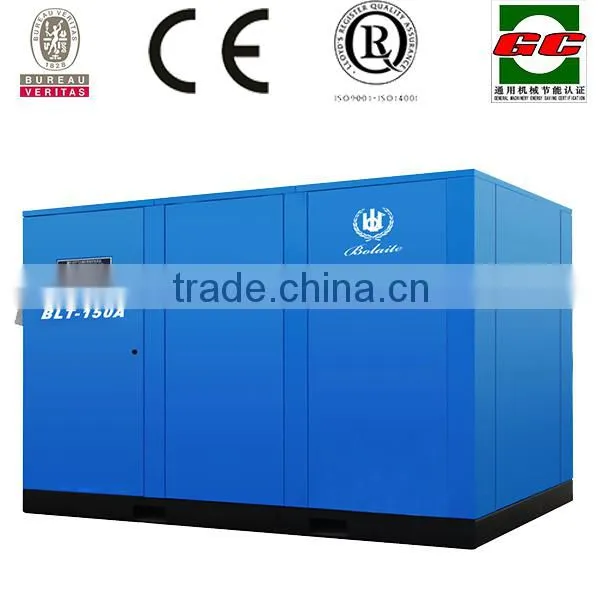

Atlas Copco (Bolaite) 110kW low noise air compressor
1.Brand-wholly owned by Atlas Copco
2.140years experience on Air compressor field
3.More than 50 factories all over the world
4.Bolaite(Shanghai) is the largest in China
5.Professional technology and after-sales service for every client!
6.Creating Sustainable Productivity for the world!
-------------------------------------------First in Mind,First in Choice!---------------------------------------
Air end- Atlas Copco (Bolaite) 110kW low noise air compressor
Core components air end supplied by the group company, using the world's most advanced rotor technology.
Patented line, the best line speed, always in the most efficient running, energy efficiency significantly ahead of the market similar products;
High stiffness design of the rotor, to prevent leakage, ensure long life and reliable operation.
High quality Motor- Atlas Copco (Bolaite) 110kW low noise air compressor
High quality and efficient design, F class insulation;
IP54 dust-proof closed motor , it can be safely running in a relatively poor working conditions.
High efficient Cooler- Atlas Copco (Bolaite) 110kW low noise air compressor
Large oil cooling design: even at high temperature, dust environment, also to ensure that the
lubricating oil temperature in the normal range, to ensure the safety of the compressor in summer.

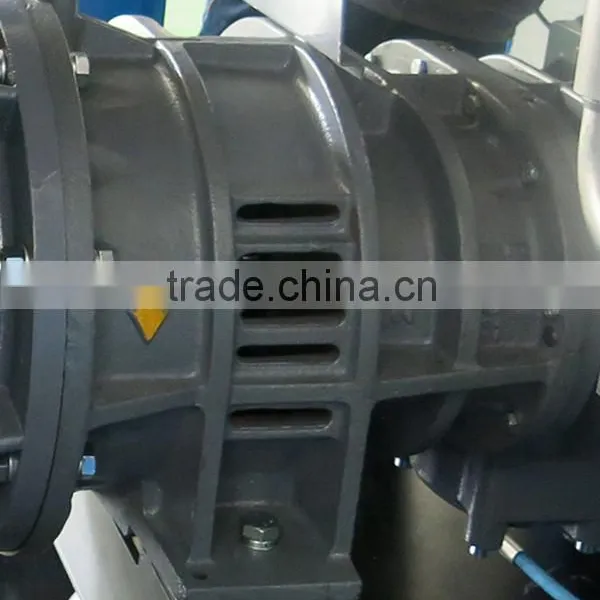

Transmission System- Atlas Copco (Bolaite) 110kW low noise air compressor
Transmission System well-
designed and after a long endurance test, good stability, reliable operation and long service life.
Core components imported brands, high transmission accuracy and efficiency.
Technical parameter - Atlas Copco (Bolaite) 110kW low noise air compressor
| Model | BLT-150A VFC |
| Free air delivery / Discharge pressure m3/min (cfm)/ kPa (psi) |
5.4-21.0 / 7 bar (102 psi) |
| 5.3-20.0/ 8 bar (116 psi) | |
| 4.2-17.0 / 10 bar (145 psi) | |
| 4.1-14.8/ 12 bar(174 psi) | |
| Compress stage | Single |
| Ambient temperature | -5 ~ 45°C |
| Electricity supply | 380 V, 3-Ph, 50Hz,or as your demand |
| Motor power | 110 kw ( 150Hp) |
| Dirve method | Direct driving |
| Cooling type | Air cooling |
| Discharge temperature | Air cooling< environment+15 °C |
| Noise level @ 1m | 75±2 dB(A) |
| Discharge water outlet | DN65 |
| Dimension (L×W×H) | 2,736×1,526×1,800 mm (108×71.1×82.7 inch) |
| Compressor packed size | 10.7 |
| Weight | 2,690kg |
Remarkable components supply chain Atlas Copco (Bolaite) 110kW low noise air compressor
| Item | Parts | Brand |
| 1 | Air End | Atlas Copco |
| 2 | Intake Valve | Hoerbiger (Austria) |
| 3 | Solenoid Valve | CEME (Italy) |
| 4 | Temperature Sensor | Hoerbiger (Austria) |
| 5 | Pressure Sensor | Huba Original (From Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Italy VMC |
| 9 | PLC | Schneider Electric (France), SIEMENS |
| 10 | Minimal Pressure Valve | Hoerbiger (Austria) |
| 11 | Air Filter Element | Germany MANN |
| 12 | Oil Filter Element | Germany MANN |
| 13 | Oil Separator Element | Germany MANN |
| 14 | Bearing | Sweden SKF |

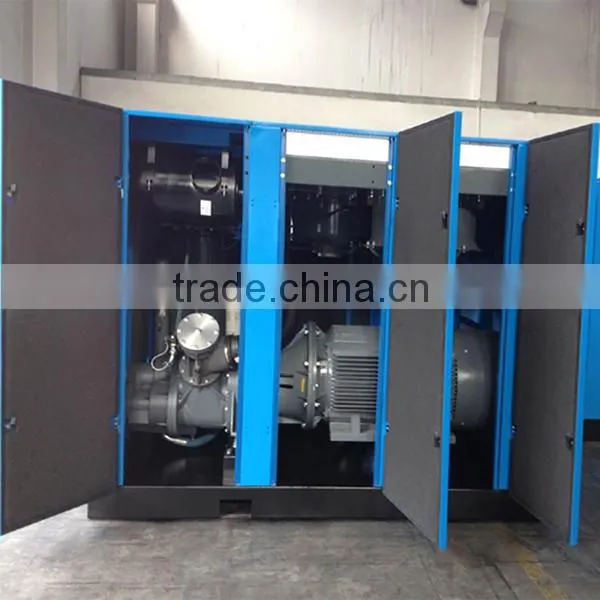

More details products- Atlas Copco (Bolaite) 110kW low noise air compressor

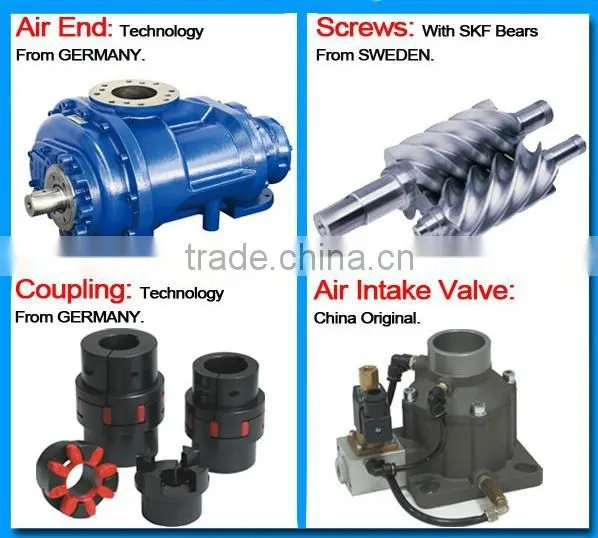

Main spare parts - Atlas Copco (Bolaite) 110kW low noise air compressor
Bolaite air compressor- Atlas Copco (Bolaite) 110kW low noise air compressor

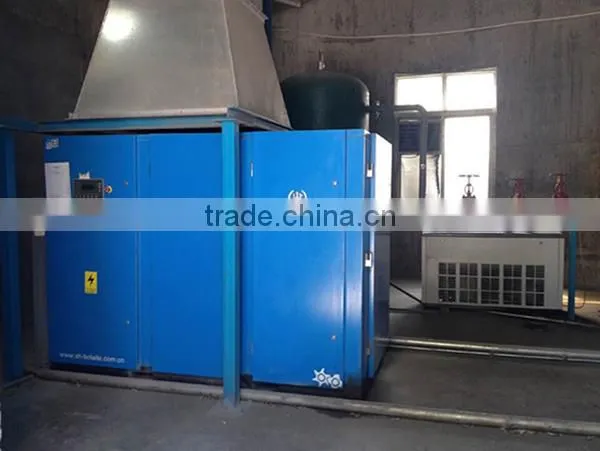

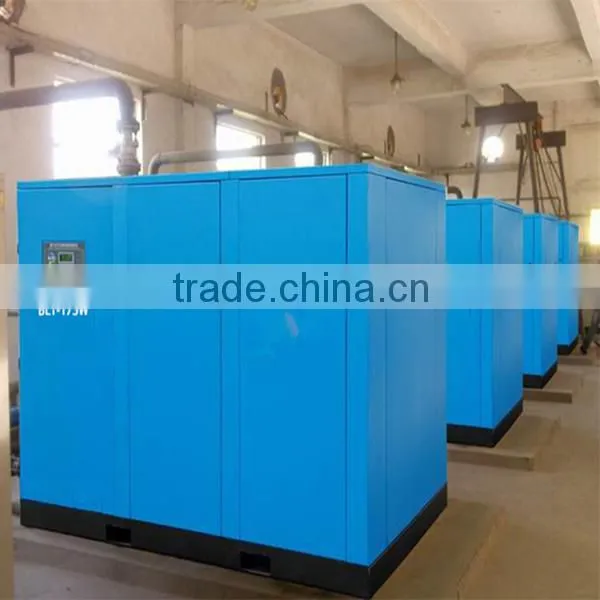

Used Site Show- Atlas Copco (Bolaite) 110kW low noise air compressor

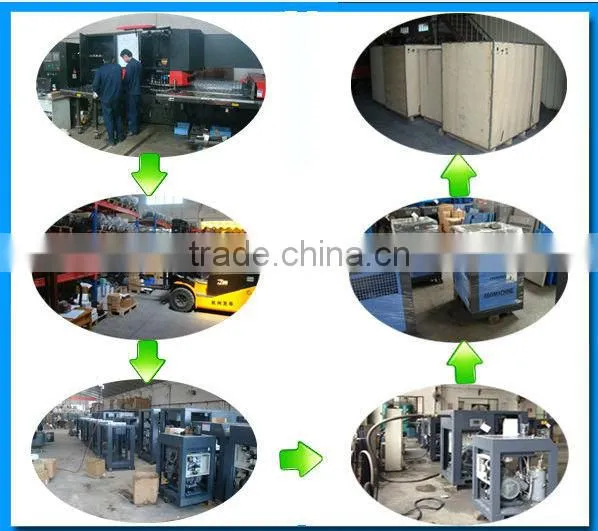

Factory show - Atlas Copco (Bolaite) 110kW low noise air compressor
