JQX-13F LY2 AC220V 8pins New Original General Purpose Relay

JQX-13F LY2 AC220V 8pins New Original General Purpose Relay thumbnail-1
JQX-13F LY2 AC220V 8pins New Original General Purpose Relay thumbnail-2
JQX-13F LY2 AC220V 8pins New Original General Purpose Relay thumbnail-3
JQX-13F LY2 AC220V 8pins New Original General Purpose Relay thumbnail-4
JQX-13F LY2 AC220V 8pins New Original General Purpose Relay thumbnail-5

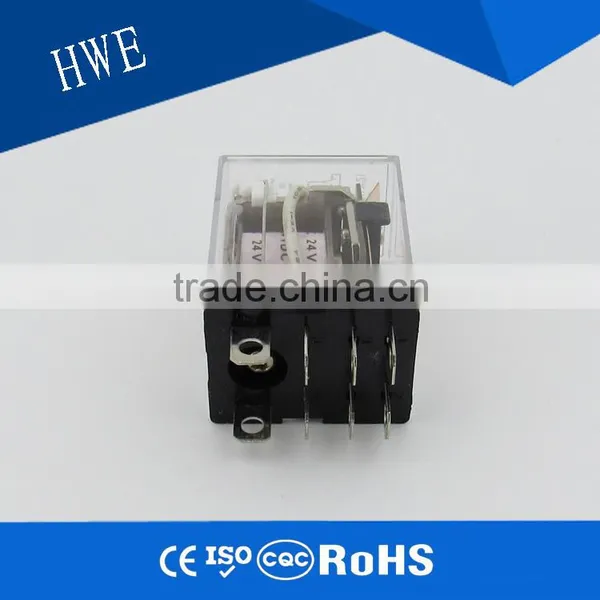

JQX-13F LY2 AC220V 8pins New Original General Purpose Relay photo-1

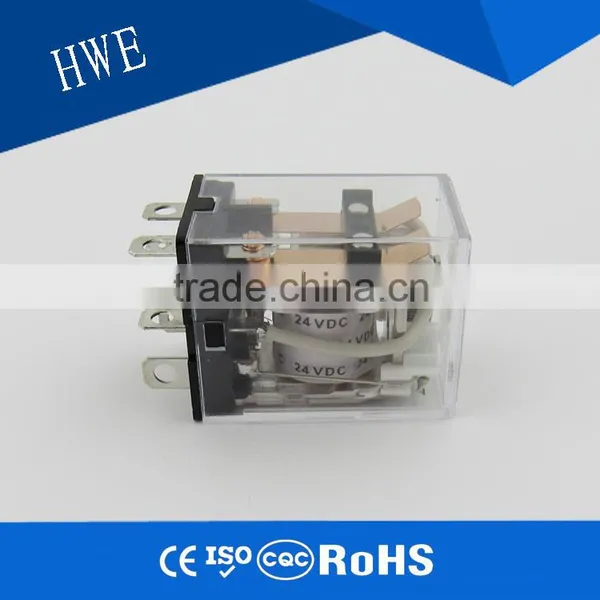

JQX-13F LY2 AC220V 8pins New Original General Purpose Relay photo-2

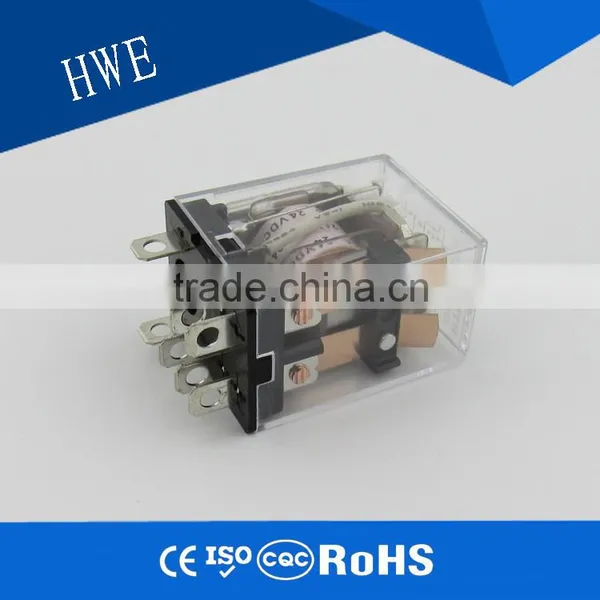

JQX-13F LY2 AC220V 8pins New Original General Purpose Relay photo-3

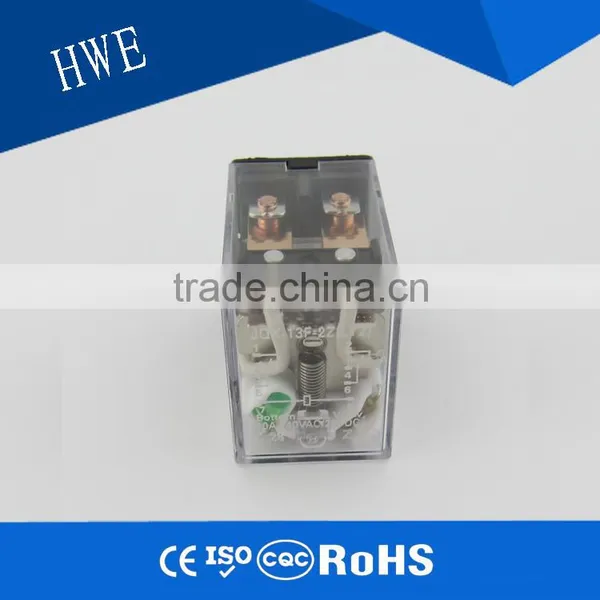

JQX-13F LY2 AC220V 8pins New Original General Purpose Relay photo-4
JQX-13F LY2 AC220V 8pins New Original General Purpose Relay photo-5
US$ 1 - 2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HWE
Model Number:
LY2
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HWE
Model Number LY2
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Epoxy
Contact Load Low Power

JQX-13F LY2 AC220V 8pins New original General purpose relayJQX-13F LY2 AC220V 8pins New original General purpose relay

Features:
using abroad ,standard all ready .
10A current Switching capability
 various terminals available .
 various socket available ,various dress up wise ,and Dust cover of limpidity .
exterior size: 27.5*21*35



Contact data



  Contact Arrangement

            2  Z

                     2C
  Initial Contact Resistance      100 mΩ   (1A 6VDC)
  Contact Material      Silver Alloy               AgCdO
  Contact Rating(Res.Load)     10A/250VAC   30VDC
  Max.switching voltage      250VAC / 30VDC
  Max.switching curreng       10 A
  Max.switching power          2500VA  / 300 W
  Mechanical life         1×107 times
  Electrical life         1×105 times



Characteristics
  Initial Insulation Resistance                  1000MΩ,    500VDC
Dielectric Strength
        Between coil and Contacts 1500VAC 1 min.
        Between open contacts 1000VAC 1 min.
        Electronic contact group 1500VAC 1 min.
    Operate time(at nomi.Volt)        25 ms
    Release time(at nomi.Volt)       15 ms
   Shock Resistance
      stability 100m/s2
      intensity 1000m/s2
    Vibration   Resistance         1mm 10~55Hz
    Humidity         98% RH%  +  40%
   Temperature           -55℃~+70℃
  Termination         PCB And Plug type leading-out terminal
    Unit weigth           37g
     Construction          Dust cover
Coil data



Coil power          DC :  0.9W                AC:   1.2VA



Coil Specification table



Nominal Voltage VDC Action voltageVDC Drop-out Voltage VDC Coil Resistance Ω
5 4.0 0.50 27.5±10%
6 4.8 0.60 40±10%
12 9.6 1.20 160±10%
24 19.2 2.40 650±15%
48 38.4 4.80 2600±15%
110 88.0 11.0 11000±15%

Nominal Voltage VAC Action voltageVAC Drop-out Voltage VAC Coil Resistance Ω
6 4.80 1.80 11.5±10%
12 9.60 3.60 46±10%
24 19.2 7.20 184±10%
48 38.4 14.4 735±15%
120 96.0 36.0 4550±15%
220/240 176.0 66.0 14400±15%



Ordering information



Mark demonstration  JQX-13F / 12VDC-  2 Z 1 G N
Type  JQX-13F
Coil power source A:  AC                 D :  DC
Coil voltage DC: 5~110VDC      AC:  6~240VAC
Contact Arrangement 2Z: Two groups Transformation       3Z: Three groups Transformation       4Z: four groups Transformation
Installs the form 1: Plug type installment    2: Print board installment    3/4/5:Flange plate installment
Contact Material G: Gold-plating                           NO: AgCdO
Light emitter diode N:   Belt light emitter diode       NO:  No Belt light emitter diode
