MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays

MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays thumbnail-1
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays thumbnail-2
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays thumbnail-3
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays thumbnail-4
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays thumbnail-5
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays photo-1

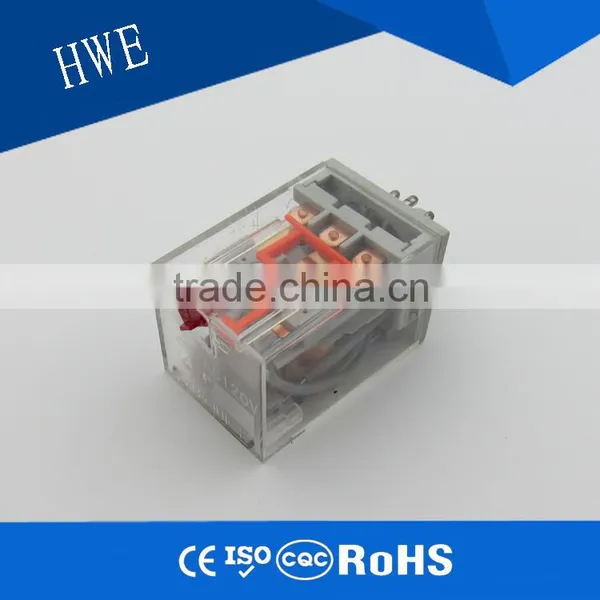

MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays photo-2
MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays photo-3

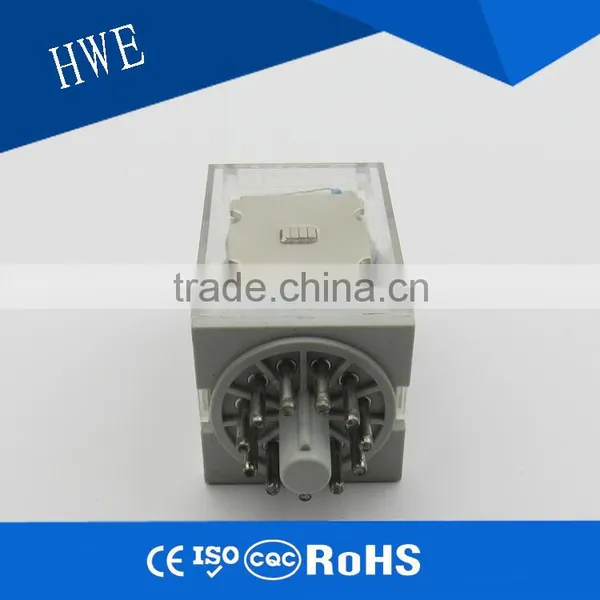

MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays photo-4

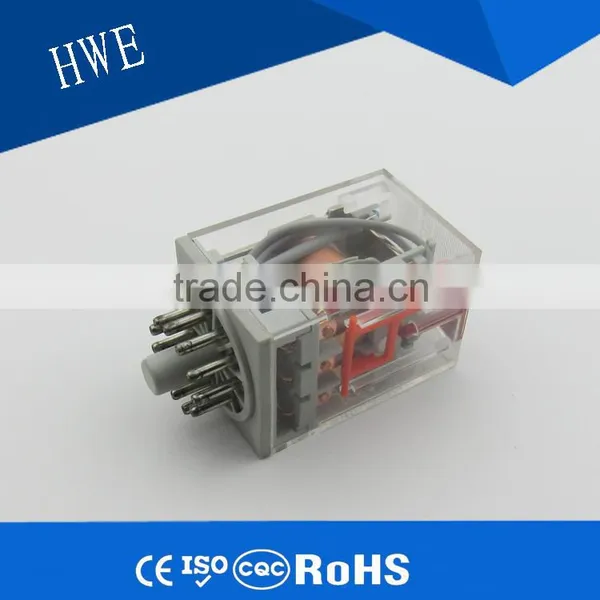

MK3-I Relay General Purpose Relay 10A 11pin Industrial Relay Power Control Relays photo-5
US$ 2.5 - 3.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
MK3-I
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number MK3-I
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Epoxy
Contact Load Low Power

MK3-I Relay General purpose relay 10A 11pin industrial relay Power control relaysMK3-I Relay General purpose relay 10A 11pin industrial relay Power control relays



Features:

10A Switching capability

 Electrical life of at least 10 Wan Times

With two,Form three groups of changeover contacts

Standard tube pins

 Use with matching socket



Contact data



  Contact Arrangement

                       3P           (3C)

  Initial Contact Resistance

        50mΩ(1A 6VDC)

  Contact Material

        Silver Alloy                 AgCdO

  Contact Rating(Res.Load)

        7A / 250VAC 30VDC

  Max.switching voltage

        250VAC  /  30VDC

  Max.switching curreng

           7A

  Max.switching power

          1750VA / 210W

  Mechanical life

          1×107 times

  Electrical life

          1×105 times



Characteristics
  Initial Insulation Resistance                  1000MΩ,      500VDC
Dielectric Strength
       Between coil and Contacts 1500VAC 1 min.
       Between open contacts 1500VAC 1 min.
       Electronic contact group 1500VAC 1 min.
    Operate time(at nomi.Volt)         25ms
    Release time(at nomi.Volt)         25ms
     Shock Resistance
      stability 100m/s2
      intensity 1000m/s2
    Vibration Resistance         1mm 10~55Hz
    Humidity         98% RH% +40%
   Temperature           -55℃~+70℃
  Termination          Plug type leading-out terminal
    Unit weigth           37g
     Construction          Dust cover





MK3-I Relay General purpose relay 10A 11pin industrial relay Power control relays
