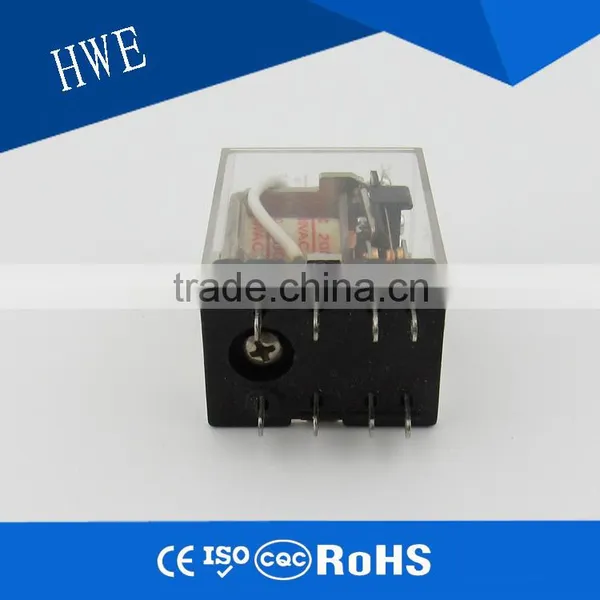

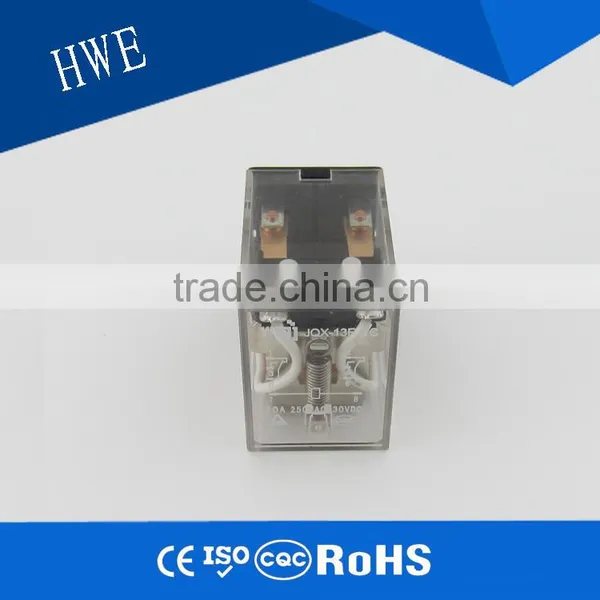

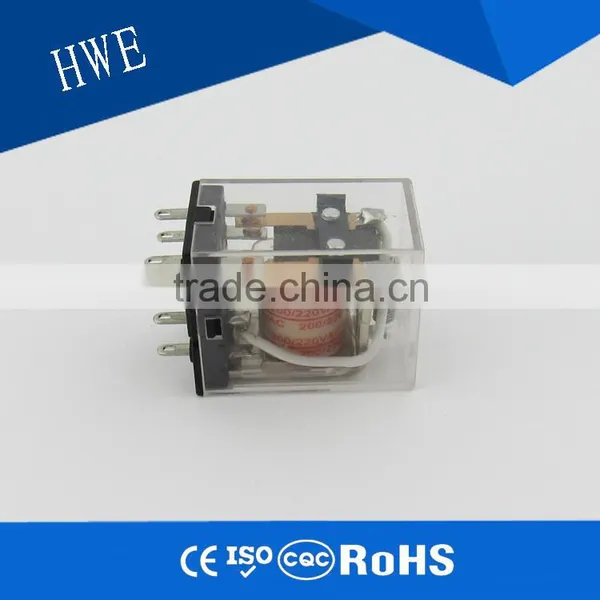

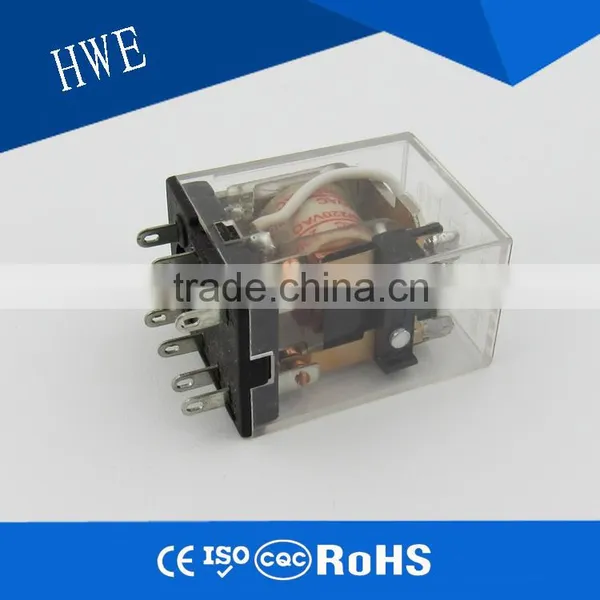

MY2 24VDC RELAY HH52P 8PINS PCB

MY2 24VDC RELAY HH52P 8PINS PCB thumbnail-1
MY2 24VDC RELAY HH52P 8PINS PCB thumbnail-2
MY2 24VDC RELAY HH52P 8PINS PCB thumbnail-3
MY2 24VDC RELAY HH52P 8PINS PCB thumbnail-4
MY2 24VDC RELAY HH52P 8PINS PCB thumbnail-5
MY2 24VDC RELAY HH52P 8PINS PCB photo-1
MY2 24VDC RELAY HH52P 8PINS PCB photo-2
MY2 24VDC RELAY HH52P 8PINS PCB photo-3
MY2 24VDC RELAY HH52P 8PINS PCB photo-4
MY2 24VDC RELAY HH52P 8PINS PCB photo-5
US$ 0.8 - 1.5 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
MY2
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number MY2
Theory Electromagnetic Relay
Usage PCB
Size Miniature
Protect Feature Epoxy
Contact Load Low Power

MY2 24VDC RELAY HH52P 8PINS PCB.

MY2 24VDC RELAY HH52P 8PINS PCB



Features:
using abroad ,standard all ready .

7A current Switching capability

 various terminals available .
various socket available ,various dress up wise ,and Dust cover of limpidity ..

 Au-gild contact available
 exterior size: 27.5*21*3



Contact data



  Contact Arrangement       2Z       (2c)                             3z    4z
  Initial Contact Resistance       50mΩ(1A 6VDC)
  Contact Material       Silver Alloy                 AgCdO
  Contact Rating(Res.Load)        5A / 250VAC  30VDC
  Max.switching voltage        250VAC  /  30VDC
  Max.switching curreng           7A
  Max.switching power          210W 1750VA
  Mechanical life         1×107 times
  Electrical life         1×105 times



Characteristics
Initial Insulation Resistance                  1000MΩ,    500VDC
Dielectric Strength
       Between coil and Contacts 1500VAC 1 min.
       Between open contacts 1000VAC 1 min.
       Electronic contact group 1500VAC 1 min.
    Operate time(at nomi.Volt)     25ms
    Release time(at nomi.Volt)     25ms
     Shock Resistance
      stability 100m/s2
      intensity 1000m/s2
    Vibration Resistance         1mm 10~55Hz
    Humidity         98% RH%  +40%
   Temperature           -55℃~+70℃
  Termination         PCB  And Plug type leading-out terminal
    Unit weigth           37g
     Construction          Dust cover
Coil data



Coil power         DC  :0.9W                AC:   1.2VA



Coil Specification table
Nominal Voltage VDC Action voltageVDC Drop-out Voltage VDC Coil Resistance Ω
5 4.0 0.50 27.5±10%
6 4.8 0.60 40±10%
12 9.6 1.20 160±10%
24 19.2 2.40 650±15%
48 38.4 4.80 2600±15%
110 88.0 11.0 11000±15%

Nominal Voltage VAC Action voltageVAC Drop-out Voltage VAC Coil Resistance Ω
6 4.80 1.80 11.5±10%
12 9.60 3.60 46±10%
24 19.2 7.20 184±10%
48 38.4 14.4 735±15%
120 96.0 36.0 4550±15%
220/240 176.0 66.0 14400±15%
Ordering information



Mark demonstration HH52P(JZX-18F) / 12VDC-  2 Z 1G N
Type HH52P
Coil power source A: AC                 NO :DC  (D)
Coil voltage DC:5~110VDC      AC:6~240VDC
Contact Arrangement 2Z: Two groups Transformation       3Z: Three groups Transformation       4Z: four groups Transformation
Installs the form 1:Plug type installment    2: Print board installment    3/4/5:Flange plate installment
Contact Material G: Gold-plating                  NO:AgCe
Light emitter diode N: Belt light emitter diode           NO: No Belt light emitter diode
