Polyurethane Insulation Modular Cold Room With Standard Size

Polyurethane Insulation Modular Cold Room With Standard Size thumbnail-1
Polyurethane Insulation Modular Cold Room With Standard Size photo-1
US$ 27 - 39 MOQ: 2 Square Meters
Key Specifications
Get Latest Price
Condition:
New
Temperature:
Cold room 0degree C/ freezer room -18degree C
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan City Dachang Refrigeration Electrical & Mechanical Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Temperature Cold room 0degree C/ freezer room -18degree C
Place of Origin Guangdong, China
Brand Name Dachang
Model Number DCWR-43&DCWF-43
Voltage 220V/380V
Power(W) 8kw
Dimension(L*W*H) 4732*4732*2300mm
Weight Above 1000kg
Certification ISO9001:2008
Warranty 1 year, 1 year
After-sales Service Provided Overseas third-party support available

Cold room


Product Description

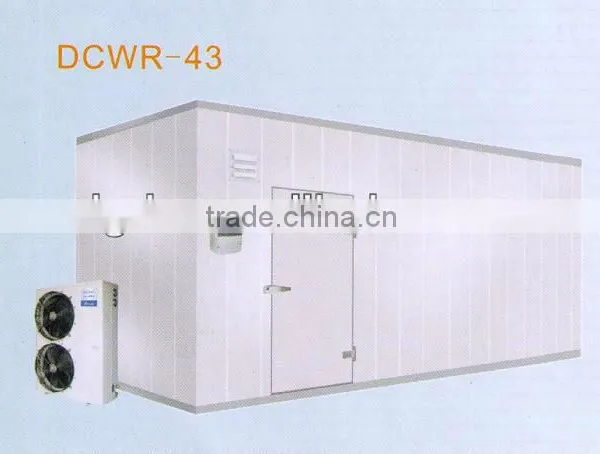

 Related standard cold room models: DCWR-43 and DCWF-43

Chiller: 0degree C, short term storage of vegetable, fruit, diary product, fresh food etc.

Freezer: -18degree C, storage of meat, fish, chickene etc.



Specification of cold room

Model DCWF-43 DCWR-43
strorage volume 43m3 43 m3
Exterior dimension(W*L*H) 4732*4732*2300mm 4732*4732*2300mm
Interior dimension(W*L*H) 4532*4532*2100mm 4532*4532*2100mm
Door convex door convex door
Refrigeration/Power DC-80FLG/7500W DC-40FHG/3800W
Cooler /Power DD60/1100W DL30/270W
Refrigeration unit /weight 940*340*1240mm/110kg 920*320*850mm/53kg
Cooler /weight 1330*605*630mm/65kg 1580*425*465mm/49kg
Copper pipe and preservation 10m 10m
Power at client's request at client's request
Storage temperature -18 degree C 0 degree C
Refrigerant R404a R404a
Fitting pressure relief vent&light pressure relief vent&light

  Polyurethane insulation modular cold room with standard size



Feature of standard cold room

1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.

2)convex door,heavy duty.It can be changed to hinge door base on customer's requirement.

3)Copeland brand compressor,durable to use,with good refrigeration.

4)Necessary parts are included.

5)Environmentally friendly refrigerant R404a

  Polyurethane insulation modular cold room with standard size



Customized  cold room acceptable !

Normal cooling & freezing storage and Quick freezing tunnel available!

Dimension

Length (m) *Width (m)*Height (m)

Panel

polyurethane insulation panel,43kg/m3, fire resistance

Foaming material

BASF

Panel thickness

50mm,75mm,100mm,150mm,200mm

Steel cover

stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell

Panel connection

cam lock type, use hexagonal key to assemble and disassemble

Type of door

hinge door, convex door, sliding door

Temp.of room

-30~+20degree C, optional

Purpose of cold room

fruit,vegetable,flower etc  / frozen food, fish,meat ,chicken etc.

Refrigeration unit

Copeland / Bitzer / Sanyo etc

Refrigeration type

air cooled / water cooled

Fittings

all necessary fittings are included, optional

Place to assemble

indoor/out door(concrete construction building/steel construction building)

Voltage

220V/50HZ, 220V/60HZ, 380V/50HZ optional

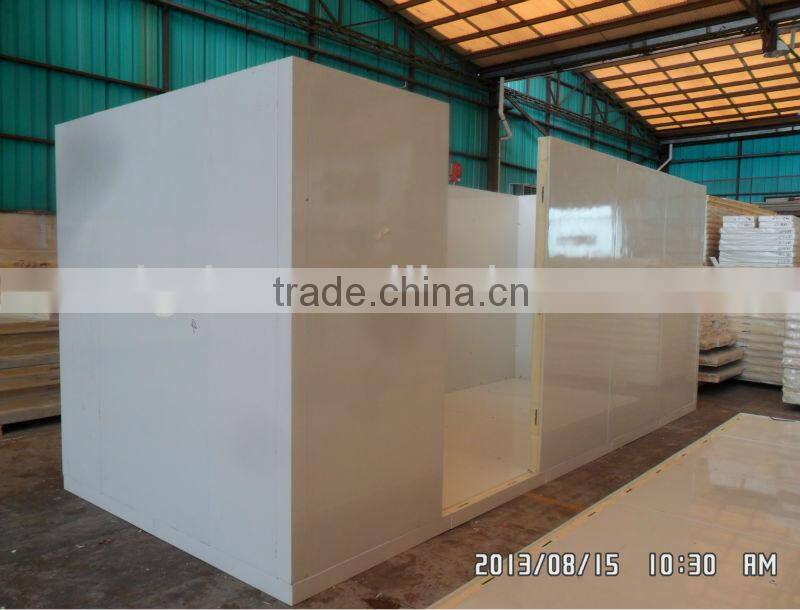

Modular polyurethane cold room : polyurethane panels are with interring cam lock, use hexagonal key to assemble base on the drawing



*Polyurethane sandwich cold room panels  cam lock system

Polyurethane insulation modular cold room with standard size

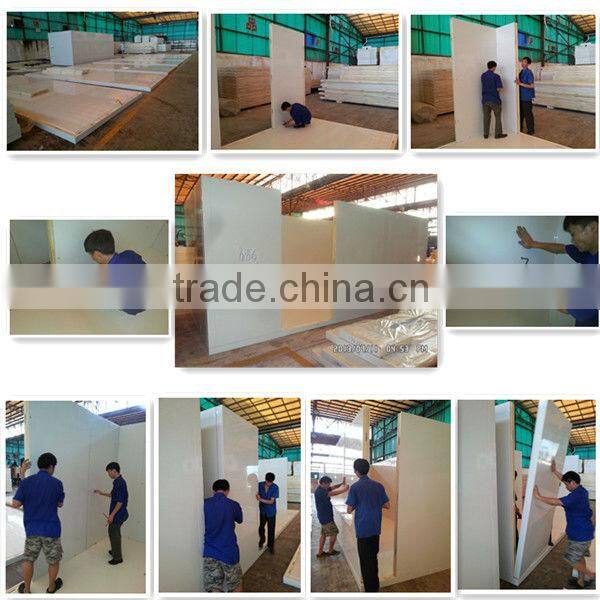

*Assembling cold rooms in the factoryPolyurethane insulation modular cold room with standard size

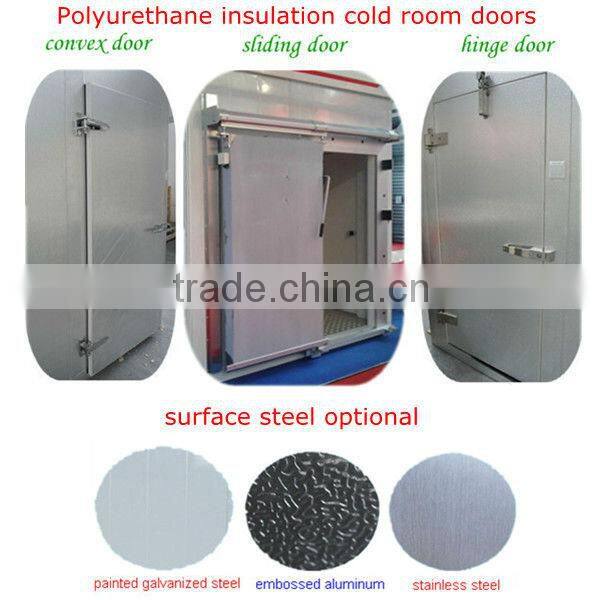

Polyurethane insulation cold room door: hinge door, convex door, sliding door  optional



1. the hinged cold room door has frame electrical heater to prevent frozen stuck



2. the polyurethane insulation door has internal safety knob for emergency opening.

Polyurethane insulation modular cold room with standard size

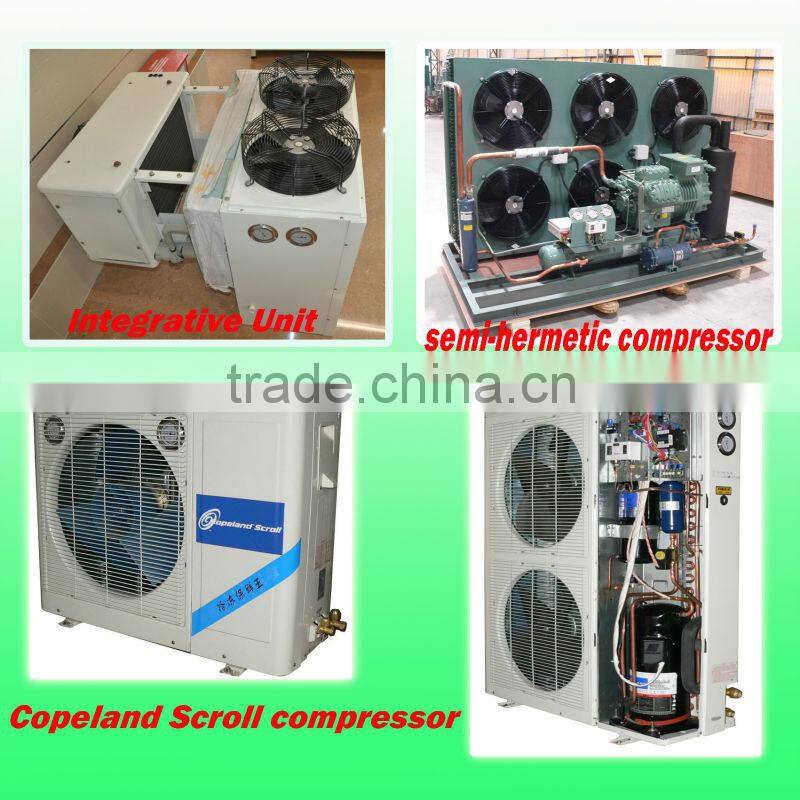

Condensing unit for walk in cold rooms, we can design to decide how many and how big the unit is.



     --outside unit: usually we choose Bitzer or Copeland  or Danfoss Compressor



     --hermetic/ semi-hermetic/ monoblock



    --air cooled



    --refrigerant R404a

  Polyurethane insulation modular cold room with standard size

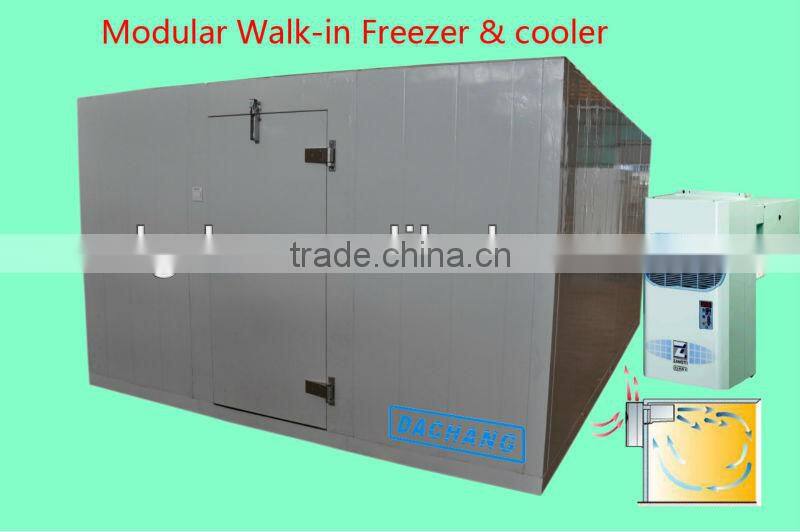

Cold room with monoblock compressor unit--Zanotti unitblock

Polyurethane insulation modular cold room with standard size



Packing and loading of the cold storage room.Cold storage room is diassemble for shipping,components are with different packing!

Polyurethane insulation modular cold room with standard size







DACHANG company provide the pefect solutions to the modular cold storage for 20years !

Polyurethane insulation modular cold room with standard size



DACHANG company attend the related exhibitions every year.



Polyurethane insulation modular cold room with standard size
