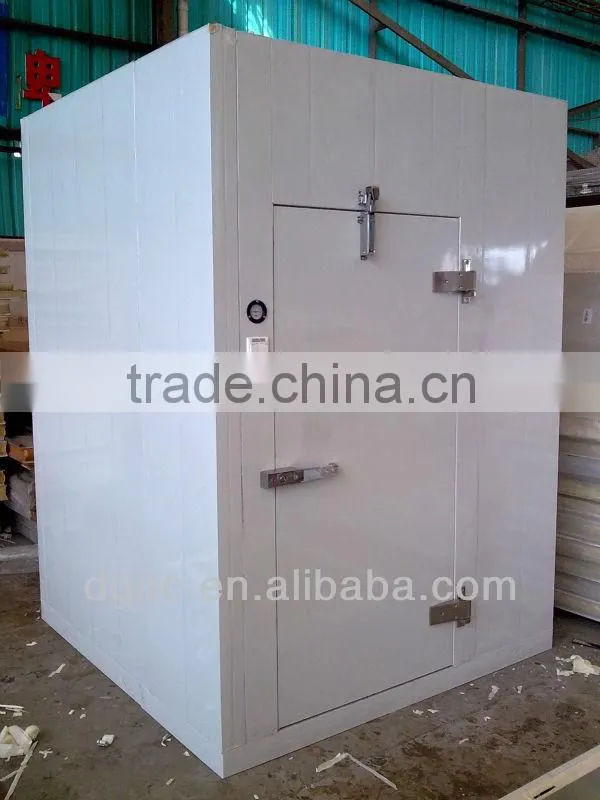

Convex door standard cold storage
MODEL |
EXTERIOR DIMENSION (W*L*H) |
INTERIOR DIMENSION (W*L*H) |
TEMPERATURE |
POWER |
REMARK |
DCWF-26 |
2366*5915*2300 |
2166*5715*2100 |
≥-20 |
380V/50HZ 3P |
DC-50FLG/DD30 |
DCWR-26 |
2366*5915*2300 |
2166*5715*2100 |
≥-5 |
380V/50HZ 3P |
DC-30FHG/DL25 |
Feature
1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)white color painted galvanized steel finish
3)convex door,heavy duty.It can be changed to hinge door(automatic closing) base on customer's requirement.
4)Copeland brand compressor,durable to use,with good refrigeration.
5)Necessary parts are included.
6)Environmentally friendly refrigerant R404a

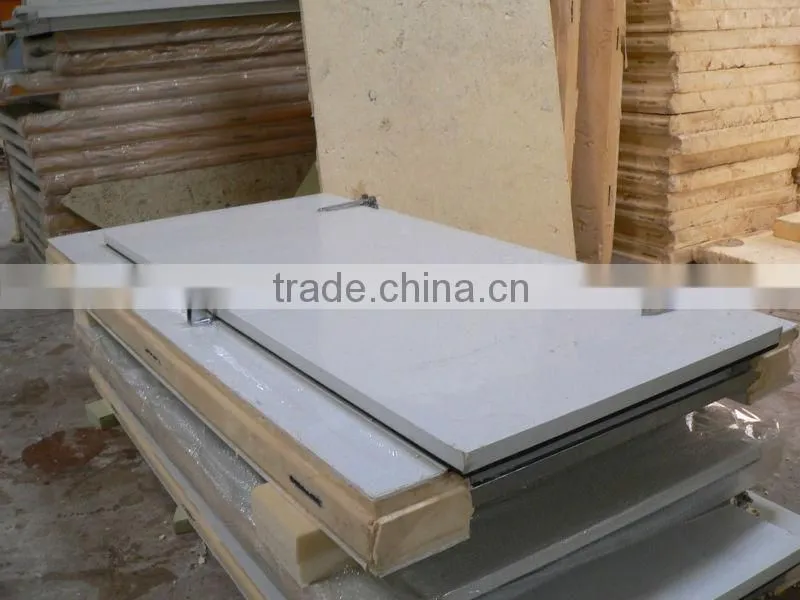

Convex door standard cold storage panel
Panel has gasket, to keep two panels tightly, cold air will not leak outside easily,
enable the cold room has better insulation effect.

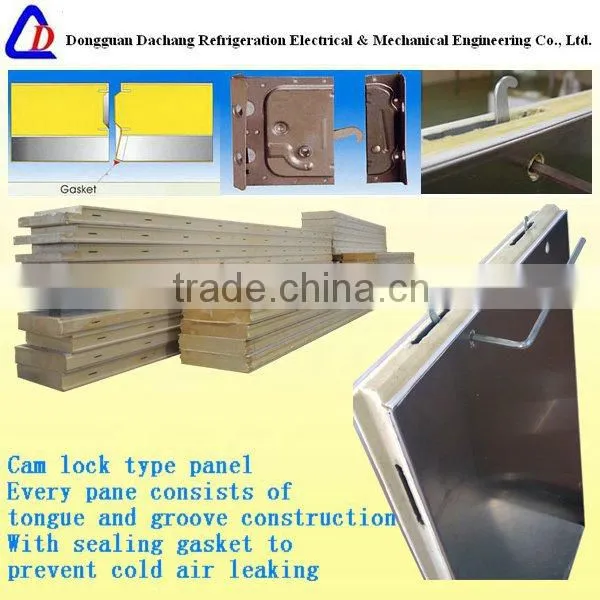

Cam lock type panel
Cam lock will be pre-burried in the panel, use hexagonal key to lock it.

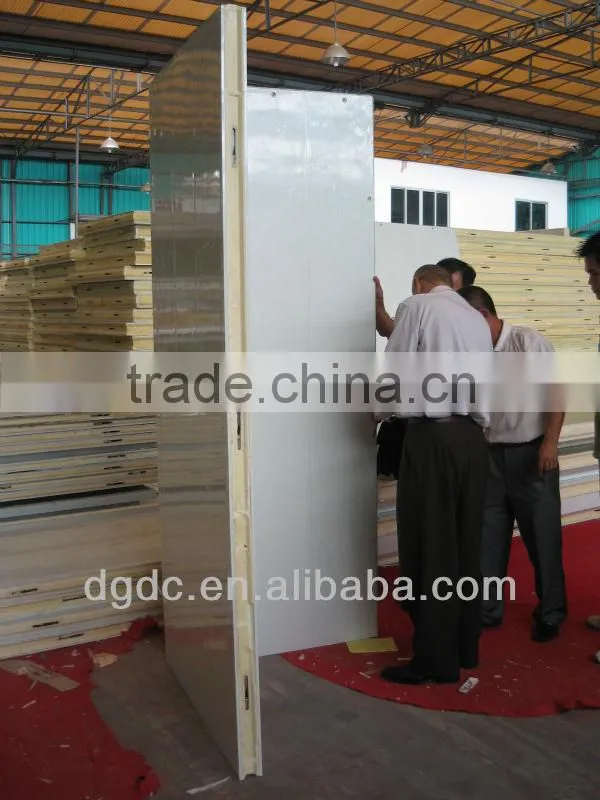

Convex door
Painted galvanized steel polyurethane insulation convex door
Company Introduction
Our company was found on 1992. Our company has introduced and implemented ISO9001:2008 international quality management system to produce polyurethane insulation panels and provide refrigeration supporting facilities. It was award the national forced CCC cognizance certification. It is honor to receive the national environmental protection bureau Montreal multilateral fund projects. We are the outstanding company in China industry!
Convex door standard cold storage loading
