Modular standard cold room made of PU panel
modular standard cold room is a new product with various standard dimension sizes. The storage capacity of it
may be specified or selected according to customer's requirements. The storage temperature of the modular standard cold room is displayed and controlled by digital thermostat for precise control temperature and
temperature adjustment to achieve the utmost energy efficiency and perfect storage of food.
modular standard cold room feature:
1.Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2.White color painted galvanized steel finish
3.Convex door,heavy duty, with safety knob inside for opening inside.It can be changed to hinge door base on customer's requirement.
4.Copeland brand compressor,durable to use,with good refrigeration.
5.Necessary parts are included.
6.Environmentally friendly refrigerant R404
modular standard cold room specification:

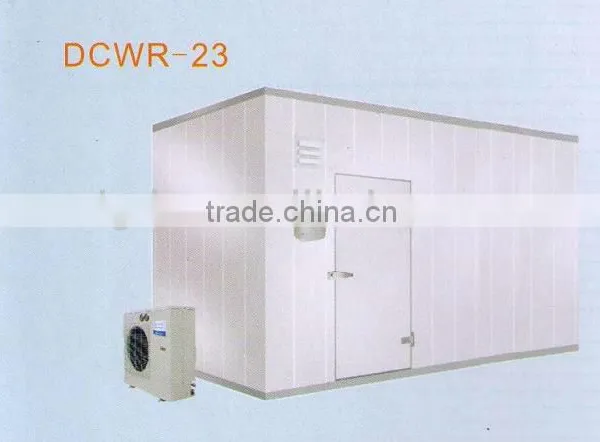

| Model | DCWF-23 | DCWR-23 | DCWF-26 | DCWR-26 | DCWF-30 | DCWR-30 |
| strorage volume | 23 m3 | 23 m3 | 26 m3 | 26 m3 | 30 m3 | 30 m3 |
|
Exterior dimension (W*L*H) |
3549*3549*2300 mm |
3549*3549*2300 mm |
2366*5915*2300 mm |
2366*5915*2300 mm |
3549*4732*2300 mm |
3549*4732*2300 mm |
|
Interior dimension (W*L*H) |
3349*3349*2100 mm |
3349*3349*2100 mm |
2166*5715*2100 mm |
2166*5715*2100 mm |
3349*4532*2100 mm |
3349*4532*2100 mm |
| Door | convex door | convex door | convex door | convex door | convex door | convex door |
|
Refrige ration /Power |
DC-30FLG /2650W |
DC-20FHG /1900W |
DC-50FLG /4850W |
DC-30FHG /2650W |
DC-50FLG /4850W |
DC-30FHG /2650W |
| Cooler /Power | DD22/270W | DL15/180W | DD30/500W | DL25/270W | DD30/500W | DL25/270W |
|
Refriger ation unit /weight |
920*320*850 mm /53kg |
840*310*700 mm /50kg |
940*340*1240 mm /110kg |
920*320*850 mm /53kg |
940*340*1240 mm /110kg |
920*320*850 mm /53kg |
| Cooler /weight |
1580*425*465 mm /45kg |
1130*425*465 mm /30kg |
1330*605*630 mm /65kg |
1580*425*465 mm /49kg |
1330*605*630 mm /65kg |
1580*425*465 mm /49kg |
|
Copper pipe and preserva tion |
5m | 5m | 5m | 5m | 5m | 5m |
| Power | at client's request | at client's request | at client's request | at client's request | at client's request | at client's request |
|
Storage tempera ture |
-18 degree | -5 degree | -18 degree | -5 degree | -18 degree | -5 degree |
|
Refrige rant |
R404a | R404a | R404a | R404a | R404a | R404a |
| Fitting | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light |
modular standard cold room introduction:
1. modular standard cold room panel
1)Panel test specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2) modular standard cold room Panel advantages:
1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3 which
enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety
problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.
2. modular standard cold room door
1)Door specification
| No | Door type | Door size | Door heater voltage |
| 1 | Hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | Convex door | 832mm W*1860mm H | 24V / 36V |
| 3 | Sliding door | 832mm W*1860mm H | 24V / 36V |
2)Door pictures

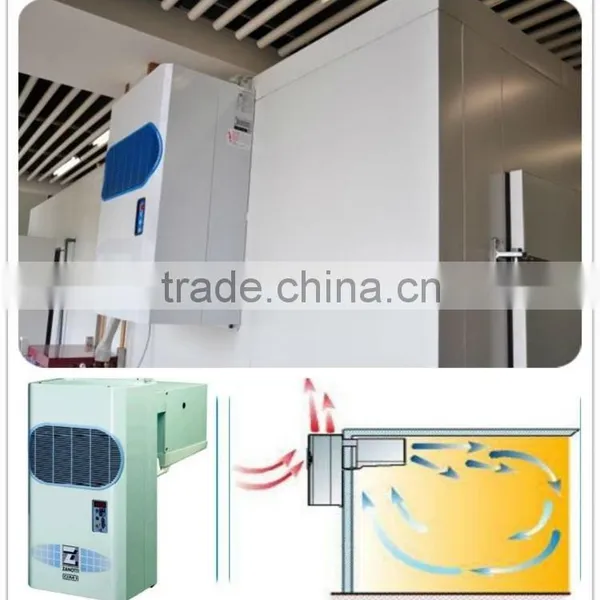

3. modular standard cold room refrigeration unit
4. modular standard cold room Package
5. modular standard cold room production procedure

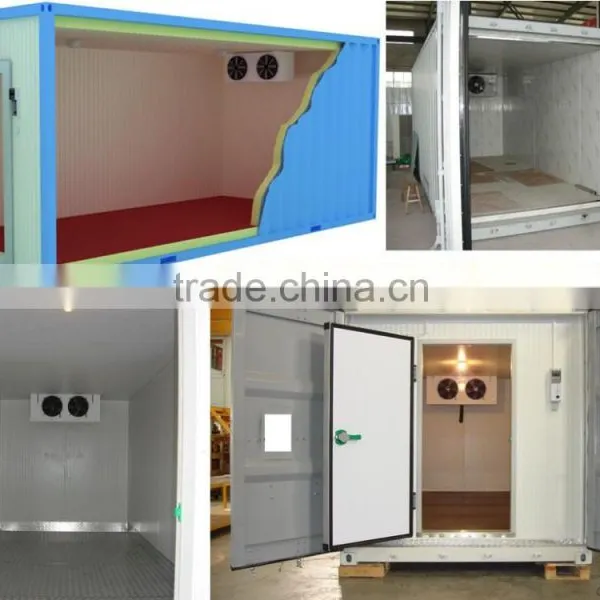

Cold room project:
Cold room exhibition:
modular standard cold room certificate:
modular standard cold room Factory picture:
