Walk in cooler (DCWF-23)
| DCWF-23 | 3549*3549*2300 | 3349*3349*2100 | ≥-20 | 380V/50HZ 3P | DC-30FLG/DD22 |

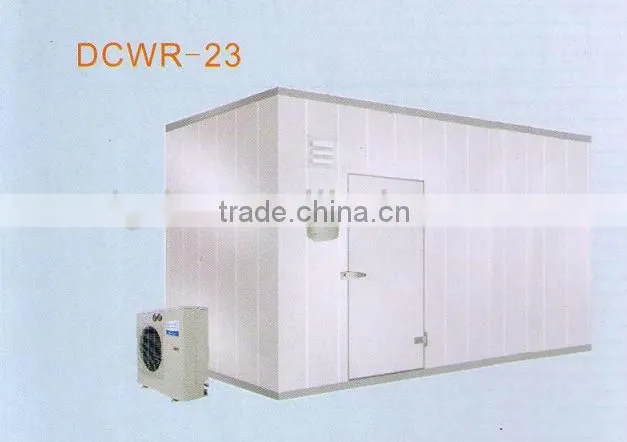

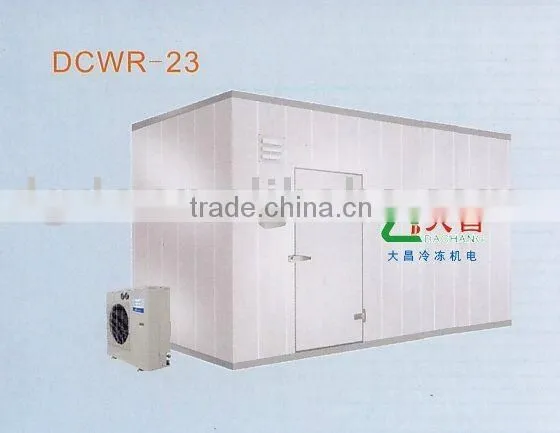

| DCWR-23 | 3549*3549*2300 | 3349*3349*2100 | ≥-5 | 380V/50HZ 3P | DC-20FHG/DL15 |
Our company produced intergration system which is using the famous advanced brand compressor,and the crucial components also purchased abroad.The value of function is much more higher,mainly in:
1,All set and progress are finished in the factory.Improve the production effiiency,meanwhile,reduce the production cost.
2,Standard production improves the quality,and reduces the cost of maintainess for the agents.
3,Intergration cold storage is installed fastly and easily,save time and cost for the customers.
4,All part of the intergration walk in cooler machine used famous brand compressor and components.Substantially increase the function of the cold storage uce the expense of the power.
5,Independent research and development of micro-chip intergrated managerment system,intelligentize management,save cost easily.
6,Hot air defrost,it is more efficiency and fast than the traditional ones,and also save the enegy.
7,Insist on using the standard polyurethane walk in cooler panel.Therefor,inproved the quality of the warm capability.

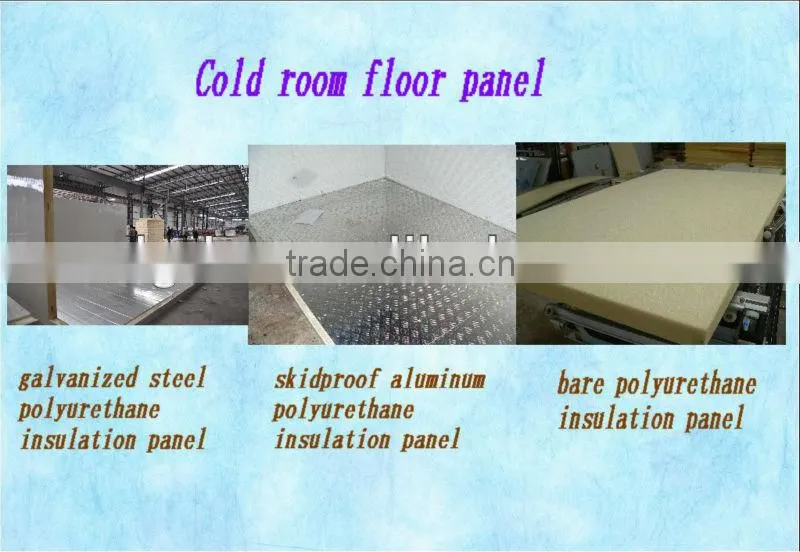

(1) Walk in cooler panels Dimension
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted Polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 1183mm. The maximum lengths of panels are 13.5M. Non-standard sizes are also available upon request with price varying.
(2)The foaming material we choose is imported BASF (US brand) foaming material, green to the environment.
The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15 years.
(3) The walk in cooler panels male and female, cam lock type, use hexagonal key to assemble
(4) Walk in cooler panel thickness. Different thickness panel is used in different temperature walk in cooler.
| Panel thick | Operating temperature |
| 50mm | 5degree C or above |
| 75mm | -5degree C or above |
| 100mm | -25degree C or above |
| 150mm | -45degree C or above |
| 200mm | -55degree C or above |
(5) Our walk in cooler panels meets JB/6527-2006<modular cold room insulation sandwiched panel’s technology conditions> standard request.
| No. | Inspection item | Unit | Technology inspection | Inspection result |
| 1 | density | kg/m3 | 32~50 | 43 |
| 2 | compressing strength (10% deformation) | Kpa | ≥160 | 200 |
| 3 | Bending strength | Kpa | ≥245 | 331 |
| 4 | Absorbing rate | % | ≤4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.024 |
| 6 | Average burning time | S | ≤30 | 3 |
| 7 | Average burning height (vertical) | S | ≤250 | 250 |
