Walk in freezer chiller room with temperature -18degree C
Related walk in cold storage models: DCWR-54 and DCWF-54,room size 4732mmW*5915mmL*2300mmH
Walk In Chiller: -5 degree C or above, adjustable, short term storage of vegetable, fruit, diary product, fresh food etc.
Walk In Freezer: -18 degree C or above, adjustable, storage of meat, fish, chickene etc.

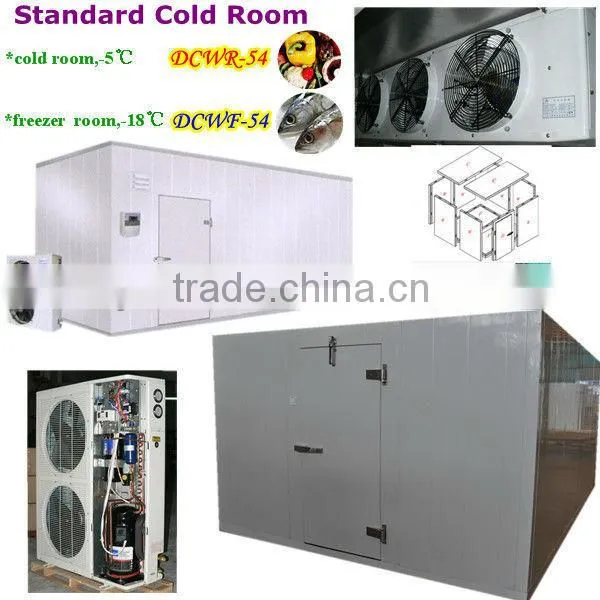

Specification of polyurethane insulated cold room with standard size
| Model | DCWF-54 | DCWR-54 |
| strorage volume | 54m3 | 54m3 |
| Exterior dimension(W*L*H) | 4732*5915*2300mm | 4732*5915*2300mm |
| Interior dimension(W*L*H) | 4532*5715*2100mm | 4532*5715*2100mm |
| Door | convex door | convex door |
| Refrigeration/Power | DC-80FLG/7500W | DC-50FHG/4850W |
| Cooler /Power | DD60/1100W | DL40/500W |
| Refrigeration unit /weight | 940*340*1240mm/110kg | 920*340*1240mm/110kg |
| Cooler /weight | 1330*605*630mm/65kg | 1330*605*630mm/68kg |
| Copper pipe and preservation | 10m | 10m |
| Power | at client's request | at client's request |
| Storage temperature | -18 degree | 0 degree |
| Refrigerant | R404a | R404a |
| Fitting | pressure relief vent&light | pressure relief vent&light |
Feature of standard cold storage
1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)convex door,heavy duty.It can be changed to hinge door base on customer's requirement.
3)Copeland brand compressor,durable to use,with good refrigeration.
4)Necessary parts are included.
5)Environmentally friendly refrigerant R404a
Customized walk in cold room acceptable !
Normal cooling & freezing storage and Quick freezing tunnel available!
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+20degree C, optional |
Purpose of cold room |
fruit,vegetable,flower etc / frozen food, fish,meat ,chicken etc. |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |

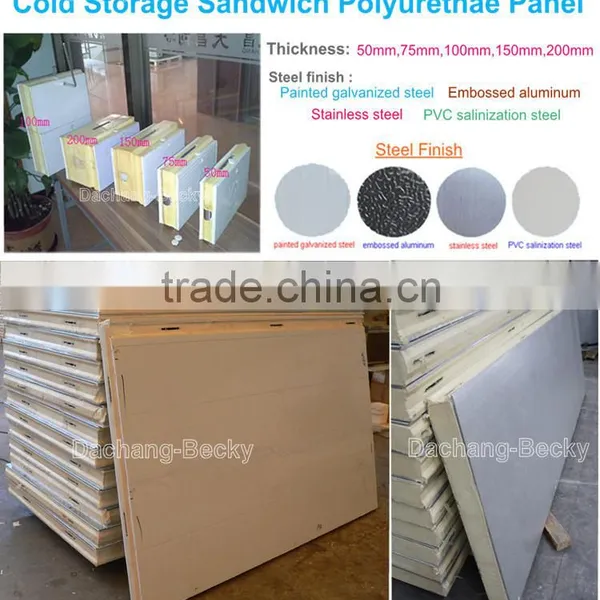

Polyurethane modular cold room : polyurethane panels are with interring cam lock, use hexagonal key to assemble base on the drawing

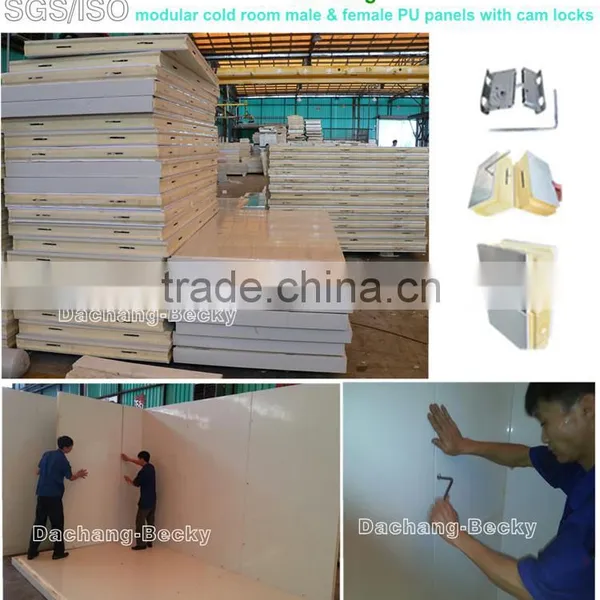

*Polyurethane sandwich cold room panels cam lock system
*Assembling cold rooms in the factory

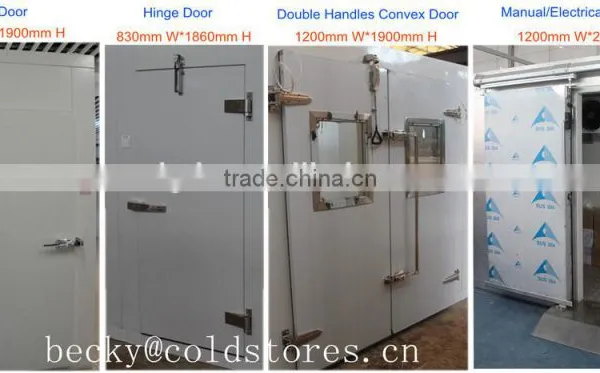

Polyurethane insulation cold room door: hinge door, convex door, sliding door optional
1. the hinged cold room door has frame electrical heater to prevent frozen stuck
2. the polyurethane insulation door has internal safety knob for emergency opening.

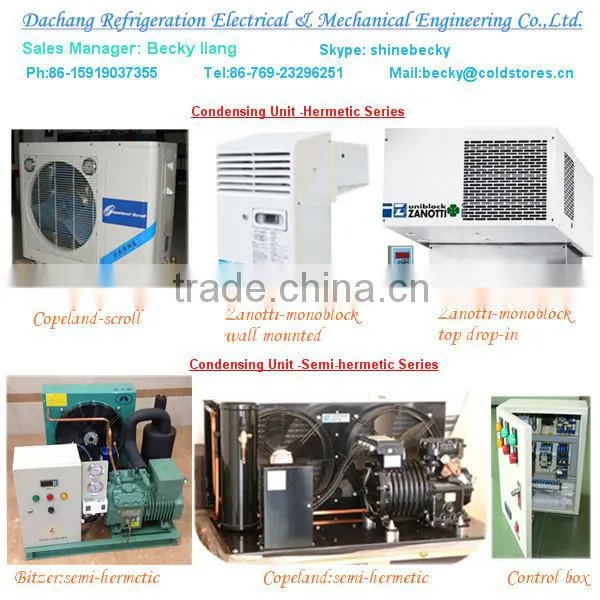

Condensing unit for walk in cold rooms, we can design to desice how many and how big the unit is.
--outside unit: usually we choose Bitzer or Copeland or Danfoss Compressor
--hermetic/ semi-hermetic/ monoblock
--air cooled
--refrigerant R404a
Cold storage with monoblock compressor unit--Zanotti unitblock

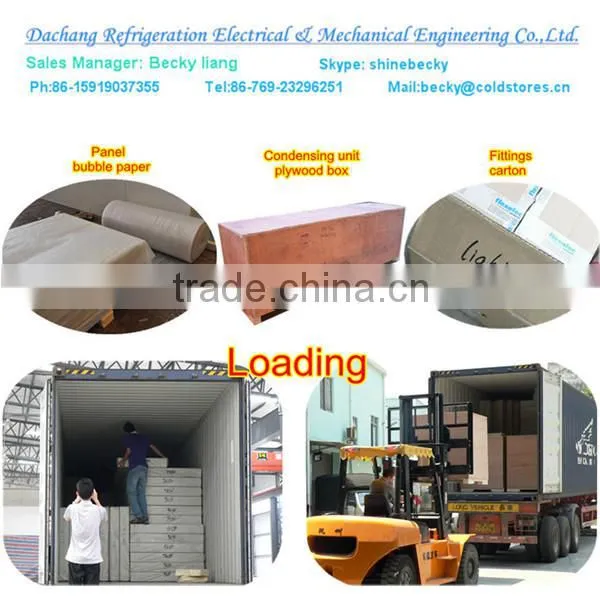

Packing and loading of the cold storage room.Cold storage room is diassemble for shipping,components are with different packing!
DACHANG company provide the pefect solutions to the modular cold storage for 20years !
DACHANG company attend the related exhibitions every year.
