Freezer Room With Standard Size

Freezer Room With Standard Size thumbnail-1
Freezer Room With Standard Size photo-1
US$ 27 - 35 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Type:
Other, Freezer
Place of Origin:
Guangdong, China
Brand Name:
Dachang
Contact Supplier Request Quote Chat Now
Dongguan City Dachang Refrigeration Electrical & Mechanical Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Sanshan China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Freezer
Place of Origin Guangdong, China
Brand Name Dachang
Model Number DCWF-26
Certification CE
After-sales Service Provided Overseas third-party support available

Freezer room



Specification

MODEL EXTERIOR DIMENSION              (W*L*H) INTERIOR DIMENSION         (W*L*H) TEMPERATURE POWER REMARK
DCWF-10 2366*2366*2300 2166*2166*2100 ≥-20 220V/50HZ DC-20FLG/DD15
DCWR-10 2366*2366*2300 2166*2166*2100 ≥-5 220V/50HZ DC-20FHG/DL15
DCWF-15 2366*3549*2300 2166*3349*2100 ≥-20 380V/50HZ 3P DC-20FLG/DD15
DCWR-15 2366*3549*2300 2166*3349*2100 ≥-5 220V/50HZ DC-20FHG/DL15
DCWF-20 2366*4732*2300 2166*4532*2100 ≥-20 380V/50HZ 3P DC-30FLG/DD22
DCWR-20 2366*4732*2300 2166*4532*2100 ≥-5 380V/50HZ 3P DC-20FHG/DL15
DCWF-23 3549*3549*2300 3349*3349*2100 ≥-20 380V/50HZ 3P DC-30FLG/DD22
DCWR-23 3549*3549*2300 3349*3349*2100 ≥-5 380V/50HZ 3P DC-20FHG/DL15
DCWF-26 2366*5915*2300 2166*5715*2100 ≥-20 380V/50HZ 3P DC-50FLG/DD30
DCWR-26 2366*5915*2300 2166*5715*2100 ≥-5 380V/50HZ 3P DC-30FHG/DL25
DCWF-30 3549*4732*2300 3349*4532*2100 ≥-20 380V/50HZ 3P DC-50FLG/DD30
DCWR-30 3549*4732*2300 3349*4532*2100 ≥-5 380V/50HZ 3P DC-30FHG/DL25
DCWF-40 3549*5919*2300 3349*5715*2100 ≥-20 380V/50HZ 3P DC-50FLG/DD30
DCWR-40 3549*5919*2300 3349*5715*2100 ≥-5 380V/50HZ 3P DC-30FHG/DL25
DCWF-43 4732*4732*2300 4532*4532*2100 ≥-20 380V/50HZ 3P DC-50FLG/DD30
DCWR-43 4732*4732*2300 4532*4532*2100 ≥-5 380V/50HZ 3P DC-30FHG/DL25
DCWF-54 4732*5915*2300 4532*5715*2100 ≥-20 380V/50HZ 3P DC-80FLG/DD60
DCWR-54 4732*5915*2300 4532*5715*2100 ≥-5 380V/50HZ 3P DC-50FHG/DL40
DCWF-68 5915*5915*2300 5715*5715*2100 ≥-20 380V/50HZ 3P DC-100FLG/DD80
DCWR-68 5915*5915*2300 5715*5715*2100 ≥-5 380V/50HZ 3P DC-80FHG/DL80





Freezer room with standard size



1.Freezer room panel type

Wall, ceiling and floor panels, 100% foam material.

Freezer room with standard size

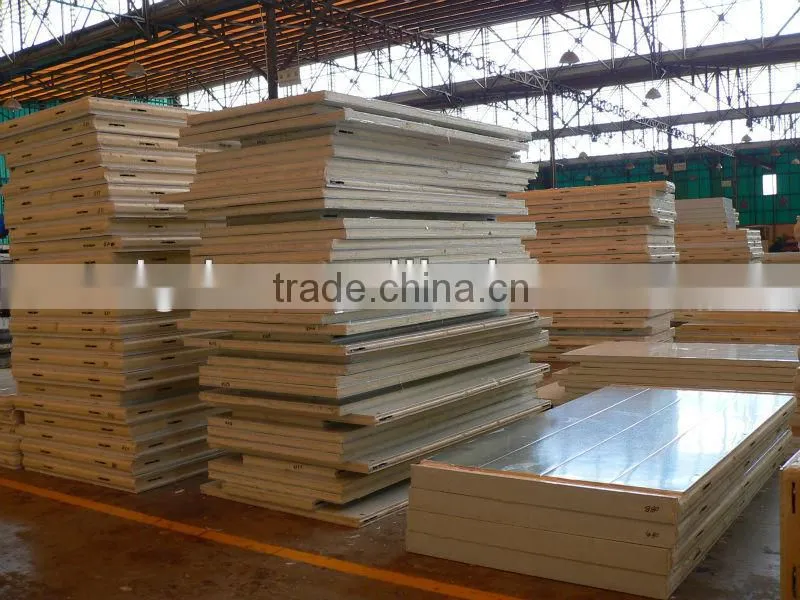

(1) Freezer room panels Dimension

Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted Polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 1183mm. The maximum lengths of panels are 13.5M. Non-standard sizes are also available upon request with price varying.

Freezer room with standard size





(2)The foaming material we choose is imported BASF (US brand) foaming material, green to the environment.

Freezer room with standard size

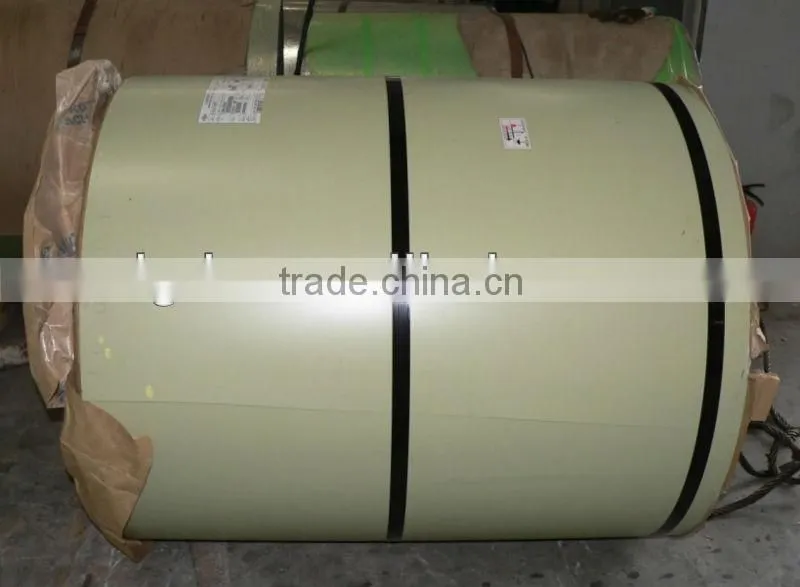

The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15 years.

Freezer room with standard size

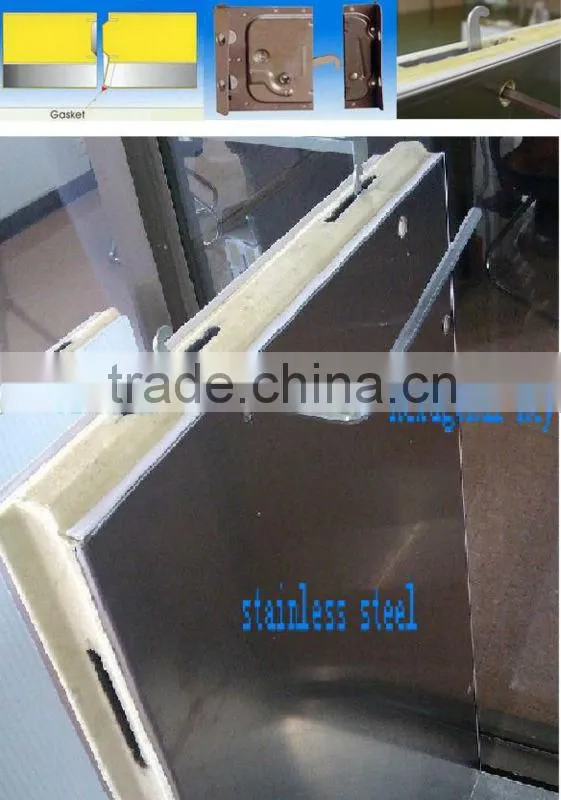

(3) The freezer room panels male and female, cam lock type, use hexagonal key to assemble

Freezer room with standard size

 Accept purchase walk in cooler panels only!



(4) Freezer room panel thickness. Different thickness panel is used in different temperature freezer room.

Panel thick Operating temperature
50mm 5degree C or above
75mm -5degree C or above
100mm -25degree C or above
150mm -45degree C or above
200mm -55degree C or above



(5) Our freezer room panels meets JB/6527-2006<modular cold room insulation sandwiched panel’s technology conditions> standard request.

No. Inspection item Unit Technology inspection Inspection result
1 density kg/m3 32~50 43
2 compressing strength (10% deformation) Kpa ≥160 200
3 Bending strength Kpa ≥245 331
4 Absorbing rate % ≤4 3
5 Heating coefficient W/m.k 0.024 0.024
6 Average burning time S ≤30 3
7 Average burning height (vertical) S ≤250 250





2. Workshop

There are several imported production lines produce the freezer room panel.

Freezer room with standard size





Freezer room with standard size

3.Exhibition

Dachang company will take part in different exhibitiong every year including Shanghai, Beijing,German etc.

Freezer room with standard size
