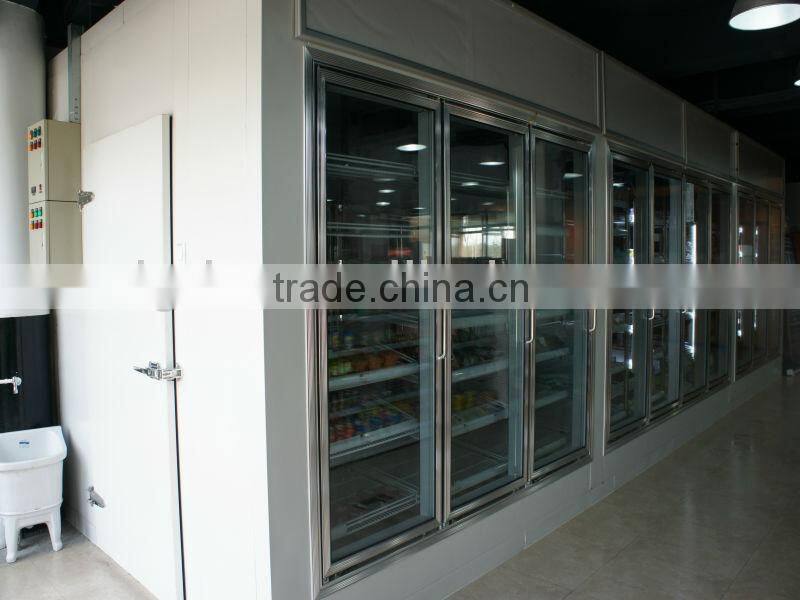

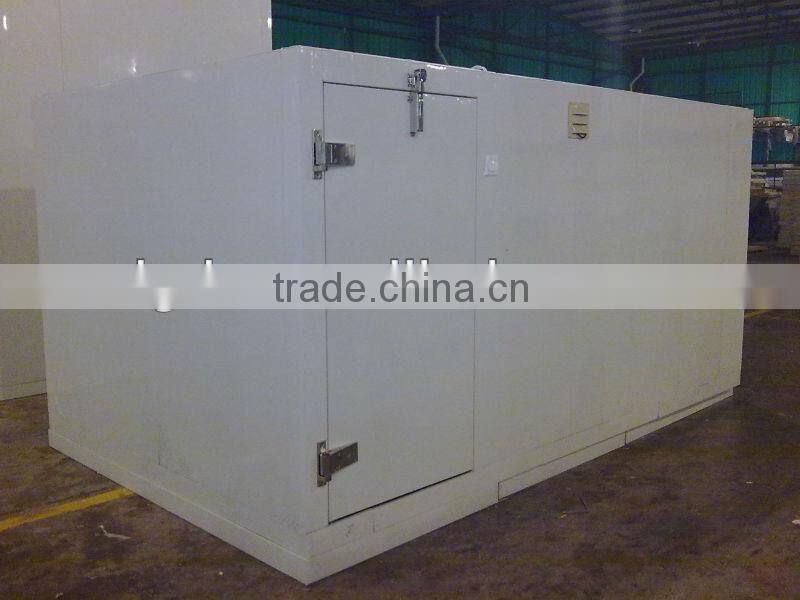

Standard Cold Room/ PU Cold Storage Room / Storage Freezer Room
US$ 28 - 38
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Type:
Other, Freezer
Place of Origin:
Guangdong, China
Brand Name:
Dachang
Payment & Shipping
Payment Methods:
Port of Shipment:
Sanshan China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Modular Standard Cold Room Model DCWF-20 Capacity 20m3NegotiableMOQ: 1 Set -
Meat Storage Cold Room (20m3 Capacity)US$ 5,000 - 6,000MOQ: 1 Set
-
Standard Walk in Chiller Room for Grape Refrigerated StorageUS$ 28 - 39MOQ: 1 Square Meter
-
Standard Cold Storage RoomUS$ 27 - 35MOQ: 1 Piece
-
Cold Room Made in Dachang FactoryUS$ 27 - 39MOQ: 2 Square Meters
Type
Other, Freezer
Place of Origin
Guangdong, China
Brand Name
Dachang
Model Number
DCWF-15
Certification
CE
After-sales Service Provided
Overseas third-party support available

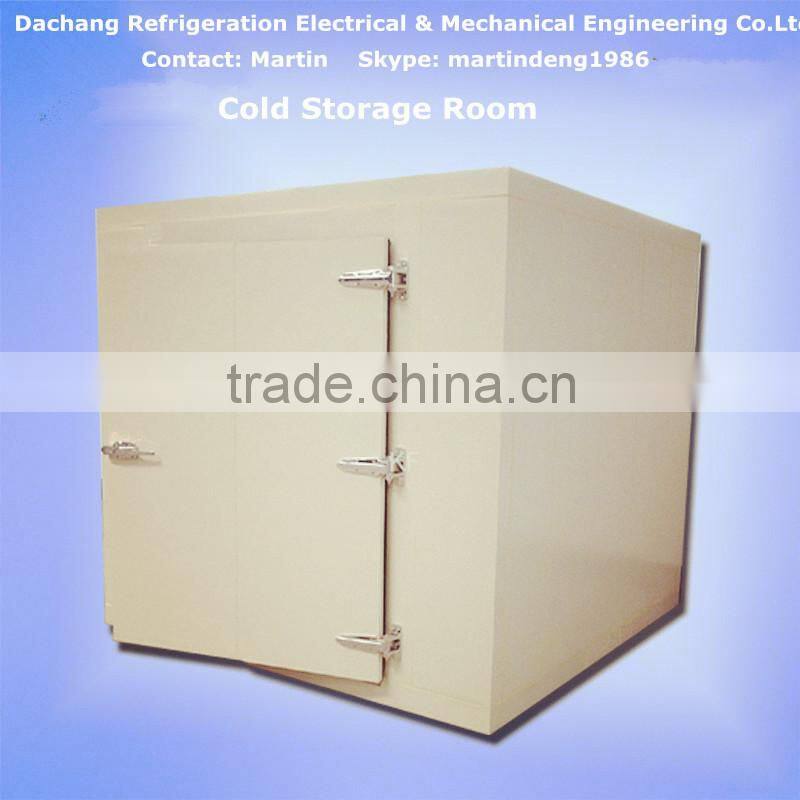

Standard Cold Room
| MODEL | EXTERIOR DIMENSION (W*L*H) | INTERIOR DIMENSION (W*L*H) | TEMPERATURE | POWER | REMARK |
| DCWF-10 | 2366*2366*2300 | 2166*2166*2100 | ≥-20 | 220V/50HZ | DC-20FLG/DD15 |
| DCWR-10 | 2366*2366*2300 | 2166*2166*2100 | ≥-5 | 220V/50HZ | DC-20FHG/DL15 |
| DCWF-15 | 2366*3549*2300 | 2166*3349*2100 | ≥-20 | 380V/50HZ 3P | DC-20FLG/DD15 |
| DCWR-15 | 2366*3549*2300 | 2166*3349*2100 | ≥-5 | 220V/50HZ | DC-20FHG/DL15 |
| DCWF-20 | 2366*4732*2300 | 2166*4532*2100 | ≥-20 | 380V/50HZ 3P | DC-30FLG/DD22 |
| DCWR-20 | 2366*4732*2300 | 2166*4532*2100 | ≥-5 | 380V/50HZ 3P | DC-20FHG/DL15 |
| DCWF-23 | 3549*3549*2300 | 3349*3349*2100 | ≥-20 | 380V/50HZ 3P | DC-30FLG/DD22 |
| DCWR-23 | 3549*3549*2300 | 3349*3349*2100 | ≥-5 | 380V/50HZ 3P | DC-20FHG/DL15 |
| DCWF-26 | 2366*5915*2300 | 2166*5715*2100 | ≥-20 | 380V/50HZ 3P | DC-50FLG/DD30 |
| DCWR-26 | 2366*5915*2300 | 2166*5715*2100 | ≥-5 | 380V/50HZ 3P | DC-30FHG/DL25 |
| DCWF-30 | 3549*4732*2300 | 3349*4532*2100 | ≥-20 | 380V/50HZ 3P | DC-50FLG/DD30 |
| DCWR-30 | 3549*4732*2300 | 3349*4532*2100 | ≥-5 | 380V/50HZ 3P | DC-30FHG/DL25 |
| DCWF-40 | 3549*5919*2300 | 3349*5715*2100 | ≥-20 | 380V/50HZ 3P | DC-50FLG/DD30 |
| DCWR-40 | 3549*5919*2300 | 3349*5715*2100 | ≥-5 | 380V/50HZ 3P | DC-30FHG/DL25 |
| DCWF-43 | 4732*4732*2300 | 4532*4532*2100 | ≥-20 | 380V/50HZ 3P | DC-50FLG/DD30 |
| DCWR-43 | 4732*4732*2300 | 4532*4532*2100 | ≥-5 | 380V/50HZ 3P | DC-30FHG/DL25 |
| DCWF-54 | 4732*5915*2300 | 4532*5715*2100 | ≥-20 | 380V/50HZ 3P | DC-80FLG/DD60 |
| DCWR-54 | 4732*5915*2300 | 4532*5715*2100 | ≥-5 | 380V/50HZ 3P | DC-50FHG/DL40 |
| DCWF-68 | 5915*5915*2300 | 5715*5715*2100 | ≥-20 | 380V/50HZ 3P | DC-100FLG/DD80 |
| DCWR-68 | 5915*5915*2300 | 5715*5715*2100 | ≥-5 | 380V/50HZ 3P | DC-80FHG/DL80 |
Dimension |
Length (m) *Width (m)*Height (m) |

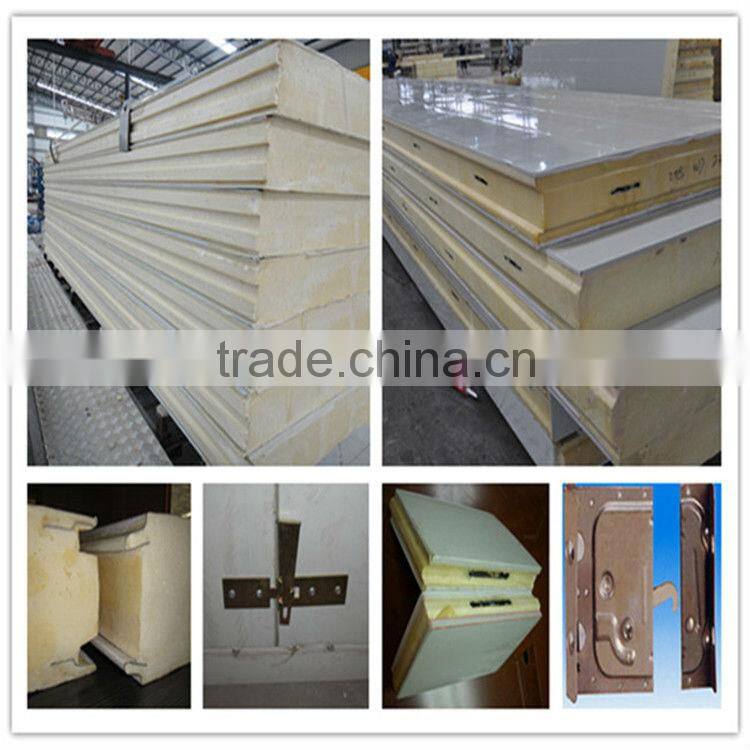

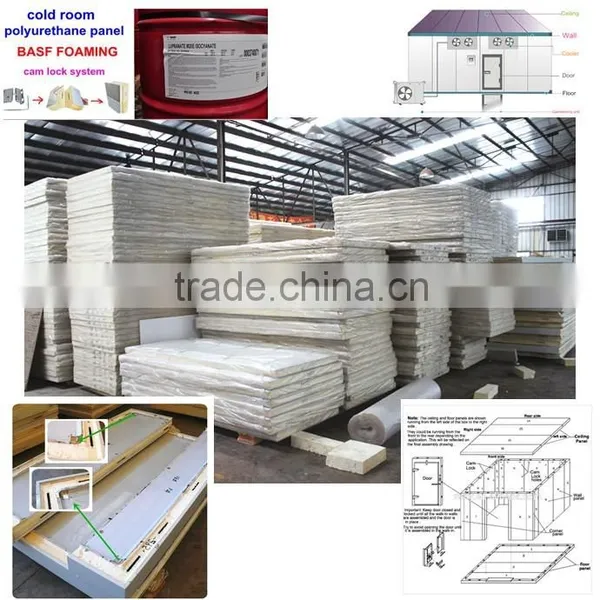

Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |

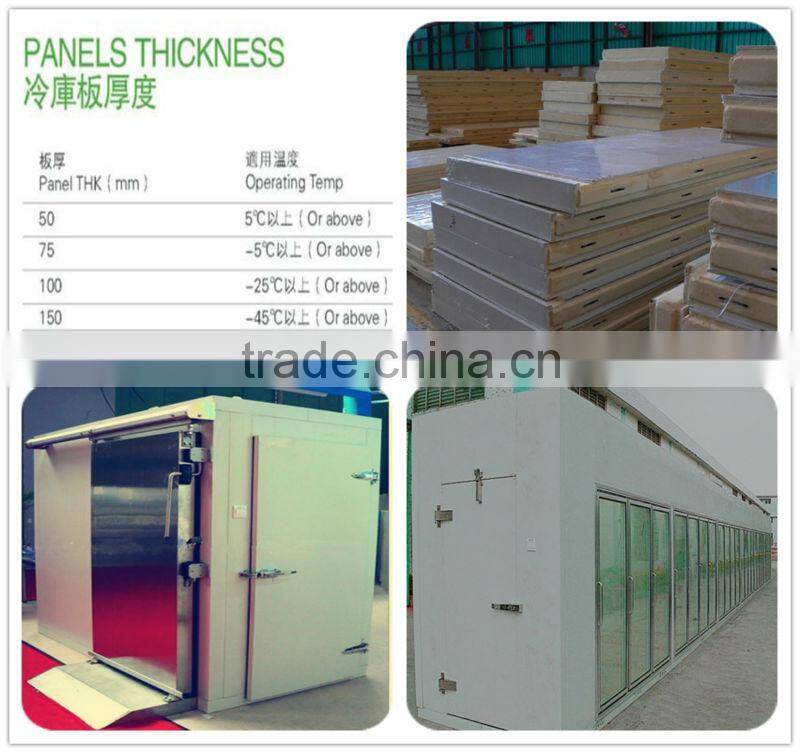

Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
optional |
Purpose of cold room |

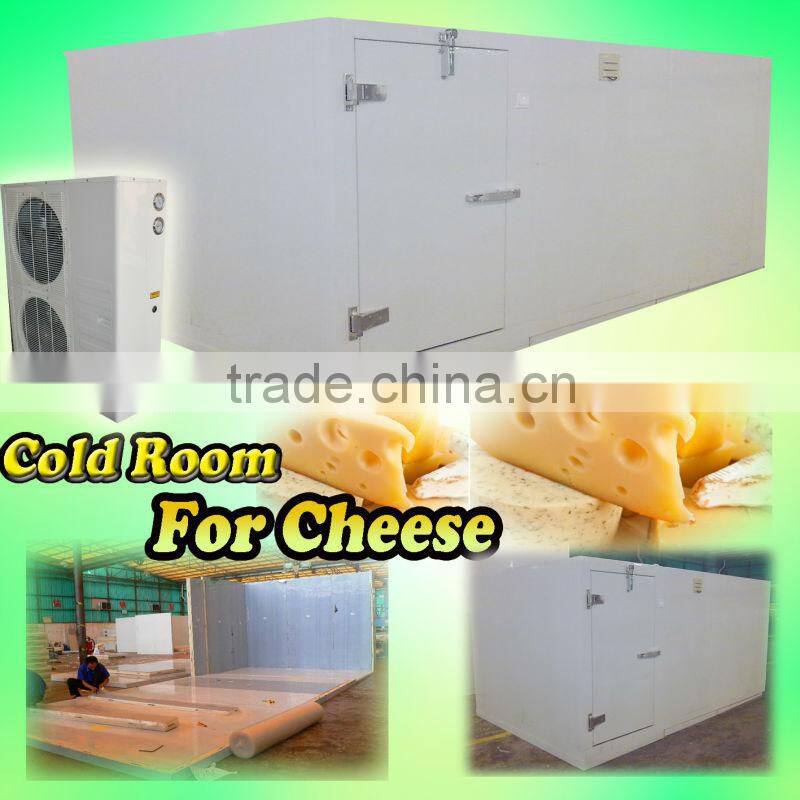

fruit,vegetable,flower,frozen meat, fish, beef etc |

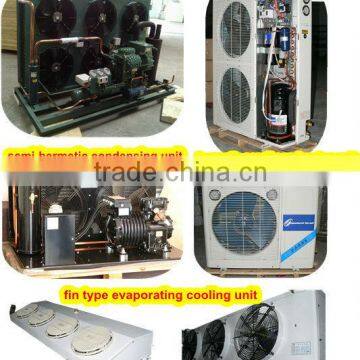

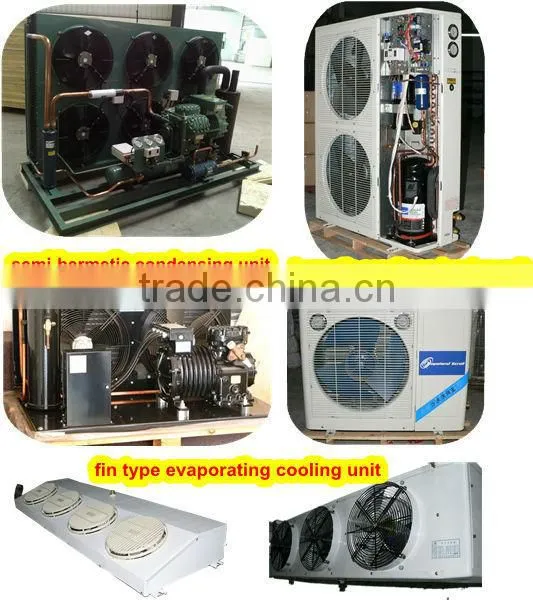

Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
