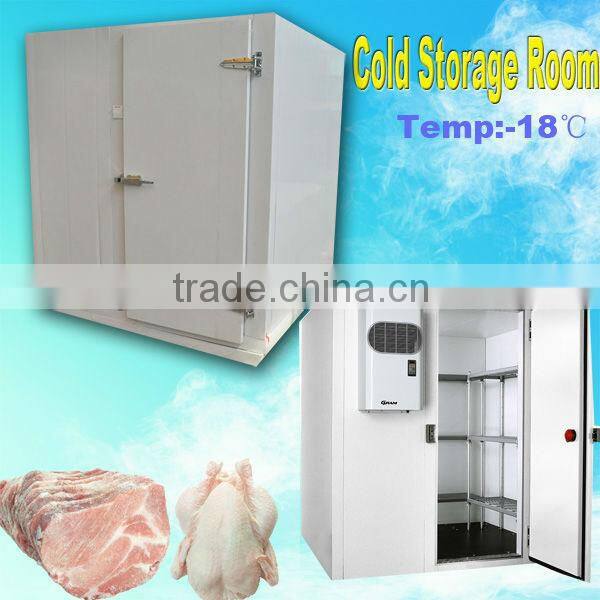

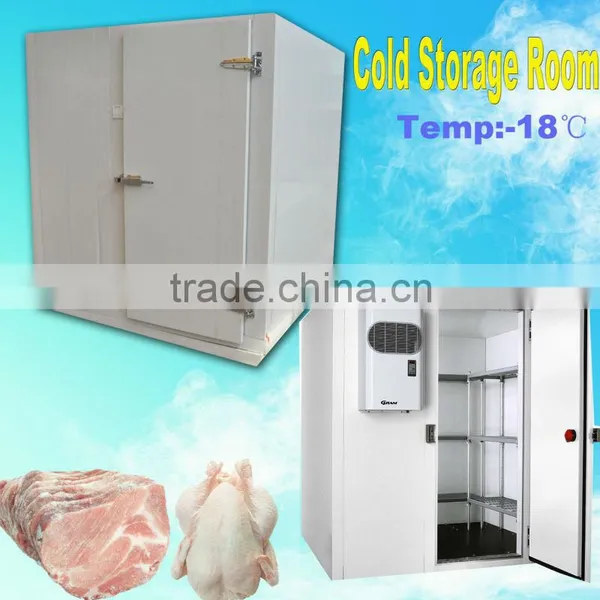

meat storage cold room (20m3 capacity)
meat storage cold room is easily cleaned and are made from accredited food safe materials.
meat storage cold room Product information
Dimension | According to client's requirement . |
Panel | polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material | BASF |

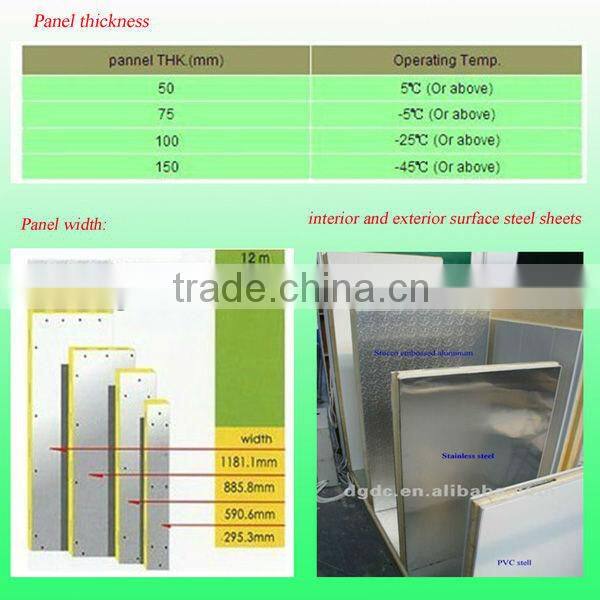

Panel thickness | 100mm,150mm,200mm |
Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC steel |
Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
Type of door | hinge door,sliding door |
Temp.of room | -45~+20 degree, optional |
Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit | Copeland / Bitzer |
Fittings | all necessary fittings are included, optional |
Place to assemble | indoor/out door(concrete construction building/steel construction building) |
Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ optional |
some standard meat storage cold room size for your reference
| Specification/Model | DCWF-30 | DCWF-68 | DCWF-20 |
| Storage volume | 30 | 68 | 20 |
| Exterior dimensions | 400W X 3000L X 2500H | 5915W X5915L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 3800X 2800X 2300H | 5715W X 5715L X 2100H | 2166W X 4532L X 2100H |
| Power | 380V/50HZ 5HP | 380V/50HZ 10HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-20 | >-20 | >-20 |
meat storage cold room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

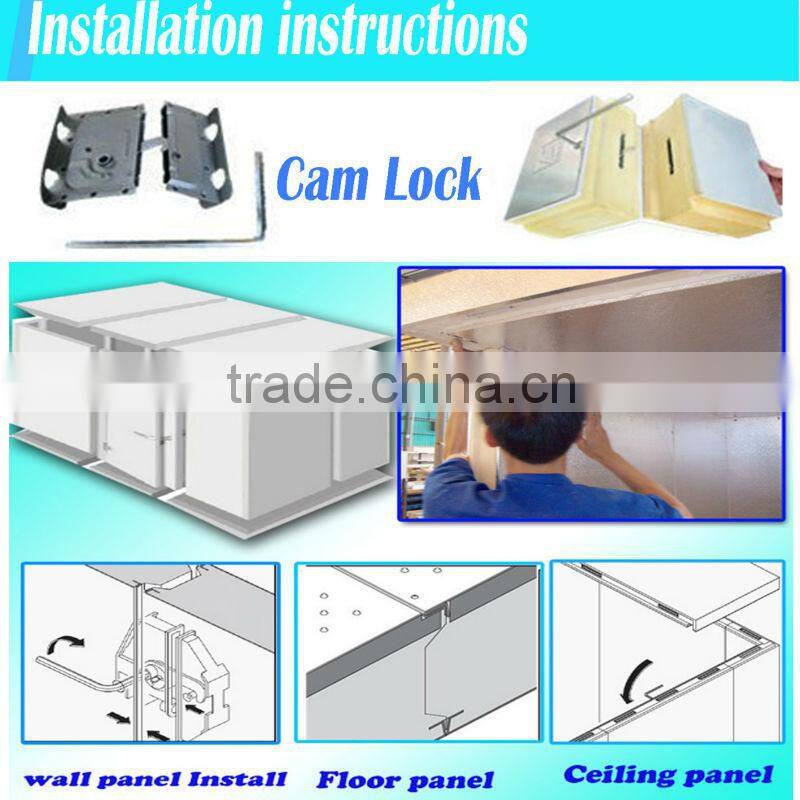

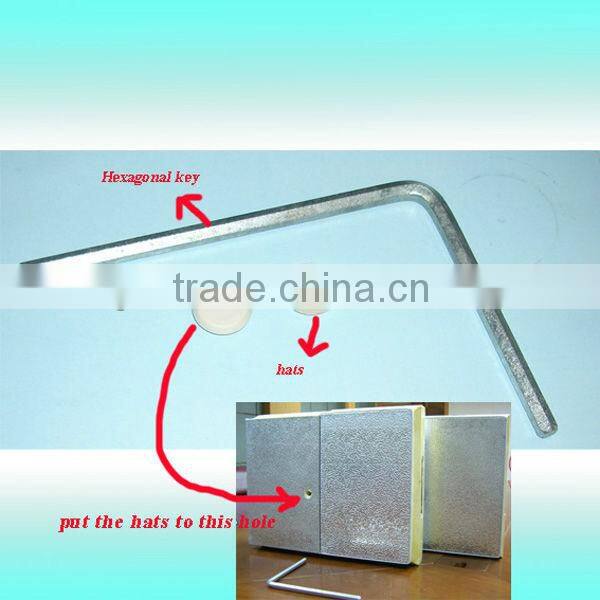

meat storage cold room Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

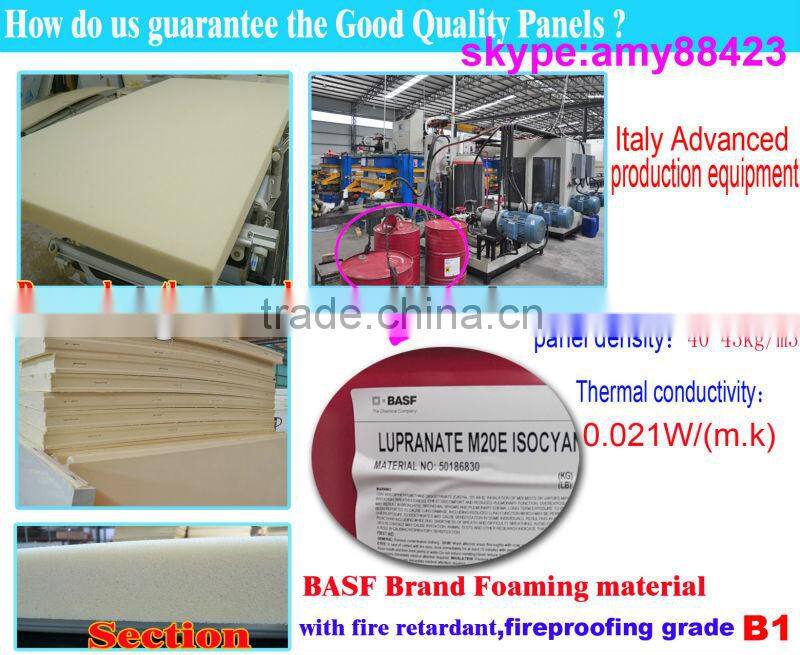

Our meat storage cold room panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each meat storage cold room panel ,when panel lock together,the cool air will not leak,and the hot air can not come in .

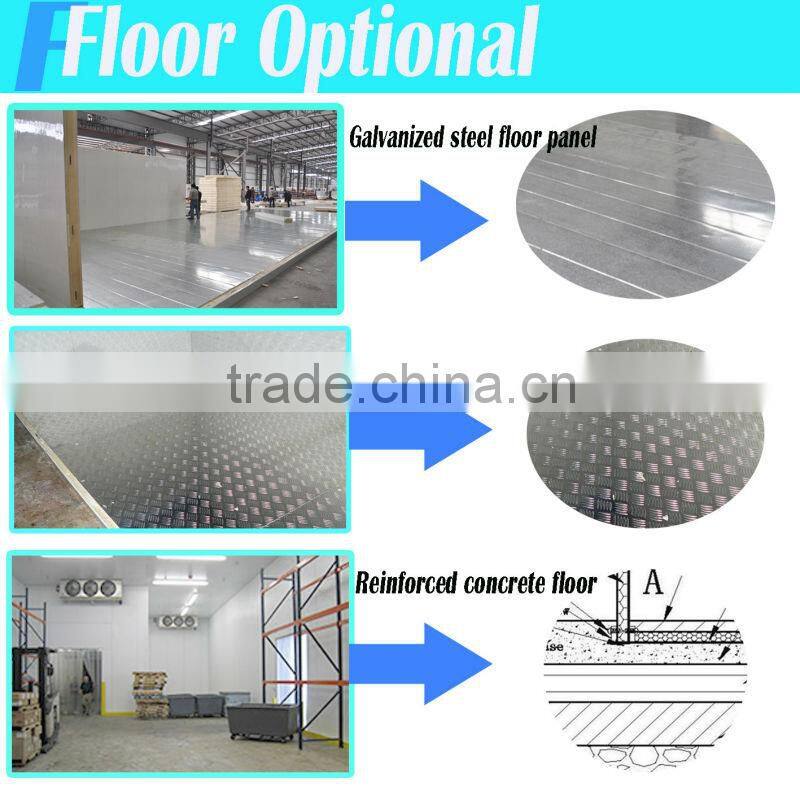

meat storage cold room floor:
can do the PU Panel floor or concrete floor
meat storage cold room condensing units: Zanotti Monoblock condensing unit
Advantage :
1). Adopt imported Hermetic piston type compressor
2). Imported branded MAVIB,EBM Fan
3).Capillary expansion system , Refrigerant Gas R404a
4).Intelligent automatic defrosting system ,which can save much more energy consumption.
5).Easy to install , just need to hang on the panel outside wall .
Do not need any other expansion valve ,copper pipe and Electrical Cabinet any more .

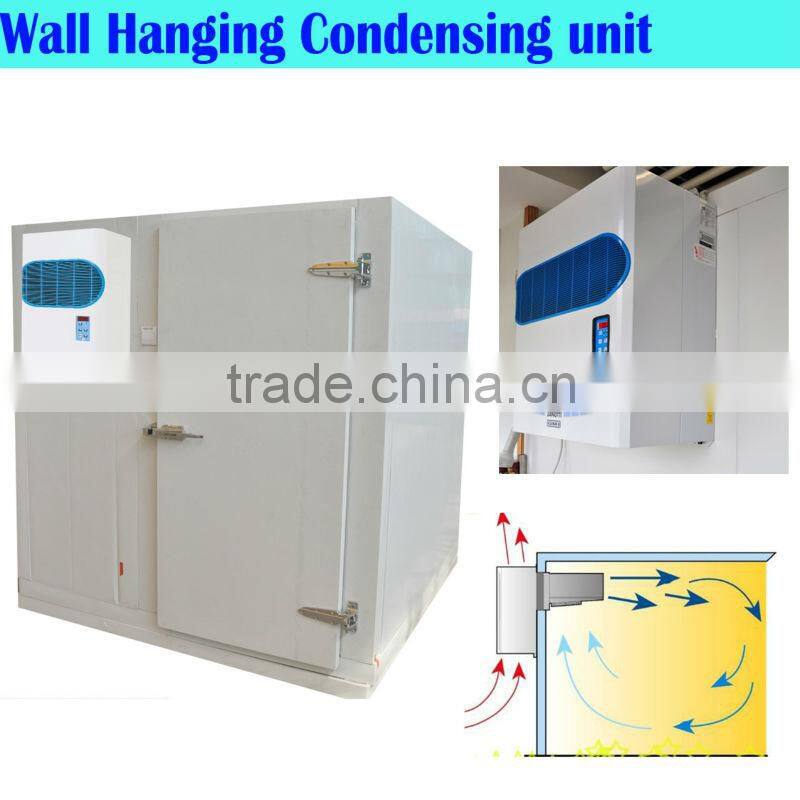

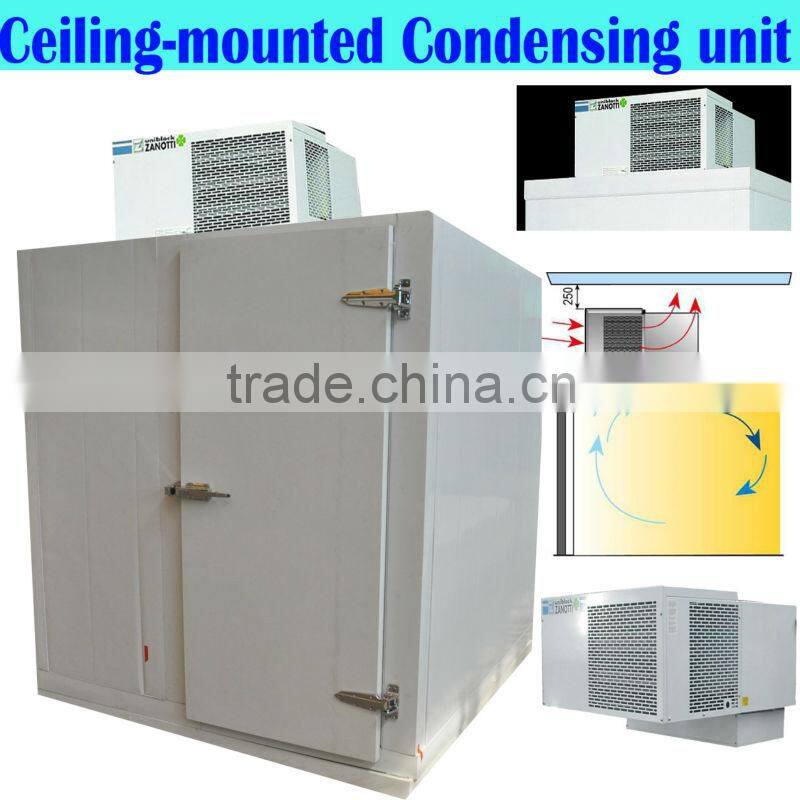

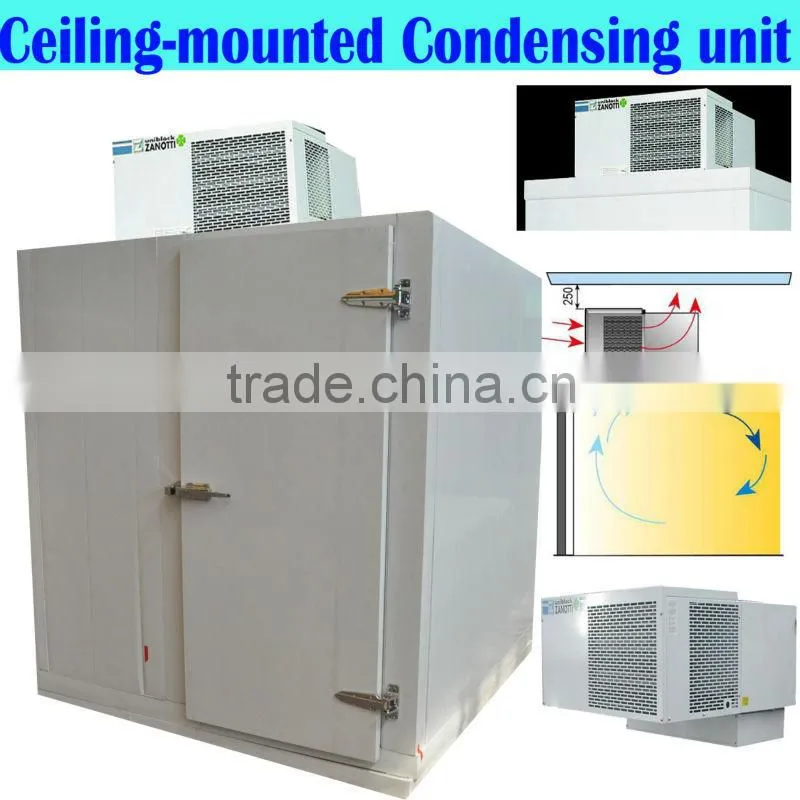

you can choose the wall hanging Monoblock condensing unit or the mounted Condensing unit for the cold storage room

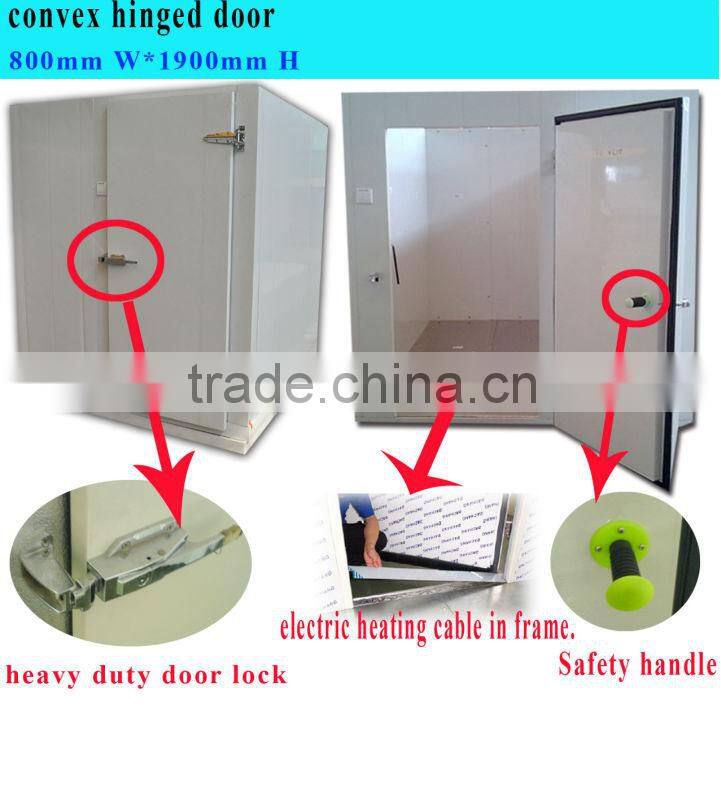

convex hinged door for the meat storage cold room

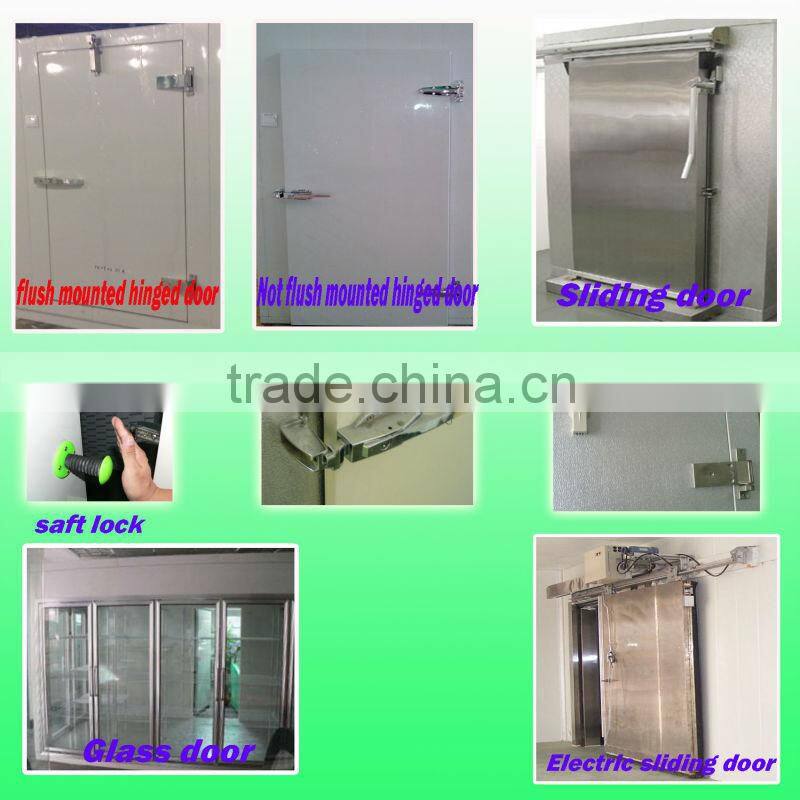

More door for your choose (the size can be customize )
you can istall the stainless steel for the meat storage cold room

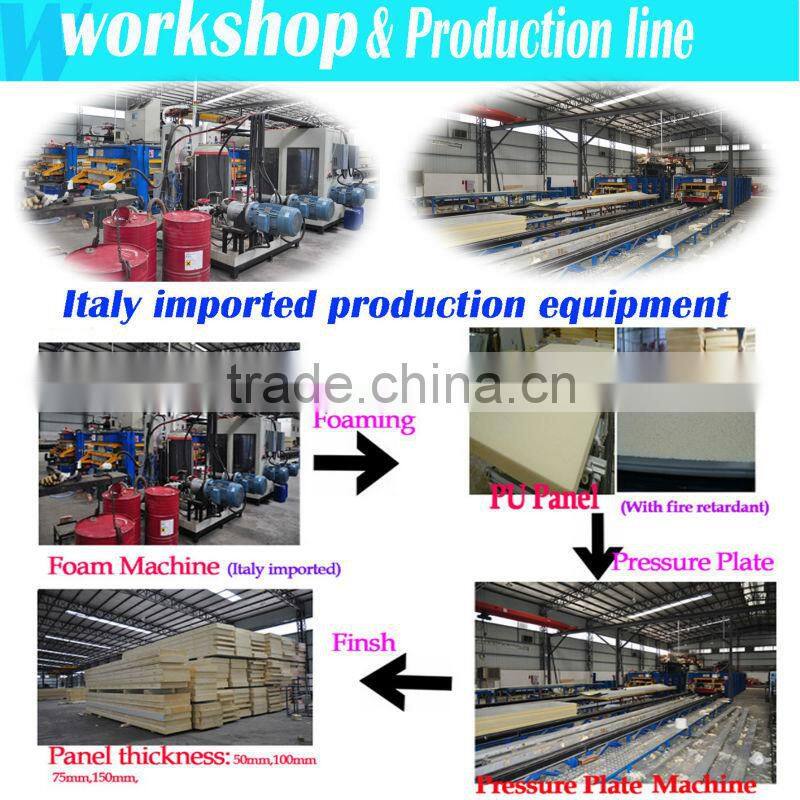

production line for our meat storage cold room

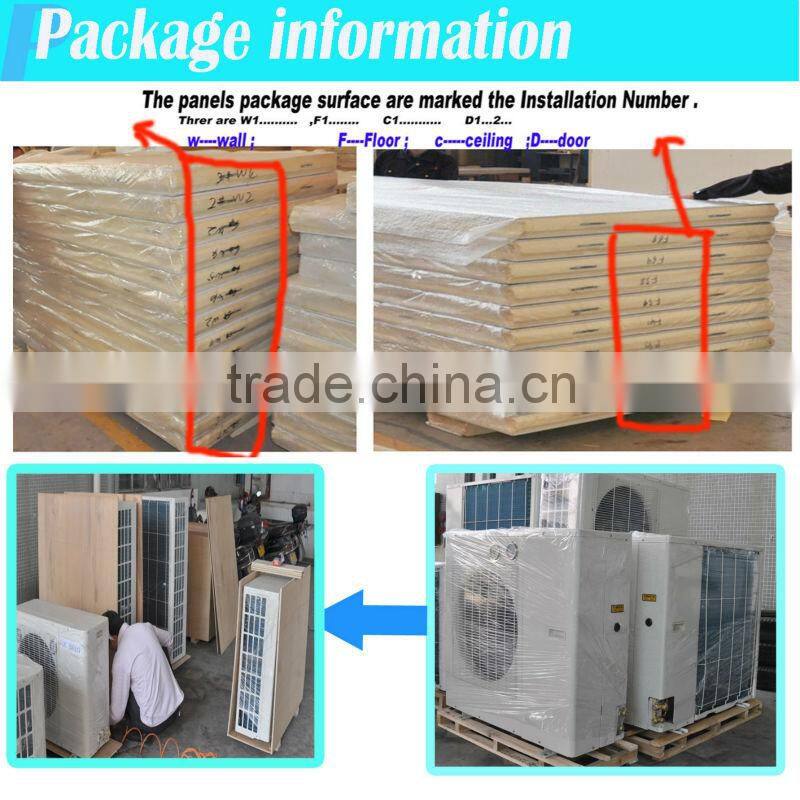

meat storage cold room Package
Take part in the Exhibition every year:
