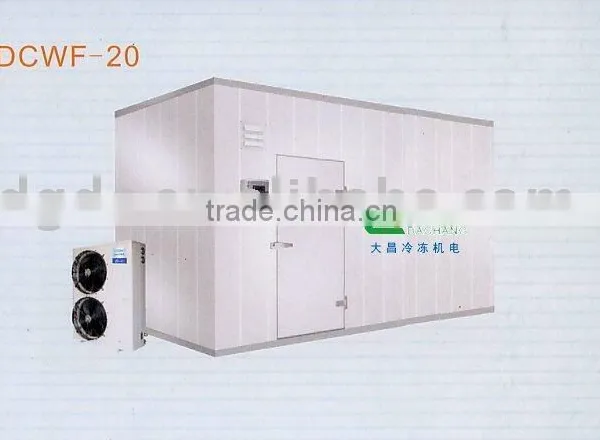

Modular standard cold room model DCWF-20 capacity 20m3
Modualr standard cold room specification
| MODEL | EXTERIOR DIMENSION (W*L*H) | INTERIOR DIMENSION (W*L*H) | TEMPERATURE | POWER | MODEL OF REFRIGERATION UNIT( CONDENSING UNIT /BLOWER) |
| DCWF-20 | 2366*4732*2300 | 2166*4532*2100 | ≥-20 | 380V/50HZ 3P | DC-30FLG/DD22 |
| DCWR-20 | 2366*4732*2300 | 2166*4532*2100 | ≥-5 | 380V/50HZ 3P | DC-20FHG/DL15 |

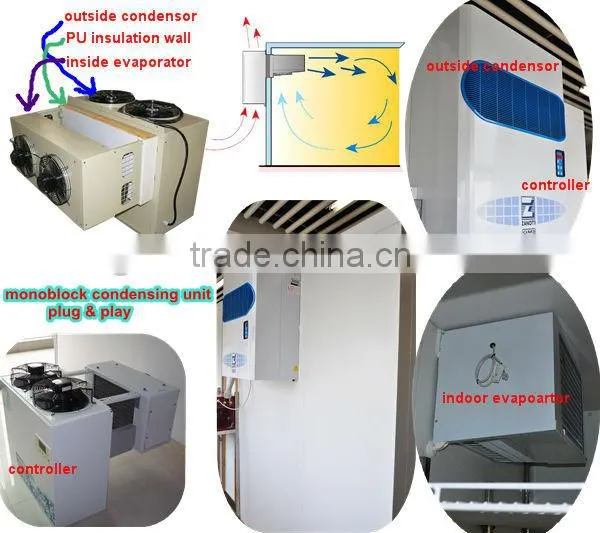

Dachang company produced intergration system which is using the famous advanced brand compressor,and the crucial components also purchased abroad.The value of function is much more higher,mainly in:
1,All set and progress are finished in the factory.Improve the production effiiency,meanwhile,reduce the production cost.
2,Standard production improves the quality,and reduces the cost of maintainess for the agents.
3,Intergration cold storage is installed fastly and easily,save time and cost for the customers.
4,All part of the intergration cold storage machine used famous brand compressor and components.Substantially increase the function of the cold storage uce the expense of the power.
5,Independent research and development of micro-chip intergrated managerment system,intelligentize management,save cost easily.
6,Hot air defrost,it is more efficiency and fast than the traditional ones,and also save the enegy.
7,Insist on using the standard polyurethane storage panel.Therefor,inproved the quality of the warm capability.

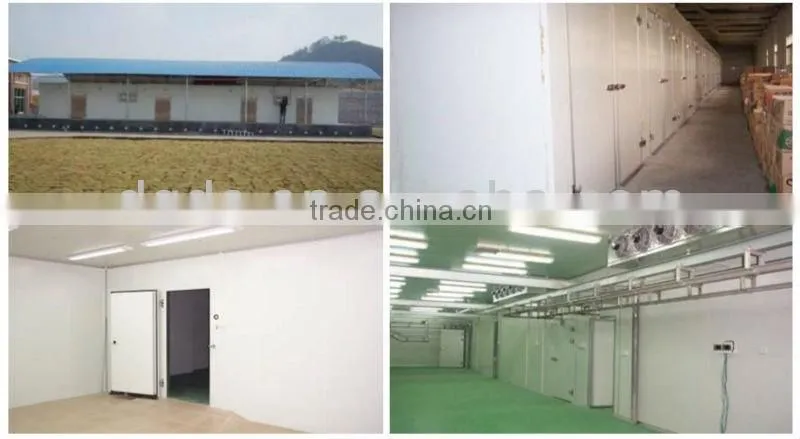

We customized all kinds of cold room to store different products:
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
+20~-45 degree, optional |
Purpose of cold room |
fruit,vegetable,flower ,frozen fish, chicken, beef, ice cream, medicine etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
The installation of the cold freezer room:

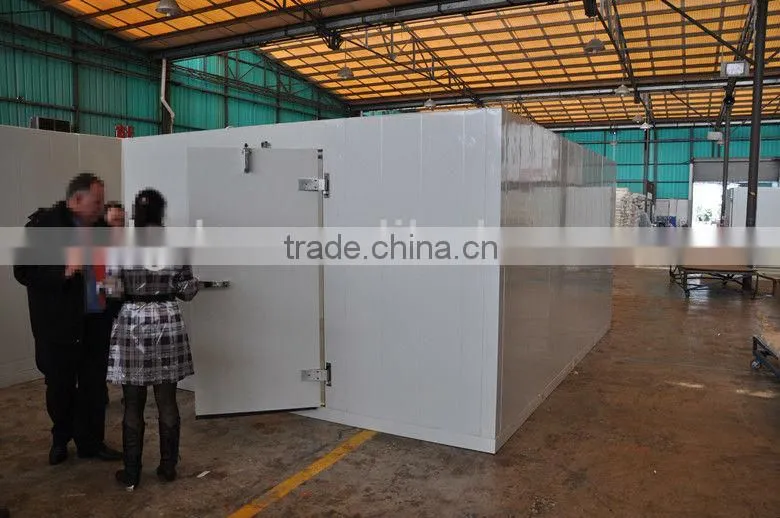

Before delivery, we assemble the cold rooms in our workshop, and clients inspect them in our workshop:

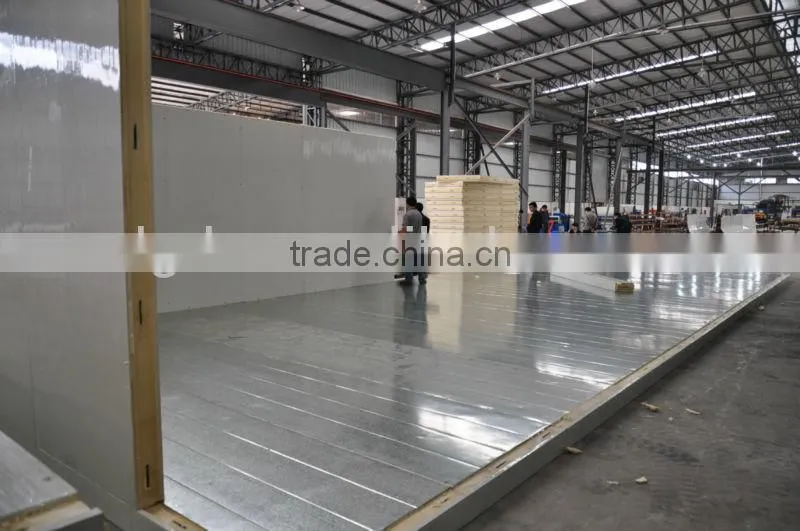

Production Line
DACHANG company provide the pefect solutions to the modular cold storage room for 20years !
DACHANG company attend the related exhibitions every year.
