Standard cold storage room
MODEL |
EXTERIOR DIMENSION (W*L*H) |
INTERIOR DIMENSION (W*L*H) |
TEMPERATURE |
POWER |
REMARK |
DCWF-15 |
2366*3549*2300 |
2166*3349*2100 |
≥-20 |
380V/50HZ 3P |
DC-20FLG/DD15 |
DCWR-15 |
2366*3549*2300 |
2166*3349*2100 |
≥-5 |
220V/50HZ |
DC-20FHG/DL15 |
Feature

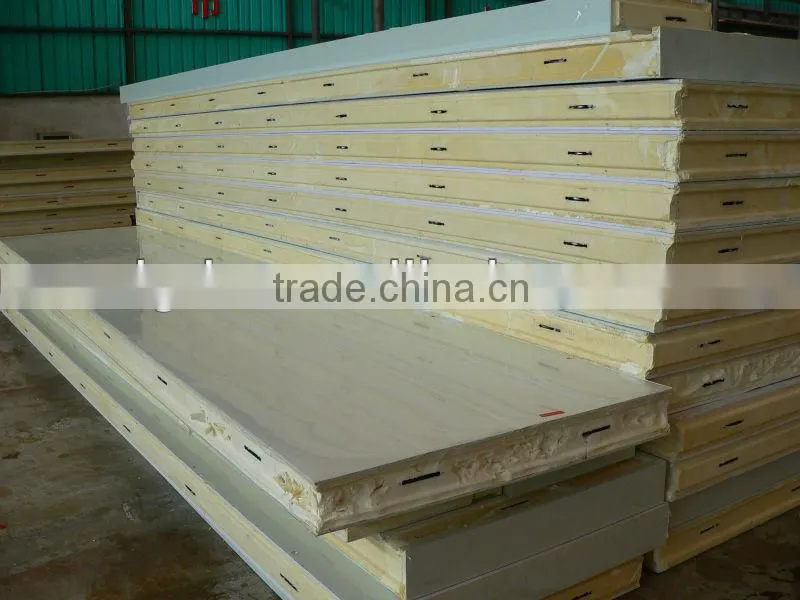

1.Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2.white color painted galvanized steel finish
3.Standard cold storage room foaming material we choose is imported BASF foaming material, green to the environment. US brand foam material.
4.Standard cold storage room panel steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15 years.
5.All the panels are with gasket at the joint of two panels, enable the standard cold storage room
with better air-tightness, but not many panel factories realize this point or just ignore this to save the cost.

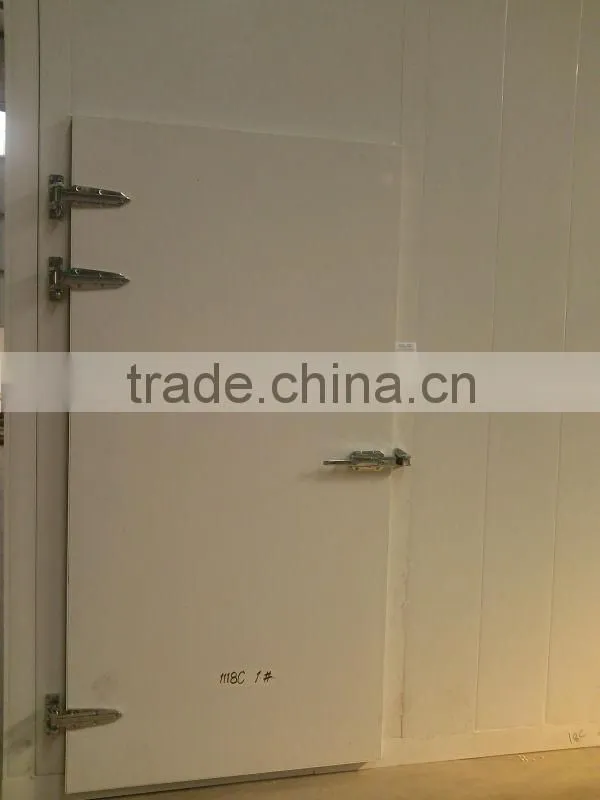

6.Standard cold storage room door
Normally use convex door as standard cold storage room door, convex door has good tightness, cheaper than other kind of doors. Convex door,heavy duty.It can be changed to hinge door(automatic closing) base on customer's requirement.
7.Copeland brand compressor,durable to use,with good refrigeration.
Necessary parts are included.
Environmentally friendly refrigerant R404a

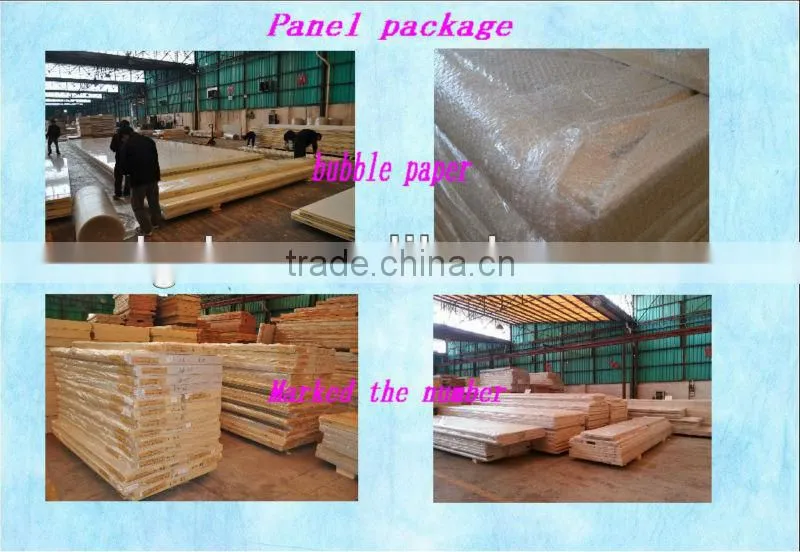

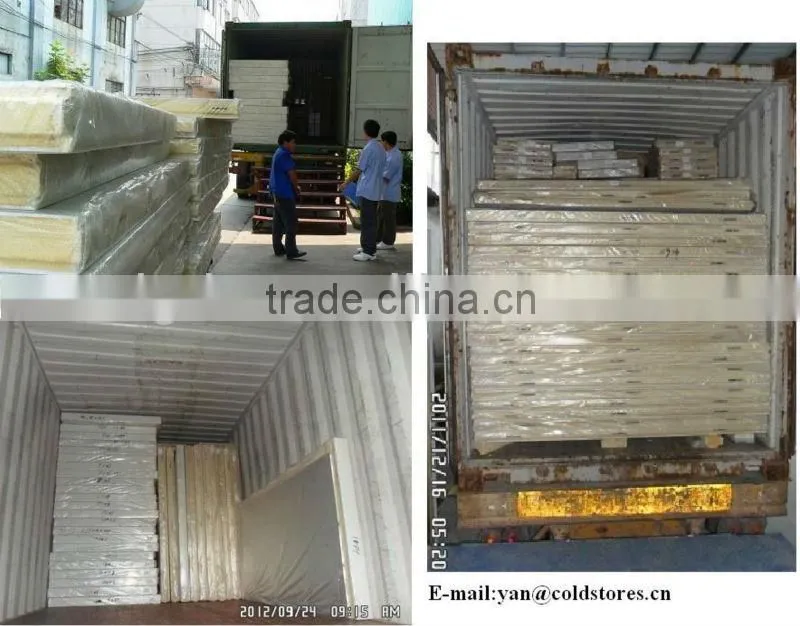

8.Loading
Bubble paper for panels
Plywood case for refrigeration unit
Carton for fittings
9.Standard cold storage room package
10.Standard cold storage room workshop
