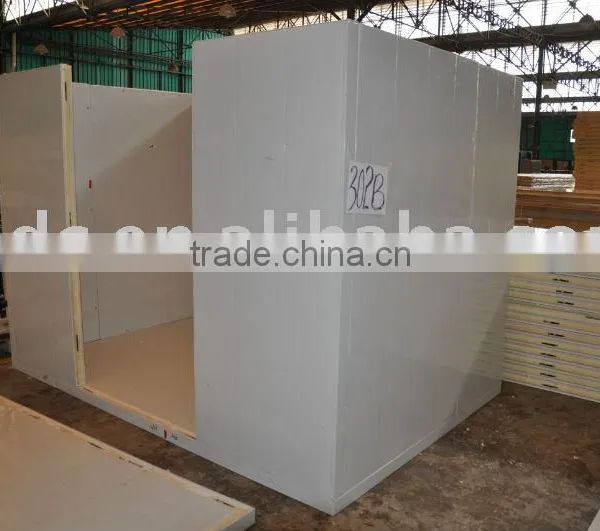

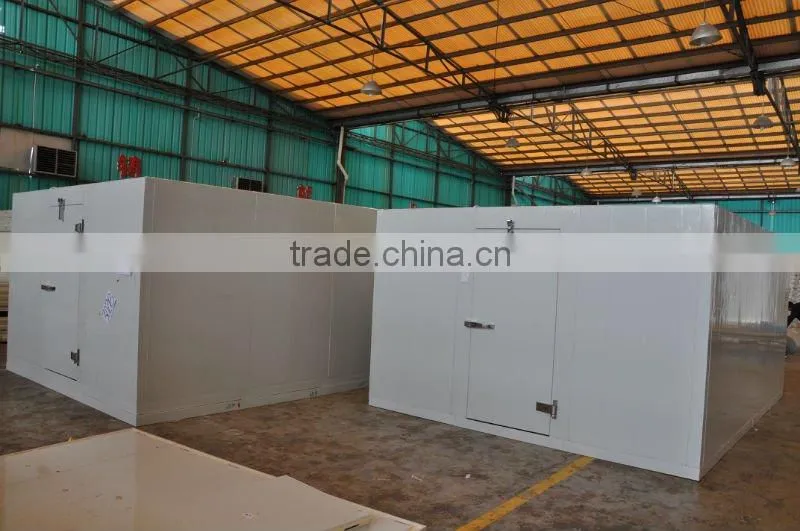

deep freezer cold room for Frozen food
deep freezer cold room Product Feature:
1. Use BASF polyurethane foam material.
2. Polyurethane foam density is up to 43 kgs / m3 or above.
3. The steel covered the panels is purchased from Baosteel and POSCO which are the biggest steel factories in the world. So our panel life is more than 15 years .
4. Polyurethane foam is with flame retardant.
5. The connection of our cold room panels are made with PE sealing rubber which is
with high quality sealing.
6. The connection of our cold room is with cam lock construction and exocentric
fasteners for tight connection and sealing of the cold room.
7. Built in lights, switch and other necessary fittings.
deep freezer cold room Product Information:
| Dimension | Length (m) *Width (m)*Height (m) |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door, sliding door |
| Temp.of room | -45~+20 degree, optional |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Sanyo etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ |
deep freezer cold room Assemble&Details:

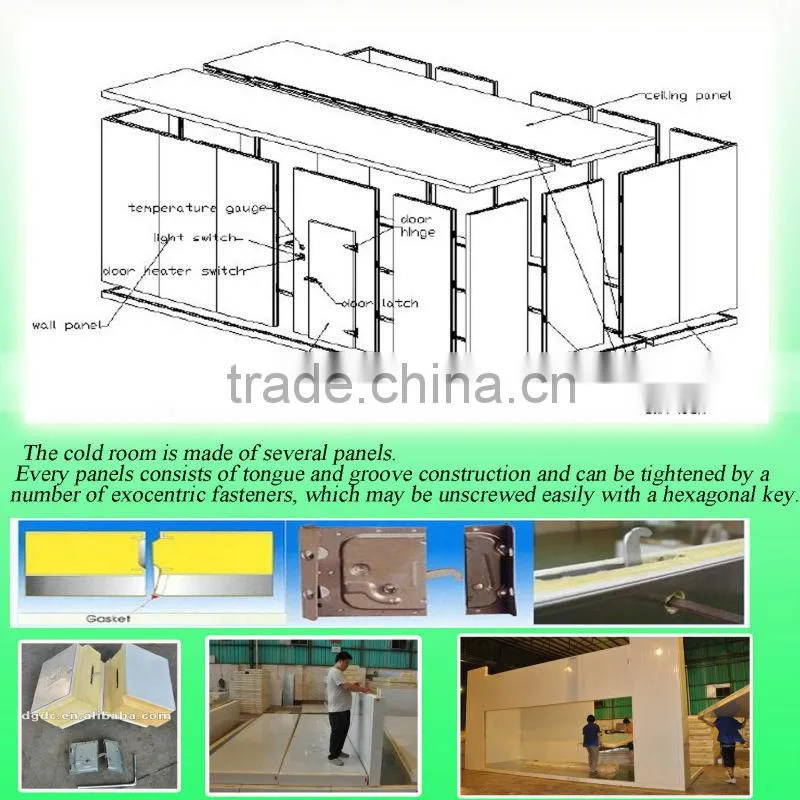

cam lock type, use hexagonal key to assemble and disassemble
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

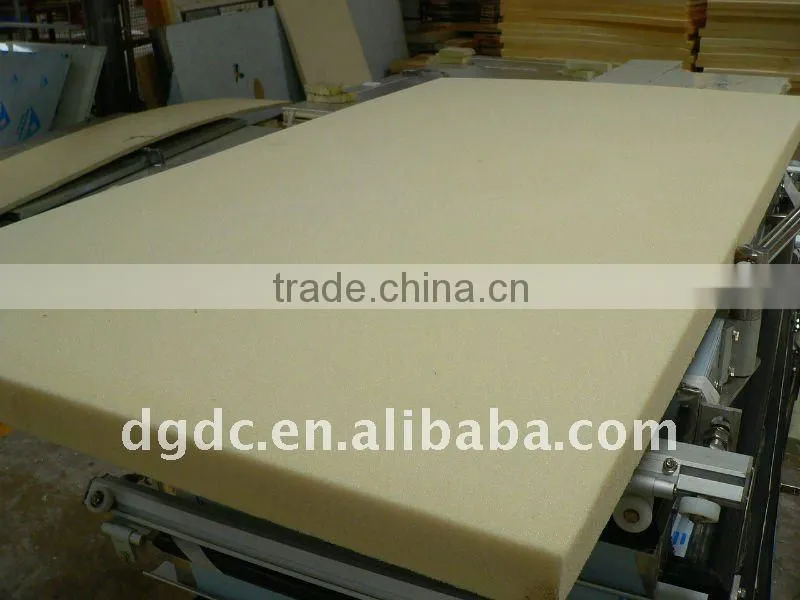

deep freezer cold room sandwich panel : (100% polyurethane insulation panel foam by high pressure,with fire retardant,density about 43kg/m3)
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Bare panel

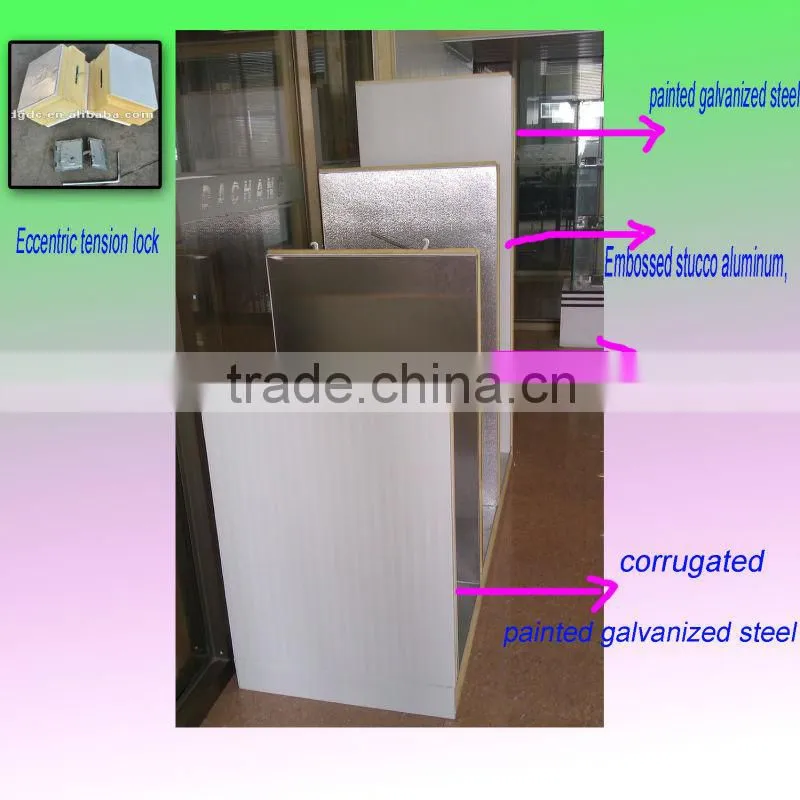

Both sides of panels are with steel sheet covered. The steel sheet optional: painted galvanized steel,Corrugated painted galvanized steel ,embossed stucco aluminum, stainless steel.
our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each deep freezer cold room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

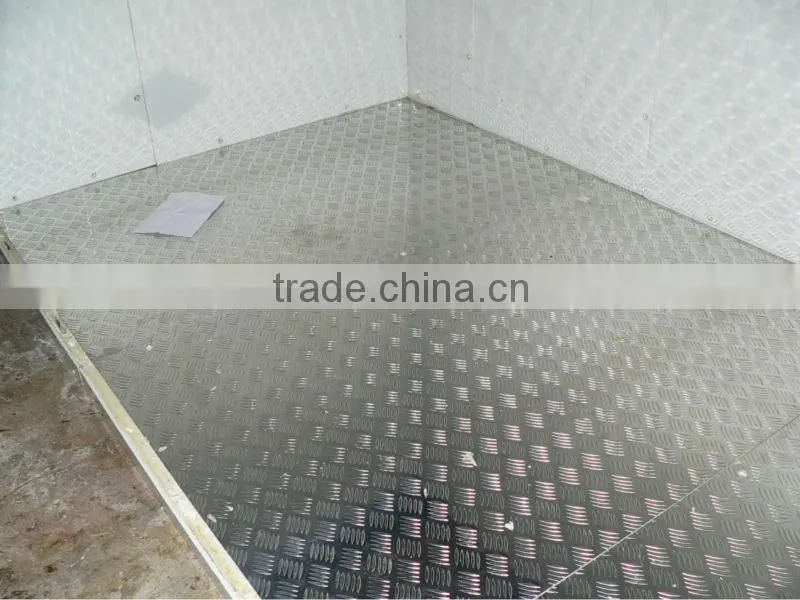

can do the non-slip floor for the deep freezer cold room
deep freezer cold room condensing units:
•Compliant,accurate,fewer moving parts,the exclusive copeland design guarantee the supper reliability.
•Wide flexibility,Energy saving,Low noise.
•Low vibration,space and weight saving,Energy saving.
•can bu used in more higher ambient temperature.
deep freezer cold room door for your choose

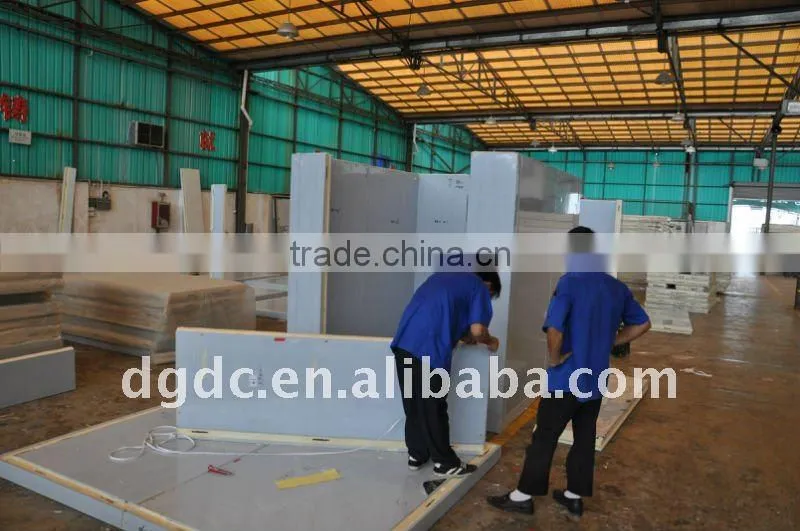

production line for our deep freezer cold room
We imported the advanced machine form Italy,which to ensure the product quality and fast delivery time .
Package for our deep freezer cold room
Take part in the Exhibition every year:
