blast freezer to freezer French fries in 2 hours
- blast freezer PERFORMANCE:
blast freezer (soft or hard) lowers the food core temperature from 70°C to +3°C in less than 2 hours. Shock freezing blast freezer lowers the food core temperature from 70°C to -35°C or -45C within 3hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates. Time/temperature chilling and freezing rates meet or exceed all FDA and state regulations.
- Following is the information about the blast freezer to freezer French fries in 2 hours
- blast freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. blast freezer can freezer the food from 60kg ~400kg
4. we can design the module blast freezer or the finished assembled blast freezer room
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh
7.OEM Order is welcome !
- blast freezer specification
| Model Number | BF-2 | BF-2-S | |
| condensing unit | built-in with blast freezer | split unit ( put outside ) | |
| 1. | Unit Dimensions | 1630*1200*2140mm | L1860*W1690*H2140 mm |
| 2. | Inner Dimensions | 1300*960*1420 mm | L 1060*W 1390*H 1900 mm |
| 3. | Packaging Dimensions | 1690*1260*2240mm | L 1920*W 1750*H 2240mm |
| 4. | Capacity | can hold 120kg food | Can hold 200kg food |
| 5. | freezing Time | It can bring A food from +70 °C to -35°C in 2~3hrs | It can bring A food from +70 °C to -35°C in 2~3hrs |
| 6. | with single trolley | two trolleys of 18 tiers | Single trolley of 28 tiers |
| 7. | trolley size (MM): | 500X600X1400 | 500X600X1850 |
| 8. | compressor | Bitzer /Copeland /Tecumseh(air cooled) | Bitzer /Copeland /Tecumseh(air cooled) |
| 9. | Refrigerant: | R404a | R404a |
| 10. | material | PU material&stainless steel SS304 | PU material&stainless steel SS304 |
| 12. | Voltage | 380V/50HZ | 380V/50HZ |
| 13. | G.W./N.W. | 320KG /400KG |
we are the manufacturer to do the blast freezer , So OEM order is welcome . In order to design the suitable blast freezer for your , please answer us the following quesions:
1. What kind of food will be put into the blast freezer ?
2. what;s the food size (such as length ,width ,thick ) ?
3.what kind of the food package and the food packaging size ?
plastic bag or stainless steel tray ?
4.what;s the foods weight for each bag or each tray?
5.how many food will be put into the blast freezer per batch ?
6.what;s the food input temperature and the output temperature ?
7.what's the food core temperature after frozen ?
8.what's the freezing time for the food ?
9.what;s the voltage for the blast freezer you required ?
you can fill in this form and feed back to us . Then we will send you the blast freezer design for your reference :
| Product |
| product(meat or others) length (mm) |
| product(meat or others.) width (mm) |
| product(meat or others) Thick(mm) |
| product(meat or others) weight(kg) |
| product(meat or others) packing |
| Capacity/batch |
| Input temperature(°C) |
| Output temperature(°C) |
| Time to reach the output temperature |
| Product core temperature after freezing(°C) |
| Trolley |
| Votage & Frequency |
| Need any certificates?(CE,ETL,ROHS etc) |
- blast freezer CONSTRUCTION:
The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.

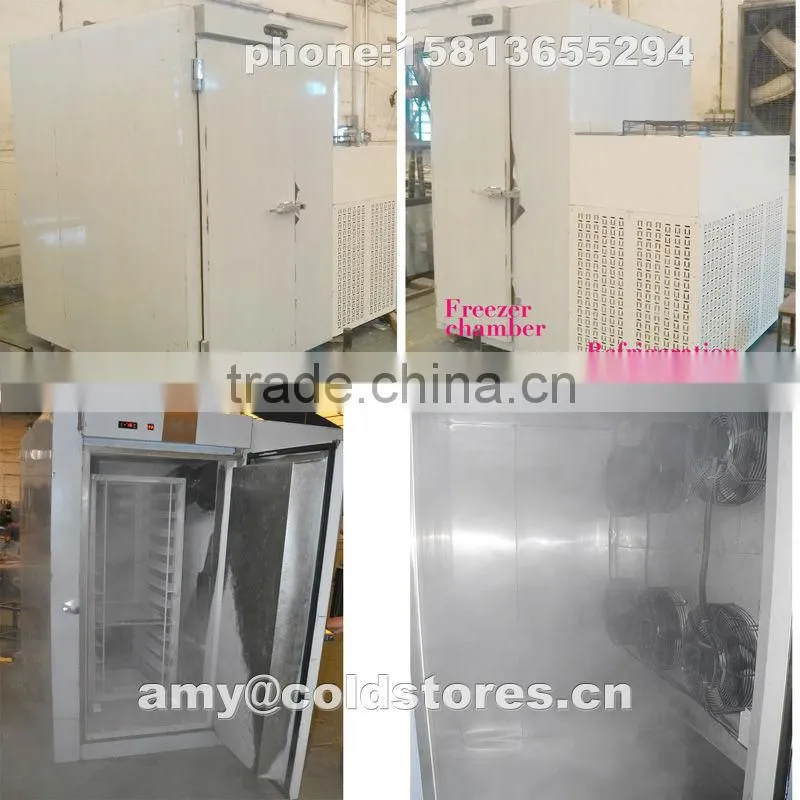

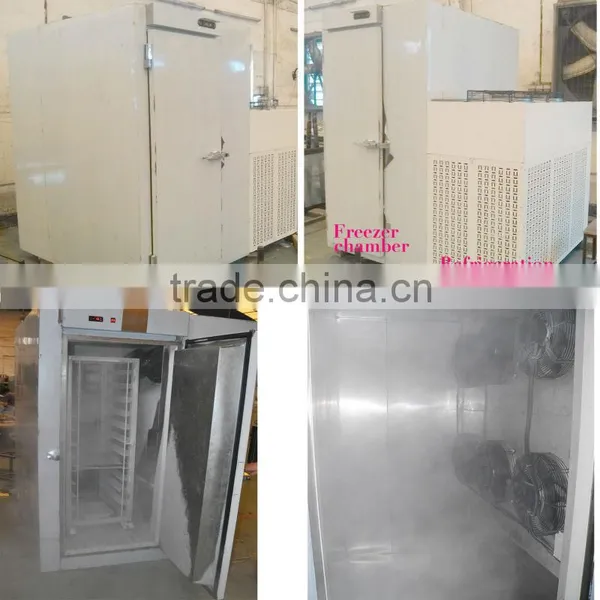

- In order to know more about our blast freezer , please check the follwing detailed pictures

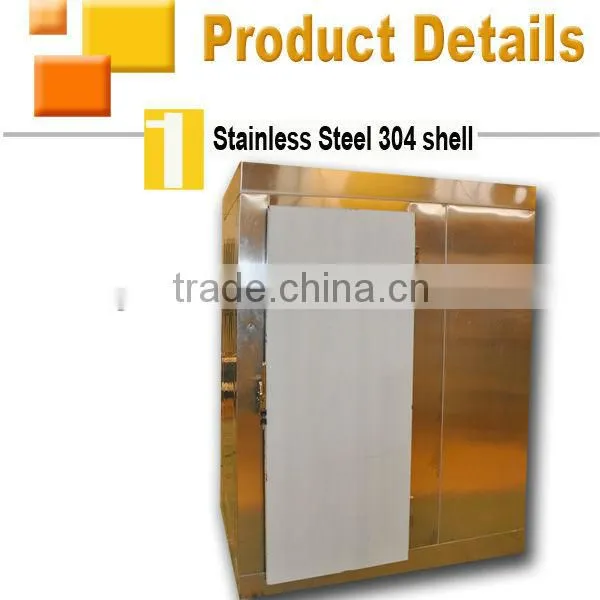

All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

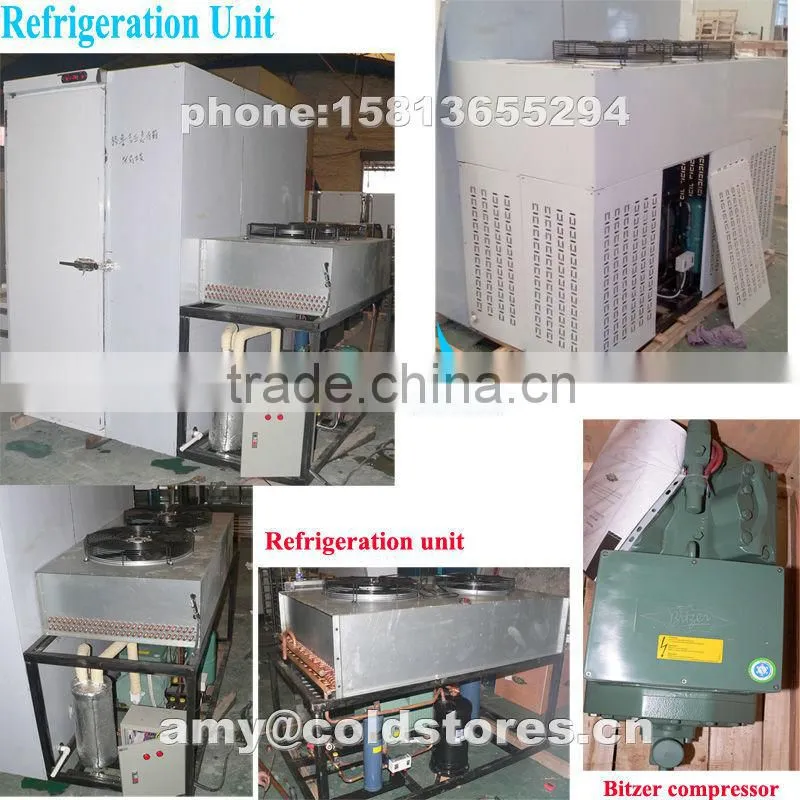

- blast freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.

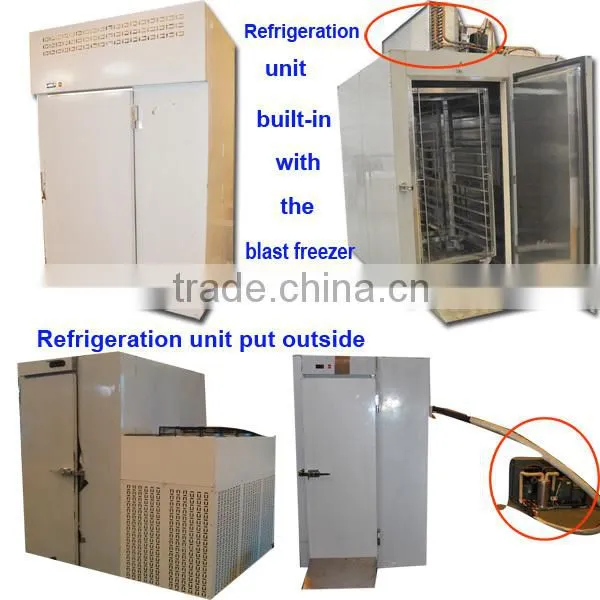

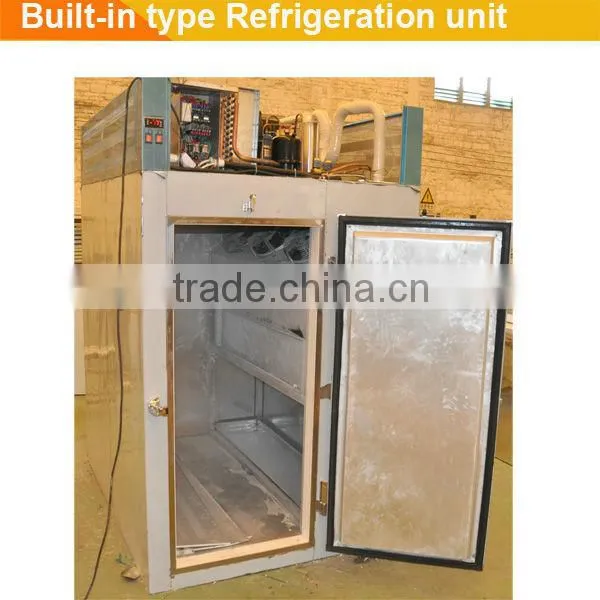

- The blast freezer Refrigeration Unit can be installed at the top on the
blast freezer (built-in type refrigeration uint)

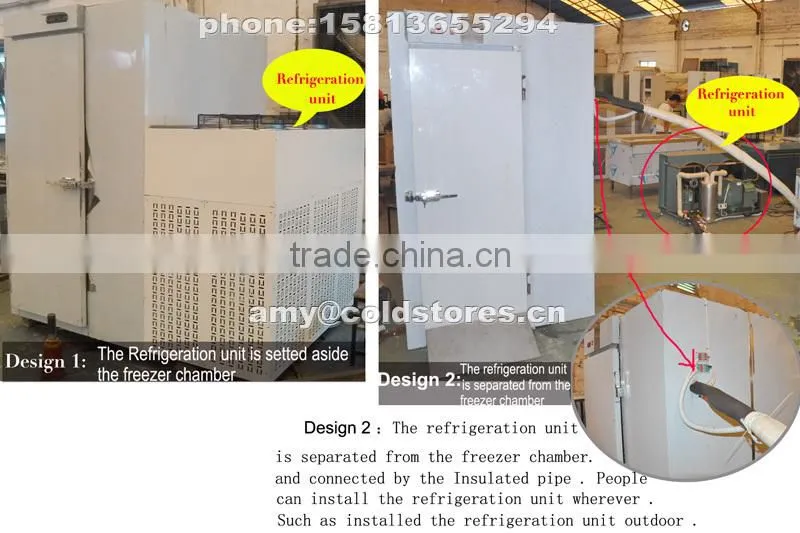

- or installed separate from the blast freezer ( split refrigeration unit , stand free )

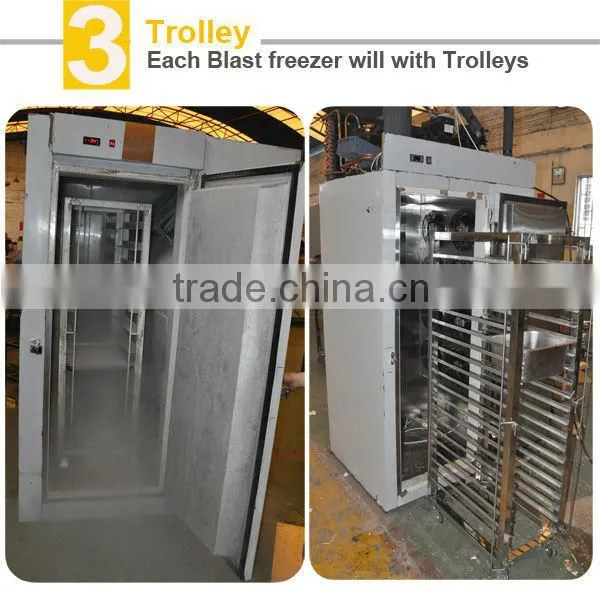

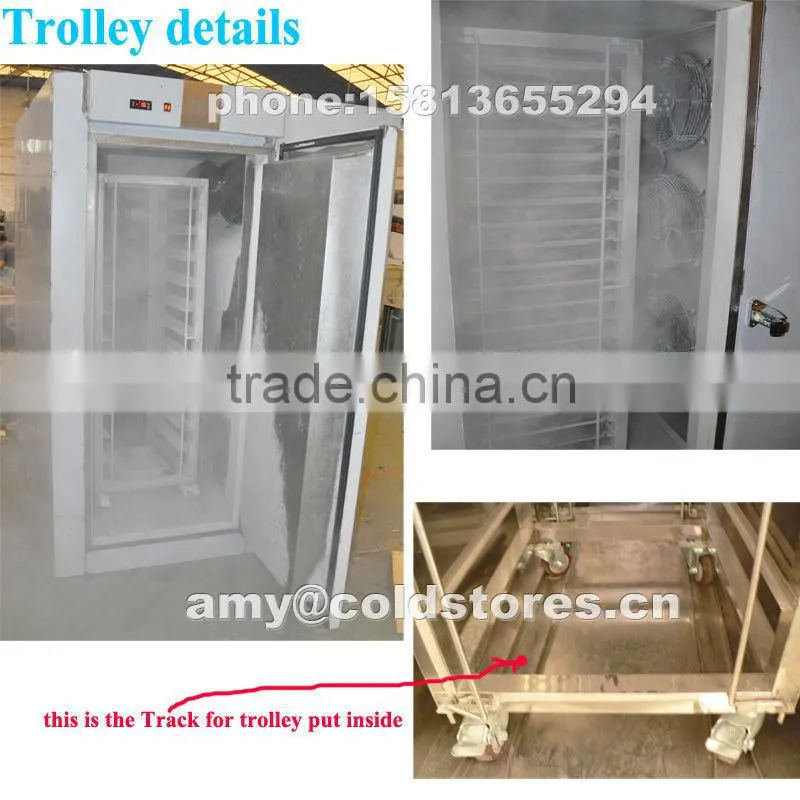

- Each blast freezer will with Trolley. Trollery size is 500X600X1400 mm ( 18 layers) or 500*600*1850mm ( 28 layers )

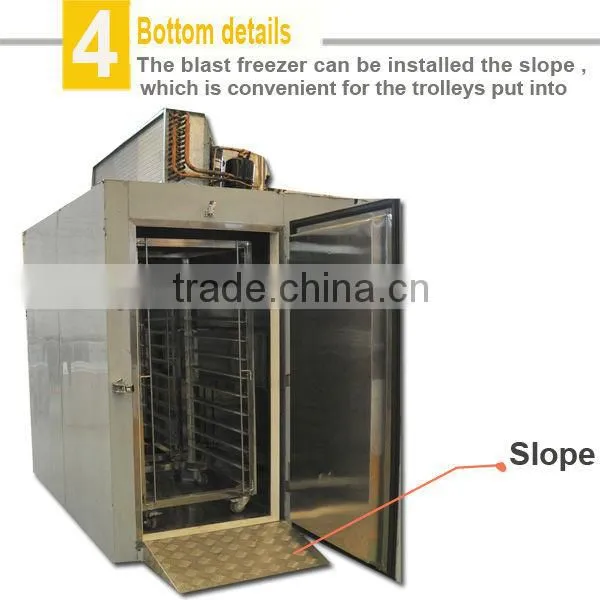

- The blast freezer is with the slope ,which conventient for the trolleys put into the blast freezer

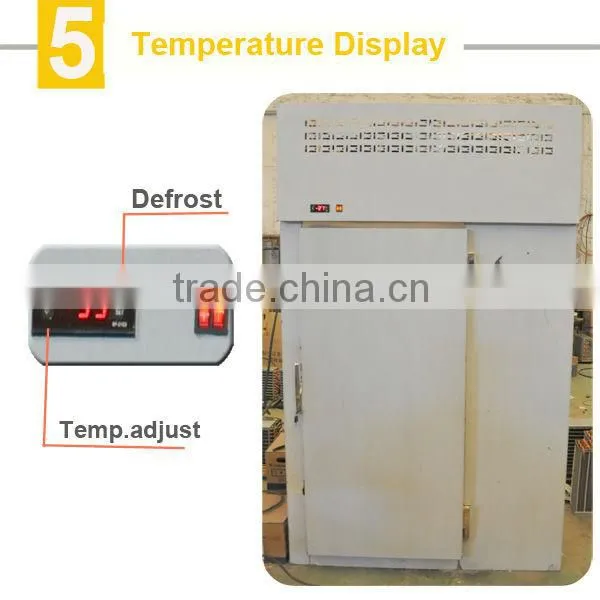

- blast freezer temperature can fall down to -35 degree C (just accprding to the food feature and size) , it can be Auto-defrosting

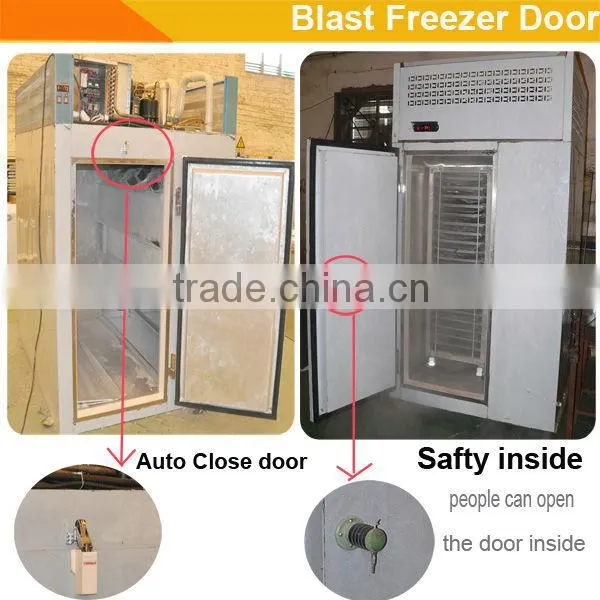

- blast freezer door . We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door from the blast freezer

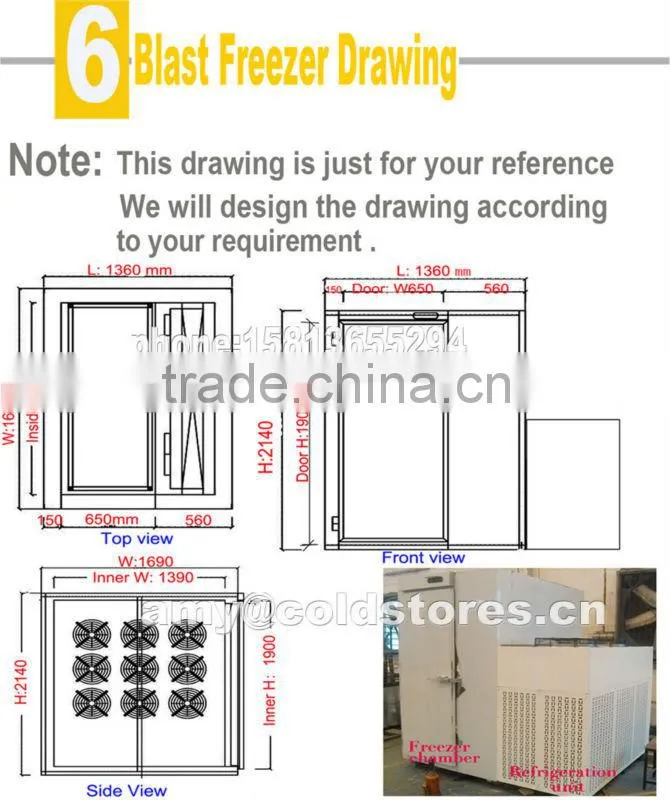

- blast freezer drawing

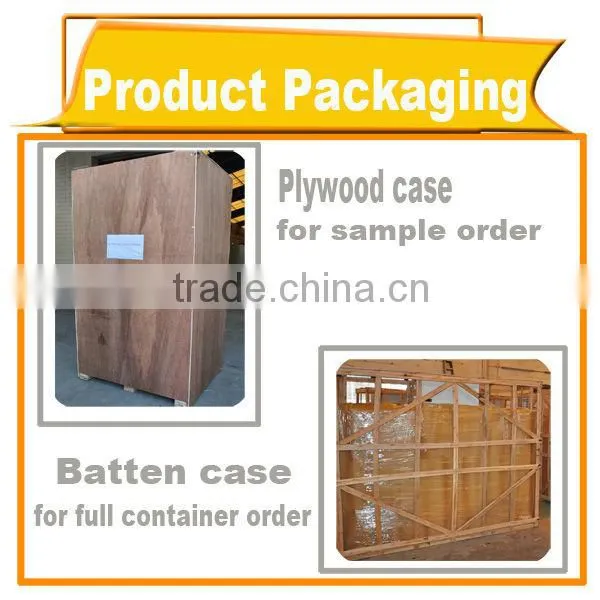

Packaging information for the blast freezer
1. for samle order , we will package the blast freezer by plywood case .
2. for full container order , we will package the blast freezer by wooden batten case

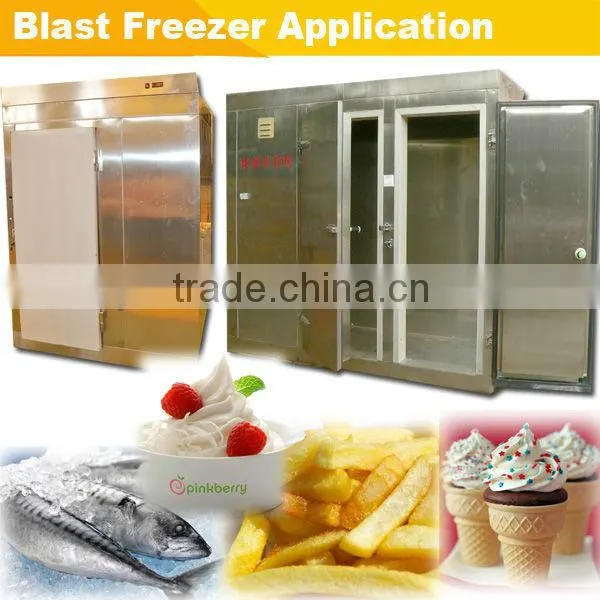

- blast freezer Application :
blast freezer mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .

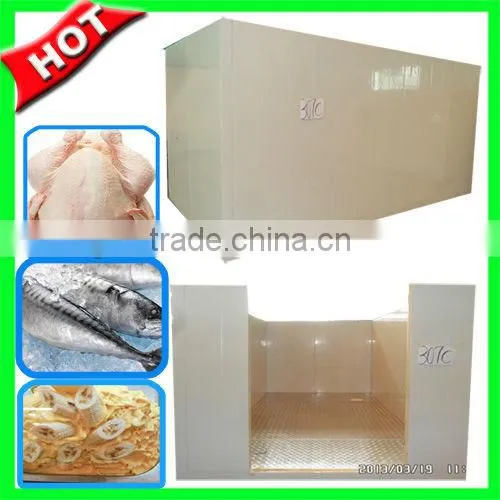

we can also do the Prefabricated blast freezer room for the large capacity usage . It can freezer 1000kg ~5 tons food .
