Home > Products > Blast Freezer > quick freezer for 400kg okra instant freezing
quick freezer for 400kg okra instant freezing
- 200 Unit / Units per Month
- foshan china
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DC | Model Number: | BF-2S |
Type: | Other, quick freezer | Style: | Single-temperature | Certification: | CE |
Capacity: | 400KG Food | Temperature: | -45 degree C | Refrigerant: | R404a |
Product Description

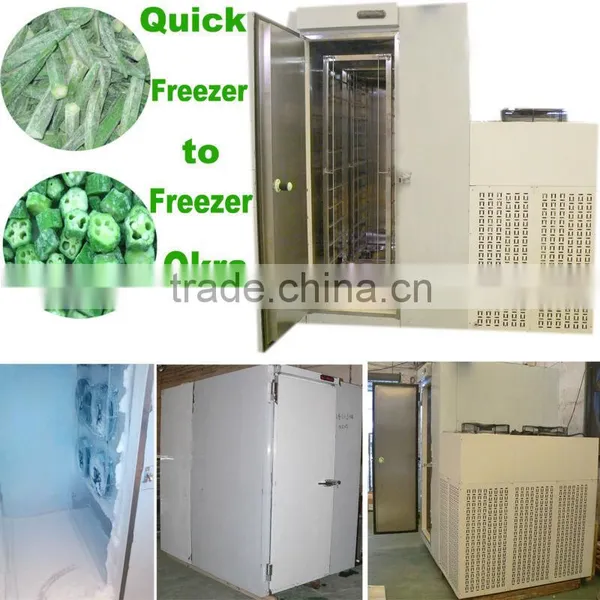

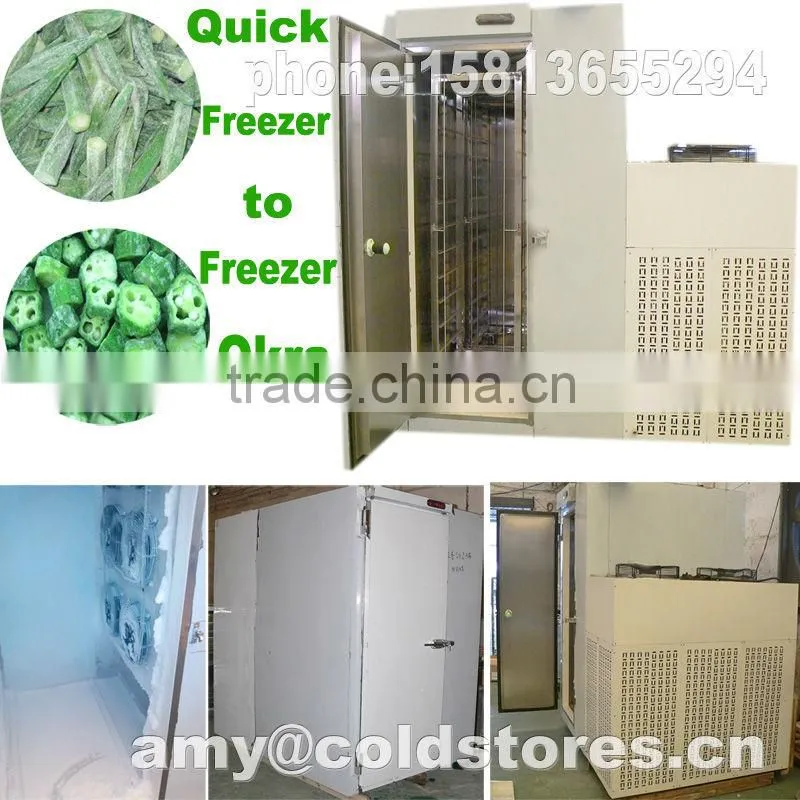

quick freezer for 400kg okra instant freezing
quick freezer PERFORMANCE:
quick freezer lowers the food temperature from 70°C to -35°C or -45 degree C within 2~3 hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates. Time/temperature chilling and freezing rates meet or exceed all FDA and state regulations.
- quick freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. quick freezer can freezer the food from 60kg ~400kg
4. we can design the module quick freezer or the finished assembled quick freezer room
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh
7.OEM Order is welcome !
Following is the information of the quick freezer for 400kg okra instant freezing
Model Number | BF-2 | BF-2-S | |
condensing unit | built-in (on the top) | split unit ( install outside) | |
1. | Unit Dimensions (MM): | 1630*1200*2140 | L1860*W1690*H2140 mm |
2. | Inner Dimensions (MM): | 1300*960*1420 | L1860*W1690*H2140mm |
3. | Packaging Dimensions (MM): | 1690*1260*2240 | l1920*W 1750*H 2240mm |
4. | Capacity | can hold 180~288kg okra | Can hold 280~450kg okra |
5. | freezing Time | It can bring cooked okra from +55 °C to 45°C in 3hrs | It can bring cooked okra from +55 °C to 45°C in 3hrs |
6. | with single trolley | double trolleys of 18 tiers | double trolleys of 28 tiers |
7. | trolley size (MM): | 500X600X1400 | 500X600X1850 |
8. | compressor | Bitzer /Copeland /Tecumseh(air cooled) | Bitzer /Copeland /Tecumseh(air cooled) |
9. | Refrigerant: | R404a | R404a |
10. | material | PU material&stainless steel SS304 | PU material&stainless steel SS304 |
12. | Voltage | 380V/50HZ | 380V/50HZ |
13. | G.W./N.W. | 400kg/320kg | 400kg/320kg |
we are the manufacturer to do the quick freezer , So OEM order is welcome . In order to design the suitable quick freezer for your , please answer us the following quesions:
1. What kind of food will be put into the quick freezer ?
2. what;s the food size (such as length ,width ,thick ) ?
3.what kind of the food package and the food packaging size ?
Plastic bag or stainless steel tray
4.what;s the foods weight for each bag or each tray?
5.how many food will be put into the quick freezer per batch ?
6.what;s the food input temperature and the output temperature ?
7.what's the food core temperature after frozen ?
8.what's the freezing time ?
9.what;s the voltage for the quick freezer you required ?
you can fill in this form and feed back to us . Then we will send you the quick freezer design for your reference :
Product |
product(meat or others) length (mm) |
product(meat or others.) width (mm) |
product(meat or others) Thick(mm) |
product(meat or others) weight(kg) |
product(meat or others) packing |
Capacity/batch |
Input temperature(°C) |
Output temperature(°C) |
Time to reach the output temperature |
Product core temperature after freezing(°C) |
Trolley |
Votage & Frequency |
Need any certificates?(CE,ETL,ROHS etc) |
- quick freezer CONSTRUCTION:
The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.

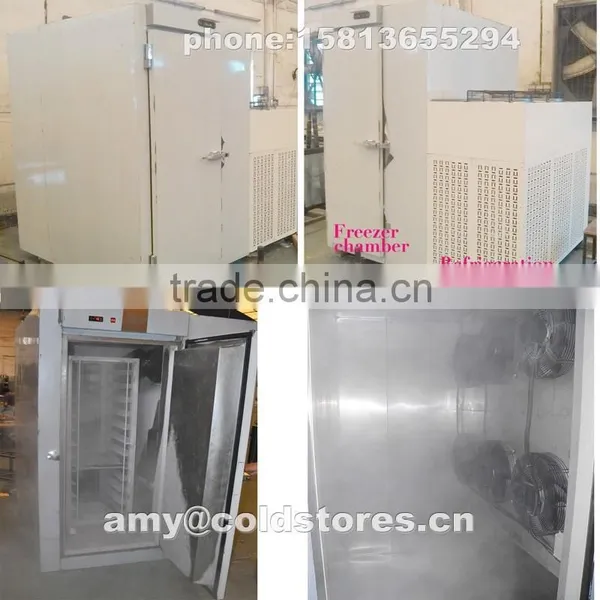

In order to know more about our quick freezer , please check the follwing detailed pictures
All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

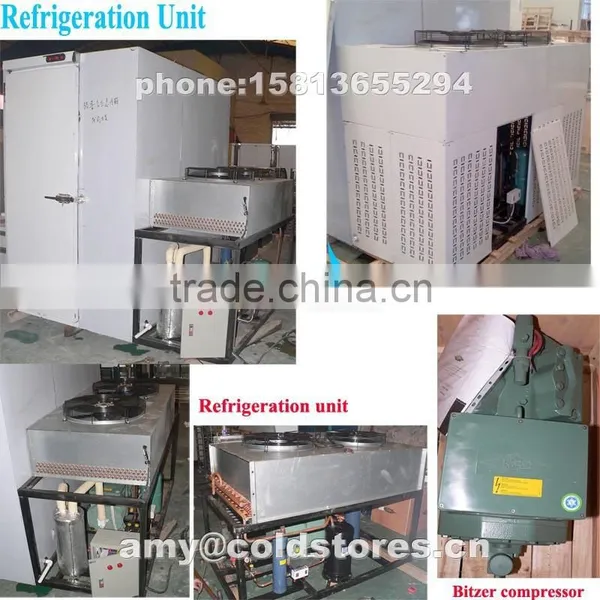

- quick freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.
The quick freezer Refrigeration Unit can be installed at the top on the
quick freezer (built-in type refrigeration uint)
or installed separate from the quick freezer ( split refrigeration unit , stand free )

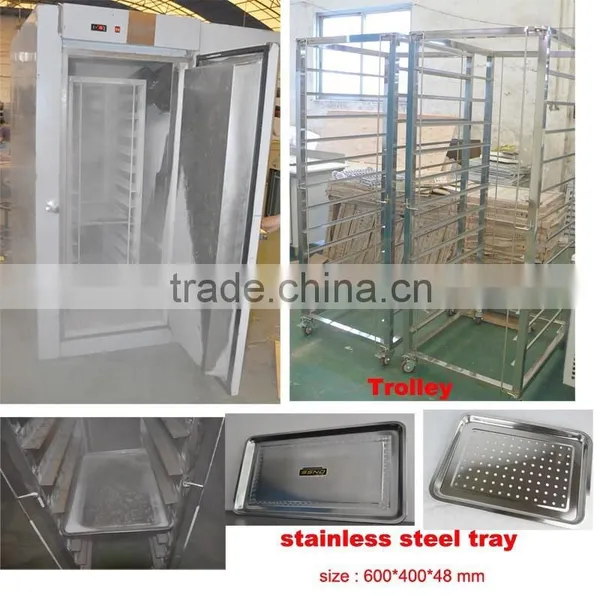

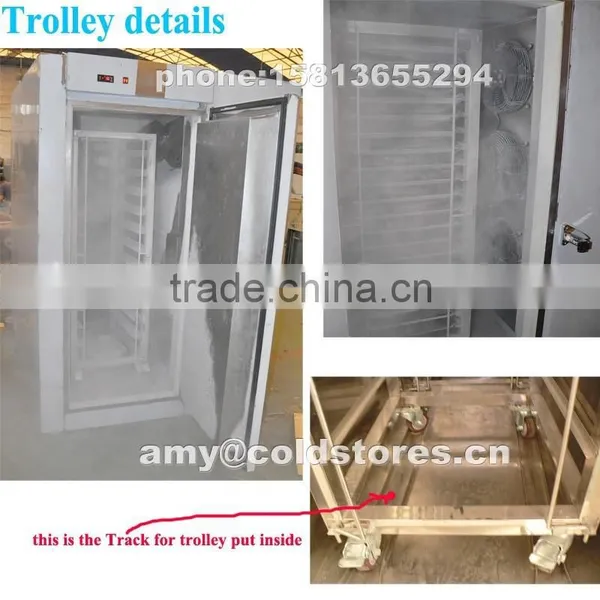

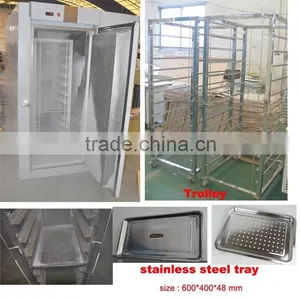

- Each quick freezer will with Trolley. Trollery size is 500X600X1400 mm ( 18 layers) or 500*600*1850 ( 28 layers)
- The quick freezer is with the slope ,which conventient for the trolleys put into the quick freezer
- quick freezer temperature can fall down to -35 degree C (just accprding to the food feature and size) , it can be Auto-defrosting
- quick freezer door . We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door in quick freezer
- quick freezer draiwing
- Packaging information for the quick freezer
1. for quick freezer sample , we will package it by plywood case
2. for full conatainer loading, we will package quick freezer by batten
- quick freezer Application :
quick freezer mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .
we can also do the Prefabricated quick freezer room for the large capacity usage . It can freezer 1000kg ~5 tons food .
