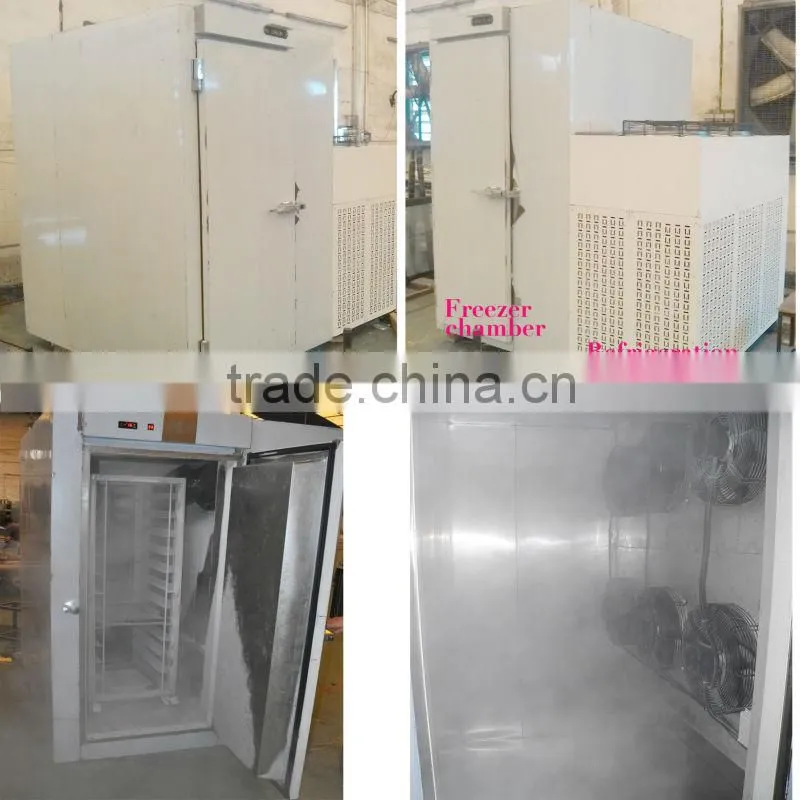

bast freezer for 200kg chips freezing

bast freezer for 200kg chips freezing

 bast freezer   Specification

1.Size: 1630*1200*2140MM
2.Inner sizer:1300*960*1900MM

3.Temperature: from +70C to -30C in 3 hours( core temperature is -20C)

4.Compressor: Bitzer

5.Cooling system: air cooled

6.Insulation panel thickness: 120MM

7.Material: all in stainless steel 304 in both sides

8.Refrigerant: R404a

9. Trolleys: 2 trolleys, 28 layers, can be changed according to the product size

10 Trolley size: 500*600*1700MM

11. Voltage is 380V/50HZ, 3 phase

This blast freezer is suitable for diced carrots, sweet corn, peas, green beans quick freezing in a short time.

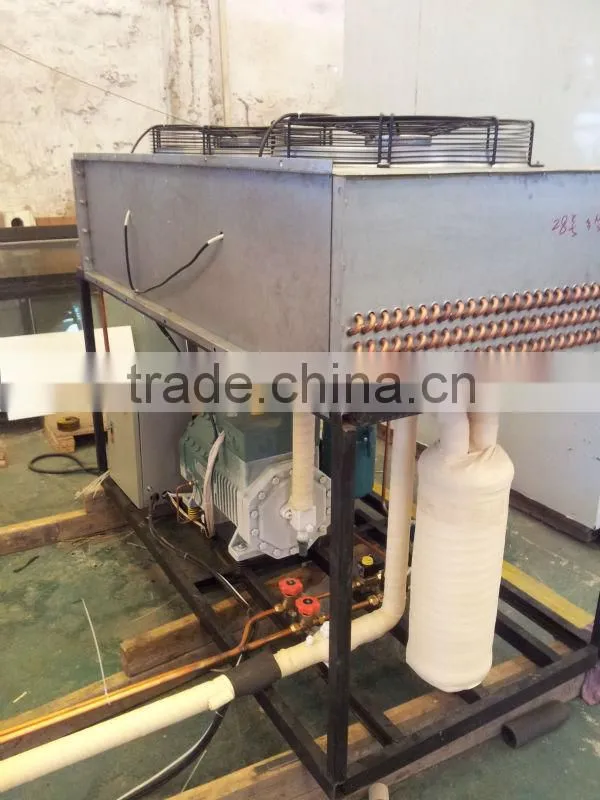

 Quick freezing machine refrigeration unit

Copeland/Bitzer

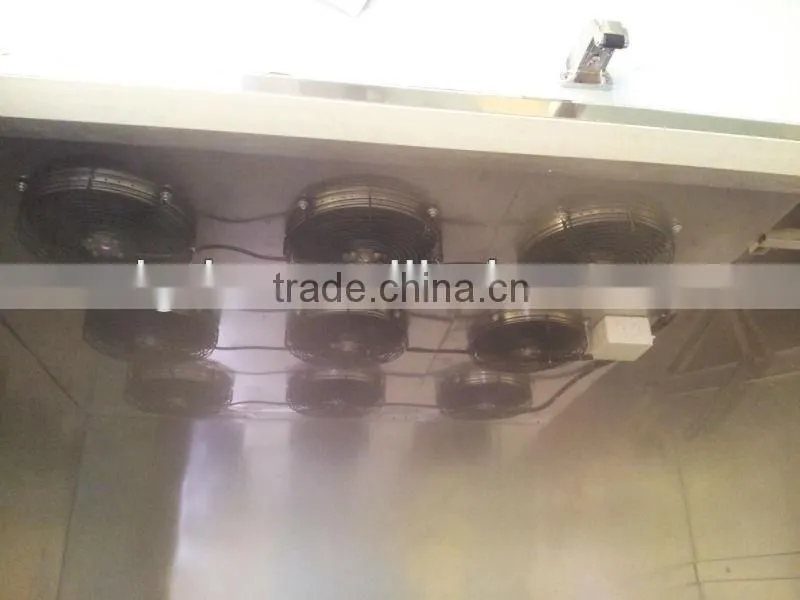

  Quick freezing machine fan

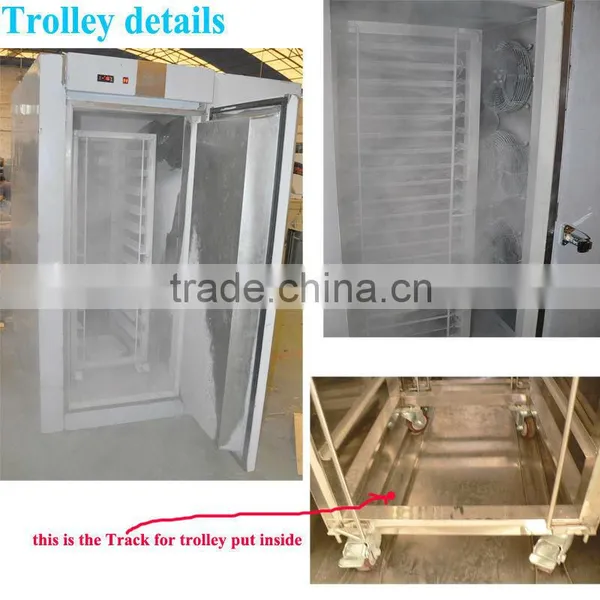

 Blast freezer trolley

This trolley have heavier products loading function.

Blast freezer digital temperature control

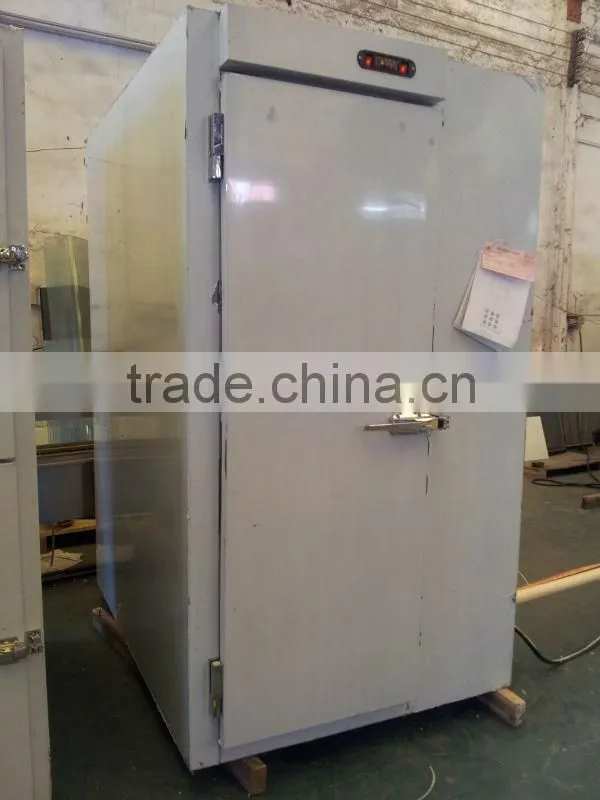

Blast freezer door handle with lock.
