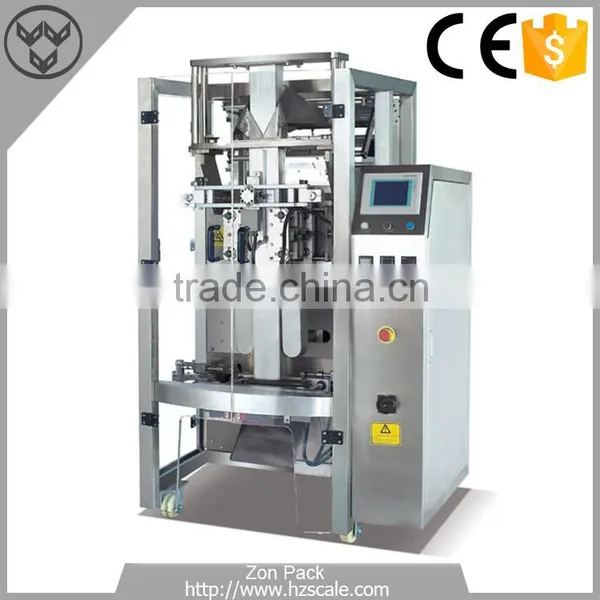

High Efficient Popsicle Filling Packing Machine

Application

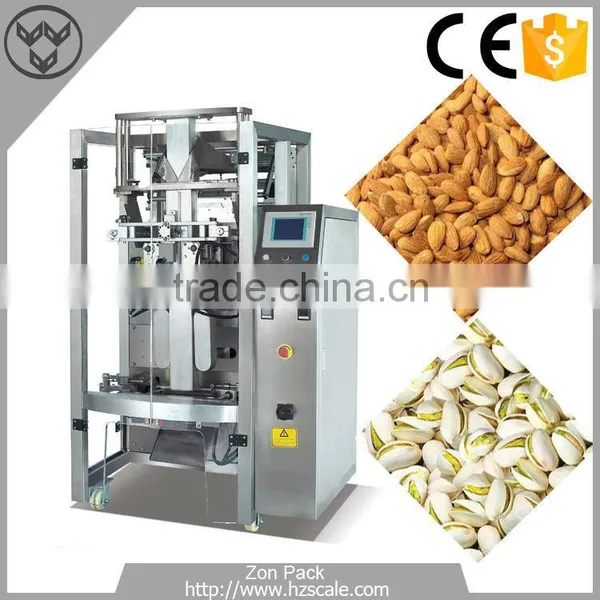

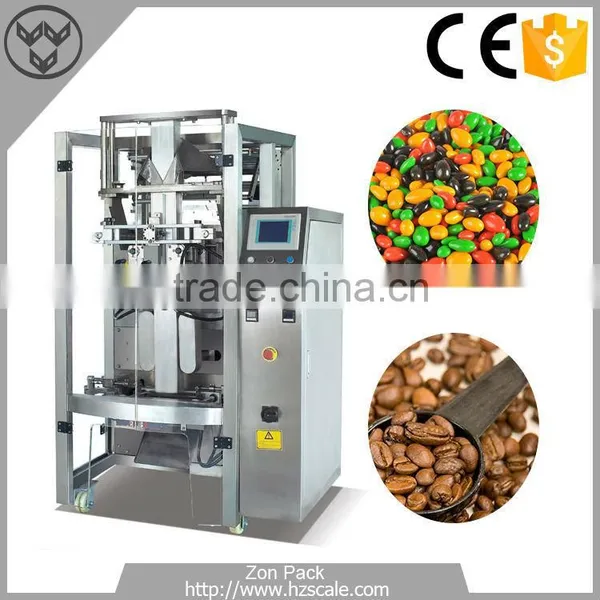

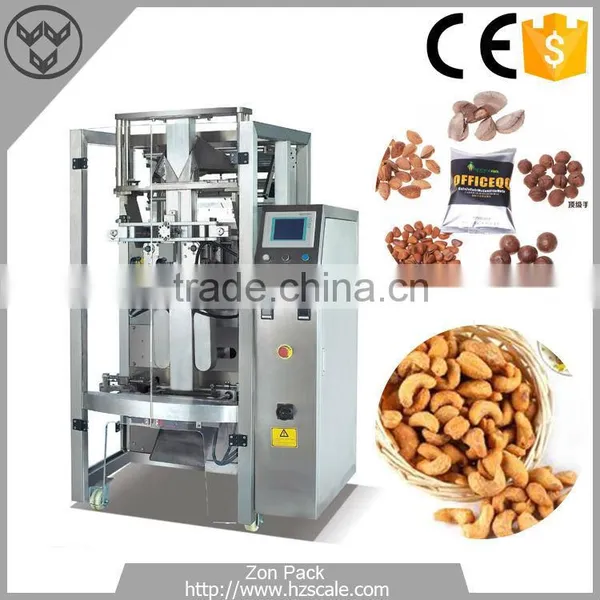

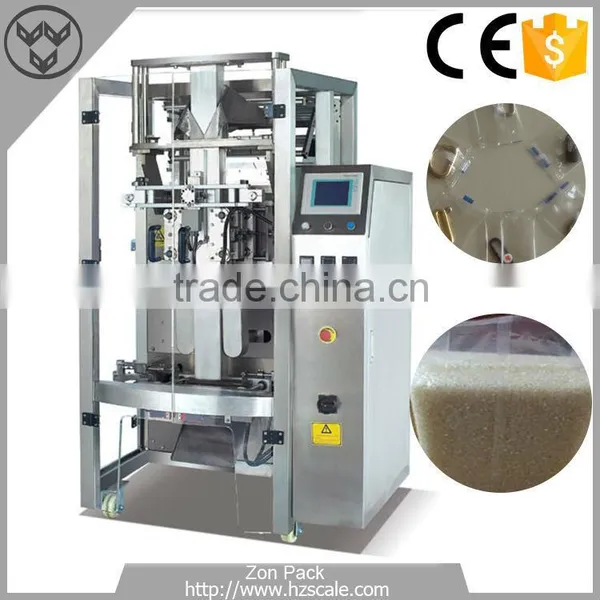

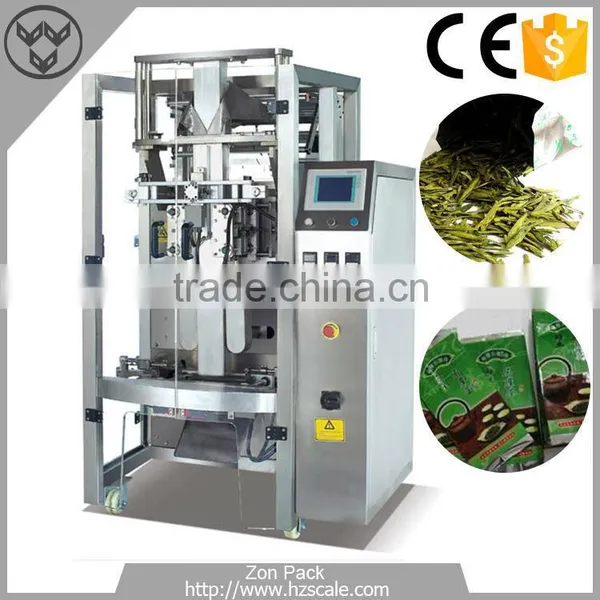

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

Main function

The four sides sealing is added on the packaging bag based on vertical bag, make the packaging bag have a stronger spatial vision, nicer appearance and more attraction.

PLC control with touch panel step by step instruction.

Equipped with servo winding system, pneumatic control system.

Using intellectual temperature controller to ensure neat sealing.

The perfect automatic alarm safety protection, little waste. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.

Parameters

Model

ZH-V720T

Packing speed

10-30 Bags/Min

Bag size(mm)

Front width 100-240

Side width 60-120

Width of side seal: 5-10

Length:100-420

Range of measuring (g)

3000

Maximum width of packing film (mm)

720

Thickness of film (mm)

0.06-0.10

Air consumption

0.8m3/min 0.8MPa

Packing Material

Complex film such as  POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET

Power Parameter

4.5KW/220V 50-60Hz

Package Volume (mm)

1700(L) ×1420(W) ×2100(H)

Gross Weight (kg)

900
