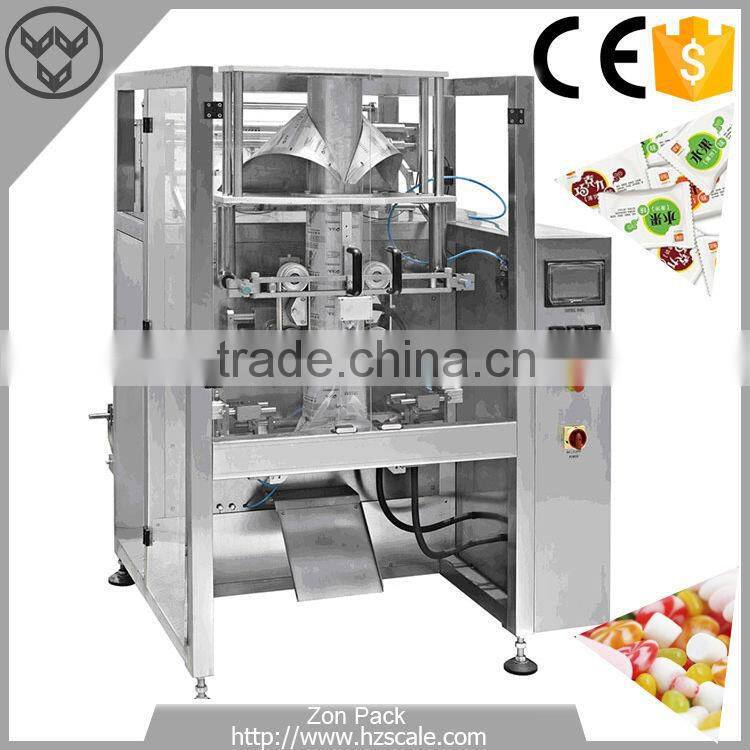

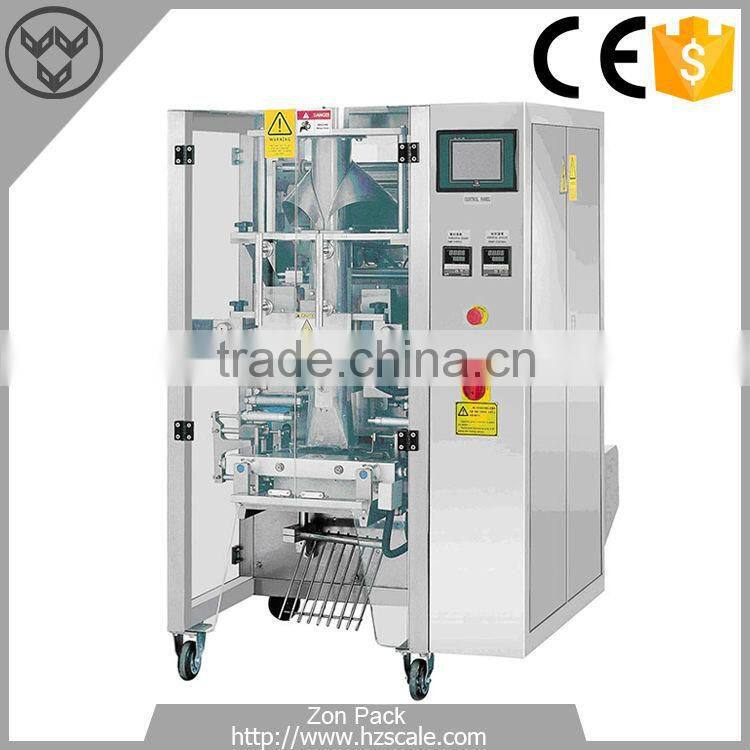

High Efficient New Jelly Stick Packing Machine

Application

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

Main function

Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

Precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

Minimize the loss with complete automatic warn protection function;

Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma

The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Parameters

Model

ZH-V1000

Packing speed

5-30 Bags / Min

Bag size(mm)

(W)200-500  (L)180-600

Bag making mode

Pillow-type bag, standing bag, punch,

Linked bag

Range of measuring (g)

300-10000

Maximum width of packing film (mm)

1050

Thickness of film (mm)

0.06-0.10

Air consumption

0.8m3/min 1.0MPa

Packing Material

Complex film such as  POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET

Power Parameter

6KW/220V 50-60Hz

Package Volume (mm)

1980(L)×1780(W)×2200(H)

Gross Weight (kg)

900
