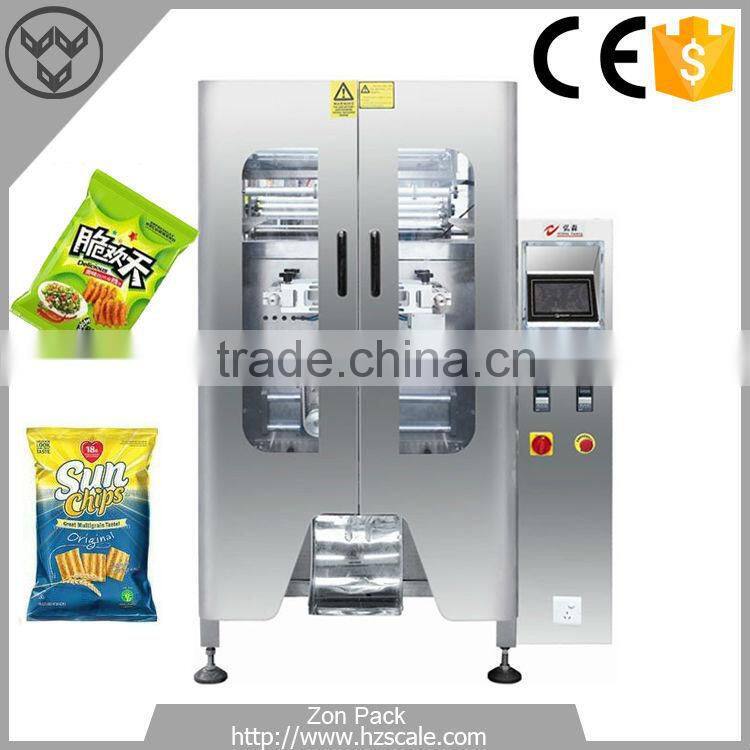

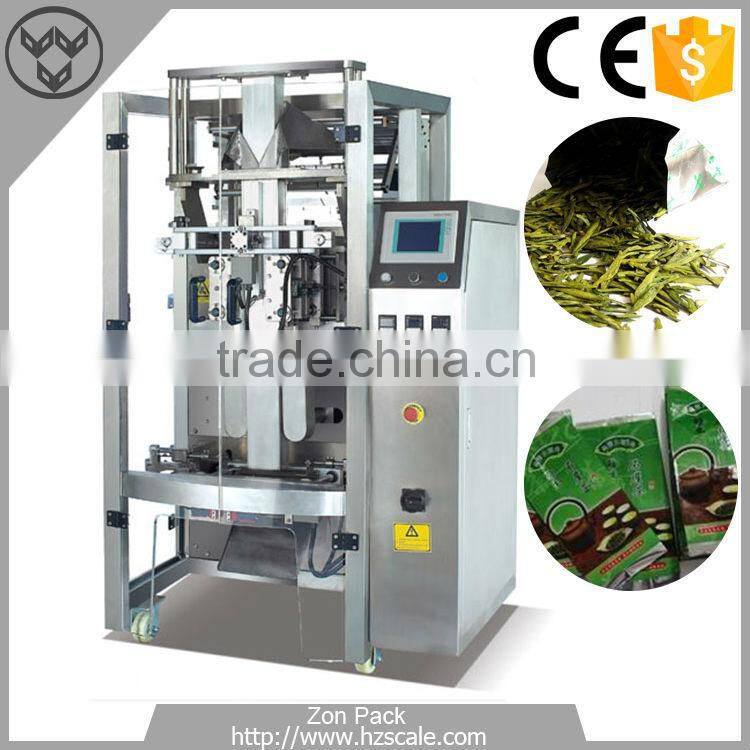

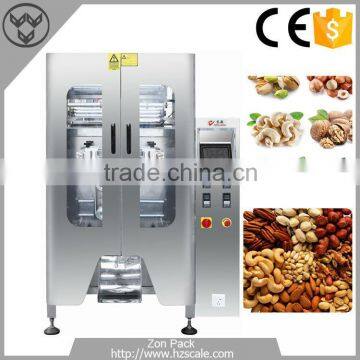

High Quality Nuts Candy Packing Machine

Application

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

Main function

The four sides sealing is added on the packaging bag based on vertical bag, make the packaging bag have a stronger spatial vision, nicer appearance and more attraction.

PLC control with touch panel step by step instruction.

Equipped with servo winding system, pneumatic control system.

Using intellectual temperature controller to ensure neat sealing.

The perfect automatic alarm safety protection, little waste. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.

Parameters

Model

ZH-V520T

Packing speed

10-30 Bags/Min

Bag size(mm)

Front width 100-180

Side width 60-100

Width of side seal: 5-10

Length:100-350

Range of measuring (g)

1000

Maximum width of packing film (mm)

520

Thickness of film (mm)

0.06-0.10

Air consumption

0.8m3/min 0.8MPa

Packing Material

Complex film such as  POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET

Power Parameter

4.5KW/220V 50-60Hz

Package Volume (mm)

1600(L) ×1400(W) ×2000(H)

Gross Weight (kg)

750
