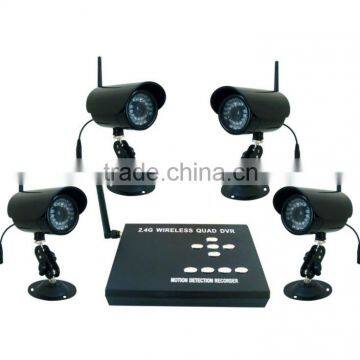

2.4GHz Wireless Digital Four Quad DVR Kit

home intelligence wireless DVR

Features:

*Support standard NTSC/PAL TV system video output
*Support single screen and 4 channel’s screen display simultaneously
*Support video recording function
*Support system information display in the screen(OSD)
*Support 32 GB SD Card
*Support real-time clock display
*High definition CMOS image sensor
*Motion detection video and photo function
*Support overwrite function
*Single and 4 Channel’s video and photo simultaneously
*Support record audio simultaneously when recording video in single scene
*Receiver with built-in wide power supply and stable voltage circuit, power can be from 6V-12V/500MA

Camera:


Work Voltage  DC12V/500--1000MA
Frequency  2.4GHz ISM Digital public band
Transmit power  17dBm
Operating Range  Open field:150-250meters
Work Current No night vision:250MA MAX; With night vision:450MA MAX
Camera Resolution  0.3 Mega Pixel
Night vision range  6-10 meter
Operating Temperature  0°C~50°C

Receiver:
Function  Description
Frequency 2.4G ISM Digital public band
Work method AFH and TDMA
Receiver Sensitivity -90dBm
Work Voltage  DC6-12V /1000MA
Standby current -250MA
Work current -500MA
Video output  1Vp-p CVBS
Video output system  PAL and NTSC
Video format
H264+PCM
Single screen status:512*384 @25fps
4 screen status:320*240 @12fps
Video playback Full screen single scene playback
Photo format  Single screen status:512*384 JPG
4 screen status:320*240 JPG
SNR 46dB
Operating Temperature 0°C~50°C

Gift Box Size:32x18x7.5cm
Carton Box Size:39x33x37cm
1 gift box:1 Unit
1 Carton Box:10 sets
Gross Weight:11kg/carton
Net weight:10kg/Carton
weight:1kg/Carton
