Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Mini Wireless CCTV Camera

Mini Wireless CCTV Camera

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

GTW

Model Number:

ZJ901A

Contact Supplier Request Quote Chat Now

Shenzhen Gtw Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GTW

Model Number ZJ901A

Style Mini Camera

Sensor CCD

Technology Pinhole

Special Features Vandal-proof

Type Other, Video Camera

Specifications

*wireless CCTV camera
*Camera with AC or Battery operated for portability
*Compact Mini size
* 4-channel operation

Features of wireless CCTV camera:

*2.4GHZ,High quality Color CCD sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Camera with AC or Battery operated for portability
* Compact, Lightweight and Super Mini size
* The receiver have auto-scan channel function after you press the channel switch button
until the all four channel LED indicator light flash

Camera Specification

*Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz

*Imaging Sensor: 1/4 sharp CCD
*Horizontal Resolution: 420 TV Line
*CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
*View Angles: 62 degrees
*Minimum Illumination: 0Lux / F1.5
*Gain Control: Automatic
*Transmission Power: 10mW
*Consumption Current: 80 mA
*Modulation Mode: FM
*Bandwidth: 18M
*Operating Range: 30m/100m (Obstructed / Unobstructed)
*Power: DC 12V Battery
*Operating Temperature: -10oC ~ +40oC
*Operating Humidity: 85%RH
*Dimension(WxLxH): 30x30x52mm
*Weight: 65 g

Receiver Specification

*Frequency: ISM 2,400 - 2,483MHz
*Antenna: 50ohm SMA
*Channel: 1-4 (Flip-type switch)
*Intermediate Frequency: 480MHz
*Frequency Stabilization: +/- 100KHz
*Demodulation Mode: FM
*Receiving Sensitivity: <-85dBm
*Power:DC 9V/12V
*Operating Temperature: -10oC ~ +40oC
*Operating Humidity: 85%RH
*Dimension(WxLxH): 91x80x22mm
*Weight: 150g

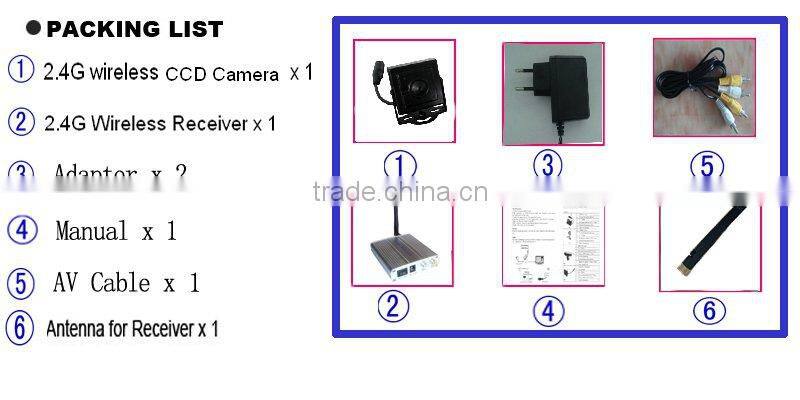

Standard Package Content

*2.4GHz Wireless Color Camera with Built-in Microphone
*2.4GHz Wireless Flip-type 4-channel AV Receiver
*Antenna for Receiver
*AV cable
*12V Power Adaptor for Camera
*9V Power Adaptor for Receiver
*Swivel Bracket for Camera

Packing

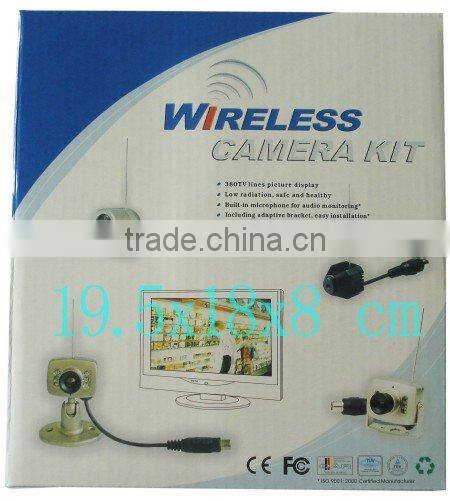

*Gift Box Size : 19.5x18x8 cm
*Carton Box Size: 41.5x37.5x42 cm
*1 gift box : 1 Unit
*1 Carton Box : 20 sets
*Gross Weight : 14 kg/ carton
*Net weight : 13 kg/Carton
*Net weight : 0.65 kg/Carton
