Wireless CMOS Camera and Receiver Series

Wireless CMOS Camera and Receiver Series thumbnail-1
Wireless CMOS Camera and Receiver Series photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ503YA
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ503YA
Type Digital Camera
Style Box Camera
Sensor CCD
Technology Infrared
Special Features Vandal-proof

Specifications

-Security Wireless Mini Camera
-High quality Color CMOS sensor for crisp
-Built-in microphone
-4-channel operation
-CE,FCC,

Features:

*5.8GHZ,High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Camera with AC or Battery operated for portability
* Compact, Lightweight and Super Mini size
* The receiver have auto-scan channel function after you press the channel switch button
until  the all four channel LED indicator light  flash







Camera Specification :



Frequency: 5737.5MHz;5762.5MHz;5787.5MHz;5812.5MHz

Imaging Sensor: 1/3 inch OMNIVISION Color CMOS

Horizontal Resolution: 380TV Line

CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)

View Angles: 62 degrees

Minimum Illumination: 1.0Lux / F1.5

Gain Control: Automatic

Transmission Power: 10mW

Consumption Current: 80 mA

Modulation Mode: FM

Bandwidth: 18M

Operating Range: 30m/100m (Obstructed / Unobstructed)

Power: DC 8V ;built-in li-battery

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH):26x23x40 mm

Weight: 60g





Monitor Specification :



Frequency: ISM 5,725~5,875 MHz

Antenna: 50ohm SMA

Channel: 1-4 (Flip-type switch)

Intermediate Frequency:

Frequency Stabilization: +/- 100KHz

Demodulation Mode: FM

Receiving Sensitivity: under-85dBm

Video Output: 1Vp-p@75 ohm, S/N>38dB

Audio Output: 1Vp-p@600 ohm

Power:DC 9V

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH): 91x80x22mm

Weight: 150g

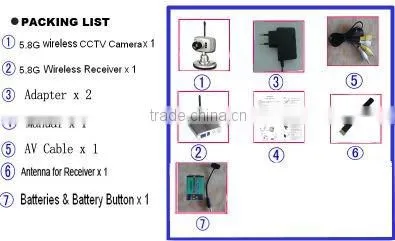

Standard Package Content:

wireless CMOS Camera and Receiver Series



5.8GHz Wireless Color Camera with Built-in Microphone



5.8GHz Wireless Flip-type 4-channel AV Receiver

Antenna for Receiver

AV cable

8V Power Adaptor for Camera

9V Power Adaptor for Receiver

9V battery buckle

Swivel Bracket for Camera







wireless CMOS Camera and Receiver Series



Gift Box Size : 19.5x18x8 cm



Carton Box Size: 41.5x37.5x42 cm

1 gift box : 1 Unit

1 Carton Box : 20 sets

Gross Weight : 15 kg/ carton

Net weight : 14 kg/Carton

Net weight : 0.7 kg/Carton



wireless CMOS Camera and Receiver Series
